Product Overview

Description

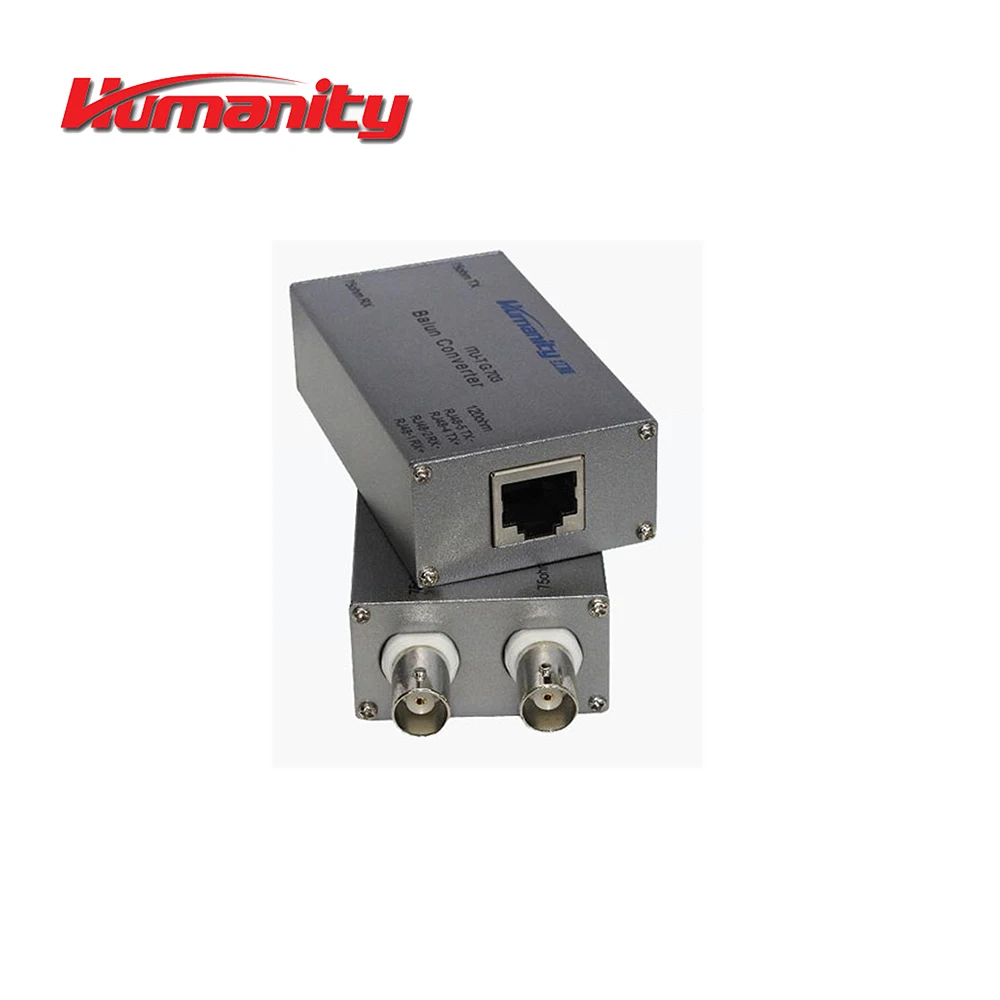

HM-C702 twisted pair and coaxial balun



Humanity HM-C702 twisted pair and coaxial balun supports E1 data rate 2.048Mbps, and realize the transparent transmission between 75ohm and 120 ohm. The output signal is according to ITU-T G.703.



Main Feature

  • According to ITU-T G.703
  • Connects 75 ohm dual coax to 120 ohm twisted pair
  • Data rates up to 2.048Mbps
  • Coax BNC connectors, Female or Male optional
  • Settled 120ohm balance port pin
  • No AC power or batteries required

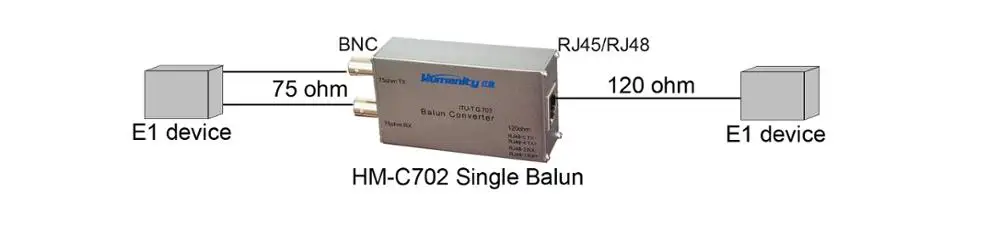

Application Diagram

702



Order Information
ModelDescription
HM-C702Single balun
HM-C71616ports balun panel
HM-C72424ports balun panel, 120ohm with RJ21X, 75ohm with BNC
HM-C724X24ports balun panel, 120ohm with RJ45/RJ48, 75ohm with BNC
