Product Overview

Description

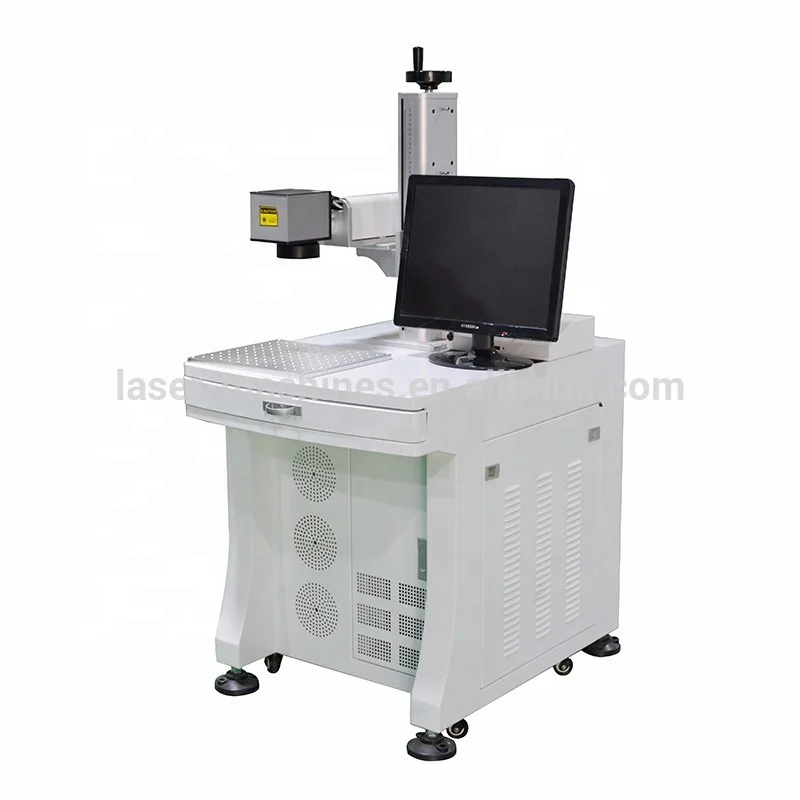

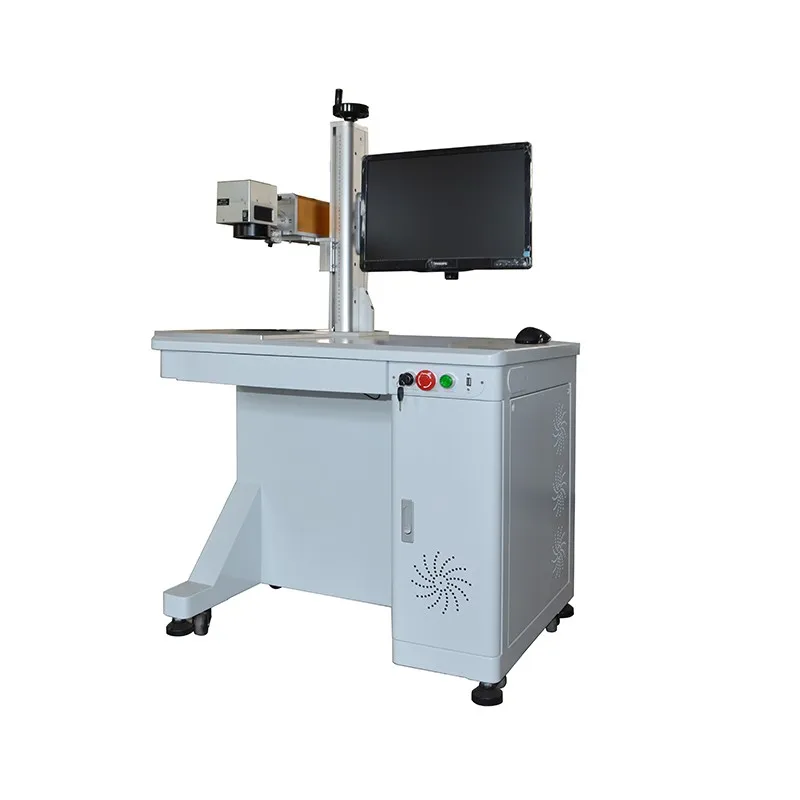

Good supplier best selling laser engraving machine price for small objects marking on buckles buttons jewelry metals



Application of jewelry laser engraving machine

Marking content



jewelry laser engraving machine can mark logo, character, serial number, bar code, data matrix on both metals and some non-metals.



Applicable Materials



Metals and alloys (carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc, etc.), rare metal and alloy steel (gold, silver, titanium, etc.) and some non-metal (plastic, PMMA, etc.), special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy).



Applicable Industries



Electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molding, gaskets and seals, bearing, auto parts, hardware, tools, building materials, PVC tubes.

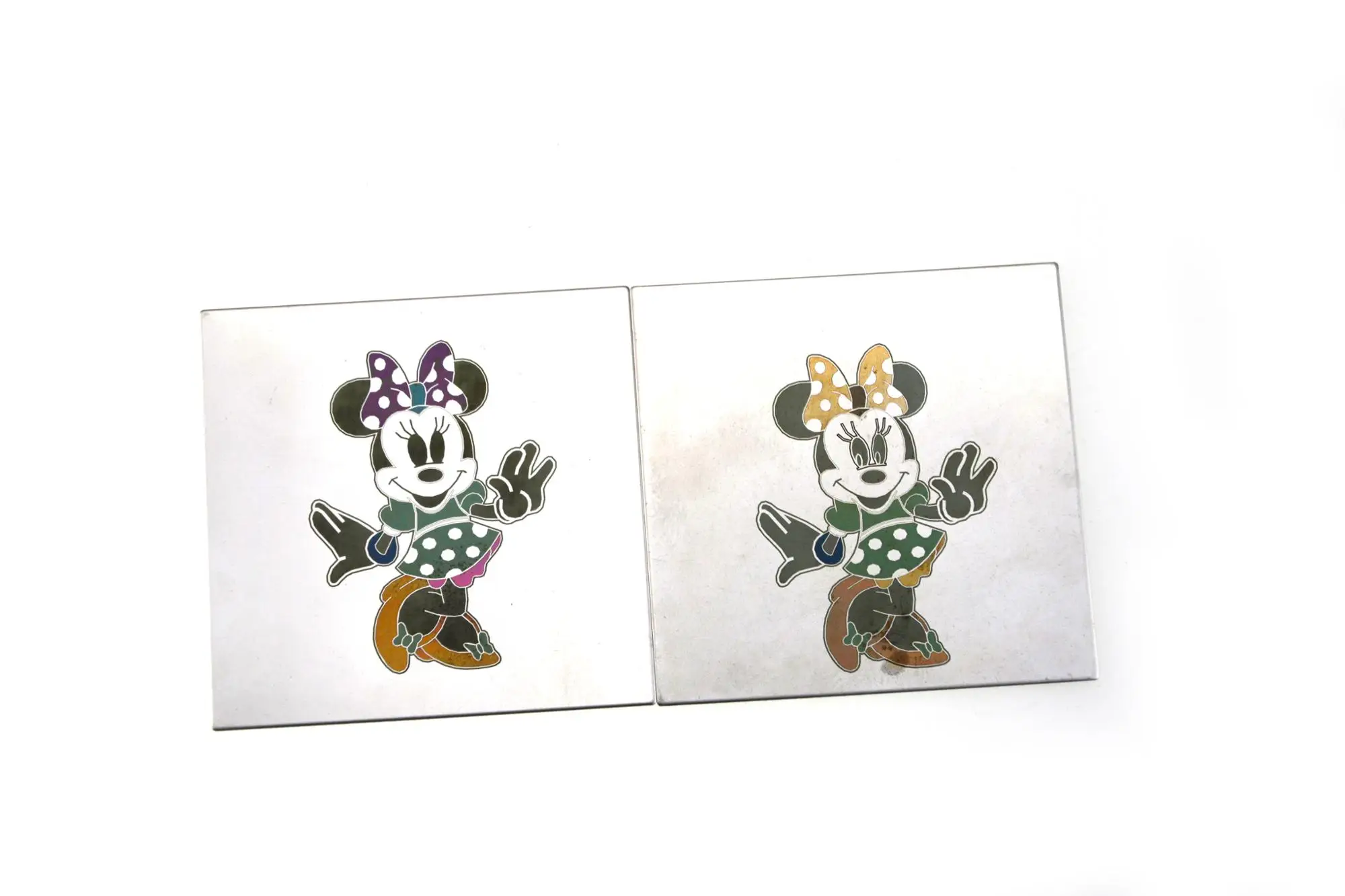

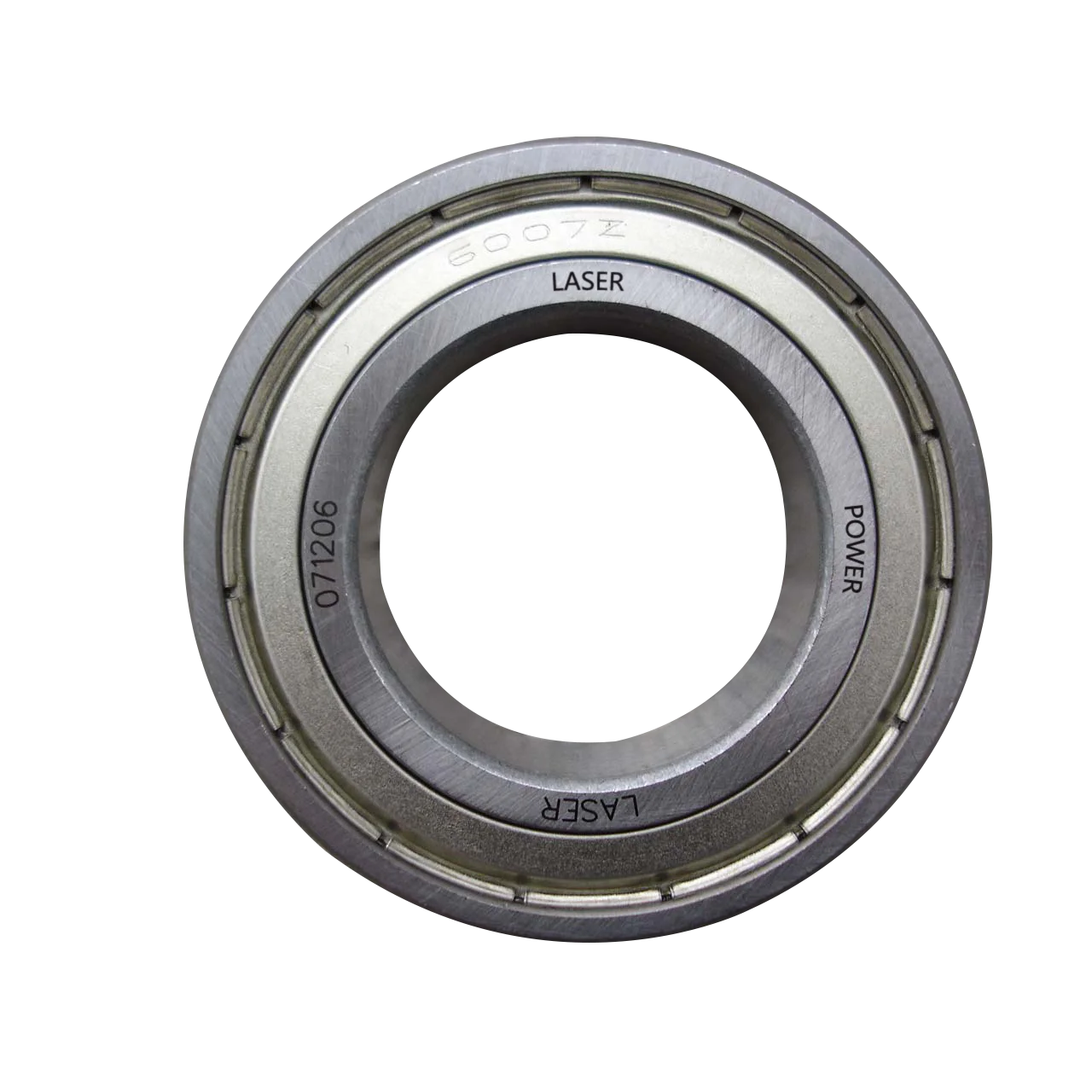

Marking Samples of Jewelry laser engraving machine





Marking Videos of jewelry laser engraving machine



jewelry laser engraving machine for Metal

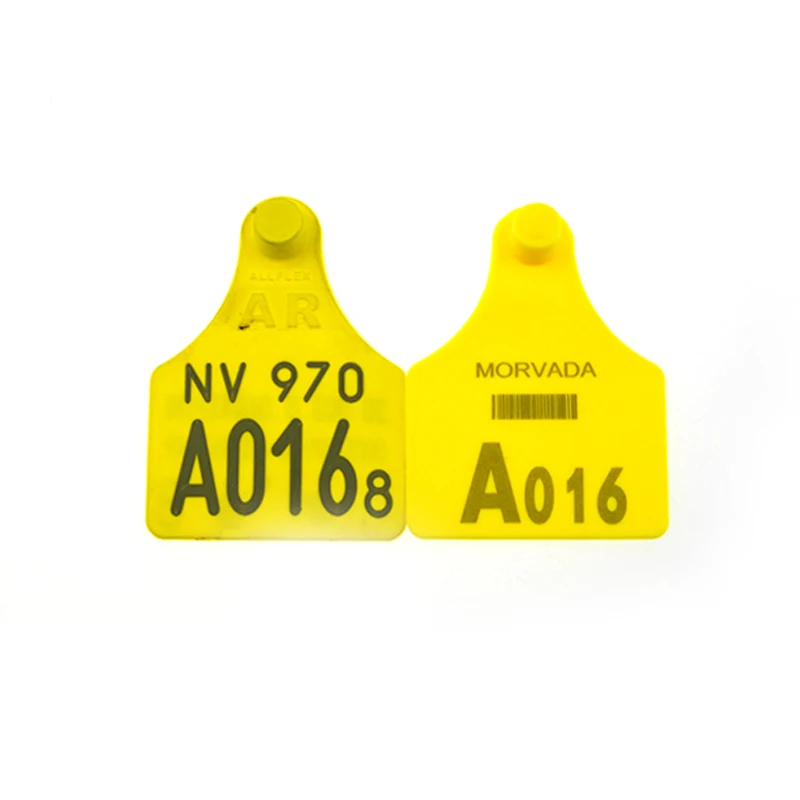

jewelry laser engraving machine for Plastic

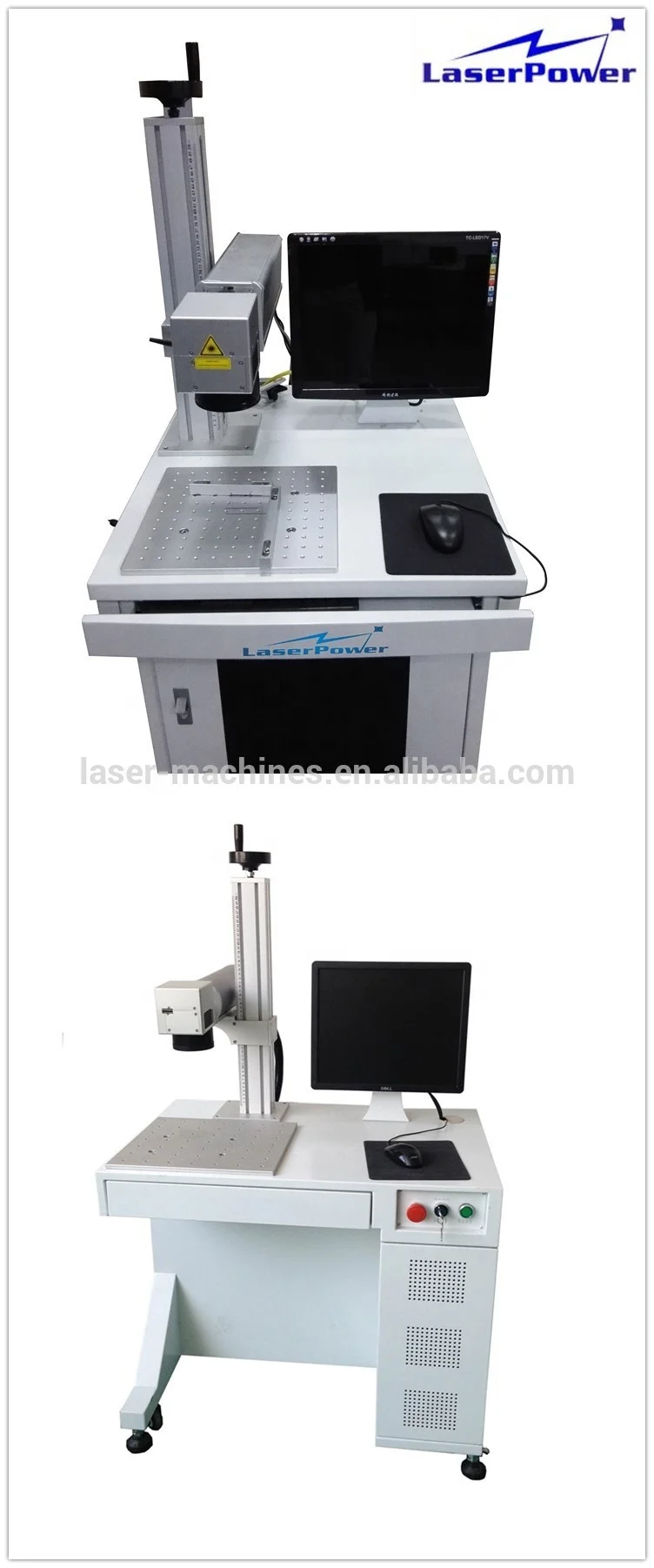

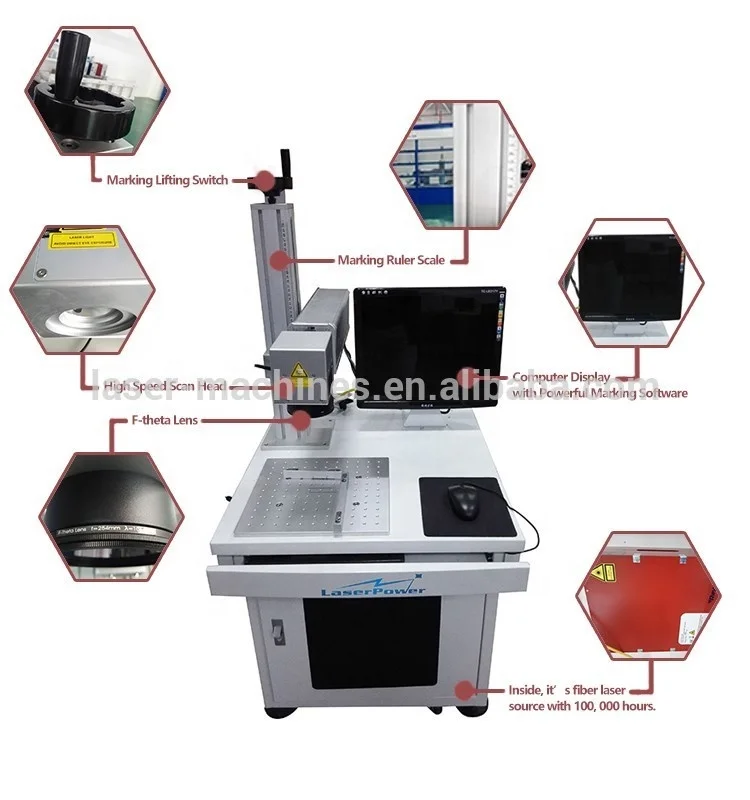

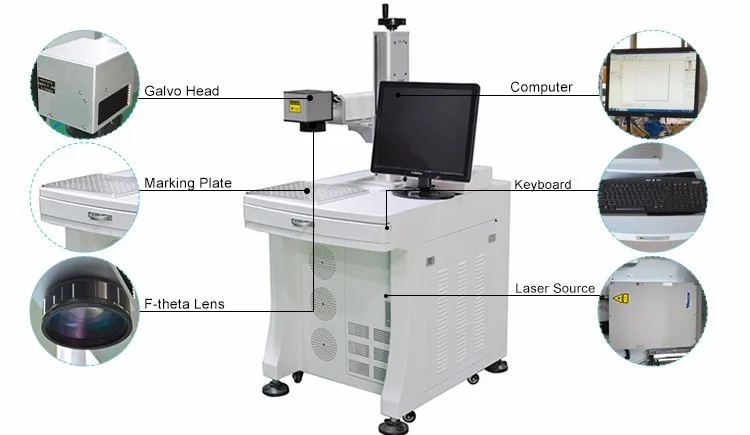

Details of jewelry laser engraving Machine



Features:

• Pulse fiber laser source; long lifetime (100,000 hours/around 22 years if 12 hours' working time per day); without consumables; cost effective


• Professional and powful control system. It can mark logo, character, serial number, bar code and data matrix on both metals and some non-metals. It can meet different marking requirements.


• English operation interface with easy operation.


• Fast marking speed; high marking precision


• Permanent marking, won't be wiped out by sun or rain, convenient to trace.

Specifications:



Wavelength	1064nm
Fiber Laser Source	IPG; Raycus; JPT; Max (optional)
Laser Power	10W; 20W; 30W; 50W; 60W (optional)
Marking Area	110mmx110mm; 200mmx200mm; 300mmx300mm (optional)
Min. Line Width	0.03mm
Min. Character Size	0.5mm
Marking Speed	≤16000mm/s
Pulse Width	≤60us
Repetition Positioning Accuracy	10urad
Laser Type	Pulse Laser
Laser Mode	Single Mode
Positioning Mode	Red Beam
Cooling Way	Air Cooling
Power Supply	Single Phase AC 220V, 50/60Hz



Configurations:



1	Laser Source(IPG/Raycus/JPT/Max 10W/20W/30W/50W/60W)
2	Scan Head (high speed scan head, adopting SCANLAB technology)

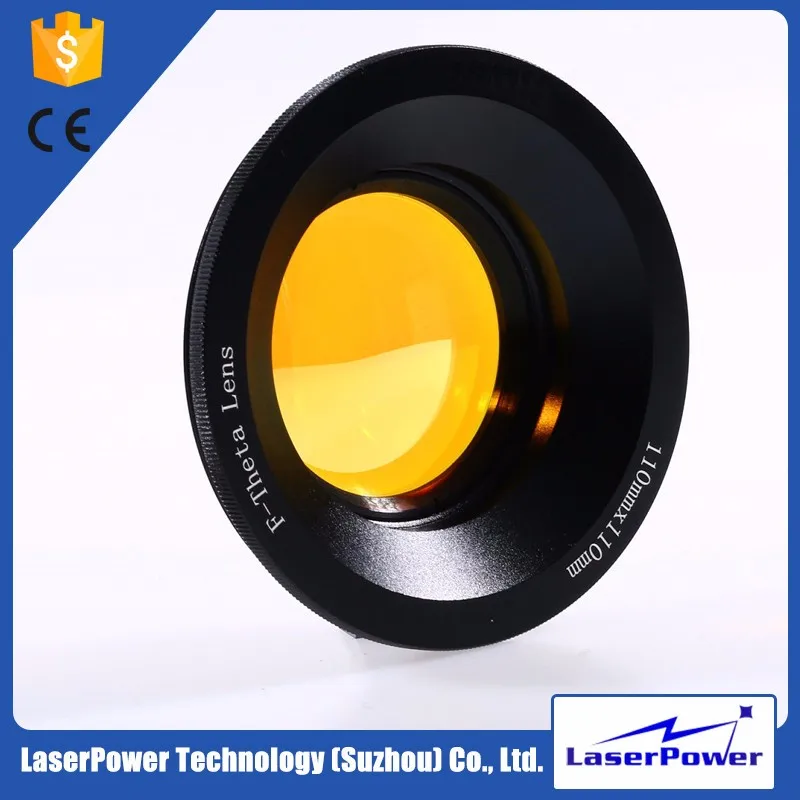

3	Field Lens (F160, F254, F290, F330, F420)
4	Operation System(WIN XP/7/8/10 English Version)
5	Marking Software(EZCAD, Engish Version)









If you have any specified requirements, like rotary device, cover, etc. please contact us!



Certificate





Packaging & Delivery

Size: 1.02m*0.77m*1.56m=1.22CBM

Weight: 136kg.

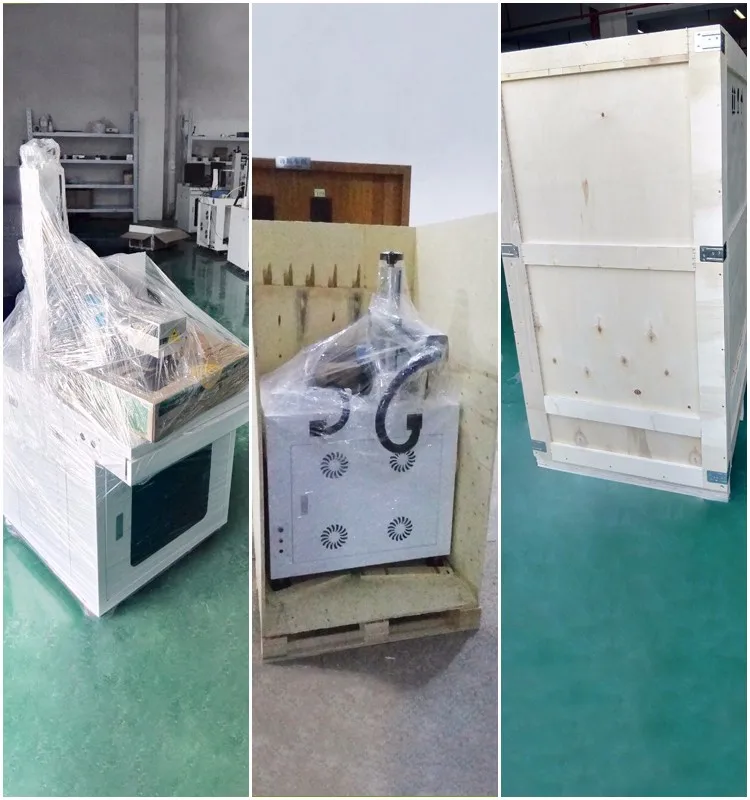

We have 3 layers package for every jewelry laser engraving Machine. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.



After-sale Service



Q: How to Install the machine?
A: After receive our machine, customers do not need to install it and can use it directly.



Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It’s very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with  Laser marking  Machine before can still operate it very well. According to customers’ requests, we can send our technician to customer’ plant for machine training or customers can come to our plant for machine training if needed.



Q: What's the warranty?
A: We provide two years machine warranty. During the two-year warranty, in case machine exists problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.



Q: What’s delivery time?
A: Generally speaking, lead time is 5-7 working days after receive the payment.



Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers’ requests.



Q: Is there any technical support in case any machine problem?

A: Yes, for any machine issues, we'll solve the problem through email, skype, phone or video. If the problem still exists, we'll send our technician to customer's plan for machine repair. We'll respond customer's question within two hours.

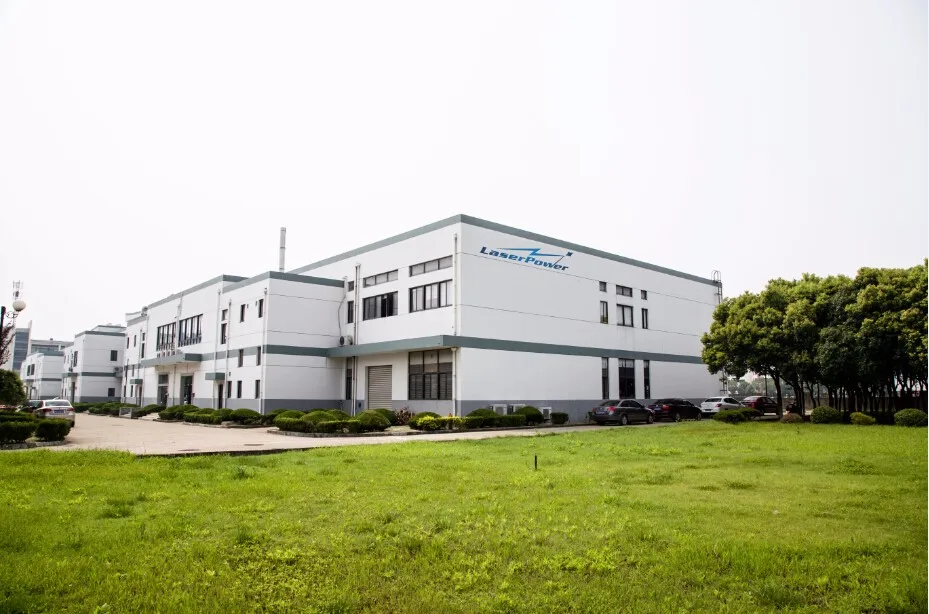

About us
