Made in China Hot Selling Clam Shell Drilling Bucket
Clam Shell Bucket
1. Parameter
Product Name
Clam Shell Bucket
Material
Q345B
Technique
Welding
Kelly Box
Bauer Type 200mm*200mm as usual
Teeth
B47K-17 or V19
Model
Diameter (mm)
Shell Length (mm)
Shell Thickness (mm)
Base Plate Thickness (mm)
Weight (kg)
ZWK-Y 600
600
1200
25+40
50
860
ZWK-Y 700
700
1200
25+40
50
980
ZWK-Y 800
800
1200
25+40
50
1160
ZWK-Y 900
900
1200
25+40
50
1430
ZWK-Y 1000
1000
1200
25+40
50
1620
ZWK-Y 1200
1200
1200
30+40
50
2250
ZWK-Y 1250
1250
1200
30+40
50
2350
ZWK-Y 1500
1500
1200
30+40
50
3250
Customize:
1. Diameter: 500~1500mm
2. Shell length: 800~1500mm
3. Shell thickness: 25+40mm or 30+40mm
4. Kelly box: Bauer type(200*200mm, etc.), Sany type(200*200mm, 150*150mm, etc.), Soilmec type(75*75mm, 100*100mm, 130*130mm, etc.), etc.
*Alibaba Hot Selling Clam Shell Drilling Bucket
2. Brief Introduction
Clam shell buckets are used for soft silt and clay formation of strong adhesiveness. The shell and the kelly box of clam shell bucket is connected by two hinges. The shell body can be opened and closed by its self-rotation. It is applied to bore small diameter holes for clay formation. The unique design helps to dump the earth out from the shell body. There is no pilot for clam shell bucket and the teeth is distributed in a interlocked order. These years, bullet teeth are widely used on clam shell buckets for different layers.
*Alibaba Hot Selling Clam Shell Drilling Bucket
3. Type

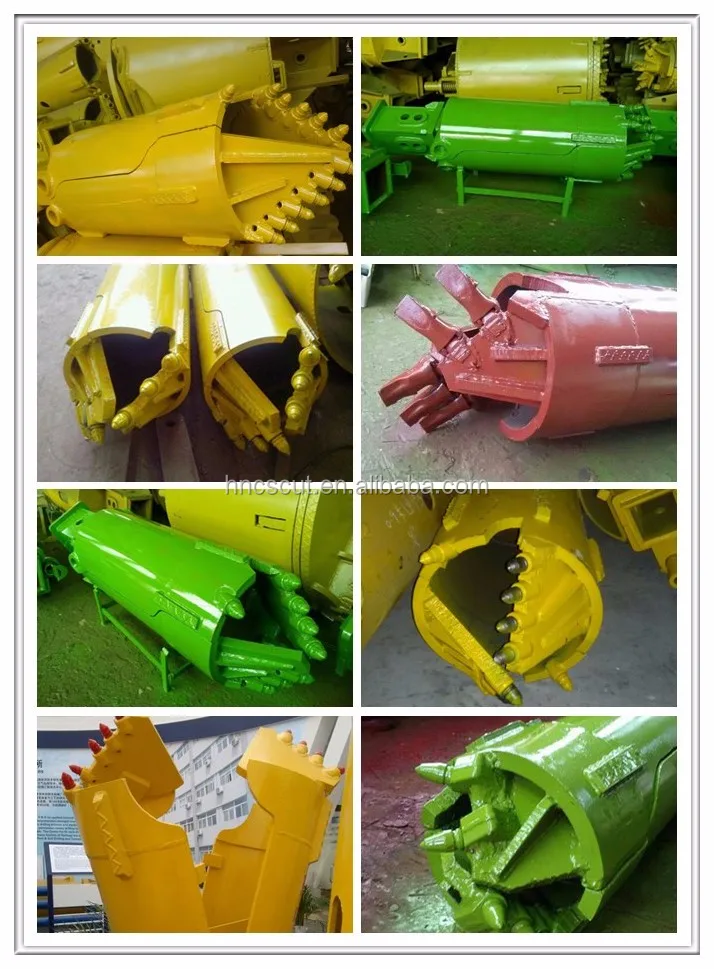

a). Clam shell bucket with bullet teeth
b). Clam shell bucket with flat teeth
c). Clam shell bucket with bullet teeth and flat teeth
* Other types can be manufactured as per customers' demand.
4. Structure

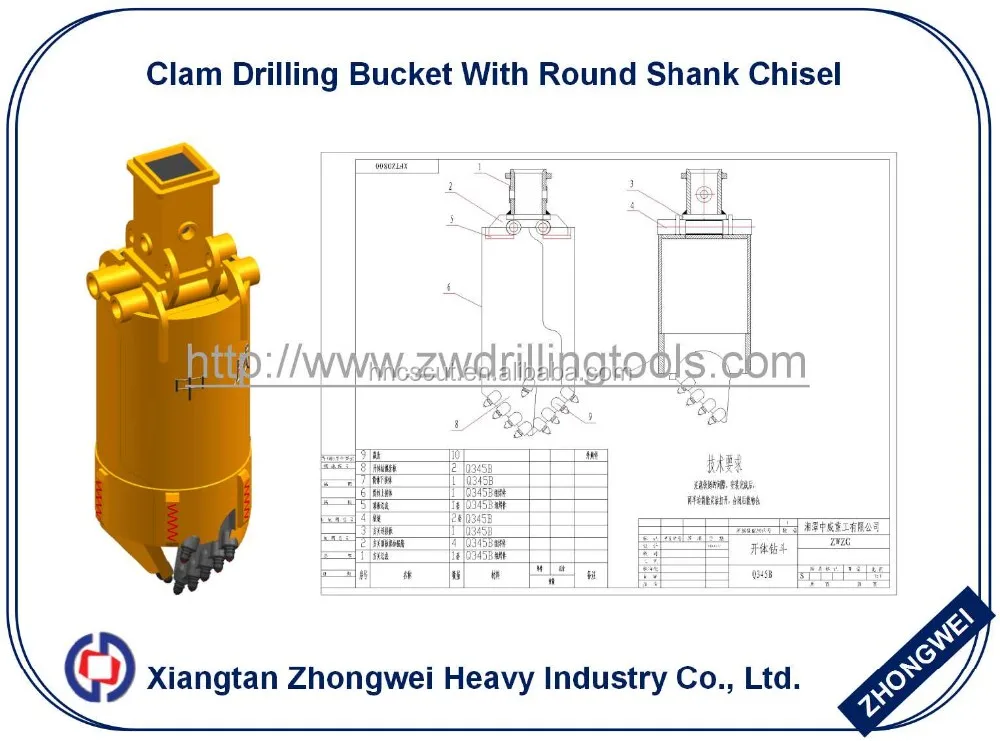

1. Kelly box 2. Top plate 3. Hinge 4. Upper shell 5. Bottom shell 6. Base plate 7. Teeth
*Alibaba Hot Selling Clam Shell Drilling Bucket
Packaging & Shipping
A. Packaging
1. Wrapped with plastic film
2. Fixed with iron support or wooden case or Iron case
B. Freight
1. Ocean shipping as usual
2. Air freight or land freight as customers' special demand
C. Port
1. Changsha Port for FCL as usual
2. Tianjin or Shanghai or Shenzhen Port for LCL or bulk cargo as usual
2.Technical adviser: Dr. Liu Jinggang fromXiangtan University
Professor Tang Huanqing fromHunan Institute of Engineering
3.Supported byState Innovation Found
4.A member of Hunan DrillingMechineryClub
B. Products
1. single/double bottom sand drilling bucket with bullet teeth or flat teeth
2. bullet teeth or roller bit core barrel
3. belling bucket/clam drilling bucket/clean out bucket
4. conical or cylindrical auger/CFA auger
5. round shank chisel/flat teeth/roller bit
6. interlocking or frictional kelly bar
7. single/double wall casing pipe
8. tremie pipe
9. steel wire rope
10. pile breaker
C. Customers
With a group of engineers and skilled workers with years of experience in engineering and construction design, our products are widely recogized and trusted by users. In the domestic market, we are the main supplier for Sany, XCMG, Zoomlion, Yutong, Sunward and Foton. In addition, our products are widely exported to the USA, Nea Zealand, Australia, Brazil, Souteast Asia, Middle East, Brazil, Russia and Afica, etc.
Our Services
A. Procedure
--- OEM or customized products
--- Track the production
--- Arrange for inspection if needed
--- Take photos before delivery
--- Arrange for customs clearance
--- Track the shipment
--- Send related files to customers
--- Track quality problems if any
--- Collect suggestions from customers
B. Certificate
Certificate of origin, CO
GSP certificate of origin, FORM A
China - ASEAN Free Trade Area Preferential Certificates of Origin, FORM E
Asia-Pacific Trade Agreement Certificate of Origin, FORM B
China and Pakistan FTA Certificate of Origin, FTA China - Chile FTA Certificate of Origin, FORM F China New Zealand Free Trade Area of origin, FORM N China - Costa Rica Free Trade Agreement Certificate of Origin, FORM L China - Peru FTA preferential certificate of origin, FORM R China - Singapore FTA Certificate of Origin, FORM X Taiwan certificate of origin certificate, ECFA
C. Trade Assurance Service by Alibaba
It can effectively protect your rights: Quality and delivery time of goods, your financial security.
