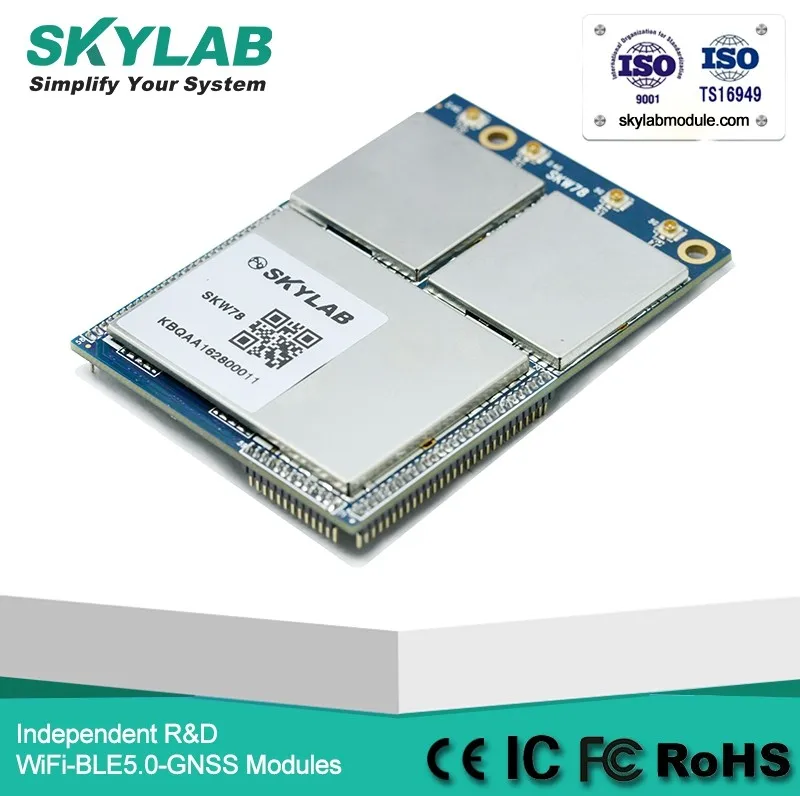

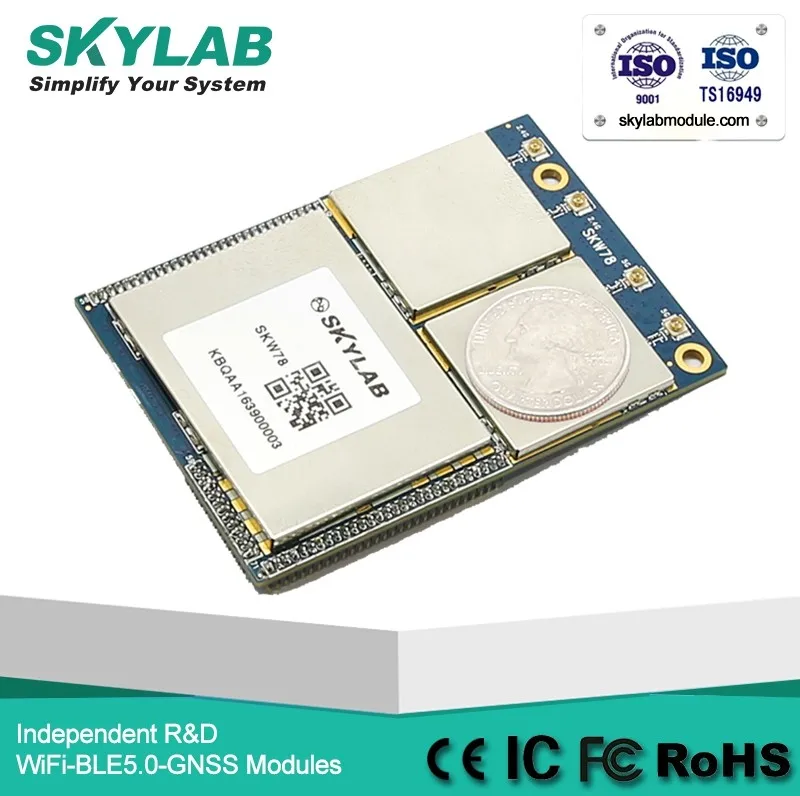

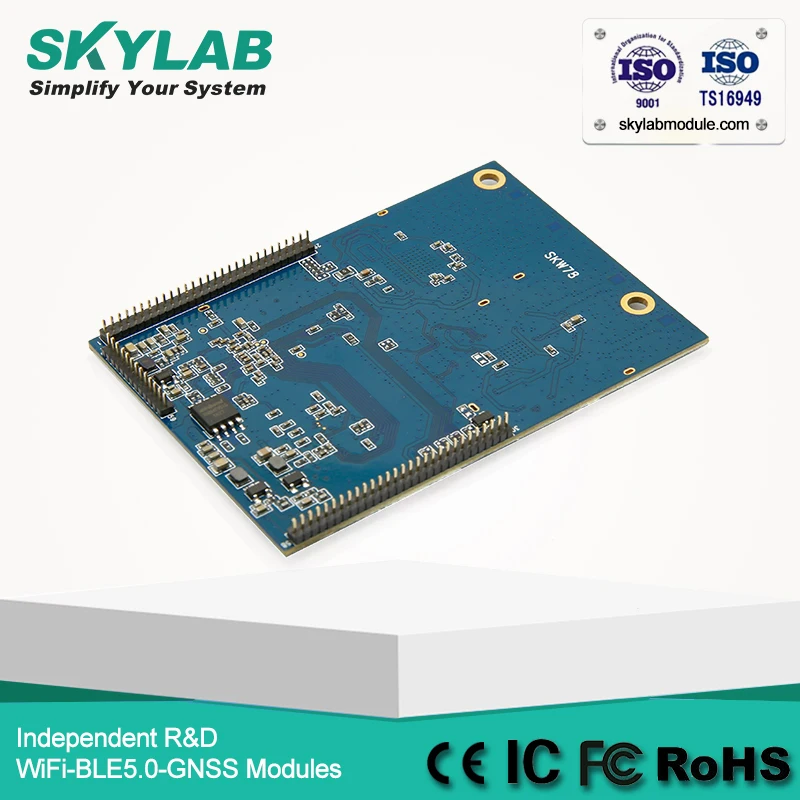

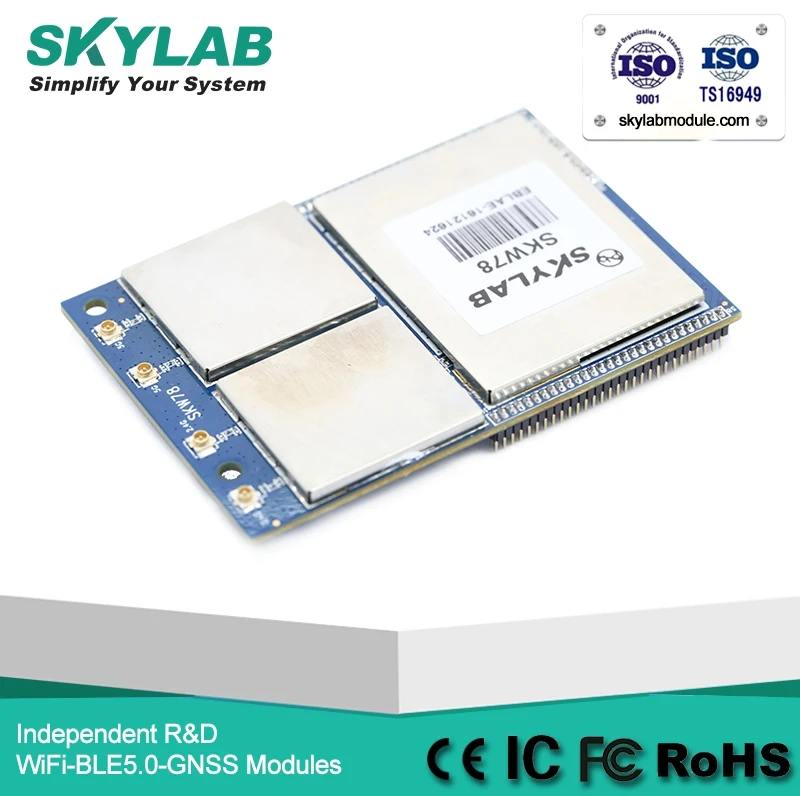

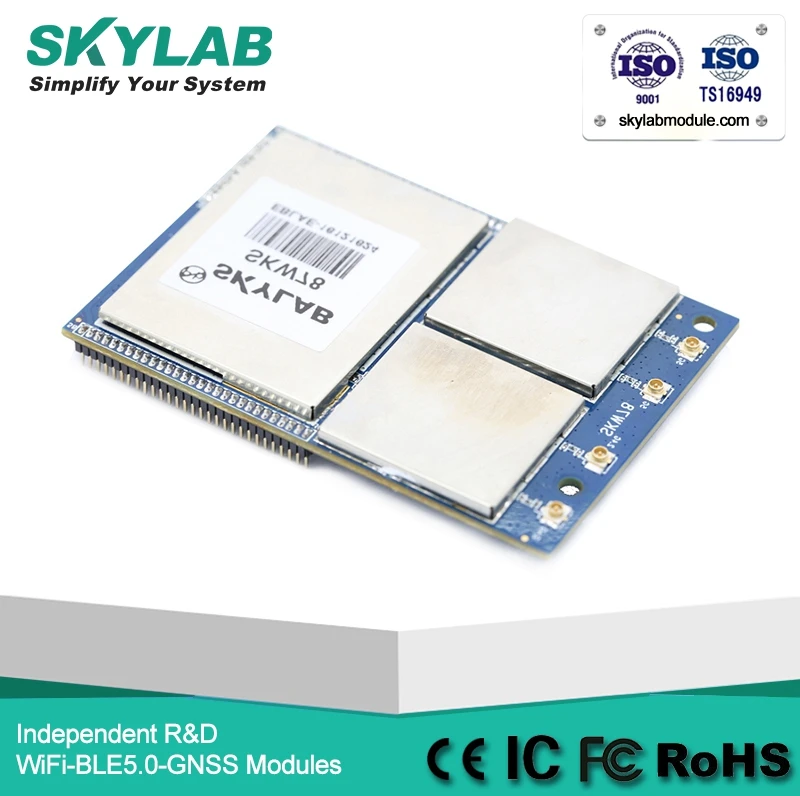

SKYLAB MT7621A 802.11ac 4G wireless iot Router Dual Band Support Linux 2.6 SDK OpenWRT WiFi Module



Product Description


General Description


   The SKW78 module compliant to 802.11 a/b/g/n/ac Wi-Fi Solution, It integrates a dual-core MIPS1004Kc (880MHz), 3-port GbE switch, USB2.0, SD-XC. The module is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN, AC (Access Control). For consumer electronic devices, the module requires only an external 3.3V power supply. The module integrates a 2.4GHz 2x2 MIMO WLAN chip with internal PA and LNA and integrates a 5GHz 2x2 MIMO WLAN chip with internal PA and LNA. It supports 2.4GHz operations up to 144 Mbps for 20 MHz and 300Mbps for 40 MHz channel respectively, and supports 5GHz operations up to 866 Mbps for 80 MHz channel respectively. The module support Bridge mode and AP/Client mode and Gateway mode.





Features


1.IEEE 802.11 a/b/g/n and 802.11ac draft compliant


2.Dual-band 4T4R mode with data rate up to 1167Mbps


3.2.4G band 2T2R Mode with support for a 300Mbps TX/RX PHY rate


4.5G band 2T2R Mode with support for a 867Mbps TX/RX PHY rate


5.DDR3 memory up to 1024Mb


6.Flash memory up to 128Mb


7.2 LAN ports and 1 WAN port with 1000Mbps PHY


8.Firmware: Linux 2.6 SDK, Open WRT


9.Support WAN/LAN/USB/I2C/I2S/SD interfaces


10.Support 20MHz, 40MHz, 80MHz bandwidth


11.Security: WEP64/128, TKIP, AES, WPA, WPA2,WAPI


12.Support AP/Client/Router mode


13.RoHS compliance meets environment-friendly requirement


14.71-pin header


15.75.0mm(L) x 52.3mm(W) x 9.0mm(H) dimension




Applications


1. AP WiFi


2. 802.11ac Router


3. VPN


4. 3G/4G Wi-Fi Router


5. WiFi AP Client


6. Hotspot


7. Home Security Gateway


8. Internet Service Router





Specifications







































































































































Hardware Features



Model



SKW78



Antenna Type



IPEX



Chipset solution



MT7621A



Voltage



3.3V±5%



Dimension(L×W×H)



75.0 x 52.3 x 9.0mm



Wireless Features



Wireless Standards



IEEE 802.11a/b/g/n/ac



Frequency Range



2412GHz---24884MHz   & 5180---5825MHz



Data Rates



IEEE 802.11b : 1,2,5.5,11Mbps



IEEE 802.11g : 6,9,12,18,24,36,48,54Mbps



IEEE 802.11n :  MCS0--MCS7 @ HT20 / 2.4GHz band



MCS0--MCS7 @ HT40  /2.4GHz band



MCS0--MCS9  @ HT40  /5GHz band



IEEE 802.11ac :  MCS0--MCS9 @ HT80  /5GHz band



Receiver Sensitivity



HT80 MCS9 :   -60dBm@10% PER(MCS9)  /5GHz band



HT40 MCS9 :   -63dBm@10% PER(MCS9)  /5GHz band



HT40 MCS7 :   -70dBm@10% PER(MCS7)  /2.4GHz band



HT20 MCS7 :   -73dBm@10% PER(MCS7)  /2.4GHz band



54M:   -76dBm@10% PER



11M:   -88dBm@ 8% PER



Modulation Technique



DSSS (DBPSK, DQPSK, CCK)



OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 125-QAM, 256-QAM)



Wireless Security



WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI



Transmit Power



IEEE 802.11ac:   13dBm @HT80 MCS9 /5GHz band



IEEE 802.11ac:   17dBm @HT80 MCS0 /5GHz band



IEEE 802.11n:   15dBm @HT20/40 MCS7 /5GHz band



IEEE 802.11n:   17dBm @HT20/40 MCS0 /5GHz band



IEEE 802.11n:    16dBm @HT20/40 MCS7 /2.4GHz band



IEEE 802.11g:    16dBm @54MHz



IEEE 802.11b:    18dBm @11MHz



Work Mode



Bridge/Gateway/AP Client



Others



Certification



RoHS



Environment



Operating Temperature: -20℃~55℃



Storage Temperature: -40℃~125℃



Operating Humidity: 10%~90% non-condensing



Storage Humidity: 5%~90% non-condensing

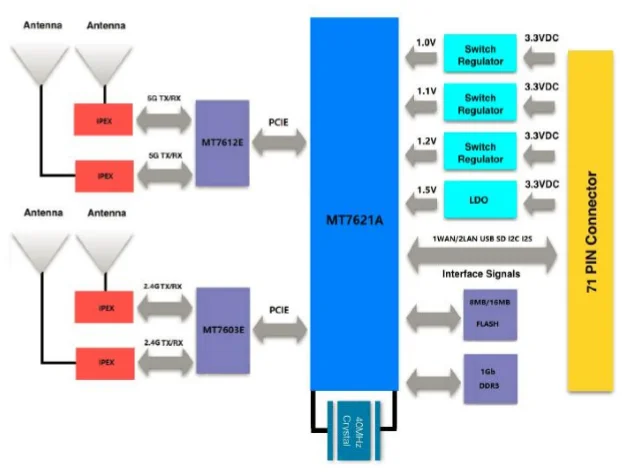

Applications Block Diagram
