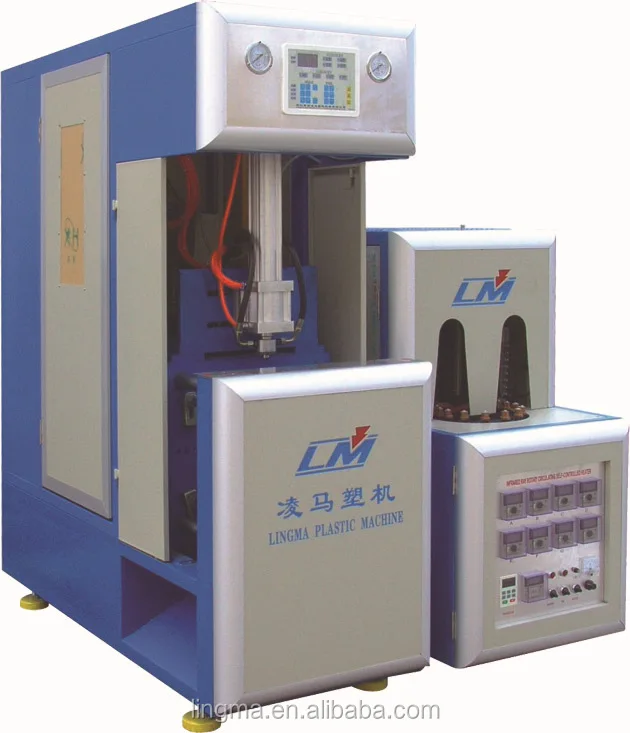

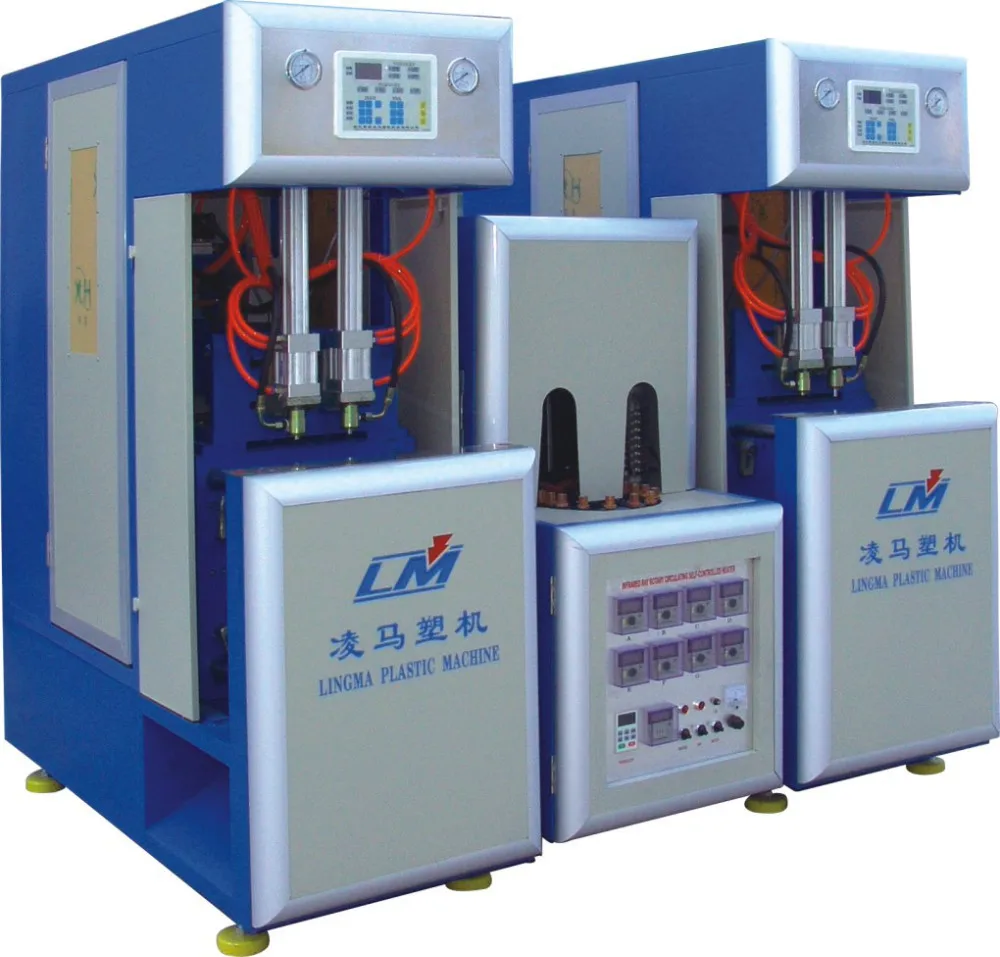

QCL-12IVSemi-automatic blow molding machine was designed by CE standard. With Germany parts, microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Suitable for CO2 bottle, mineral water bottle, pharmaceutical bottle, oil bottle, cosmetic bottle, hot filling bottle, easy operating machine, with high quality components.

\t
ITEM NO.
\t
Name
\t
UNIT
\t
DATA
\t
1
\t
clamp force
\t
KN
\t
100
\t
2
\t
Tensile dry Trip
\t
mm
\t
400
\t
3
\t
Materail
\t
pp,pet
\t
\t
4
\t
Action Template Trip
\t
mm
\t
350
\t
5
\t
Allow Thickness
\t
mm
\t
120-260
\t
6
\t
Allow Width
\t
mm
\t
320
\t
7
\t
Tensile bar Diameter
\t
mm
\t
12
\t
8
\t
Max product Volume
\t
L
\t
1.5
\t
9
\t
Operation Pneumatic
\t
MPa
\t
0.6-1.0
\t
10
\t
Blow Pneumatic
\t
MPa
\t
1.2-2.8
\t
11
\t
Product Maximum diameter
\t
mm
\t
290
\t
12
\t
Whole Power
\t
KW
\t
12
\t
13
\t
Prouct High
\t
mm
\t
400
\t
14
\t
Weight
\t
T
\t
0.53
\t
15
\t
size
\t
mm
\t
1820x560x1920
\t
Far infrared Heater
\t
\t
\t
\t
NO.
\t
Name
\t
UNIT
\t
DATA
\t
1
\t
Input Voltage
\t
V
\t
380
\t
2
\t
Electrical power
\t
KW
\t
0.55
\t
3
\t
Lamp length
\t
mm
\t
670
\t
4
\t
Heating bottles Maximum diameter
\t
mm
\t
120
\t
5
\t
Tubes Maximum length
\t
mm
\t
210
\t
6
\t
Weight
\t
T
\t
0.26
\t
7
\t
Volume
\t
mm
\t
1520x550x1340

Main Features

1. Germany parts, long life cycle

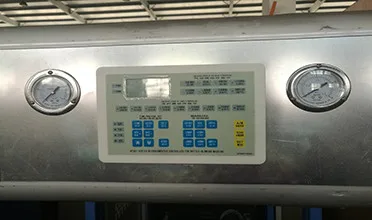

2.Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
3.Equipped with special designed air storage unit ;Using Infrared preform heater.
4.Independent Temperature Control for different heating lamp to get ideal preform heating results; Heating lamps are adjustable in directions to suit various preforms
Detailed Images

Machine Parts

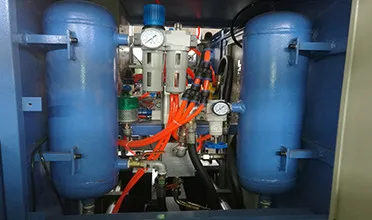

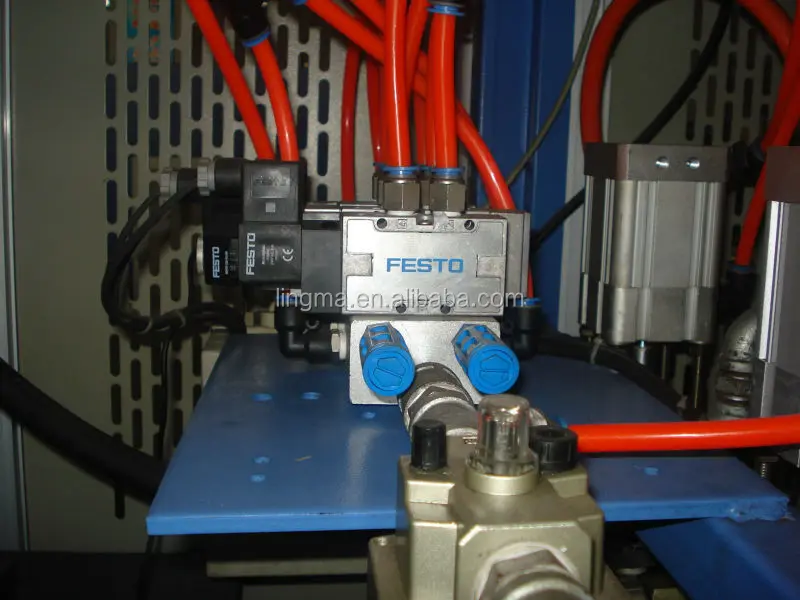

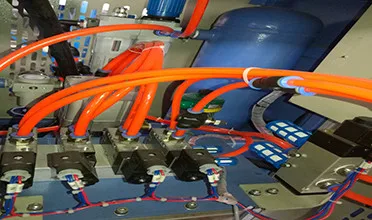

Name: blowing and Pneumatic system

Brand: FESTO

Original: Germany

Simple operation and high control precision, bottle blow unit is equipped with specially designed PLC controlsystem. It controls the whole bottle production process through a soft touch pad with time control precision up to 0.01 second; Pneumatic unit provides power for machine movements including machine driving and bottle blowing. QCL-12IV-2 is equipped with world famous brand components (Festo or SMC) to reduce the noise, save energy and produce the high quality bottles..

Main Features

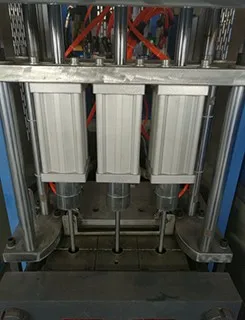

Name: Clamping system
this adopts three-plate toggle clamping system to provide powerful clamping force required by high pressure blowing up to 35 bars. Besides, the system has an adjustment device to change the distance between front & middle mold-plate and the position of stretch-seal cylinder required in different mold installation

Machine Parts

Name: Safety system
 In order to keep both machine and operator safe, this machine installs twin startup switches on two sides of the machine, which should be pressed at the same time to start the machine, while there is also an emergency stop button on the machine to stop machine urgently if necessary

Main Features

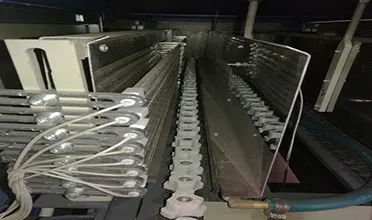

Name: Heating system
QCL-12 series preform heater adopts infrared lamp as heating unit. Infrared has powerful thermal-radiation capacity, which can heat up preform to required temperature in a very short time, while the strong thermal-penetrability provides continuous and uniform heating inside of preform and on surface of the preform, and also adopts independent temperature control unit for each heating zone to offer ideal temperature for various preform. Each heating lamp has a voltage regulator to control the voltage of the heating lamps and keep it working smoothly. With the LED display, it becomes easy and convenient to inspect and adjust the voltage value

Our Company
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
123 (L) * 456 (W) * 789 (D)
\t
Weight
\t
1.2 T
\t

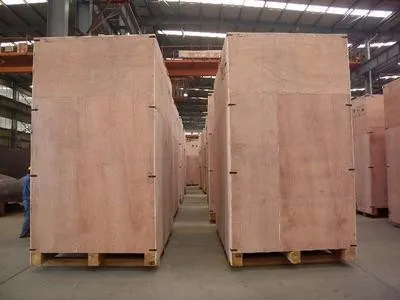

Packaging Details
