BW TH01 battery level indicator e bike battery indicator battery tester for car e bike

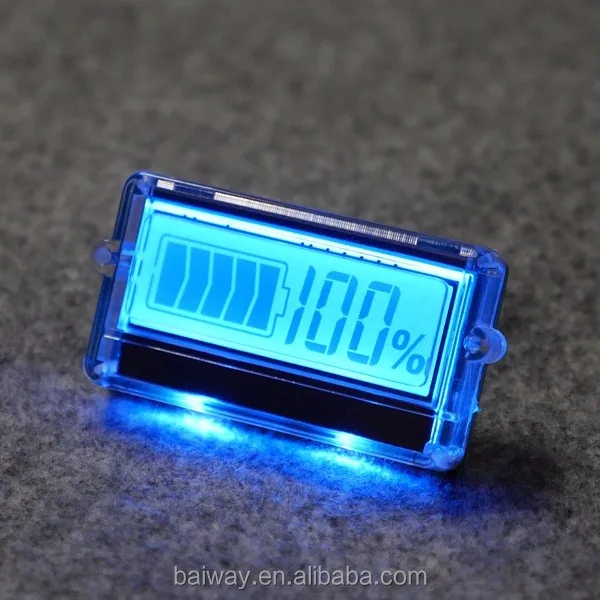

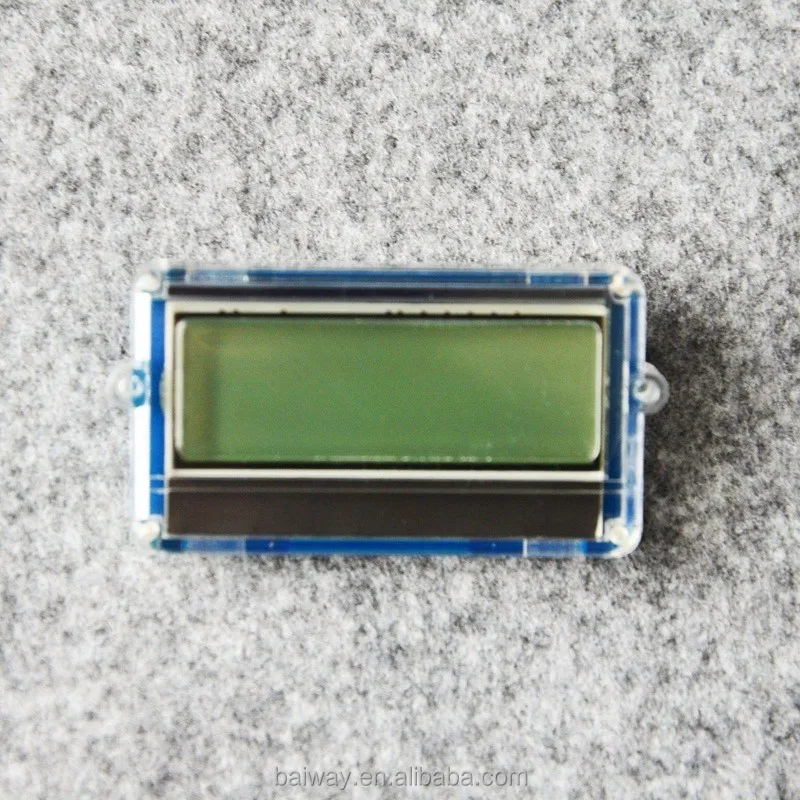

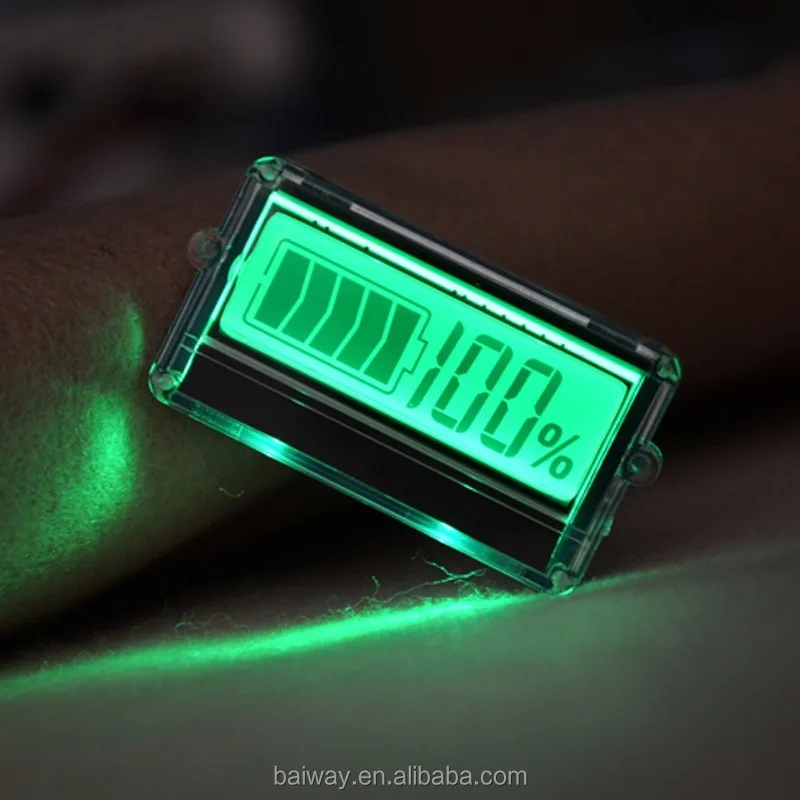

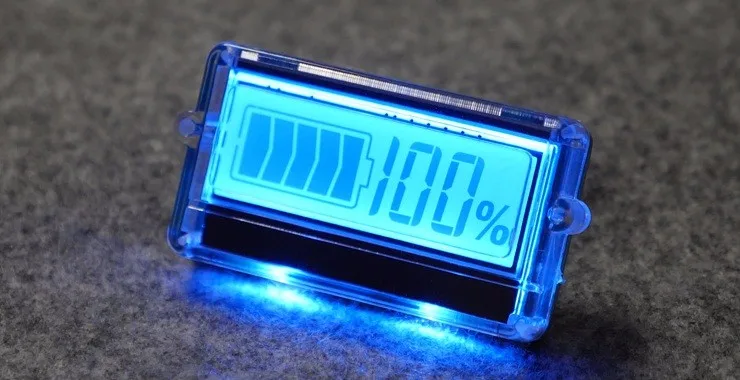

TH01 LCD Battery Indicator

Applification:

      Lead-acid battery:12V 24V 36V 48V
      Lithium battery:3Cells~15Cells(Except Lithium iron phosphate battery)

Install:

      1. Open one rectangular orifice and two screw holes on the panel of the equipment.
      2. Install the battery indicator from the back of the panel, and put the prominent LCD in the rectangular orifice.

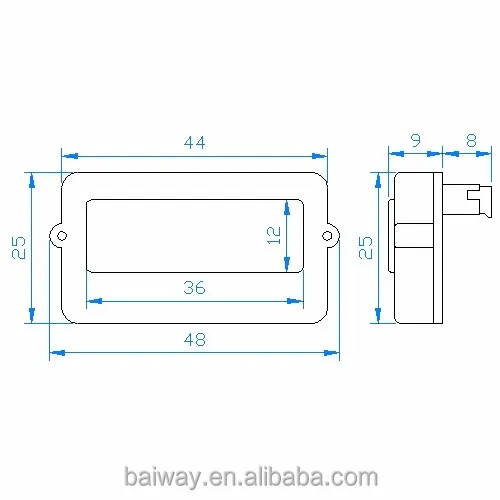

      3. Finally, fix the indicator with tapping screws from the front of the panel. As shown below:

Specification adjustment :

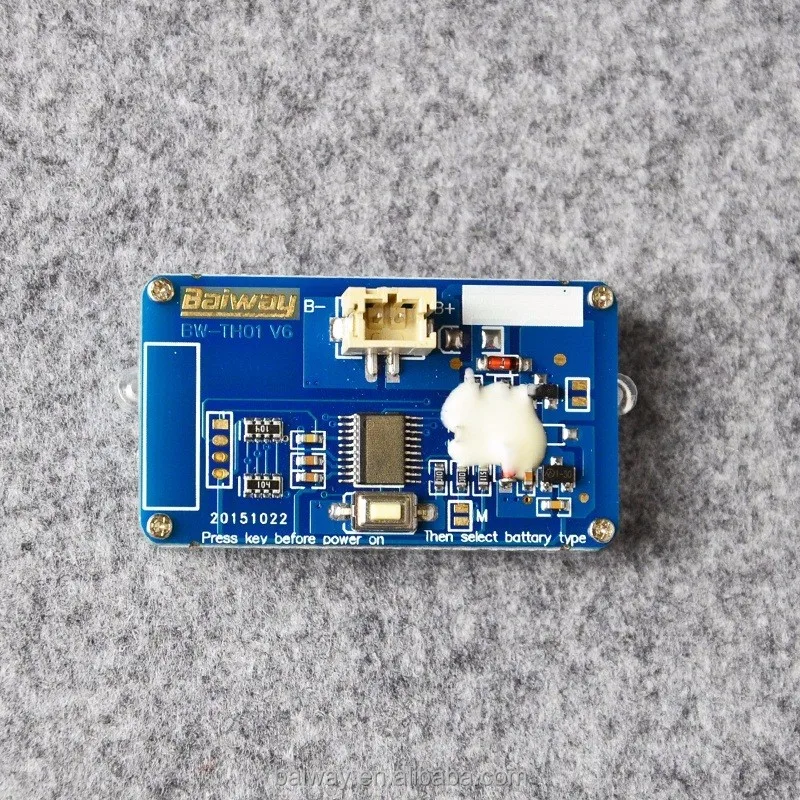

      Press and hold the down key on the back when turn off, then power on. LCD displays the present specification. Then use the key to adjust specifications, select suitable specification you need, then turn off and power on again. The indicator will be work normally (correspond code as below form).
