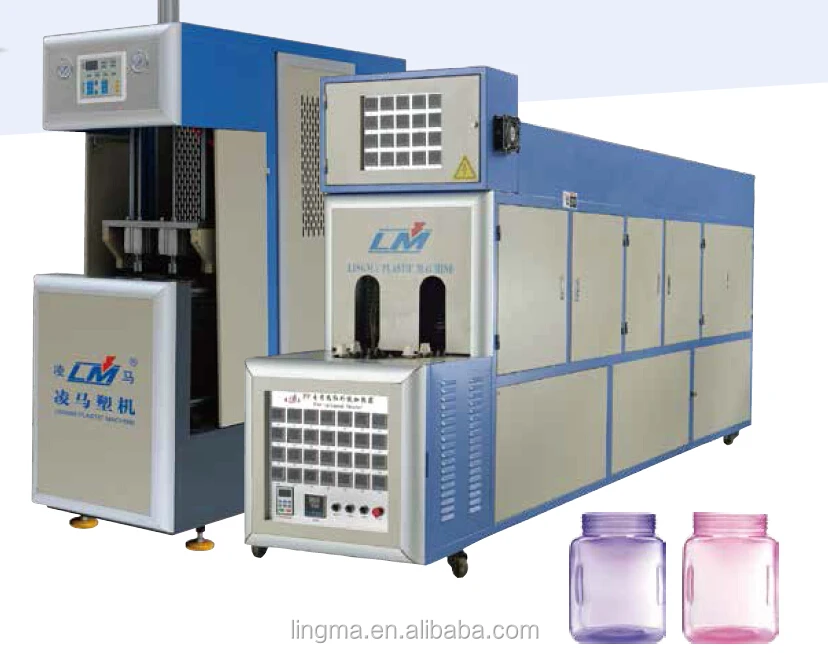

standard 5gallon pet bottle making machine for 20lt water/ 5 gallon blow moulding machine
- Category: >>>
- Supplier: Lingma Plastics Machinery Co. Ltd. Of Huangyan Zhejiang
Share on (60635373002):
Product Overview
Description
Product Description
Product Application

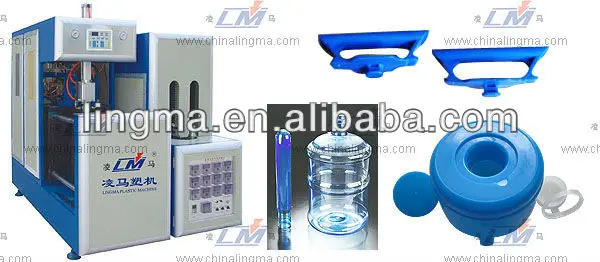

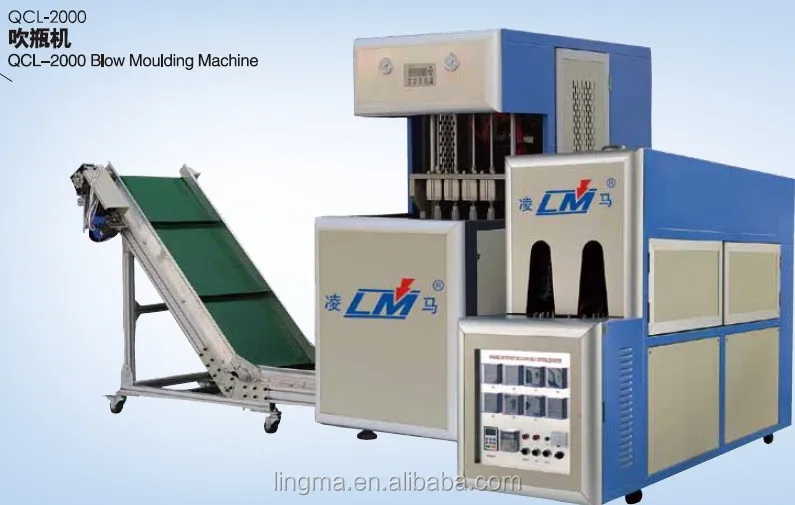

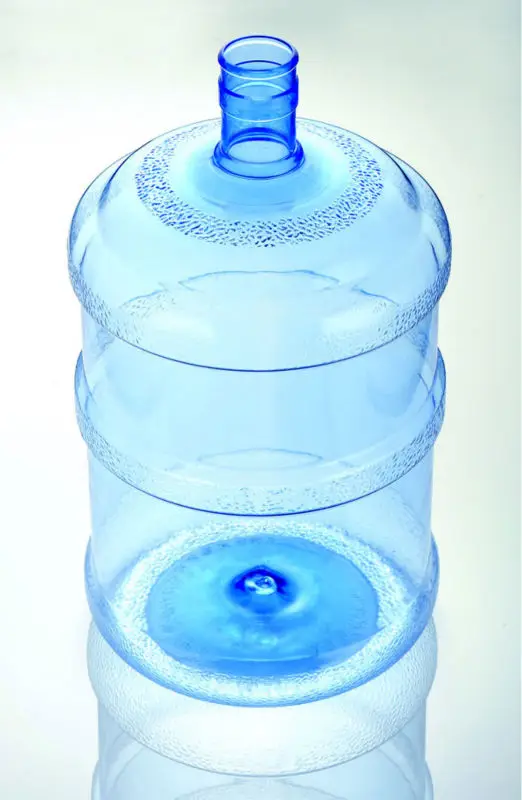

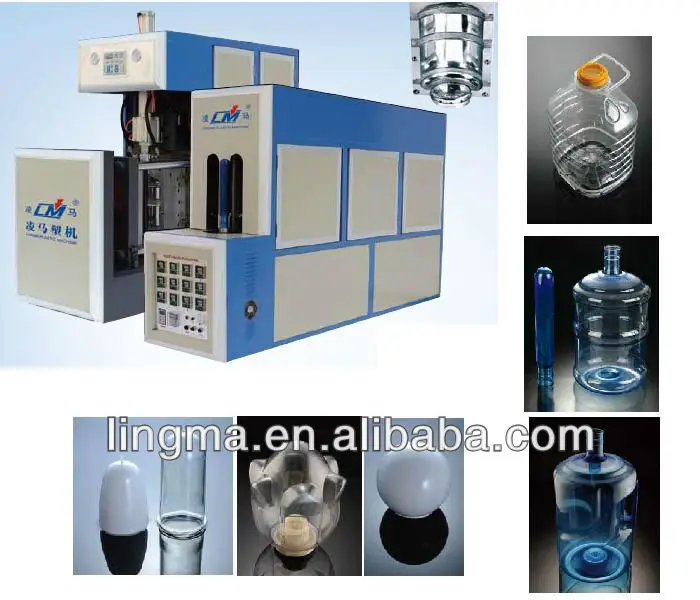

we are manufacturer specialized in 5 gallon mineral water pet bottle blow moulding machine which is designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Suitable for 3 gallon, 5gallon, wide mouth water dispenser, PMMA light bobble.
| DESCRIPTION | Unit | Detail technical data | |
| Bottle blowing | PET | ||
| Productiveness | pcs./hour | 90 | |

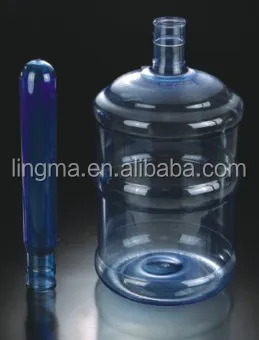

| Bulk of bottles blowing | gallon | 5 gallon (20litre) | |
| Maximal thickness of mould | mm | 280-400 | |
| Allowed mould width | mm | 450 | |
| Working pressure in pneumonic system | МPascal | 1, 6 | |
| Blowing pressure | Mpascal | 2, 0 – 3, 0 | |
| Heating power | KW | 10 | |
| Nominal rating of furnace | Kw., V | 10 (220V) | |
| Max .stretch length | mm | 550 | |
| Max. mould thickness | mm | 350 | |
| Force of closing mould | KN | 330 | |
| Size of oven (L.W.H) | mm | 2660*650*1660 | |
| Size of frame (L.W.H) | mm | 2100*740*2000 | |
| Total weight for machine | KGS | 1120+620 | |
| Voltage (3 phase) (1 phase) | 220-380W （frequency -50-60hertz） |
Main Features
1. Suitable for 3 gallon, 5gallon, wide mouth water dispenser, PMMA light ball, 80-110pcs per hour
2.Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
3.Equipped with special designed air storage unit ;Using Infrared preform heater.
4.Independent Temperature Control for different heating lamp to get ideal preform heating results; Heating lamps are adjustable in directions to suit various preforms
Detailed Images
Machine Parts

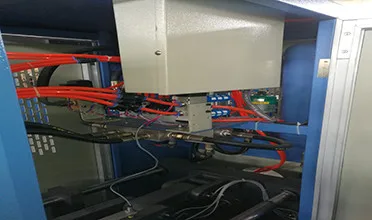

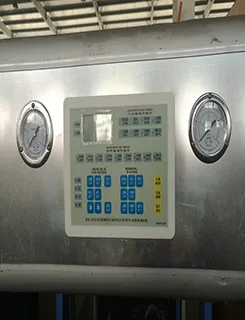

Name: blowing and Pneumatic system

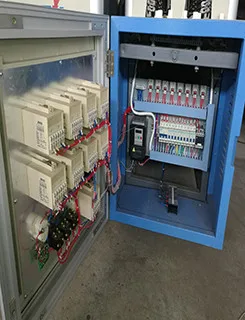

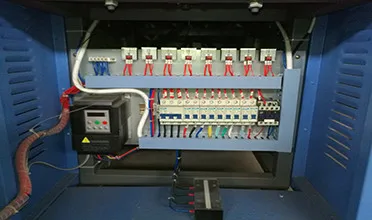

Simple operation and high control precision, bottle blow unit is equipped with specially designed PLC controlsystem. It controls the whole bottle production process through a soft touch pad with time control precision up to 0.01 second; Pneumatic unit provides power for machine movements including machine driving and bottle blowing. QCL-12IV-2 is equipped with world famous brand components (Festo or SMC) to reduce the noise, save energy and produce the high quality bottles.
Main Features

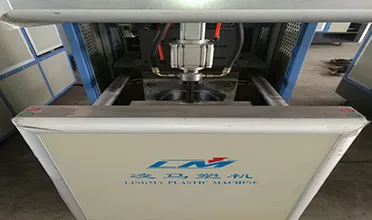

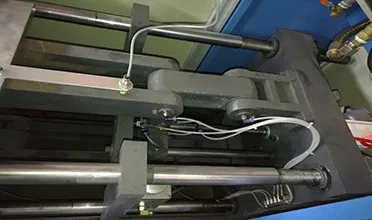

Name: Clamping system
this adopts three-plate toggle clamping system to provide powerful clamping force required by high pressure blowing up to 35 bars. Besides, the system has an adjustment device to change the distance between front & middle mold-plate and the position of stretch-seal cylinder required in different mold installation
Machine Parts
Name: saft system
In order to keep both machine and operator safe, this machine installs twin startup switches on two sides of the machine, which should be pressed at the same time to start the machine, while there is also an emergency stop button on the machine to stop machine urgently if necessary
Main Features

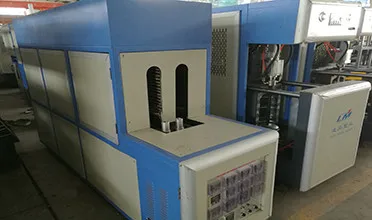

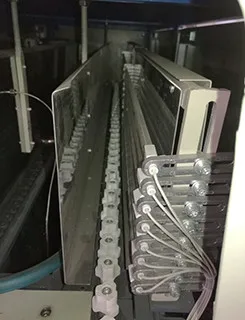

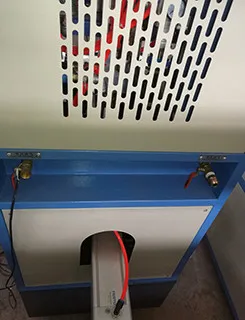

Name: Heating system
QCL-12 series preform heater adopts infrared lamp as heating unit. Infrared has powerful thermal-radiation capacity, which can heat up preform to required temperature in a very short time, while the strong thermal-penetrability provides continuous and uniform heating inside of preform and on surface of the preform, and also adopts independent temperature control unit for each heating zone to offer ideal temperature for various preform
Related Products
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Our Company

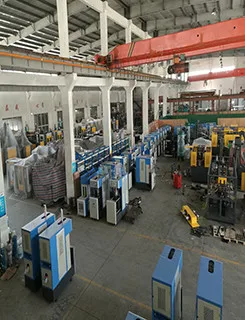

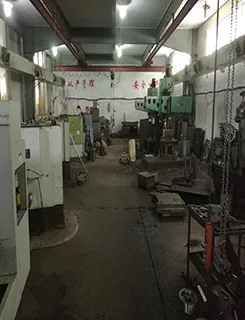

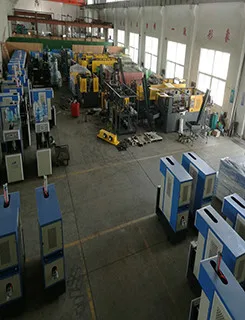

Zhejiang Huangyan Lingma Plastic Machinery Co., Ltd. is located in the west industrial area of Huangyan, which is well known as the Mold kingdom of China.
We are specializing in production of the extursion blow moulding machine,PET blow moulding machine, PP semi automatic blow molding machine, PC blowing machine,bottle mold,preform mould, cap mould and so on. of all types and specifications. To be the best in products and service is our aim to strive for. With the integrated equipments and advanced inspection system, our prodcuts have measured up to international industry standards.
We have more than150 skilled workers and designers , whom were excellent training , and have rich experience and high efficiency. All of them are working as a team, and in high spirit of working and willing to strive for the great expectation of Lingma by their merits. Our company also have a engineer team, they make a great attribution to our development by helping our customer solve the trouble before and after the purchase.
By 19years the struggle of all Lingma members, we have abtained the geat development of both our company and products. We insists on the principle of step forward by high technique,and never fall behind by high prodcut quality. With the reliability and support of our customers and the hard-working of our members, Lingma products now go to market through more than 30 countries worldwide: such as Russia, India, Middle East ,African and so on. And we have set up database for our customers and clients, ensuring the comprehensive feedback system, as well as highly efficient after-purchase service system, for provision of technical support and the latest information of equipment development.
Lingma blow moulding machine, we are the professiona plastic machinery manufacture of blow moulding machine and mould in the blow machine industry. We keep ahead in our fiedld by up-to-date products’ design, innovative and high-tech products, prompt delivery and the most reliable before and after purchase service. And we always try to provide the most reliable technical solution for every costumer from all over the world.
Our Service
Pre-Sales Service
1.your inquires will be replied professionally in the first time .
2.High quality machines, competitive price, fast delivery time.
3.Our staff will communicate with you in time through all kinds of ways,such as the email, whatsapp ,skype and so on ,let you fully understand the detail situation of our enterprises and products .
After-Sales Service
2.High quality machines, competitive price, fast delivery time.
3.Our staff will communicate with you in time through all kinds of ways,such as the email, whatsapp ,skype and so on ,let you fully understand the detail situation of our enterprises and products .
After-Sales Service
1.We will provide good overseas service ,our engineer will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
2.Our after-sale service staff will put your feedback to the technical staff in the first time, timely solve your problem
2.Our after-sale service staff will put your feedback to the technical staff in the first time, timely solve your problem

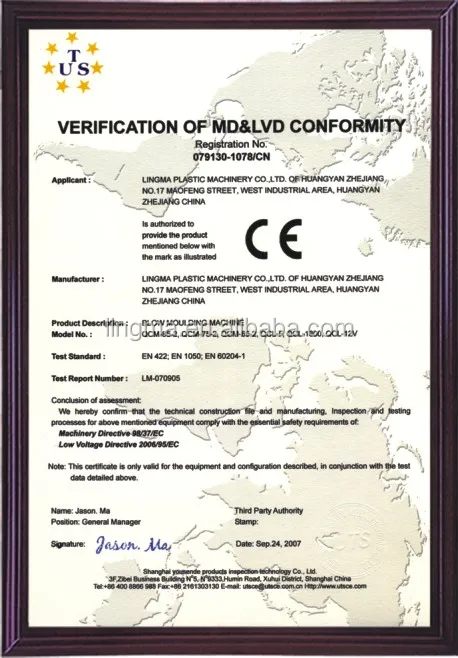

Certifications

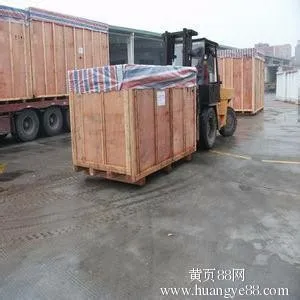

Packing & Delivery
| Packaging | |
| Size | 2.2(L) * 0.75(W) * 2.0(D) |
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
