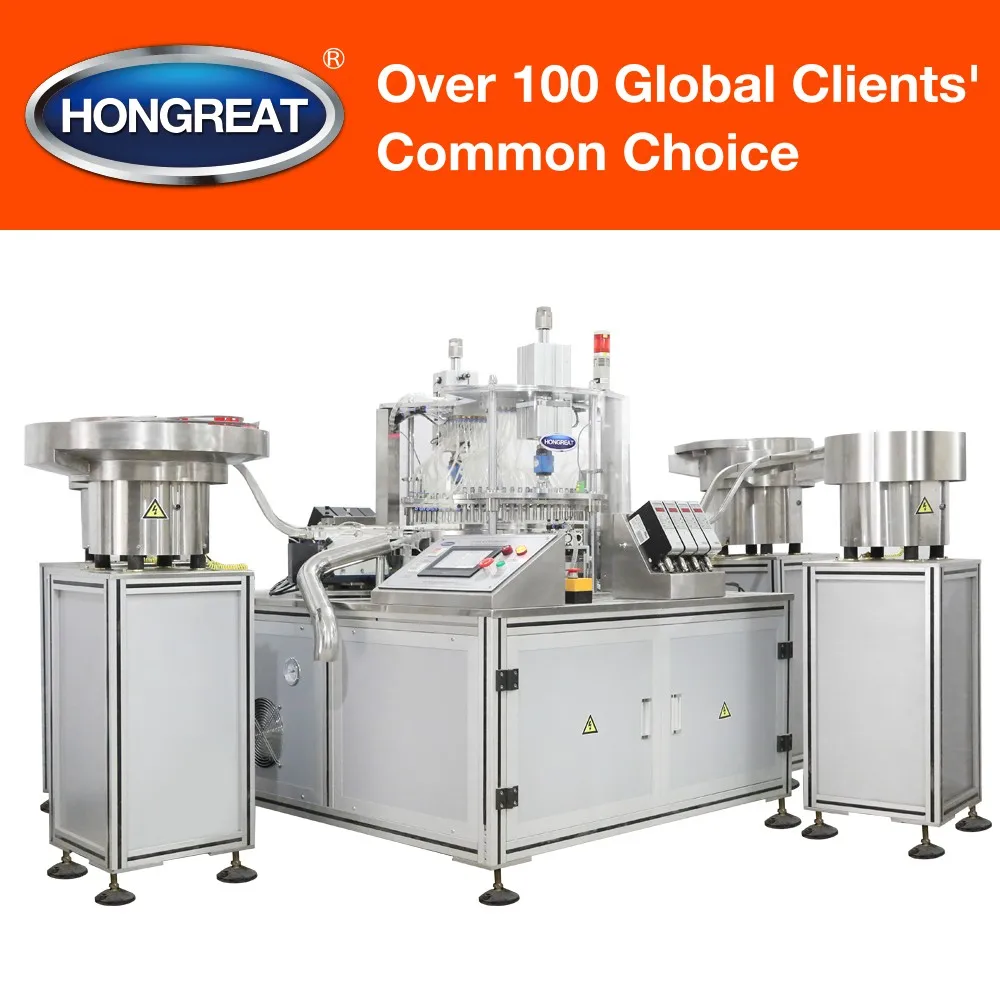

Automatic Assembly Machine for Blood Collection Tube Cap Stopper Rubber

•Applied with gas electric integrated design, simplifying mechanical structure, improving the reliability and productivity (latest patented technology).

•Equipped with 80 index plate and 2 sets of vibrator bowls, 2 different colors plastic caps can be assembled with  rubber stoppers at one time.

• Supporting a defective detection system to ensure 99.9% quality goods enter into the next process

Production capacity	15,000 pcs/h (Support for one size of cap & stopper)
Detection system	Automatic detection system for rejecting defective goods
Speed control	80 Index plate, servo motor speed regulation
Cap size	Ø13 or Ø16	Operating mode	Touch panel
Main configuration	VIGOR PLC	Power	AC380V / 2KW
Air consumption	≥0.3 m3/min	Overall dimension	2000*2000*1850mm
Case material	Aluminium alloy frame	Weight	1200KG
