High quality mini edm wire cutting machine/edm sparking machine FZH7732 good price

Product Overview

Description

High quality mini edm wire cutting machine/edm sparking machine FZH7732 good price

1.Middle speed cabinet control system as standard.
2.Work pieces to 600mm thick.
3.Taper angle up to ± 30°.
4.Accuracy: 0.01mm, even 0.005mm.
5.Roughness: Ra 0.8~1.6 µm
6.Low consumption, material saving.
7.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
8.Advanced CAD/CAM software with file transfer and translation capabilities.
9.Control system with luxury cabinet. ( HL, HF, W-Cut, A-Cut) .

Optional:

1.Enclosed cover for   protection.
2.Taper cutting accessory. (± 15°, ± 30°.)
3.Linear rail



Specification





Model	FZH7732	FZH7740	FZH7750	FZH7763
Working Table size  (mm)	520×1000	550×1100	700×1800	850×2100
Stroke(X/Y)(mm)	320×400	400×500	500×630	630×800
Max.cut thickness(mm)	320	320	400	400
Stroke(U/V)(mm)	(Normal):24×24 (Large taper):D-60×60 E-130×130 T-240×240
Electrode diameter(mm)	(Molydbenum wire) φ0.10~0.22
Electrode moving speed(mm/sec)	12,9,7,5,2
Max.cutting angle	(Max.multi-cut):±1.50/50mm; (Max.once-cut):±30 D-±100 E-±180 T-±300/50mm
Positioning accuracy(mm)	multi-cut: 10×10×30 (Square)≤0.006 (One time-cut)≤0.012 (Multi-cut)(Octagon)≤0.009 (Strightness)≤0.006/50mm
Process roughness(Ra.um)	(Multi-cut):Ra≤1.2(Micro-pulsepower Ra≤0.8) (One time-cut):Ra≤2.5
Driving motor	Stepping motor or AC servo motor*(Optional)
Guide screw and track	Precision ball screw/Linear motion guides
Tension system	tension adjustable
Cooling	Complex or water-dissovle special coolant/65L
Power supply	AC3 φ -380v/2.5kva
Max.workpiece weight(kg)	450	600	1000	1200
Weight(kg)	1500	1700	2600	3000
Dimension(mm)	1200×1500×1850	1300×1600×1850	1800×1900×2000	2100×2100×2000
Remarks: Be reduce 100mm,due to targe taper device fixed. *-(Option); Linear scale(lum) Remarks  Model 630/800 is not ristricted on the item,even others with large taper.

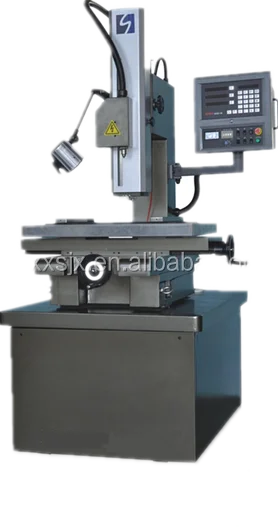

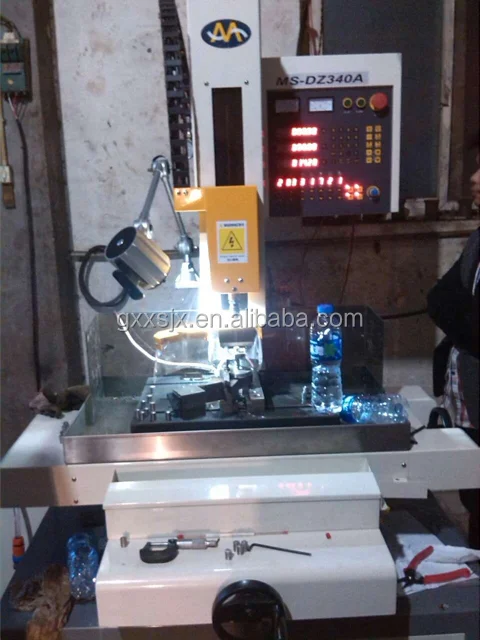

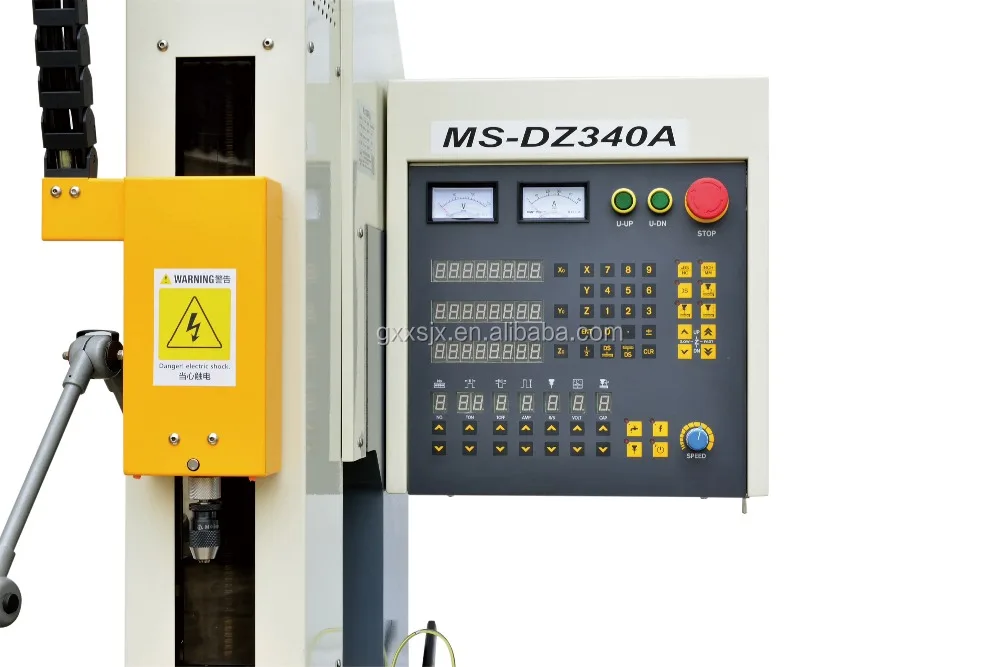

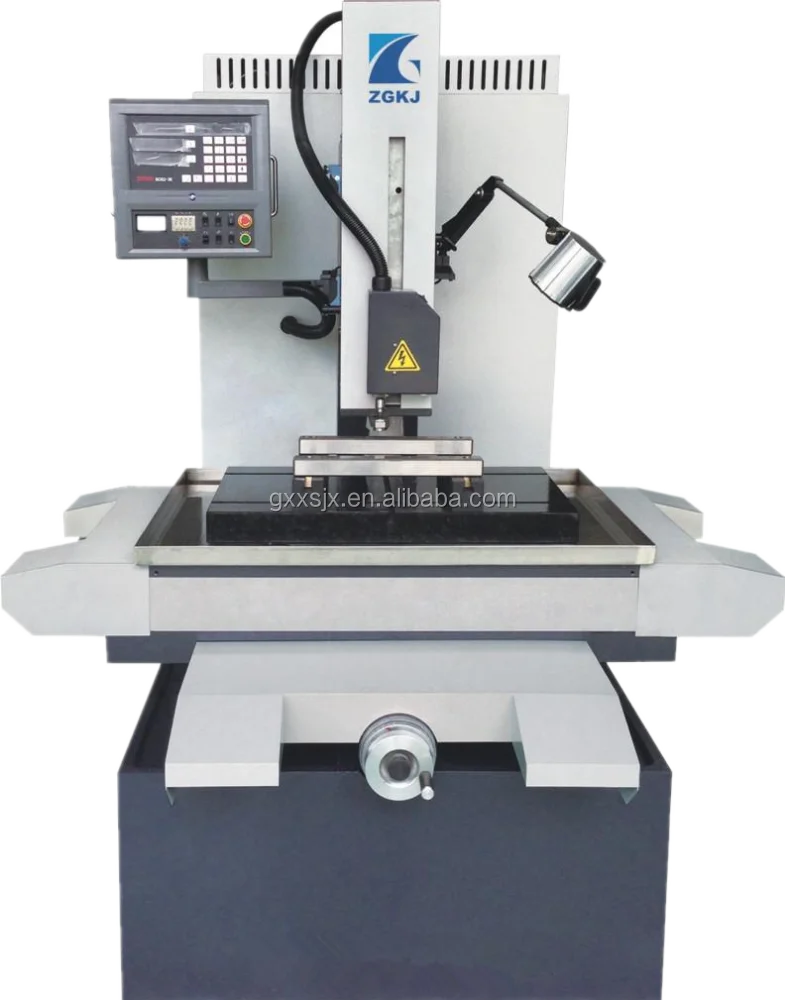

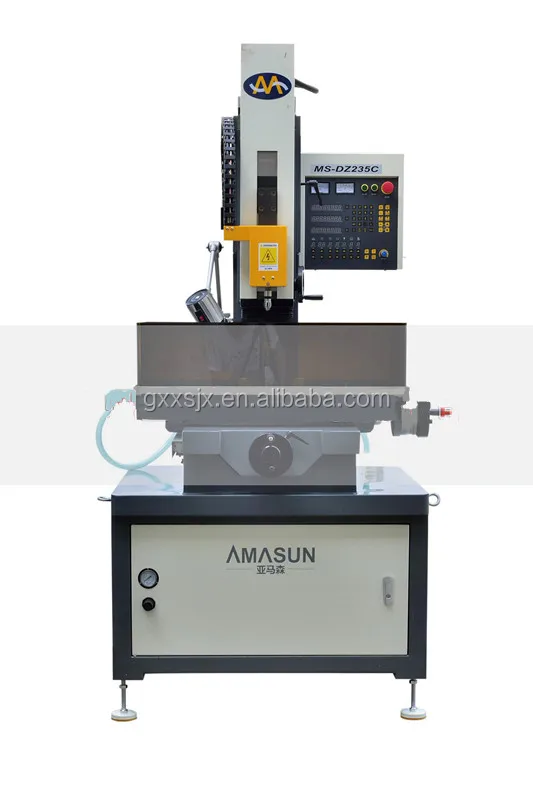

Detailed pictures for your reference



Why Choose Us?

•  We have our own factory and strong production capacity.


•  we insist on good quality and have strict quality standards


•  The hiring of experienced staff to guarantee high quality.


•  Our product can be made as per your requirement .


•  24 hour online communication for you.


•  We have more than 6 years of export experience.

FAQ

Q: What information should I let you know, if I want to get a product offer?

A: 1. the size of your work piece

    2. the CNC system you preferred if you need CNC type

    3. the work piece drawing if you have



Q: How to control the quality of production processes?

A: We have a professional quality inspectors to check on the quality of the finished product.



Q: Is it possible to visit your factory?

A: It is very convenient to visit us and all clients from around the world are highly welcomed.



Q: What’s the MOQ?

A: The MOQ is 1 set.



Q: What’s the quality assurance and service ?

A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.







If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
