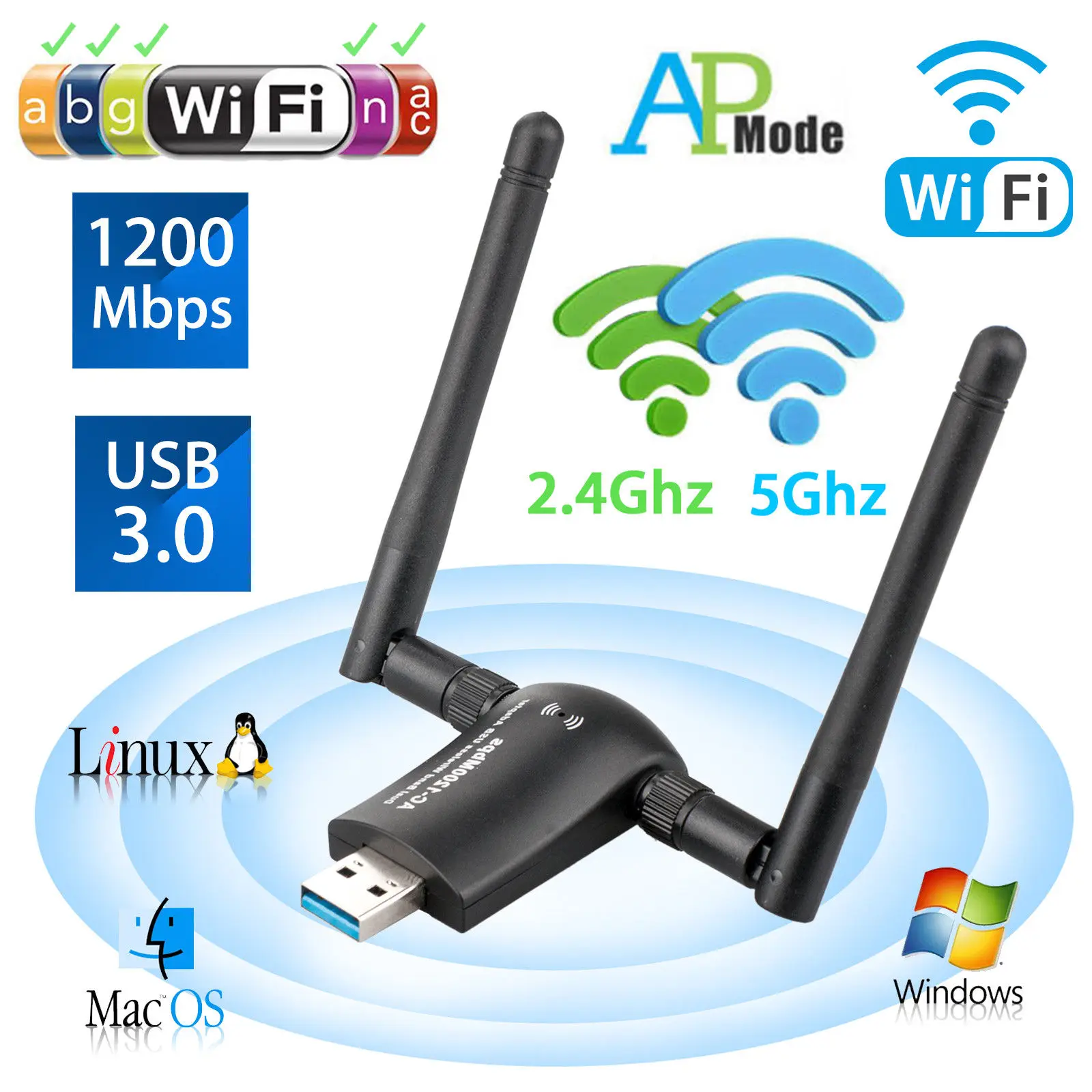

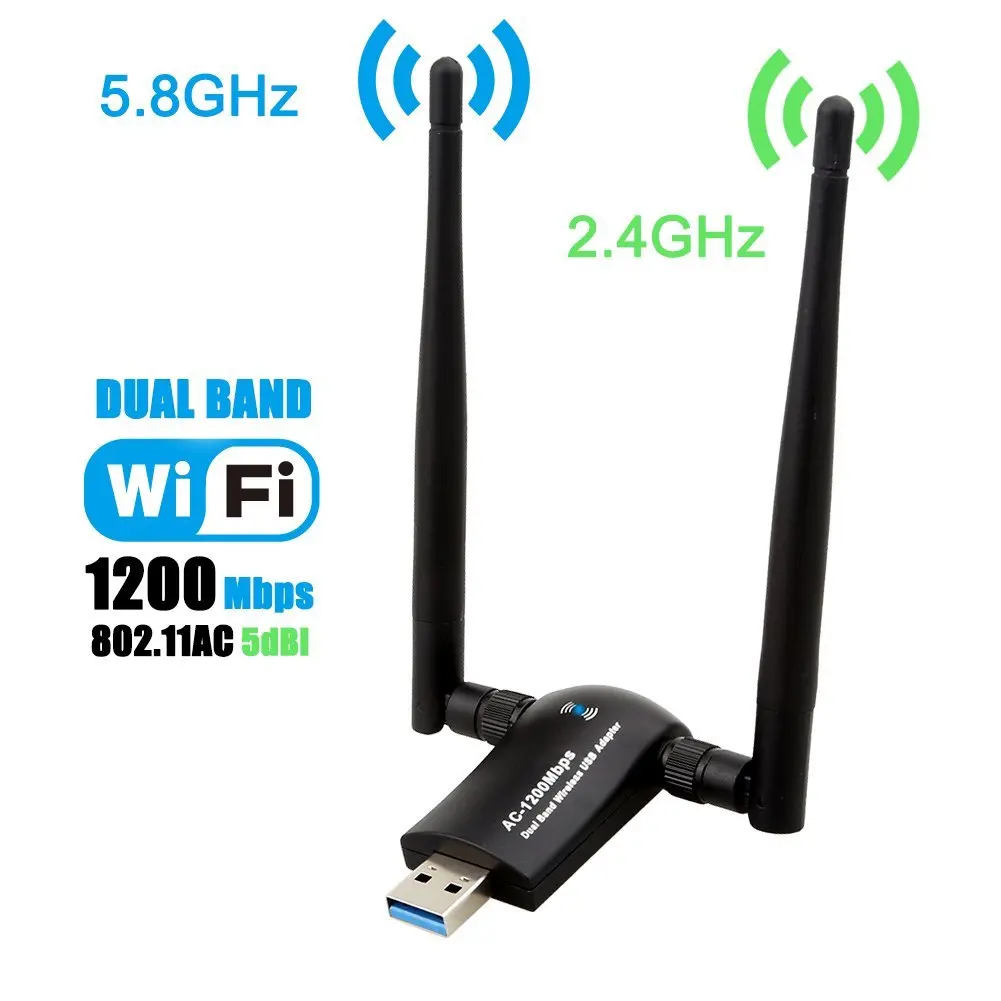

1200Mbps 802.11ac Realtek 8812BU dual band USB wifi Adapter with 5Dbi external high gain antenna

Product Overview

Description

              1200Mbps   802.11ac Realtek 8812BU dual band USB wifi  Adapter with 5Dbi external high gain antenna



  Skype:alicewang93916

 Whatsapp: +86 18671057369



1. Product  description

1.1 Product  summary

M-1200M is the latest 11AC dual band wireless USB adapter, it can search 2.4Ghz and 5Ghz networking signal at the same time. By using 5Ghz Channel , it can achieve great performance, yet at the same time it can reduce the date transfer interference. The 802.11AC wireless transmission technology has great advantage over the current 11N technology, it is 3x faster than the 11N speed. The fastest wireless speed can be 2.4G/300mbps, 5G/866Mbps. You can enjoy the high speed when surfing the internet.

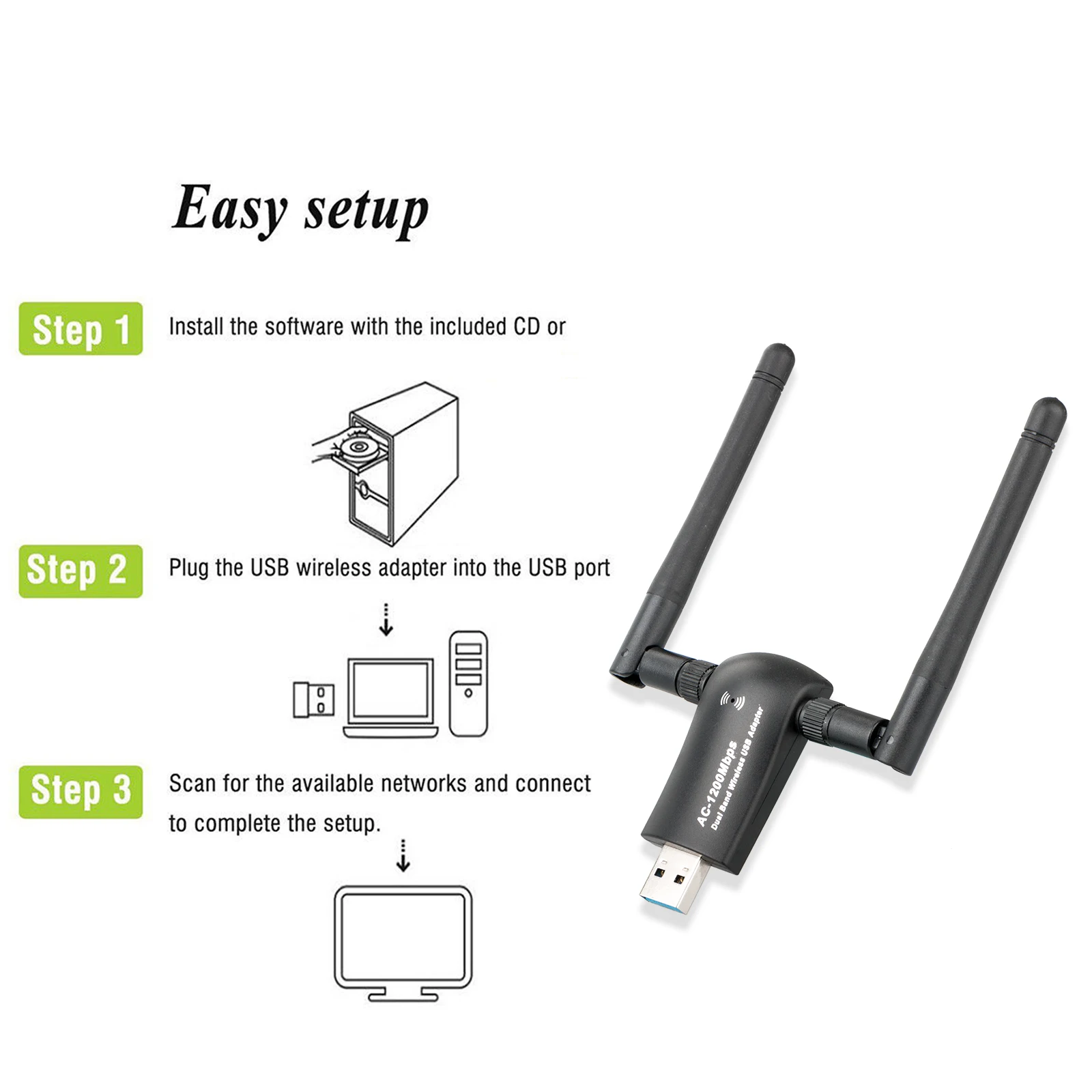

This WIFI adapter integrate the wireless configuration program, it is easy to install and use. You can connect the wireless client easily. It has soft AP function which will help you to creat wireless-LAN network.





1.2 Main features

* Support 802.11ac WI-FI standard

* Compatible backward to 802.11 b/g/n standard

* (2.4GHZ/300Mbps, 5GHZ/866Mbps)

*High speed transfer speed, Dual band optional (2.4Ghz/300mbps, 5Ghz/866Mbps)

* Support WPA/WPA2/802.1X/WMM data encryption

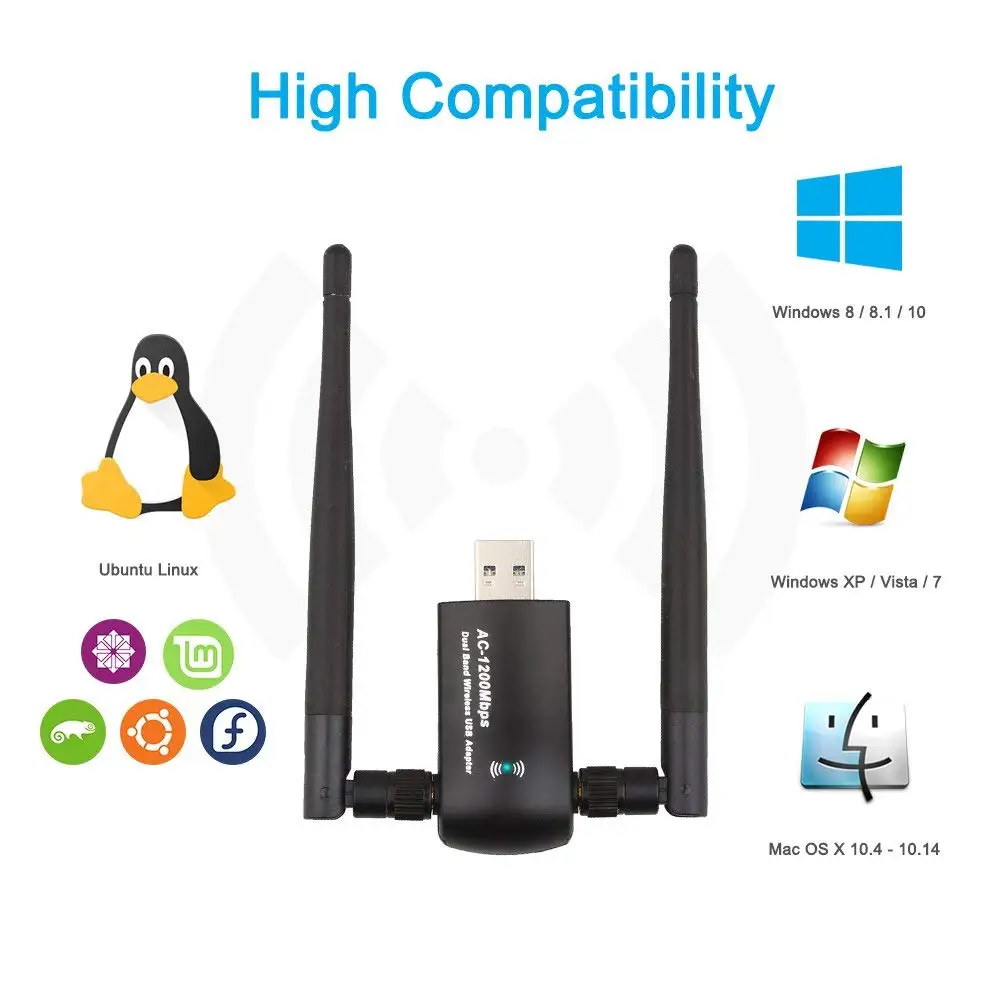

*Support Windows XP/Vista/7/8/10, Linx2.6X;Mac OS X

* High anti-interference ability

*Support latest wireless standard

2.Product information



2.1 General information



2.2.Product spec

Main Chipset	RTL8812bU
Wireless standard	IEEE802.11ac/a/n/g/b
Host interface	USB 2.0
RF antenna	External 5Dbi antennas
Transmission distance	Indoor MAX:100 Meters(Depends on environment)
Operation Frequency	2.412~2484GHz/5.15~5.825GHz (Depends on country)
Typical Transmit Power	802.11b (CCK) 11Mbps: 18+/-1dBm
	802.11g (OFDM) 54Mbps: 15+/-1dBm
	802.11n (OFDM) 54Mbps: 15+/-1dBm
	802.11ac(AC80)MCS9:12+/-2dBm
EVM	11b  11Mbps: <-15db 11g  54Mbps: <-27db 11ac   MCS9:<-30db
Receive Sensitivity	802.11b: -76+/-1dBm; 802.11g: -65+/-1dBm
	802.11n (HT20), -70+/-1dBm;802.11n (HT40), -65+/-1dBm
	AC80-MCS9:-55+/-1dBm
Wireless transmission rate	11b: Max 11Mbps,11g:Max 54Mbps ,11n:Max 150Mbps,AC:Max 433Mbps
Operation System	Windows XP/Vista/7/8/10, Linx2.6X;Mac OS X
Security	WPA/WPA2/WEP/802.1X/WMM;
Physical Specification
Dimensions		80*26.5*20mm
Weight		9g
