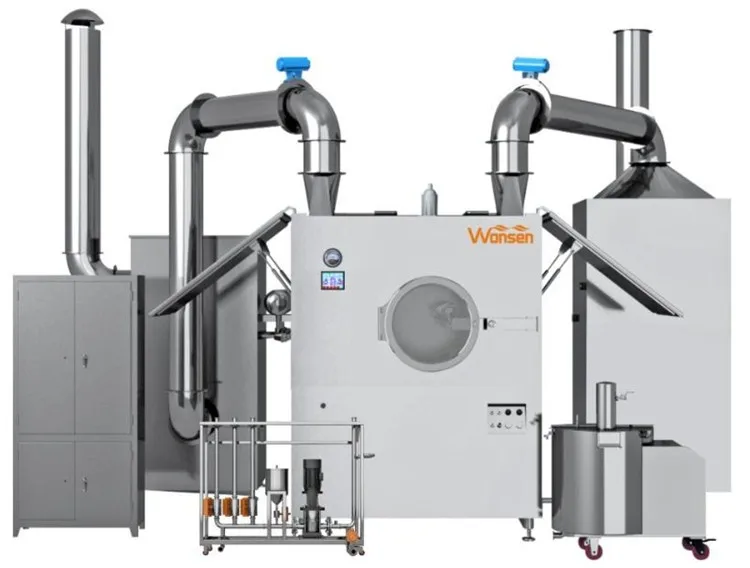

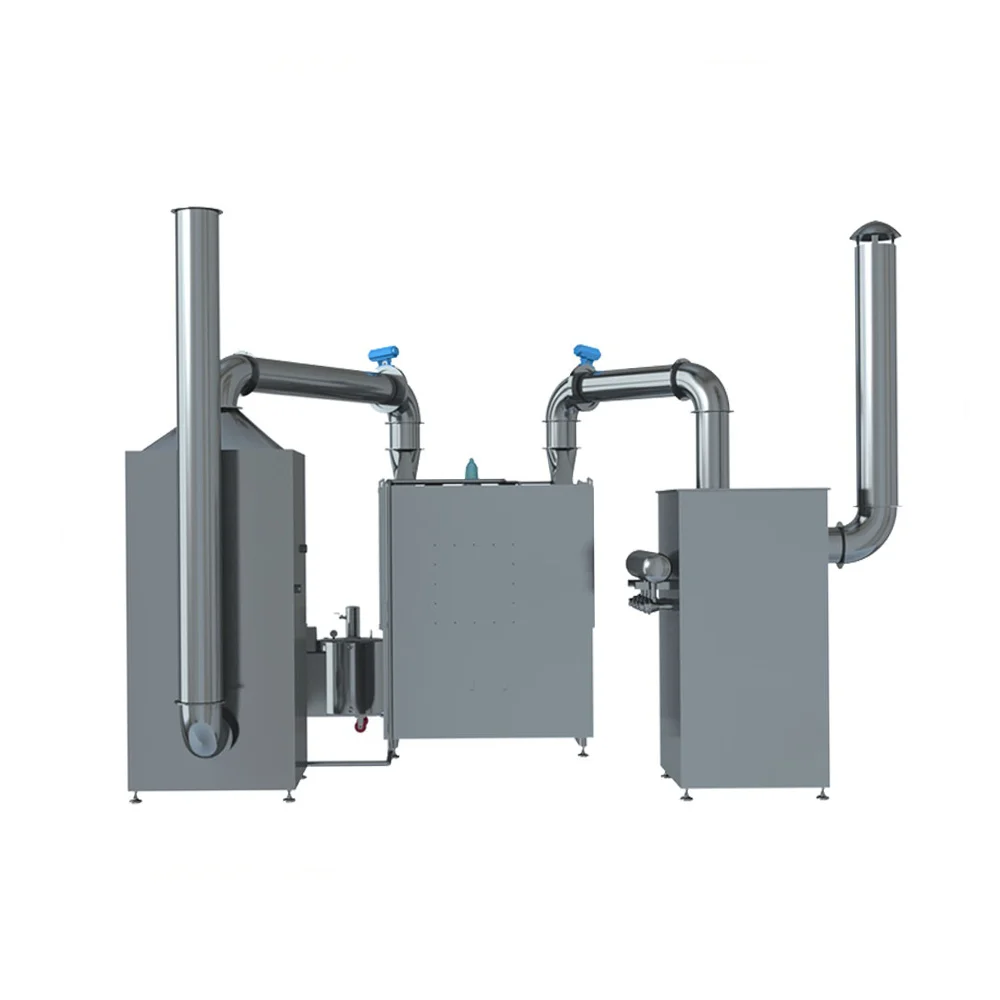

High efficient peanut chocolate sugar coating machine with CIP cleaning system

Application

The BGB-D coating machine is mainly used in medicine and food industries. It is a kind of mechanically and electrically integrated coating equipment with high efficiency, energy conservation, good safety and good cleanliness for organic film coating, water soluble coating, dripping pill coating, sugar coating, chocolate and candy coating of tablets, pills and candies.

Work principle

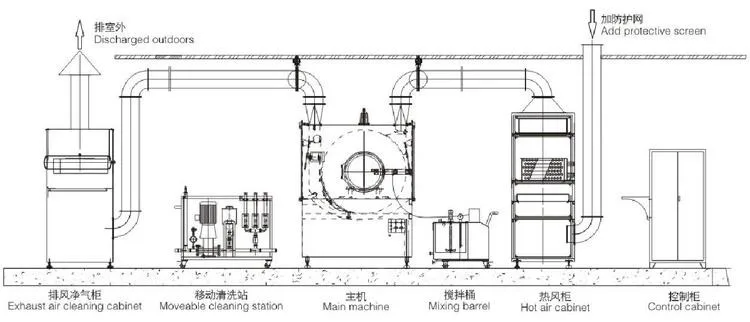

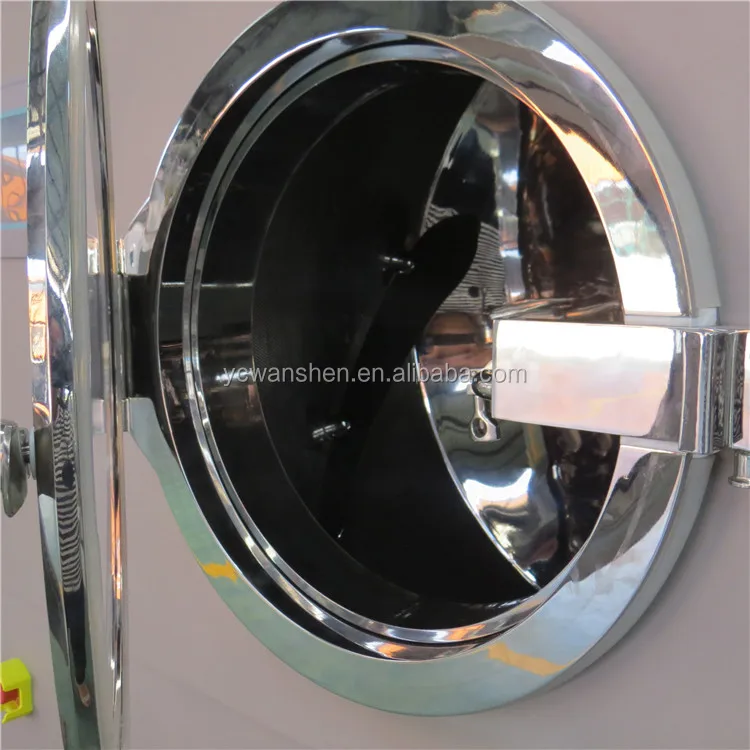

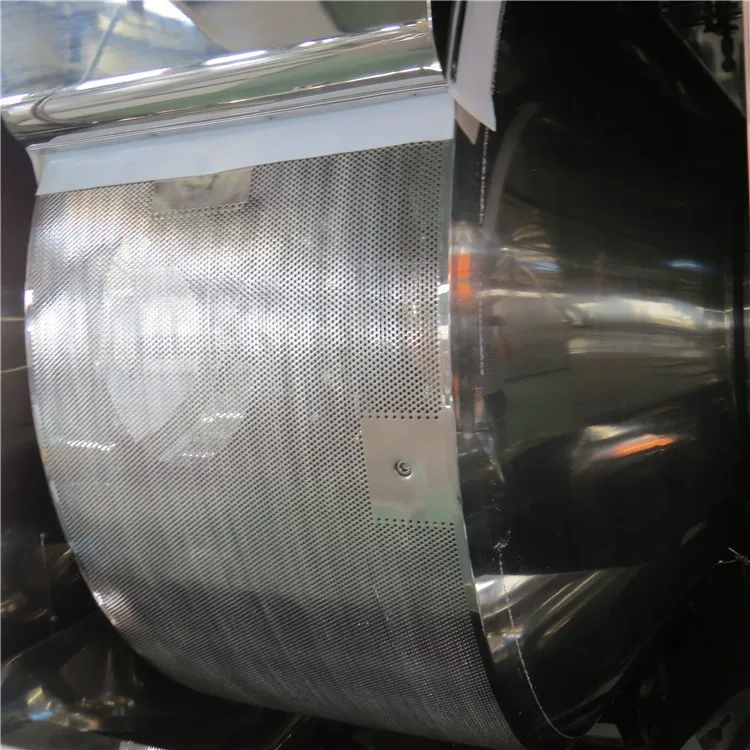

Under the rotation action of the coating roller, the tablets or pills to be coated make continuous movement in the roller. The peristaltic pump conveys the coating media to the spray gun for spraying them on the surfaces of the tablets or pills to be coated. Under negative pressure, the inlet air handling unit supplies clean hot air to the tablet bed according to the set procedures and process parameters to dry the tablets or pills. The hot air is discharged from the outlet air handing unit at the bottom of the layer of tablets or pills, so that the coating media sprayed on the tablets or pills rapidly form solid, dense, flat and smooth film to complete the coating operation.

Features

R&D and scale up

Compact structure and space saving

Moveable design

Changeable pans design for various capacity


1.Your enquiry or questions will reponse once we receive it!
2.Providing technical data,high-definition pictures,flow chart that all you need
3.Supply the validation documents and certificates.
4.OEM/ODM is available.
5.Providing long-term after-sale service,door-to-door service and corporate training
