Машина для сапонизации и вакуумной сушки, производственная линия мыльной лапши
- Category: Other Chemical Equipment >>>
- Supplier: Nantong Tongji Co. Ltd.
Share on (60635556594):
Product Overview
Description
Product Description
Tongji saponification and vacuum drying machine

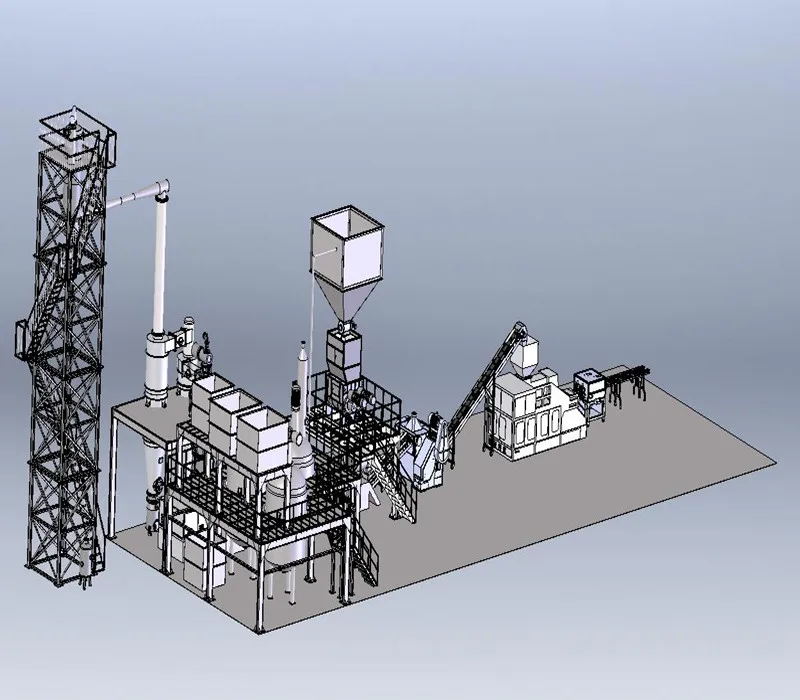

Soap noodles processing plant, including oil treatment machines, saponification system and vacuum drying system. By using palm oil, olive oil, coconut etc or fats as raw material, the capacity os from 1000kg/h to 7000kg/h.
No | Machine Name & Type | |
Saponification Section | ||
1 | Neutralization Crutcher | |
2 | Harmonizing Crutcher | |
3 | Soap Filter | |
4 | Rotor Pump | |
5 | Gear-type Pump | |
6 | Caustic Soda Measurer | |
7 | Oil Fats Tank | |
8 | High salt water tank | |
9 | Hot water collecting box | |
10 | The heat pump | |
11 | Points of cylinder | |
12 | Saponification platform | |
13 | Saponification control cabinet | |
14 | Internal connect material pipe, valve, connect accessories and insulation material etc. | |
Drying Section | ||
1 | Vacuum Dryer incl. insulating | |
2 | First cyclone separator | |
3 | Second cyclone separator | |
4 | Soap Powder Collector include butterfly bamper | |
5 | Booster | |
6 | Barometric condenser | |
7 | Air water separator | |
8 | Air Well | |
9 | Foam Destroyer | |
10 | Water Seal Tank | |
11 | Vacuum Pump | |
12 | Heat Exchanger | |
13 | Simplex Twin-worm Chip Maker | |
14 | High Temperature Chiller | |
15 | Belt conveyor | |
16 | Soap noodle warehouse | |
17 | Rotor pump | |
18 | Centrifugal Pump | |
19 | Cooling Tower | |
20 | Vacuum drying platform | |
21 | Vacuum Elctric Control boxt | |
22 | Internal connect material pipe, valve, connect accessories and insulation material etc. | |
Related Products
Packing&Shipping
After Sales Service
Company Introduction
Nantong Tongji Co.,Ltd is located in Nantong,Jiangsu Province,1.5 hours' drive away from Shanghai.
Established in 1997,Nantong Tongji Co. Ltd is the lagest supplier in China and Asian area,specializing in designing and
manufacturing the whole set of toilet soap and laundry soap machinery,from soap processing soap making,finishing,packaging and end of line,with a wide range of capacity from 50kg/h small laboratory line to 8000kg/h high-speed line.The share in Chinese domestic market reaches up to 80% and for several types of machines,we are the only manufacturer who can provide them in China,as well as in Asia.
We manufacture all kinds of packaging machinery and can meet different customer requirements,such as circular packaging,flow wrapping ,cartoner,soap wrapping machine,shrink wrapping machine,overwrapping machine and case packer,widely used in daily chemical,food,pharmaceutics,chemical industries.
Established in 1997,Nantong Tongji Co. Ltd is the lagest supplier in China and Asian area,specializing in designing and
manufacturing the whole set of toilet soap and laundry soap machinery,from soap processing soap making,finishing,packaging and end of line,with a wide range of capacity from 50kg/h small laboratory line to 8000kg/h high-speed line.The share in Chinese domestic market reaches up to 80% and for several types of machines,we are the only manufacturer who can provide them in China,as well as in Asia.
We manufacture all kinds of packaging machinery and can meet different customer requirements,such as circular packaging,flow wrapping ,cartoner,soap wrapping machine,shrink wrapping machine,overwrapping machine and case packer,widely used in daily chemical,food,pharmaceutics,chemical industries.
