Led Aluminium Profile for industrial using with the anodizing surface treatment
- Category: >>>
- Supplier: Guangdong Weiye Aluminium Factory Group Co. Ltd.
Share on (60635583050):
Product Overview
Description
Product Description

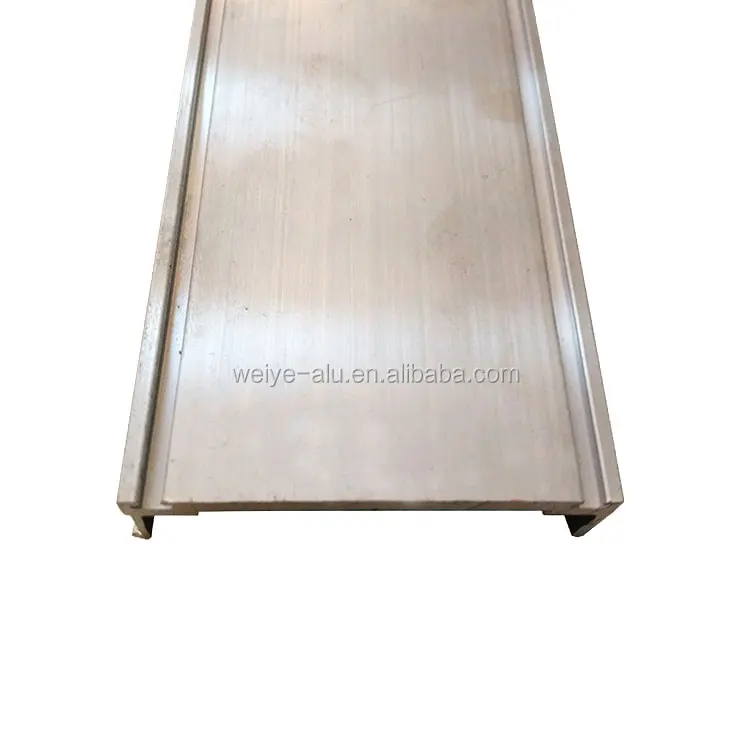

This is a new double side LED profile. This multifunctional LED profile may be both suspended or installed on the surface. Depending on your needs, it may contain two light sources (when suspended) or one high power LED with a driver hidden in the other chamber.
The heat dissipation capability of this luminaire is up to 50W/m. The internal parabola assures a perfect light distribution without any light loss. Thanks to an innovatory fastening thread, the driver does not adjoin the LED shelf and so it does not overheat.
This LEDs dots free design is available with a frosted and two prismatic diffusers: clear and opal.
| ALuminium Alloy | General Aluminium Alloy | Special Aluminium Alloy | |
| 6060, 6061, 6082, 6005 | 6063A, 6061F, 5050, 5052 | ||
| Accessories | HOPO/SIEGENIA/Other brand pointed by customer with screen sheet | ||
| Use place | LED, Door, Window, Balcony, Industry and so on | ||
| Temper | T3-T8 | ||
| Standard | GB/T3190-2008 Chinese Standard | ||
Surface Treatment Power coating: Normal Color, Special Color
Fluorocarbon Coating: Normal Color, Special Color
Anodizing: Silver, Champagne, Bronze, Black, K Gold, Gold, Imitating Steel, Titanium
Titanium:Wood Imitation: Normal Color, Special Color
Polishing: Electrophoresis and Wood Grain Treatments
Deep Processing Ability: Drilling, Bending, Welding, Aluminium profile fabrication, Precise cutting ect.
|
Anodized Line Sand Blasting Line

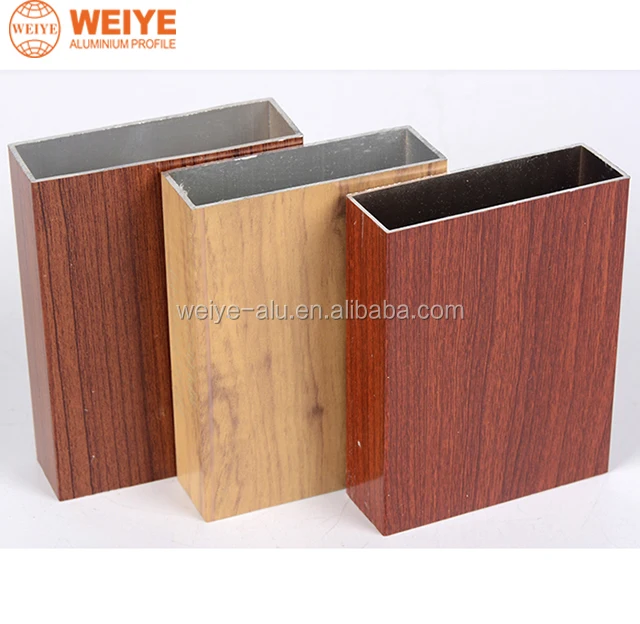

Wood Grain Heat Transfer
| ||
LED Aluminum Profile
Our advantage:
1. Professional production workshop for extrusion and colored profile manufacturing,including we own7000 tons extrusion machine,automatic vertical electrophoresis production lines.
2. Strict quality control and inspection before goods delivery.
3. Production standards: GB5237-2008 or other International standards.
4.With 23 years experience, our factory is well recognised by clients and enjoys a good reputation among overseas markets.
5. Provincial-level R&D team and over 100 national patents.
Anodized:
| Grade | Anodized thickness | Hole scaling quality of oxide layer | |
| Average thickness | Local thickness | P.Cr acid-erosion weight less method | |
| AA10 | >= 10um | >= 8um | >= 30 mg/d m2 |
| AA15 | >= 15um | >= | |
Powder coating & wooden-grained:
| Coating thickness | Coating impress rigidity | Adhesive force of coating layer |
| 40~120um | Indentation hardness>=80 | 0 grade |
Mechanical property:
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6061 | T6 | >= 265Mpa | >= 245Mpa | >= 8% |
| 6063 | T5 | >= 160Mpa | >= 110Mpa | >= 8% |
| T5 | >= 205Mpa | >= 180Mpa | >= 8% |
Could you share your business card with us or leave your email address so that we can share new prices conveniently? Thanks.Contact us
Company Information
Certifications
FAQ
1>How much is the minimum order quantity? Delivery time?
A:The MOQ is 2 tons.
A:20-25 days after receiving the advanced payment. If making the mould, there will be 10-15 days to finish and test.
2>How is OEM&ODM service?
A:Our company owns extruding prodution lines, surface treatment production line. And we have professional engineers that help you analyse the design. Regarding the window and door, curtain wall, we have our own systems for your reference.
3>How can you guarantee the quality?
A:Before mass production, we will test the mould till its quality pass. In the production, your order will be followed by QC during every step. Every product must be checked and signed before they move to the next process.
Could you share your business card with us or leave your email address so that we can share new prices conveniently? Thanks.
