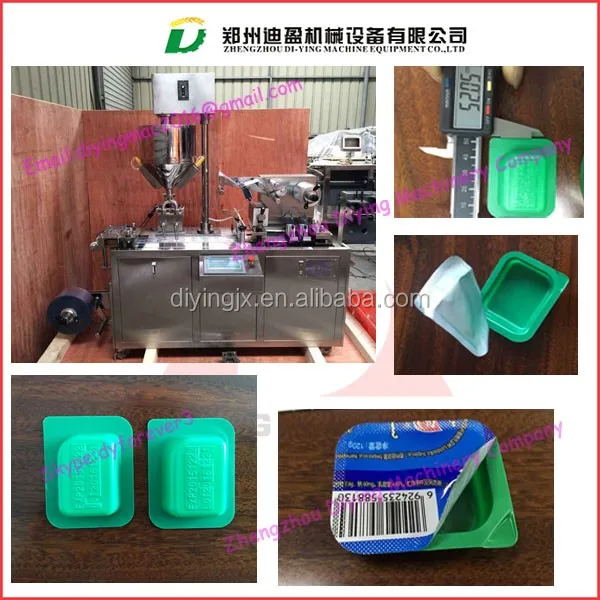

1: This Blister Packing Machine can automatically finish forming, filling, packing, sealing , printing and blister cutting in one machine.
2: With cursor positioning system that can keep Printing at center of whole blister as standard
3: Filling Amount is adjustable at 5-25g (adjustable by users )
4: The bottom film which can use in this machine is thermoformable, heat sealable semi- rigid film and rigid film such PP, PE, PET, PVC and so on.
5: By Changing mould , one machine can pack different kind and size blister
Model | DPP-80 Blister Machine |
Working speed | 10-33pcs/min |
Capacity : | 1500pcs/h (speed adjustable) |
Max formed area | 100*70 mm |
Max depth | 25mm (special made) Generally <15mm |
Display paper : | 50-100*90mm |
Standard traveling range | 30-70mm |
Aluminum laminated foil | 0.02-0.035*90mm |
PVC hard pieces | 0.15-0.5x90mm |
Air compressor | 0.6-0.8Mpa |
Mould cooling | Tap water or recycling water |
Machine power : | 3.8kw |
Voltage: | 380v /220v 50hz |
Gross Weight | 560 kg |
Packing size | 2000*850*1500mm |
Remarks | 1: With cursor positioning system 2: With Eye Mark |
