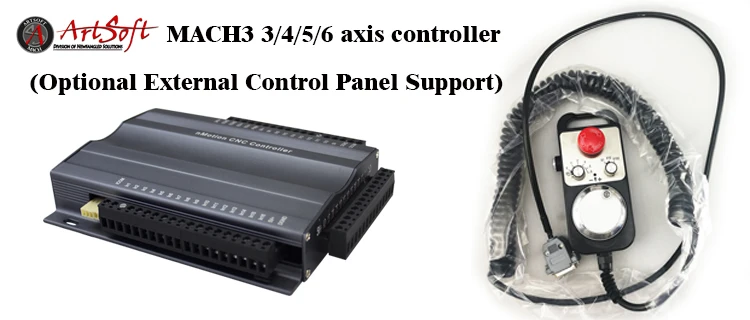

Artsoft Mach3 3/4/5/6 axis controller feature:

1.\tSupport all version Artsoft MACH3 Software,include the current latest version.

2.\tSupport all Windows system version,include Windows XP/7/8/10

3.\tIt does not need any USB drive,plug and play in any windows system platform,hotplug also.

4.\tThe USB bus adopt high grade chip to achieve the magnetic decoupling isolation,the real worth isolation,it is diiferent from the Optical coupling isolation input and output of the general motion controller,it achieve the super reliability and also absolutely keep the PC USB interface safety,guarantee the strong EMC anti-interference ability at the same time.

5.\tSingle-core solution,simple system design compared to muti-chips system,what many times stability compared to multi-chips processing method.

6.\tDual-core high speed CPU(the frequency of the single-core can reach 204MHZ),has great redundancy processing capacity.it can promise 500KHz pulse output under 4-axis linkage motion,300KHz pulse output under 6-axis linkage motion,optional to connect stepper/servo motor.

7.\tMotion control buffer size can be set,so it can keep the fastest interpolation cycle and smoothly run,even under the too heavy of the computer,it can also keep the smoothly run.

8.\tThere are 16 isolation inputs,simple interfaces to connect conveniently,also support dry/wet connection,the dry connection method just needs to connect one external mechanism switch to the ground.All 16 inputs has each LED indicator,the LED indicator will illume when the signal is low level,it is easy to debug and check.

9.\tThere are 12 outputs at most(4 isolation outputs and 4 non-isolation outputs).there are 12 outputs when it is 4-axis artsoft Mach3 controller.there are 8 outputs when it is 6-axis artsoft Mach3 controller.

10.\tIsolated PWM adjustable speed output,the PWM frequency can be set,and the duty cycle 0~1000 can be set continuously,support servo spindle,the pulse frequency can reach 800KHz.

11.\tHas the spindle speed detection function,the real speed of the spindle can real-time display in Mach3 sceen,the measurement is precise and stable.

12.\tThe PCB is meticulously designed by the professional and experience engineer,the design level is clear at a glance.

13.\tEquip with 256KB NVRAM space,it can save 6 axis coordinates,so it does not need to seek for origin point on the next time power up.

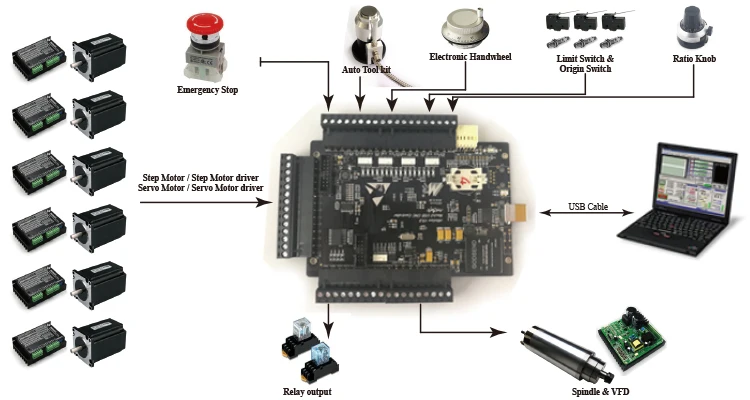

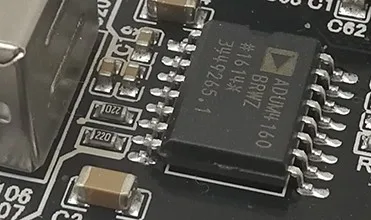

1.\tUSB magnetic decoupling isolation

Already integrate USB isolating circuit,unlike the ordinary Mach3 CNC controller does not have,if the anti-interference can not fit your project,it needs another external USB isolating board,not stable and also add cost.

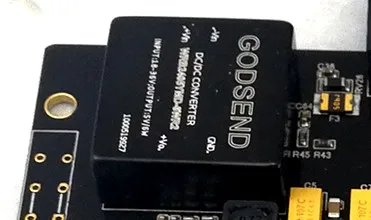

2.\tHigh power isolation power supply module

24V DC to 5 V DC power isolation module,input voltage range 18 to 36 V DC, 5VDC 6w power output.It can also supply 4 W power output at least except the board system use up 1.5W.

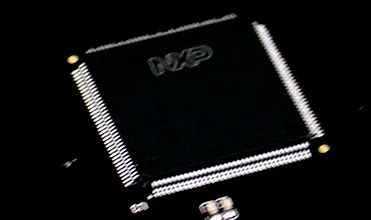

3.\tDual-Core CPU,Frequency 204MHz

Single-Chip Dual-Core 32bit MCU,What many times performance it is compared to similar products,simple design so more reliable system.

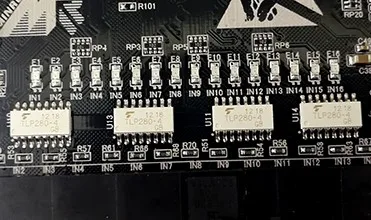

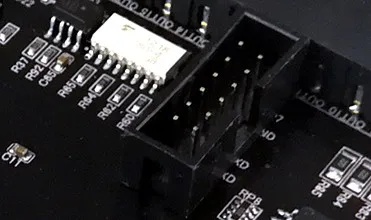

4.\tBidirectional Optocoupler isolation input

Use Bidirectional Optocoupler,it can be applied to both NPN and PNP type sensor inputs,welcome to the Electronic peer to check,this is real isolation,the ground layout is separated,No copper and go lines in the middle!Every inputs has LED indicator, convenient to debug and check.

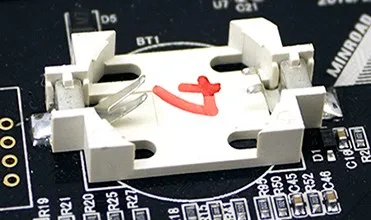

5.\tNVRAM battery

NVRAM battery installed base,it can save mechanism coordinates and processing line number.

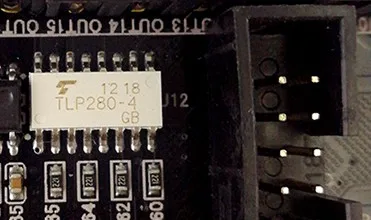

6.\t4 Optocoupler isolation outputs

Isolating outputs,it can be applied in controlling the FWD/REV direction of the inverter and other strong interference control signals.

7.\tPWM isolating output with voltage select function

PWM adopt 10M high speed isolating Optocoupler, and there are 5V/10V analog voltage select function.

8.\tSpindle speed detecting function

10M high speed isolating Optocoupler as well,it can catch higher frequency pulse signal,and send this signal to the seeking for origin input,it can be applied in spindle thread tapping function.

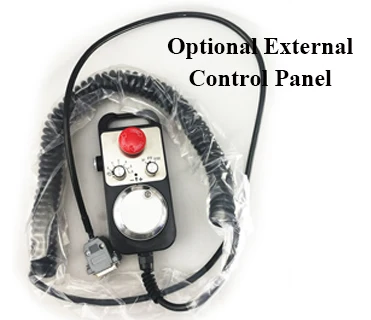

9.\tHandwheel interface

The handwheel interface is independent,it does not occupy any inputs,the handwheel has independent Emergency Stop input IN17.

10.\tUEFI(General extension interface)

The general extension interface has RS232 and SPI interface,it will add external circuit as offline function.

11.\tAI analog signal input interface

2 analog signal inputs,it can connect one potentiometer to control the feedrate ratio and spindle speed ratio,it also can be used as detecting external sensors.

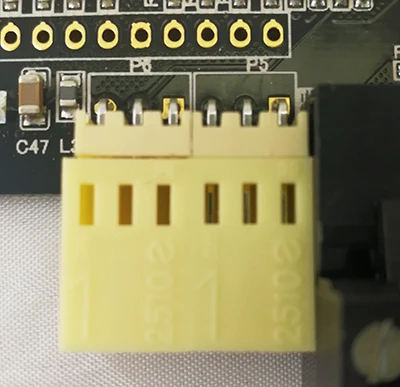

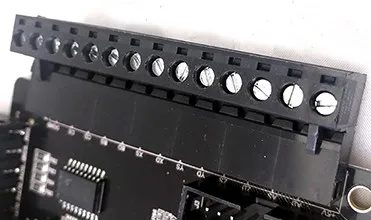

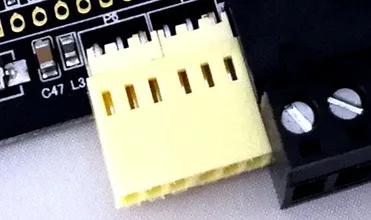

12.\tPulse outputs interface,convenient to wire

Convenient to wire

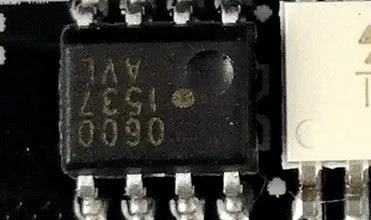

13.\tStrong material,Never use cheap capacitors or less use capacitors for convenient or save cost.

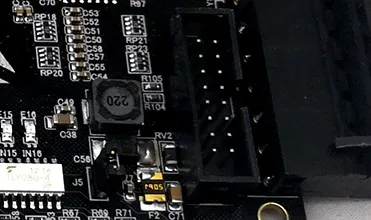

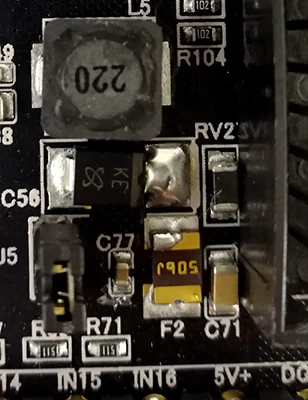

There is one capacitor still not in the picture,fully 5pcs tantalum capacitors,plus another 2pcs inductance, Fully considering the circuit stability

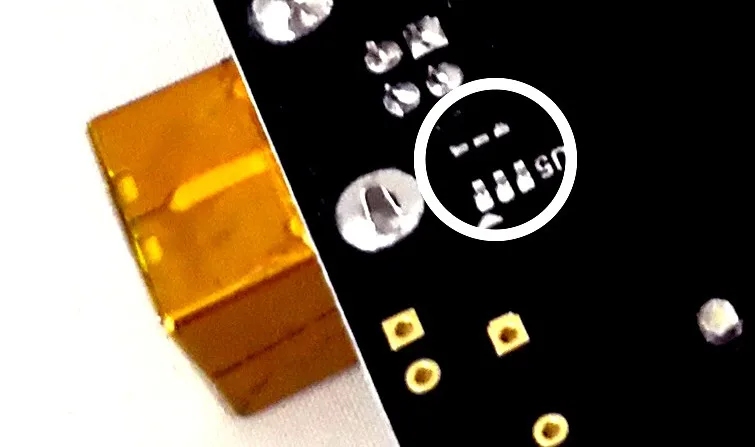

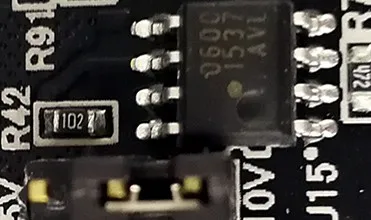

g)\tUSB interface dedicated TVS protection chip.
