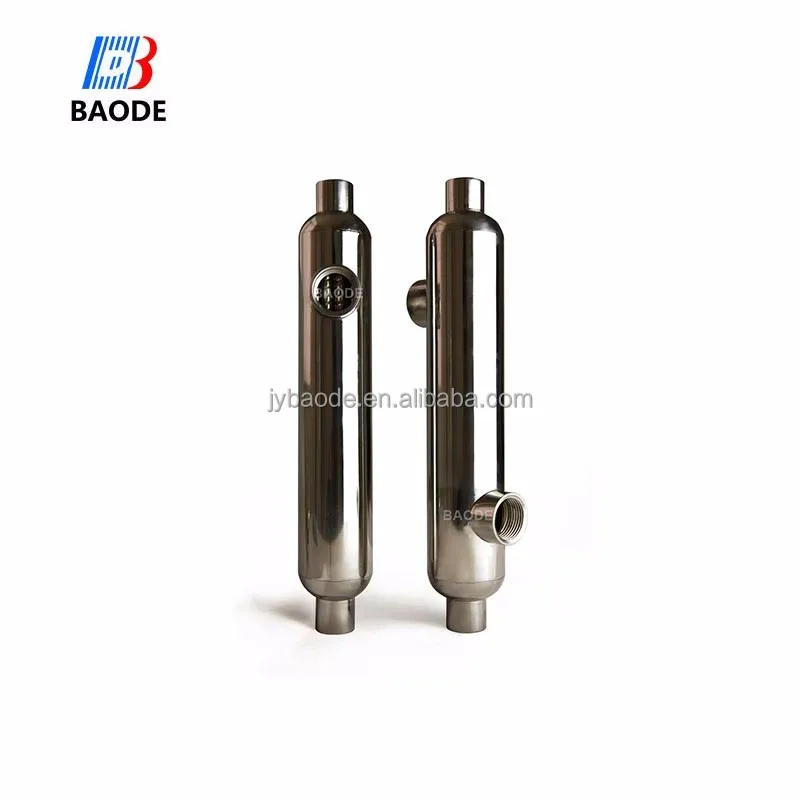

Durable modeling small portable shell and tube heat exchanger
- Category: >>>
- Supplier: Jiangsu Baode Heat-Exchanger Equipment Co. Ltd.
Share on (60635867072):
Product Overview
Description
Durable modeling small portable shell and shell and tube heat exchanger
Product Description
| Normal Capacity | Pool Capacity | Hot Water | Cold Water | Heat Transfer Area | Connection Size | |||||||||||||
| Kw | Kbtu/hr | (gal@1"F/H | (M'@1C/h | Flow Volume | Pressure Lose | Flow Volume | Pressure lose | |||||||||||
| L/min | UsGPM | Kpa | Psi | L/min | UsGPM | Kpa | Psi | M' | Ft | Pool side | Hot side | |||||||
| 16 | 55 | 4,700 | 32 | 28 | 7.49 | 5.83 | 0.85 | 185 | 48.84 | 7.08 | 1.03 | 0.15 | 1.636 | 1" | 3/4" | |||
| 25 | 85 | 7,300 | 49.7 | 31 | 8.27 | 7.07 | 1.02 | 213 | 56.32 | 8.81 | 1.28 | 0.25 | 2.703 | 1" | 3/4" | |||
| 45 | 155 | 13,300 | 90.6 | 32 | 8.46 | 7.58 | 1.1 | 237 | 62.66 | 10.92 | 1.58 | 0.33 | 3.552 | 1 1/2" | 1" | |||
| 60 | 210 | 18,000 | 122.6 | 35 | 9.13 | 2.59 | 0.38 | 242 | 63.94 | 7.28 | 1.06 | 0.44 | 4.769 | 1 1/2" | 1 1/2" | |||
| 88 | 300 | 25,800 | 175.8 | 42 | 11.16 | 3.89 | 0.56 | 325 | 86.11 | 11.26 | 1.63 | 0.64 | 6.899 | 1 1/2" | 1 1/2" | |||
| 105 | 360 | 31,500 | 214.6 | 48 | 12.63 | 5.83 | 0.85 | 358 | 94.7 | 16.55 | 2.4 | 0.85 | 0.128 | 2" | 1 1/2" | |||
| 175 | 600 | 52,500 | 357.7 | 66 | 17.44 | 8.43 | 1.22 | 432 | 114.16 | 21.19 | 3.07 | 1.55 | 16.7 | 2 1/2" | 2" | |||
| 352 | 1200 | 105,600 | 719 | 114 | 30.19 | 15.23 | 2.21 | 847 | 224.06 | 27.94 | 4.05 | 2.01 | 21.58 | 2 1/2" | 2" | |||
| Model | A | B | C | D | E | F |
| ST-16 | 260 | 60.00 | 360 | 3/4" | 1" | 48 |
| ST-25 | 420 | 60.00 | 520 | 3/4" | 1" | 48 |
| ST-45 | 350 | 76.00 | 450 | 1" | 1 1/2" | 48 |
| ST-60 | 470 | 76.00 | 570 | 1 1/2" | 1 1/2" | 48 |
| ST-88 | 689 | 76.00 | 780 | 1 1/2" | 2" | 48 |
| ST-105 | 730 | 89.00 | 830 | 1 1/2" | 2" | 48 |
| ST-175 | 760 | 114.00 | 900 | 2" | 2 1/2" | 48 |
| ST-352 | 760 | 133.00 | 900 | 2" | 2 1/2" | 48 |
HOUSEHOLD APPLICATION
floor heating
Swimming pools, tanks with hot water
Defrosting of garage roads, packing
INDUSTRIAL APPLICATION
oil coolers
Coolers of engines and transmission systems
Coolers of samples in kettle installation
