NDIR CO2 Sensor 300 5000ppm Small Size with UART , I2C Output CDM7160

Product Overview

Description

      NDIR CO2 Sensor 300-5000ppm Small Size with UART , I2C Output CDM7160

                                              Model Number : CDM7160



Description:

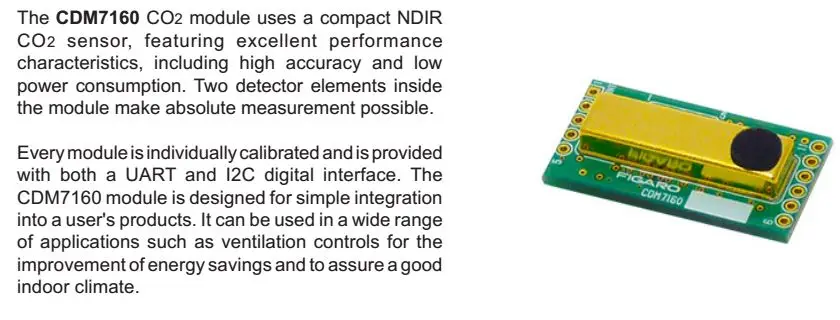

The CDM7160 CO2 module uses a compact NDIR CO2 sensor, featuring excellent performance characteristics, including high accuracy and low power consumption. Two detector elements inside the module make absolute measurement possible. Every module is individually calibrated and is provided with both a UART and I2C digital interface. The CDM7160 module is designed for simple integration into a user's products. It can be used in a wide range of applications such as ventilation controls for the improvement of energy savings and to assure a good indoor climate.



Features:
* Small size
* Low power
* High accuracy
* Absolute measurement via dual sensors



Applications:
* Indoor air quality control
* Fresh air ventilators
* Air conditioners
* Automatic fans and window openers
