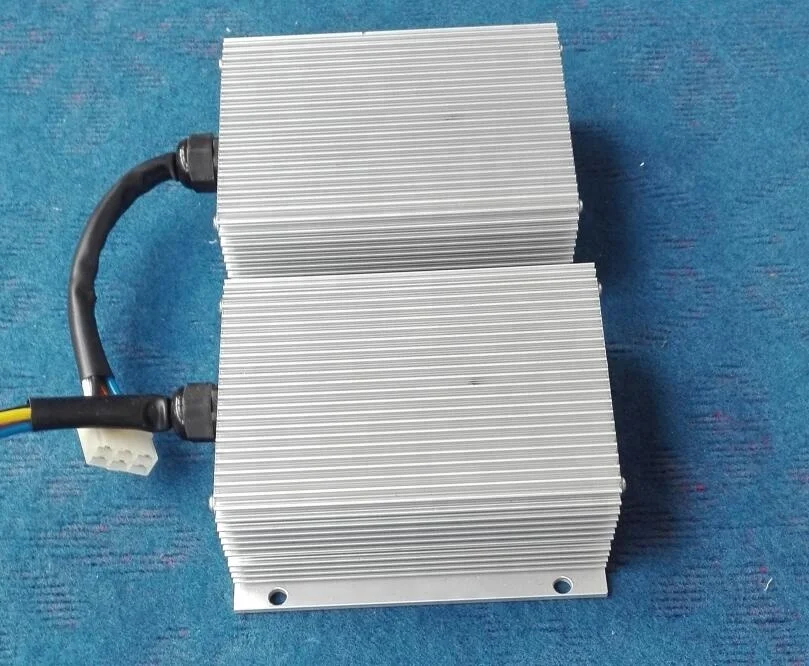

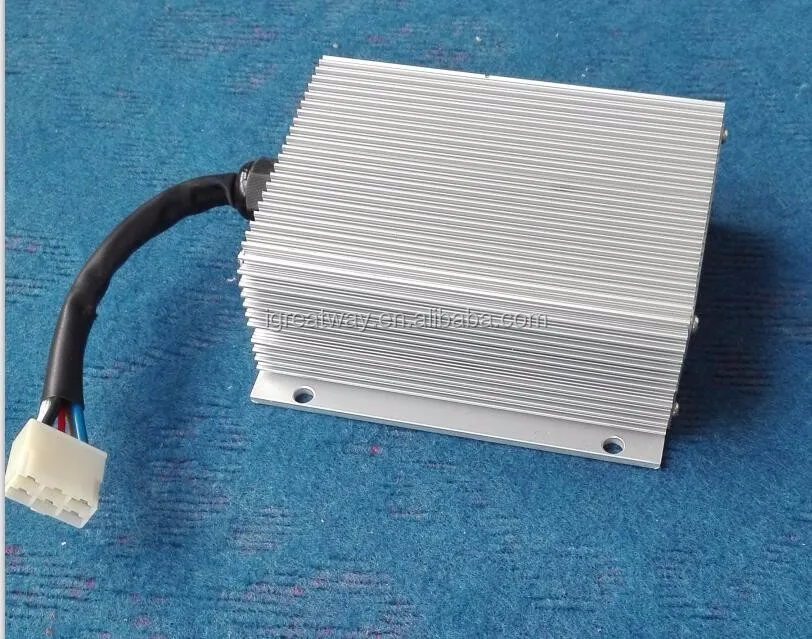

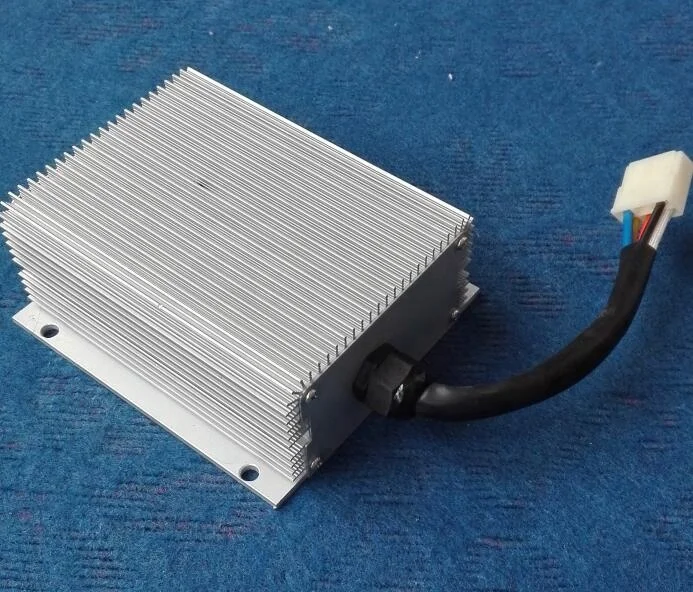

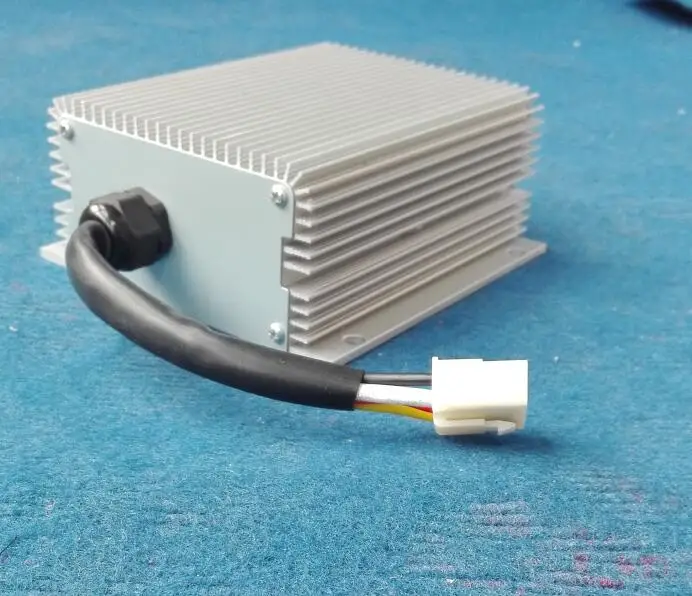

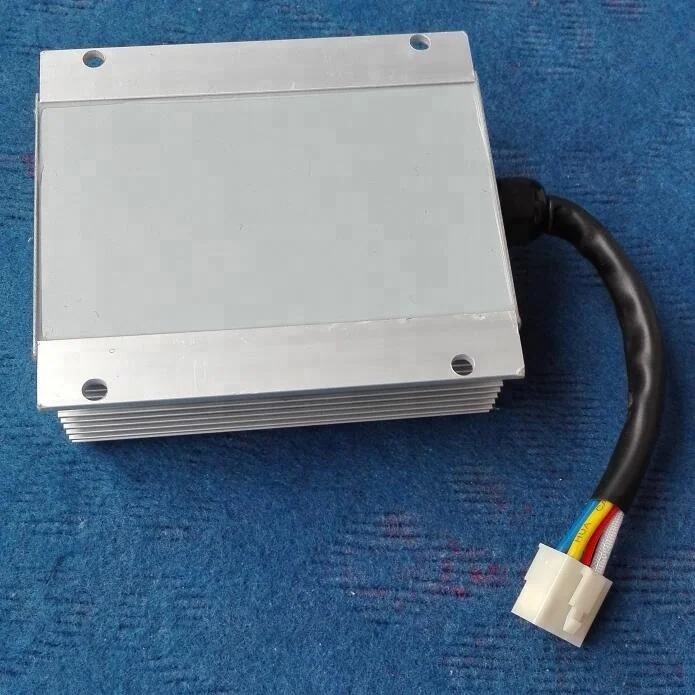

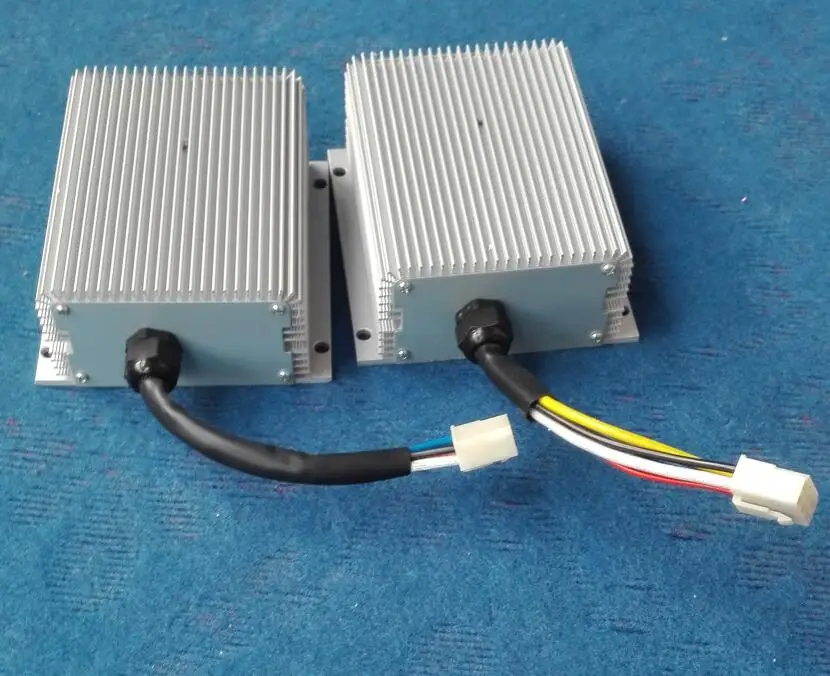

48v 12v,25A 300W изолированный DC DC конвертер

Product Overview

Description













 PXG series isolated DC/DC converter applies advanced technology and is configured specifically for electric vehicles. It is very suitable to supply power to the lamp and audio system as it is very stable and clean. The advantages of high efficiency, stability and compact size, are achieved by adopting the advanced high frequency technology







Technical parameters







       1: Input voltage range: 48V 60v 72V 84v 96v 108v 120v 144v







            Output voltage: 12.8V / 13.5v / 13.8V  (The default value is 13.5V)







            Output Current:  25A



      Output power : 300W







      2: load factor: 82%







      3: Working environment temperature: -20- +50







      4: Insulation resistance: ≥100 megohms







      5: Test leakage current: < 0.75mA







      6: input-output  type:  full Isolated







      7: primary, secondary, between the chassis dielectric strength: ≥1500V AC







      8: Functions: over-current limit, the output short circuit, output reverse, overheating protection







      9: Size: 160X140X63 (length has also 155mm,178mm,198 mm)







     10: Weight: 1.40Kg







 .Type Table



Model No.	Input volt	Output volt	Output current
PXG300W-4812	48V	12V	25A/30A
PXG300W-6012	60V	12V	25A/30A
PXG300W-7212	72V	12V	25A/30A
PXG300W-9612	96V	12V	25A/30A
PXG300W-12012	120V	12V	25A/30A
PXG300W-14412	144V	12V	25A/30A

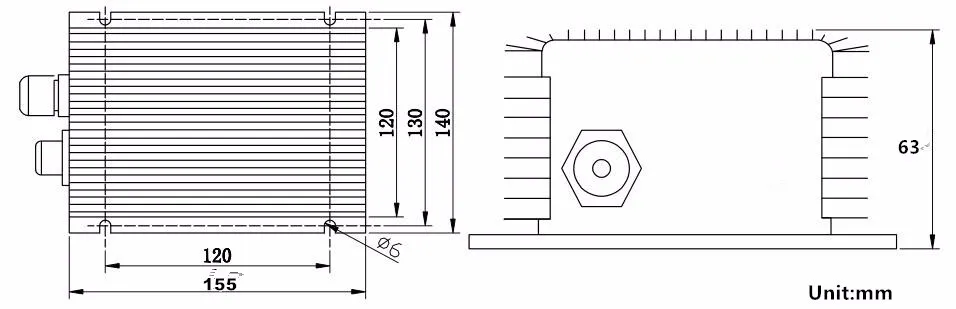

 Dimention







     Wiring instruction







     Red  wrie (with wax tube): input+                  Black wire:  output -







     Orange wire: electric locks







     Yellow wire: output+         Blue wire: output-







    The converter  are  with built-in insurance
