Low Price Industrial Grade Linux Single Board Computer OK335xS-II Windows CE Development Board

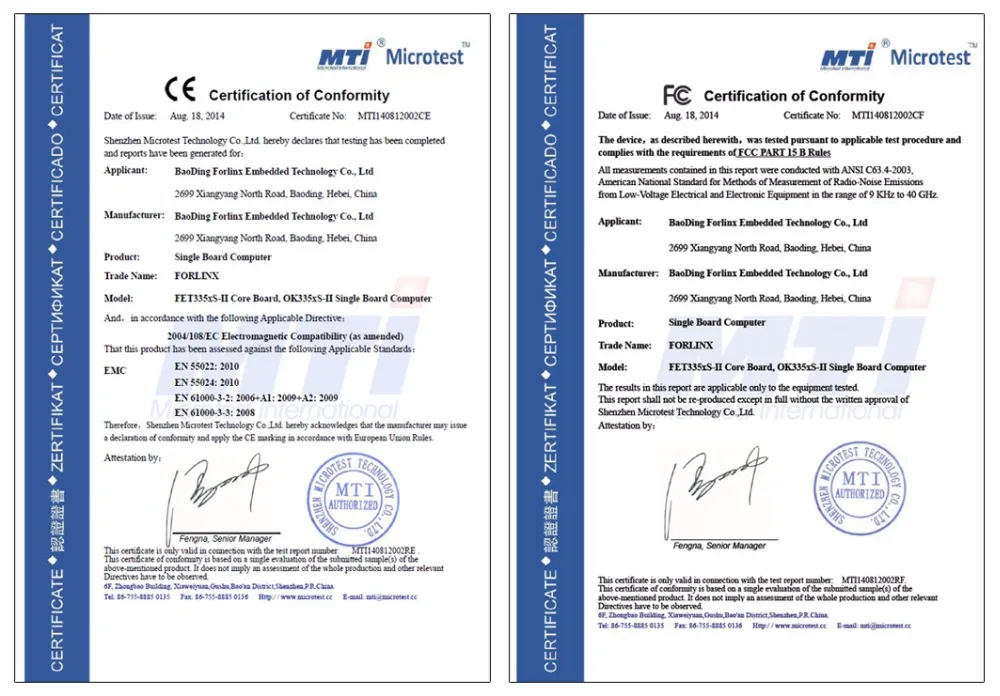

OK335xS-II is an excellent single board computer based on Cortex-A8 featuring MCU AM335x with low power cost efficient and excellent product performance item which is available for both embedded Linux and Windows CE6.0 system. All components on this single board computer are industrial grade components. It is with 600MHz frequency, 128M DDR3 RAM and 256M NAND Flash. As TI Sitara official aurthorized IDH in China, Forlinx launched this compact sized single board computer with an ultra low price and full technical support. It's very popular among users in HMI, medical, smart home, robotic, IoT gateway solution, etc. What's more both the single board computer and system on module (SoM) were approved by CE&FCC, all components and solder paste are comply with RoHS. Now let's have a look at more details about this item.

FET335xS-II SoM Hardware Features

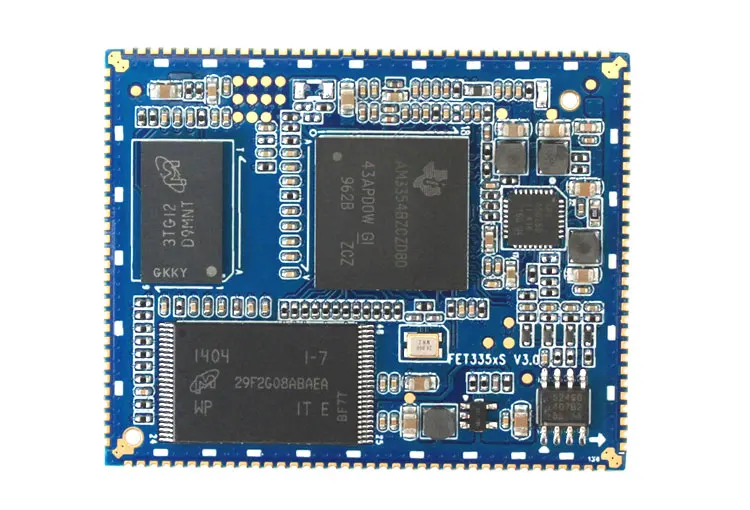

FET335xS-II Industrial CPU System on Module
CPU	AM3354	I2C	3-ch
Architecture	A8	SPI	2-ch
Main Frequency	600MHz	CAN	2-ch
RAM	128M DDR3	USB HOST	1-ch USB HOST 2.0
FLASH	256M SLC Nandflash	USB DEVICE	1-ch USB DEVICE 2.0
Temp range	-40℃-+85℃	SD/MMC/SDIO	3-ch MMC
Humidity	10%~90%	Ethernet	2-ch Gb Ethernet port
Input Voltage	5V	UART/IrDA	6-ch
2D/3D	Support 2D/3D graphics acceleration	EINT/GPIO	Support
GPU	Power VRSGX530	ADC	7-ch
PMU	TPS650250	Video Codec	Software codec
Size	52mm*42mm*2.6mm	JTAG	1-ch
Connection method	Stamp hole	EEPROM	Support (Only for Encryption)
OS	Linux3.2 WinCE6.0	PWM	3-ch (1-ch for self definition,1-ch for backlight, 1-ch for buzzer)
LCD	RGB16bit	SATA	Support to connect with usb to SATA module
Audio	IIS interface

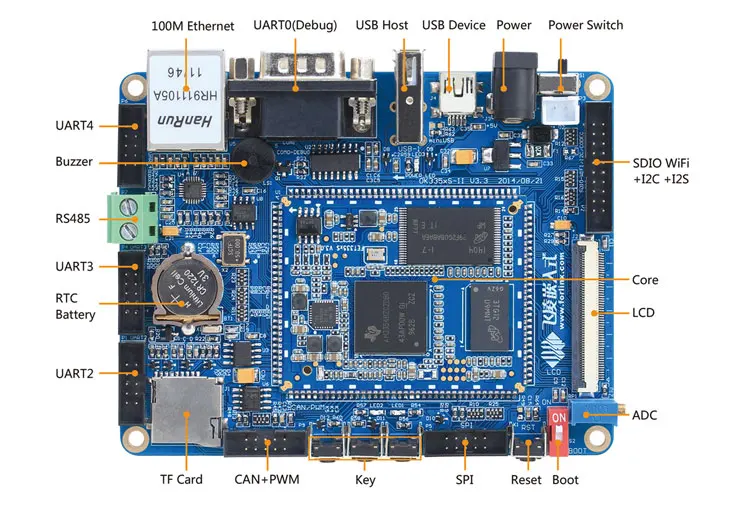

OK335xS-II Single Board Computer Hardware Features

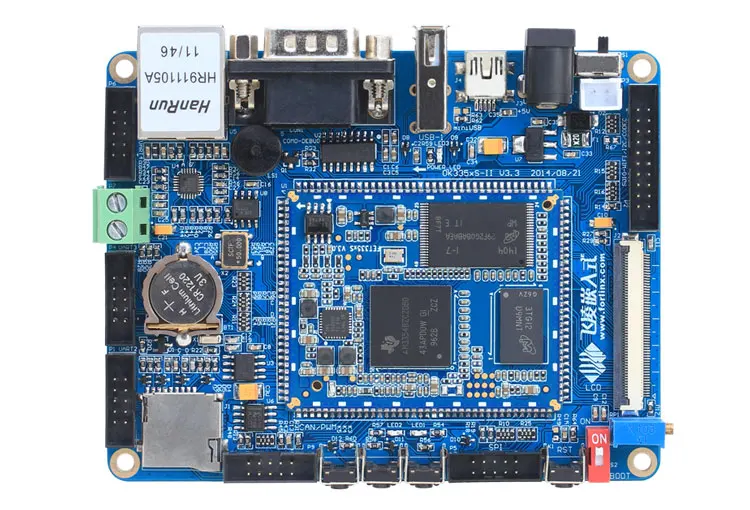

OK335xS-II Industrial Single Board Computer
I2C	1-ch	RTC	Support
SPI	1-ch	User key	3
CAN	2-ch (CAN transceiver is not on the board, only can bus here)	Boot switch	Set to boot from Nandflash or SD card
RS485	1-ch	Reset	1
SD/MMC/SDIO	1-ch SD card	PWM	3-ch
USB HOST	4-ch, support USB 2.0 protocol	LED	2-ch
USB DEVICE	1-ch, support USB 2.0 protocol	GPIO	Many, multiplexed with other pins
Ethernet	1-ch 100M Ethernet port	LVDS	Support
Serial	4-ch (1-ch is for debugging,3-ch LVCOMS)	SATA	Support to connect with USB to SATA module
Input voltage	5V	GPS	Support to connect with external GPS module
LCD	1-ch, support resistive, capacitive touch screen; support LCD to VGA module	3G	Support to connect with external AD3812 module(USB)
ADC	7-ch, (2-ch is for self definition, 1-ch is for slide rheostat,4-ch is for resistive touch)

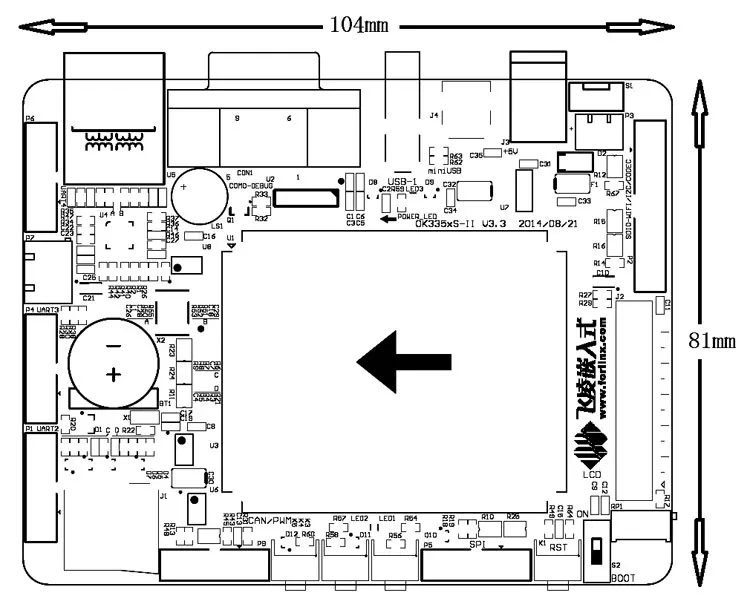

Carrier board pin diagram

OK335xS-II carrier board silk printed



FET335xS-II SoM silk print

OK335xS-II Development Board Software Features

Single Board Computer OK335xS-II with Linux3.2 OS
U-boot version	u-boot-2011.09
Kernel version	Linux-3.2.0
Drivers	Ethernet driver	LCD FrameBuffer
	LED driver	Resistive touch screen driver
	LCD driver	RTC driver
	USB driver	Serial driver
	PWM driver(Backlight and buzzer)	User key driver
	Flash ECC	Watchdog driver
	Nand Flash driver	IIC driver
	UBI file system	AD driver
	TF card driver



Single Board Computer OK335xS-II with Windows CE6.0 OS
BootLoader	EBOOT SD card flashing
Flashing method	SD card flashing
CE version	PB6.0
Drivers	LED	User key
	GPIO	RTC
	I2C	NANDFlash
	SPI	Display
	Serial	Ethernet
	Touch screen driver,resistive touch	USB (OTG/USB/HOST)
	SD card	Backlight
	DMA	AD
	Audio	PWM
	Watchdog

Application

inudstrial control, intelligent traffic, portable device, medical, electronics, power system, environment monitoring, car electronics, IoT gateway, smart home, EV charging pile, security, etc.

Packing & Shipping

A complete OK335xS-II development board contains below accessories

1. a power adapter DC 5V 2A

2. a serial port cable

3. a mini USB cable

generally, the single board computer OK335xS-II could be packed as one pc a box or multiple pcs packed in a carton.The packing is depended on board quantity.

the parcel(s) could be sent out by express as requested within five working days after receipt of full payment.

Our Superiority

1. TI authurized IDH indentity

2. we are an original manfactuer with our own powerful R&D and technical support team

3. ready-to-use technical files for users'  development(schematic, source code, user manual, etc. ) and after-sale technical service

4. long product life time guarantee

5. best product quality, the items approved by CE&FCC
