Auto fule CNG/LPG common rail/injector rail 1cyl, 2cyls, 3cyls, 4cyls, 6cyls
- Category: >>>
- Supplier: Zhejiang Jiasheng Electric Tech. Co. Ltd.
Share on (60635951476):
Product Overview
Description

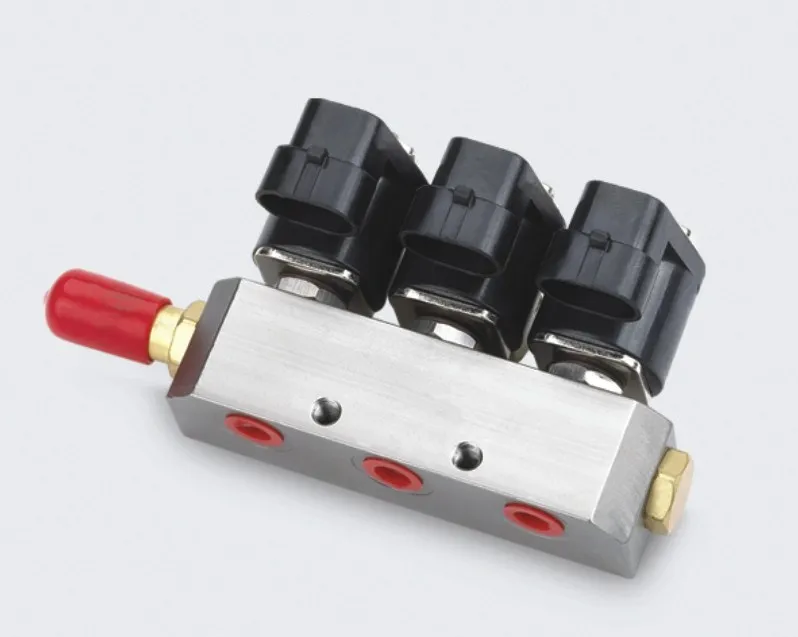

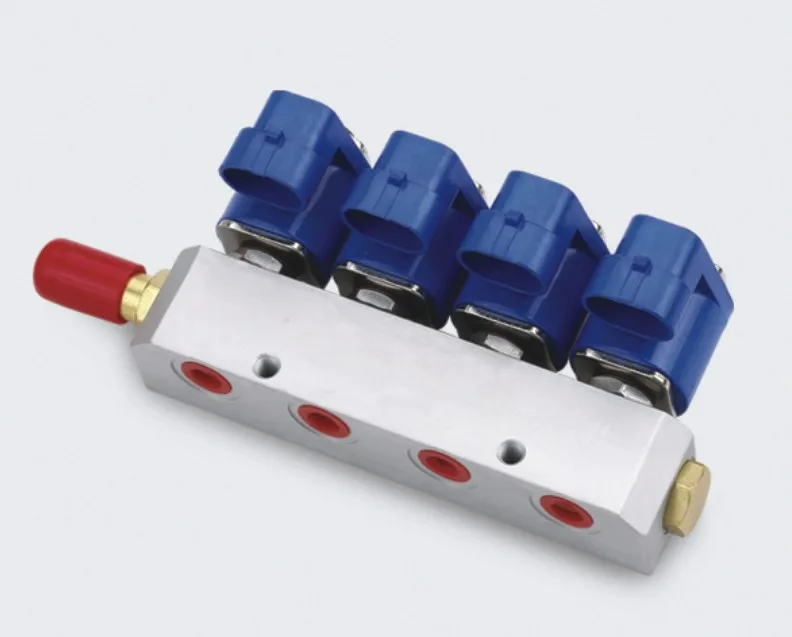

JS040 Auto fule CNG/LPG common rail/injector rail
Introduction of CNG/LPG common rail/injector rail
Injection valve and rail, commonly known as common rail/injector rail, a key component of gas vehicle multi-point electronically controlled injection system, includes solenoid, Valve nozzles and rail body etc. The nozzles mounted inside the rail body, quantity is equal to the number of engine cylinders. The common rail/injector rails are suitable for all types of engines and vehicles.
| Specification of common rail/injector rail: | 1.2.3.4.6 cyls |
| Type of fuel: | CNG/LPG |
| Working pressure: | 0.5~2.5bar |
| Max pressure: | 4.5 bar |
| Max bearing pressure: | 8 bar |
| Voltage: | dc12v |
| Air inlet | 16 x10 rubber tube |
| Port thread: | m12x1 |
| Outlet: | G1/8 thread |
| Flow range: | 1.0~4.0mm |
| Temp. | -20~120 |
| Resistance: | 1/3/6Ω |
| Opening time: | 2.5ms |
| Closing time: | 2.0ms |
| Flow error: | +/-0.4 per 10L |
| Application of CNG/LPG common rail/injector rail: | All types of engines and vehicles |
