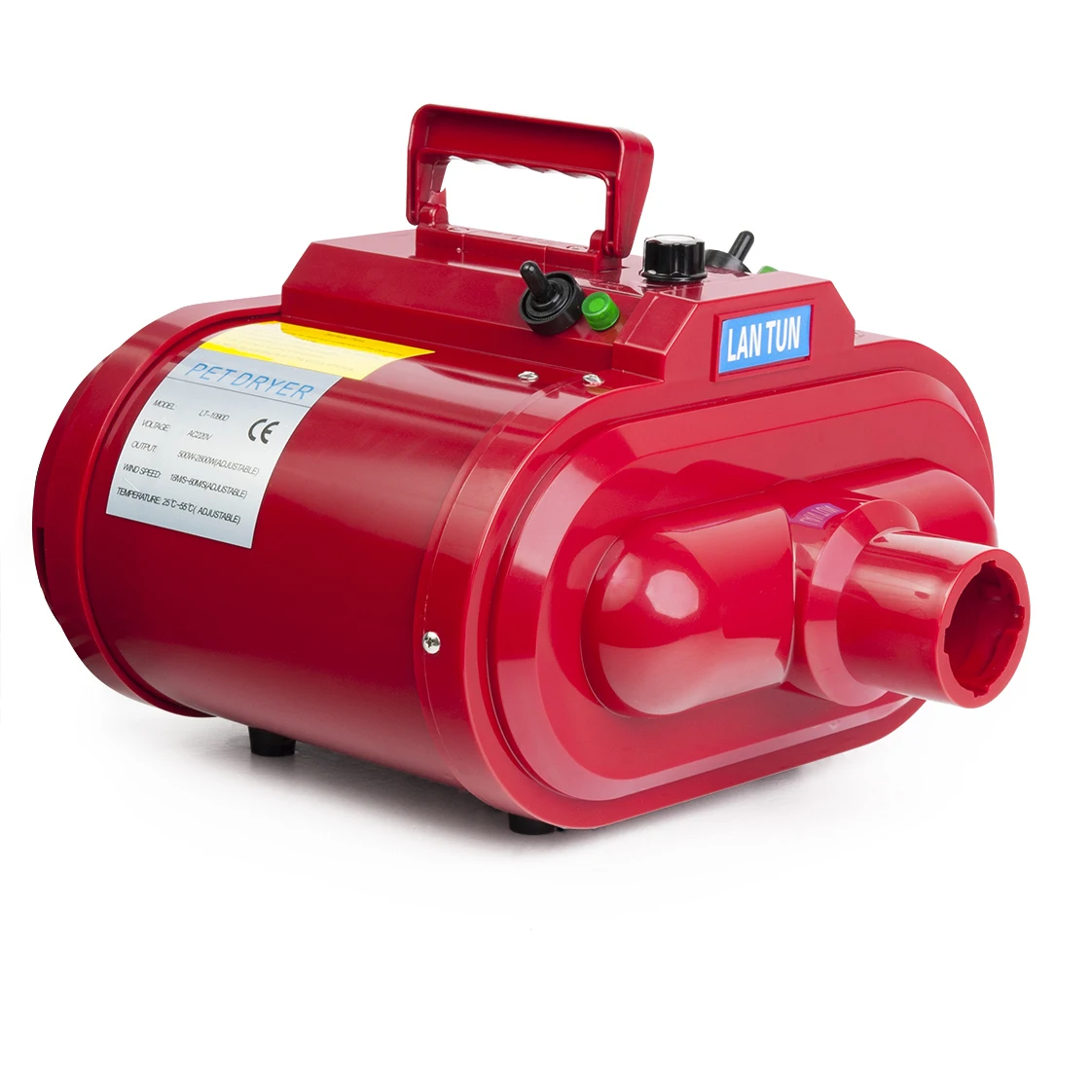

LT-1090D Pet Dryer is a classic type double-motor product while the LT-1090D-1 Pet Dryer is a classic type product with higher power.
They are equipped with a function of stepless wind speed adjustment which is a great technological breakthrough compared with the double-motor pet dryer in the past. The adjustment range of wind speed has been dramatically enlarged from gentle breeze to strong wind, which has also widened the application scope of the machine.

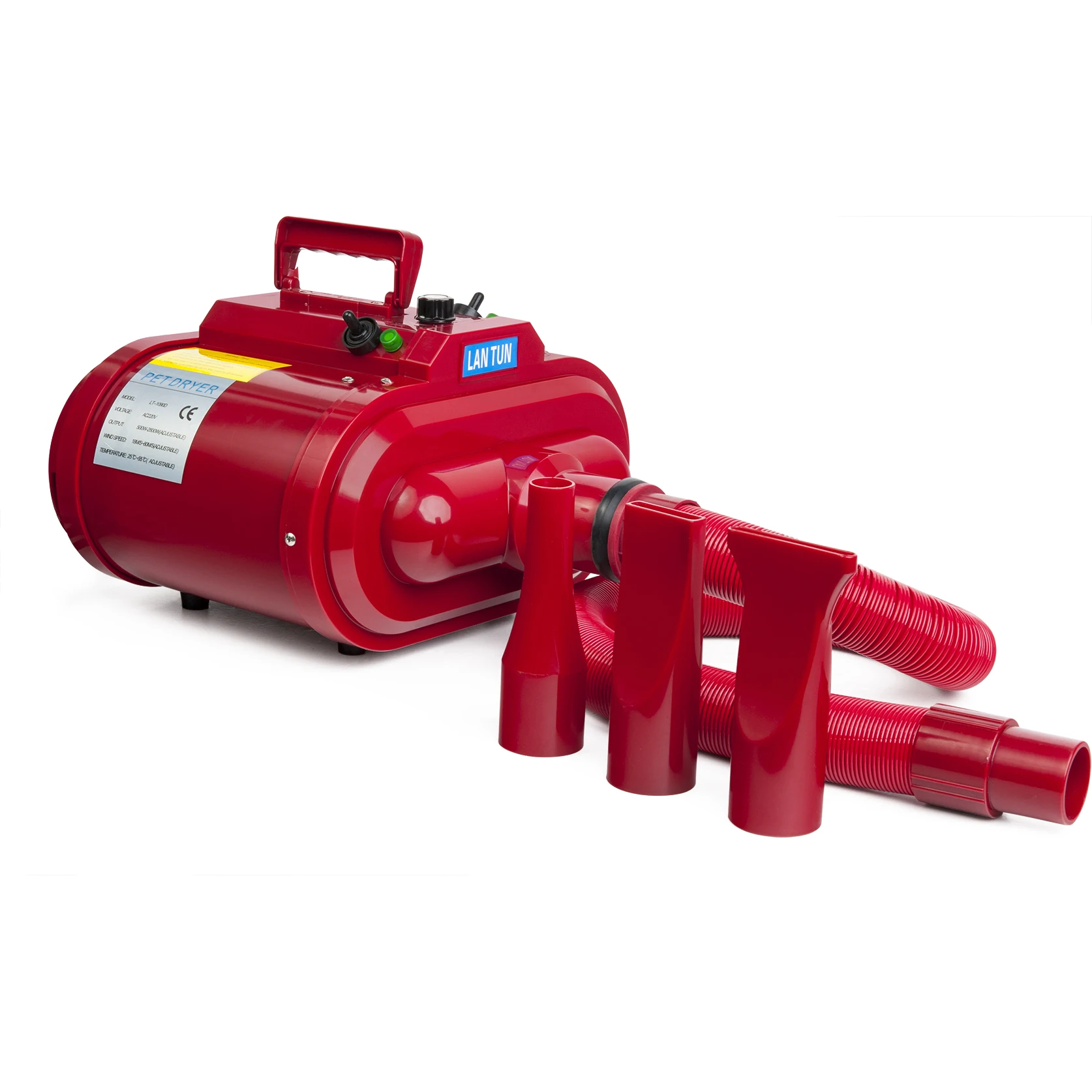

The product is also equipped with an adjustable hose and 3 air outlets.
The lowest wind speed arriving at 18m/s, the highest speed of the product can reach as high as 100m/s or above.
For the D model, the wind impact can be as strong as 1040g or above at the air outlets at the highest wind speed while that for the D-1 model can be higher than 1100g.
When the product is under normal operation, the air outlet temperature is around 15~20℃ higher than the surrounding environment.
With a specially-designed air duct, the largest noise of the machine is kept below 82db, which is 10db or more lower than other like products.
The connection of the machine and the hose is specially designed so that the hose can be efficiently installed or detached.
◆Instructions for use:
Open the dryer box, take out the dryer, and check its shape, if there is no damage; go on with following steps:
1. Place or fix the dryer, connecting the hose with connection screw, fastening clockwise with 45 degree.
2. Plug in the dryer (please make sure the power supply voltage match the machine);

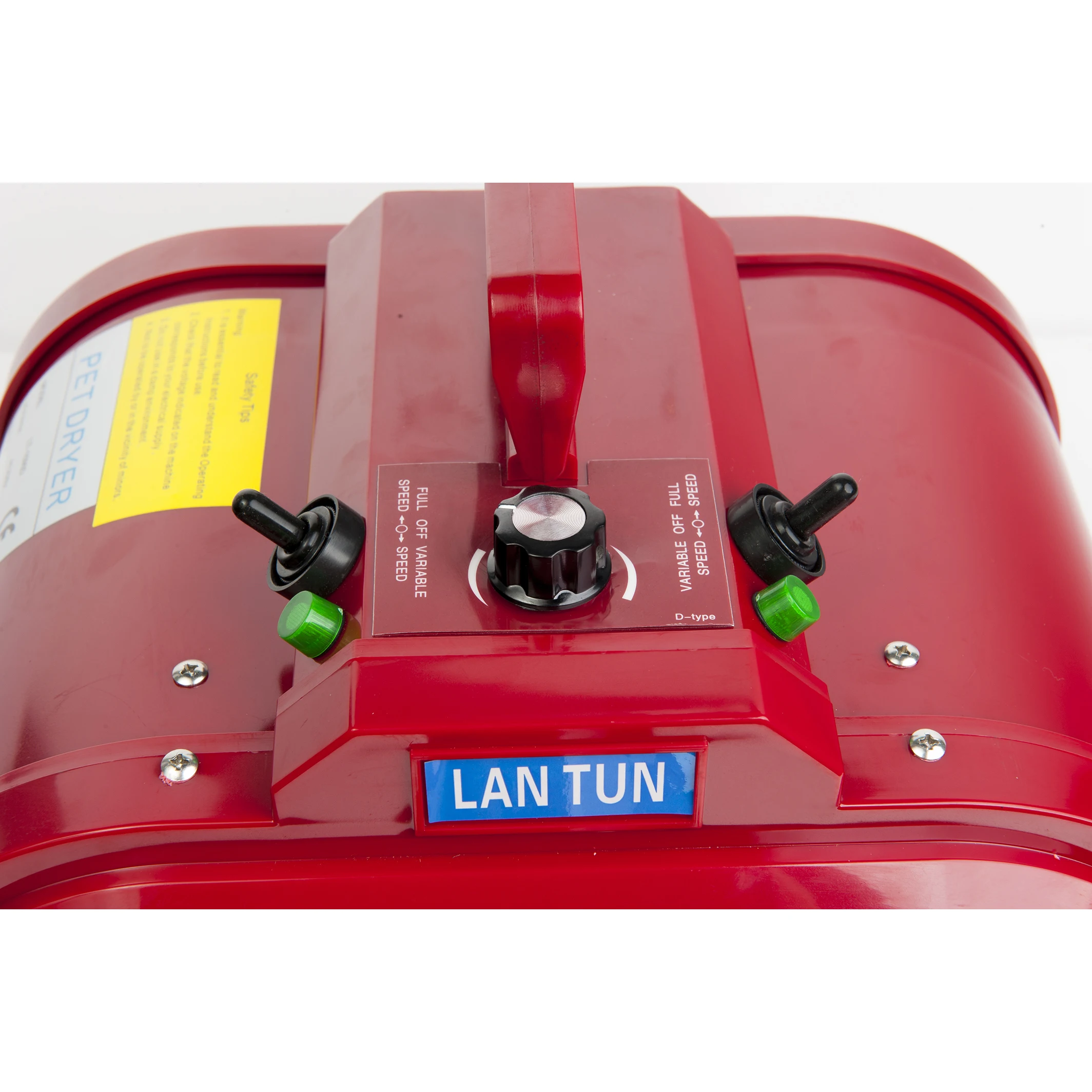

3. Switch on the dryer and adjust it to desired wind speed and temperature (air flow and temperature adjustable). Then the dryer can be engaged in work
Important Notice.
1. This machine use AC power source, power must thus have a good grounding device
2. To maintain a smooth flow of air the air intakes can not be put close to water, preventing taking in water which may damage the machine.

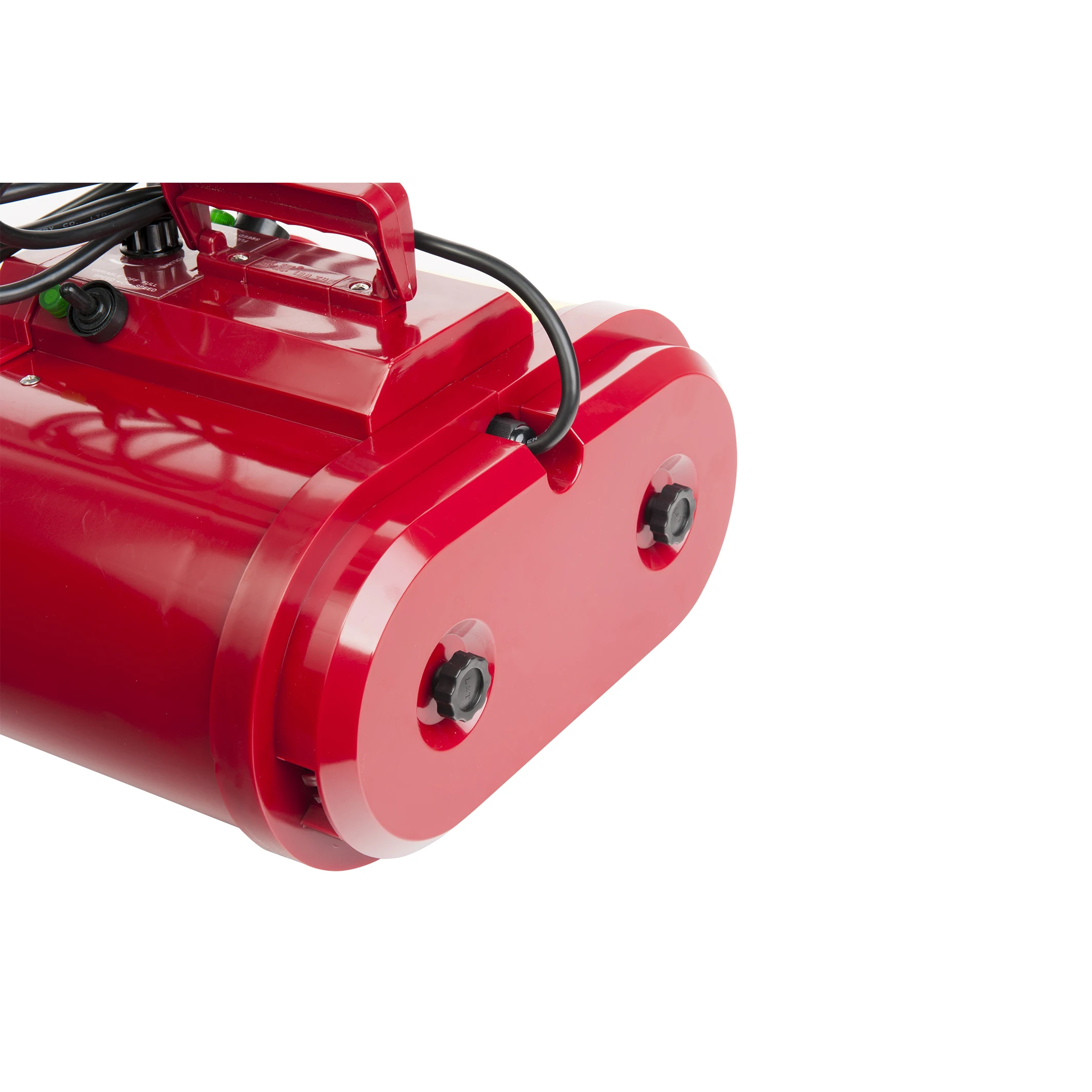

3. Clean the filters regularly to ensure a smooth air flow.
4. If the motor does not work after plug in, please turn off heat switch immediately to avoid damage to heating element.
5. Do not let minors be close to or play with the machine!
Matainance
1. The shell of the machine can be cleaned with a soft cloth and neutral detergent solution (to avoid spoiling the paint work) then use a dry cloth to clean it;
2. Use water or strong fan to clean the filters regularly. Note that filters can not be fixed on the machine until it is totally dry, in case the water may damage the machine. The machine has a standby filter with it.
3. When the machine runs out of carbon brush, professionals should be invited to check and update a new carbon brush.
Details
Product Features and Parameters.
1. Model: LT-1090D
2. Specification: Stepless speed, two gears temperature
3. Voltage: AC 240V，50HZ
4. Power: 2500W
5. Wind speed: 18m/s-100m/s
6. Temperature: 20℃-75℃
Functions & Features.
1. Soft Start: Thanks to the protection from current buffers, when started, the dryers will not discharge any impulse current, exerting no adverse influence upon the neighboring working electrical equipments. 2. Low Noise and Powerful Airflow The specially-designed noise reduction devices at air inlets are conducive to improving studios’ environment, ensuring pet’s serenity, easing the restlessness and offering convenience to nursing operators. With 10%-greater airflow than any other single-motor dryers, this model can dry your pets quickly and benefit pets’ health. 3. Full Function: This model is especially designed with high speed setting, which can work at full speed, as well as minimum airflow and high-heat settings, which have all the functions of handheld dryer. 4. Special Humanized Design Plastic material for whole dryer shell makes the dryer more safely use after it turns on. Equipped with quick locking system for the hose connecting part, and this makes the dryer much convenient to install. Added handle on the hose to prevent from hot temperature after using long time.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
