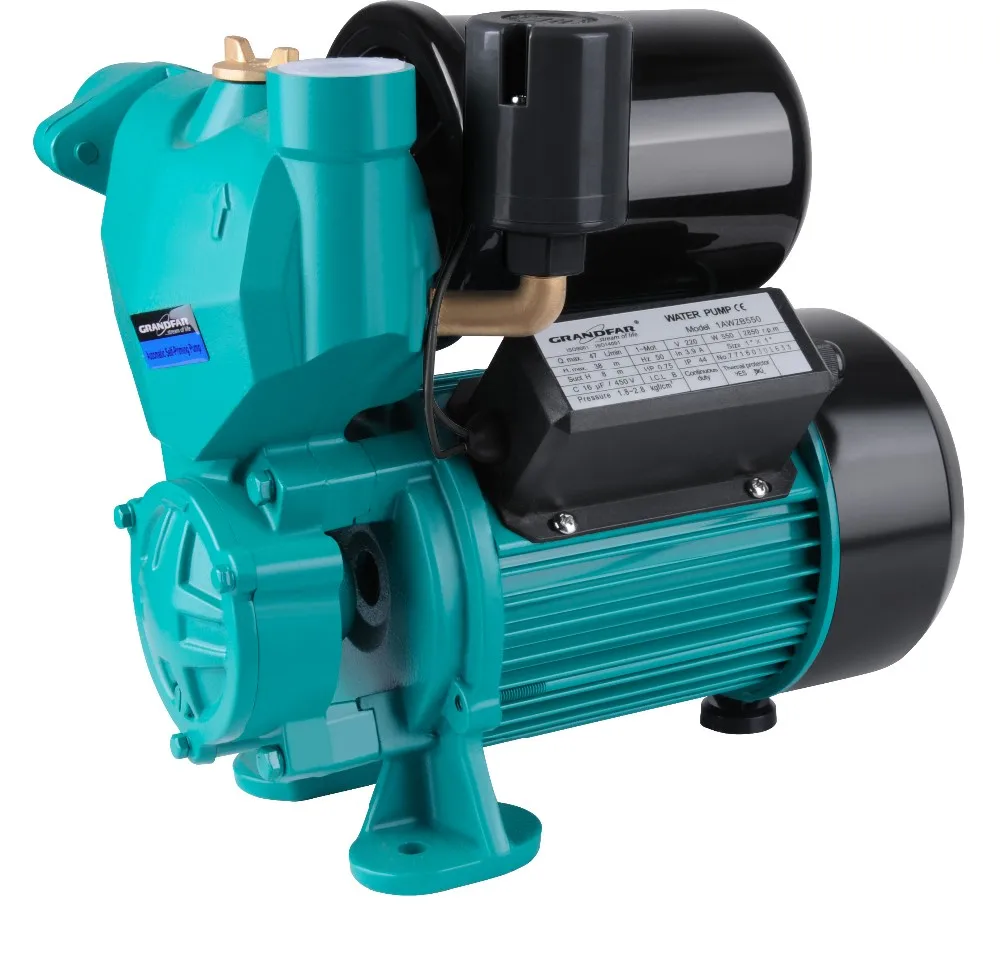

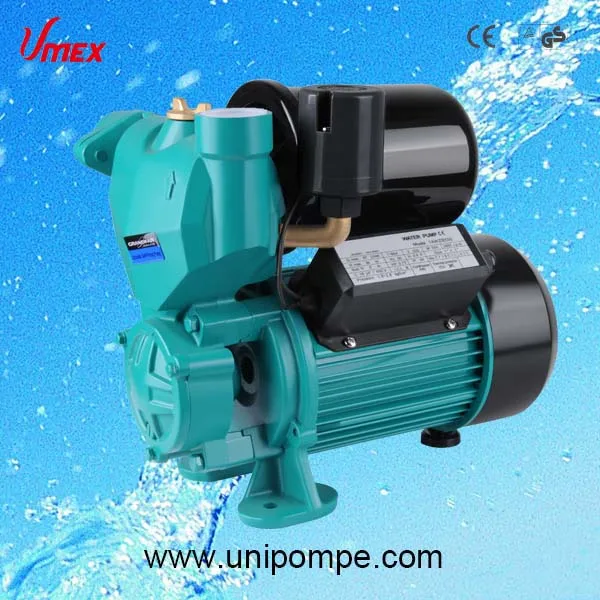

Self priming Automatic Electric Water Pump

copper winding

Shaft: stainless steel welded shaft / 45# steel

Insulation Class: B or F
Protection grade IP*4

cooling: External Ventilation

Flow rate up to 50 l/min
Head up to 80m

pump water supply

Liquid temperature up to  0 °C - +80°C
Environment temperature up to +40°C

Liquid PH value:6.5-8.5

Cast iron pump body and support

* Power off without water

* Not start frequently when tap water very small or leakage on the pipeling. Extend the service life of the pump

* Jams and blocks protection

* Buit in thermal protector

This inteligent vortex self-priming pump is a combination of motors, pumps, pressure tanks, pressure switches, flow sensor switch and electronic controllers for the integration of intelligent automatic water supply system.

These pumps are widely used in apartment water supply system, automatic water system pressurized floors, but also for the hotels, canteens,supermarkets, beauty salons, office buildings and other public occasions.

Pump body: Cast iron, with threaded opening ISO 228/1.
Motor support: Cast iron
Motor housing: Aluminum
Impeller: Brass
Shaft with rotor: Carbon steel or stainless steel
Mechanical seal: Ceramic/ Graphite
Bearing:  NSK, C&U, or local quality.

WARRANTY: 1 YEAR (according to our general sales conditions)

8Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.

Q1.What will you do for after sale?

A: We will follow up and await your feedback after we delivery the goods to you.

Q2.Why did you choose us?

 A:We have more than 10 years of experience in designing, manufacturing and trading a wide variety of pumps  and pump fittings.

Q3.How does your factory do regarding quality control?

A:Quality is priority, and we will do 100% quality inspection before shipment.

Q4.Can we use our own logo and design?

A: Yes, you can. We'll produce pump on your brand and according to your design.

Q5.What's the delivery time of your products?

A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time is depend on your purchasing quantity and production season.
