axial dc capacitor 0.33uF 800Vdc MKP SC for snubber and general purpose
- Category: >>>
- Supplier: CABO Electronics(Foshan) Ltd.
Share on (60636096332):
Product Overview
Description
Product Description
Non-polar snubber capacitor
(Number for order):SC334J801D31101
Electrical Parameter
Capacitance | 0.1～15μF |
Temperature | -40℃～+85℃ |
Capacitance Tolerance | ±5%(J);±10% (K) |
Rated Voltage | 600V.DC ~2000V.DC |
Test Voltage between | 12Un/10s |
Dissipation factor | ≤0.004 (1KHz,20℃) |
Insulation Resistance | ≥5000S |
Recommendation
▶Operating condition as frequency f≤30kHz and V≤800V,the capacitors will achieve best life performance.
▶The operating frequency of capacitor is between 30kHz to 50kHz, the working voltage should be derating. The higher operating temperature, the greater reducing.
▶When the operating frequency more than 50kHz, you should consult with the capacitor manufacturer.

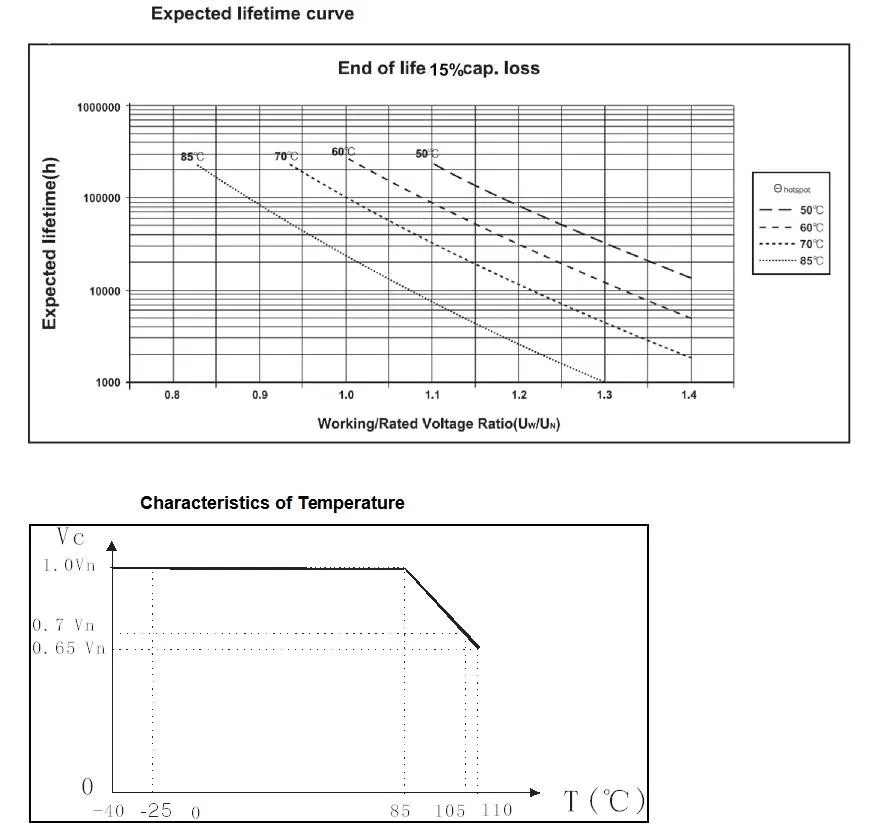

Life Characteristic

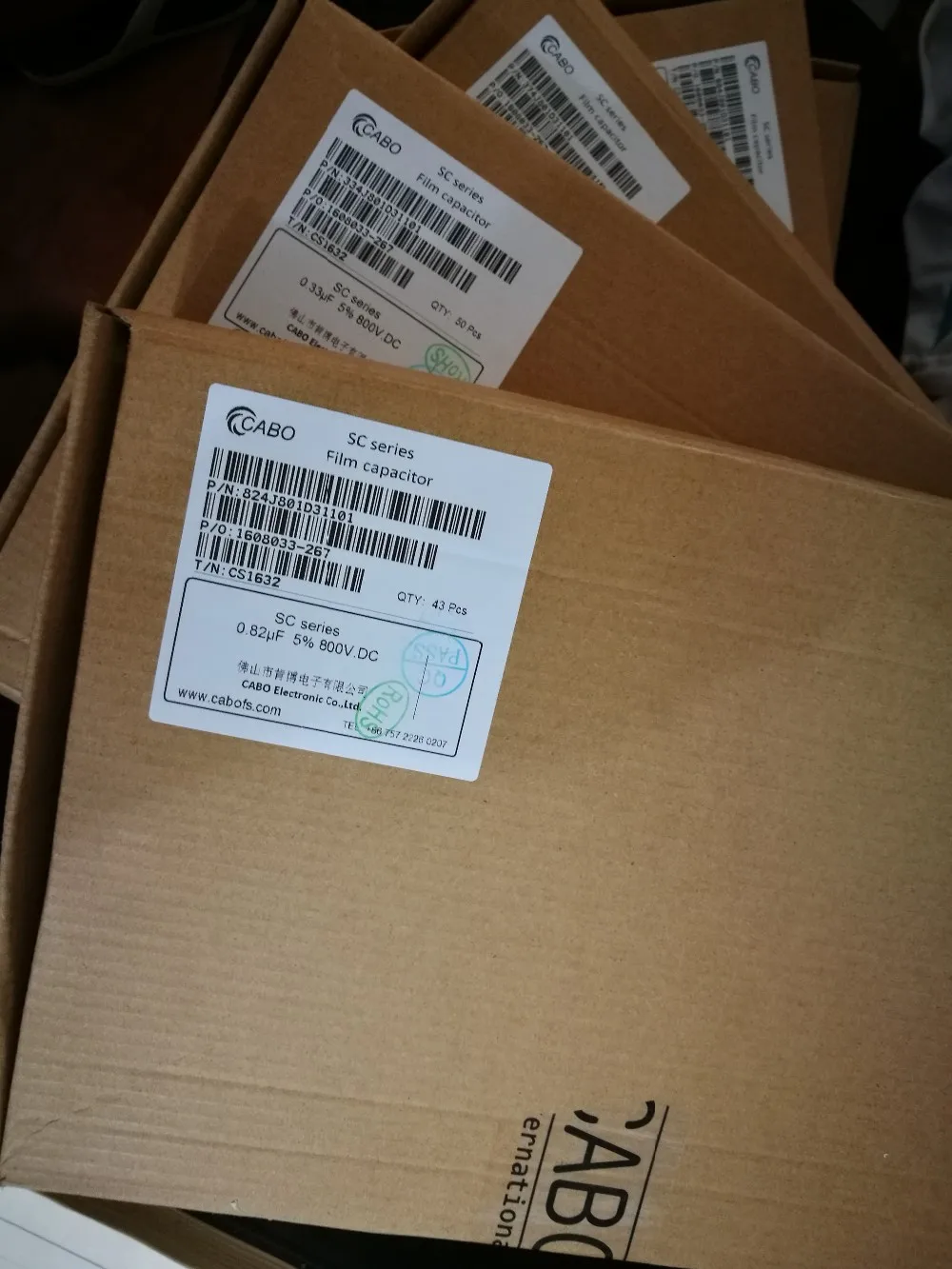

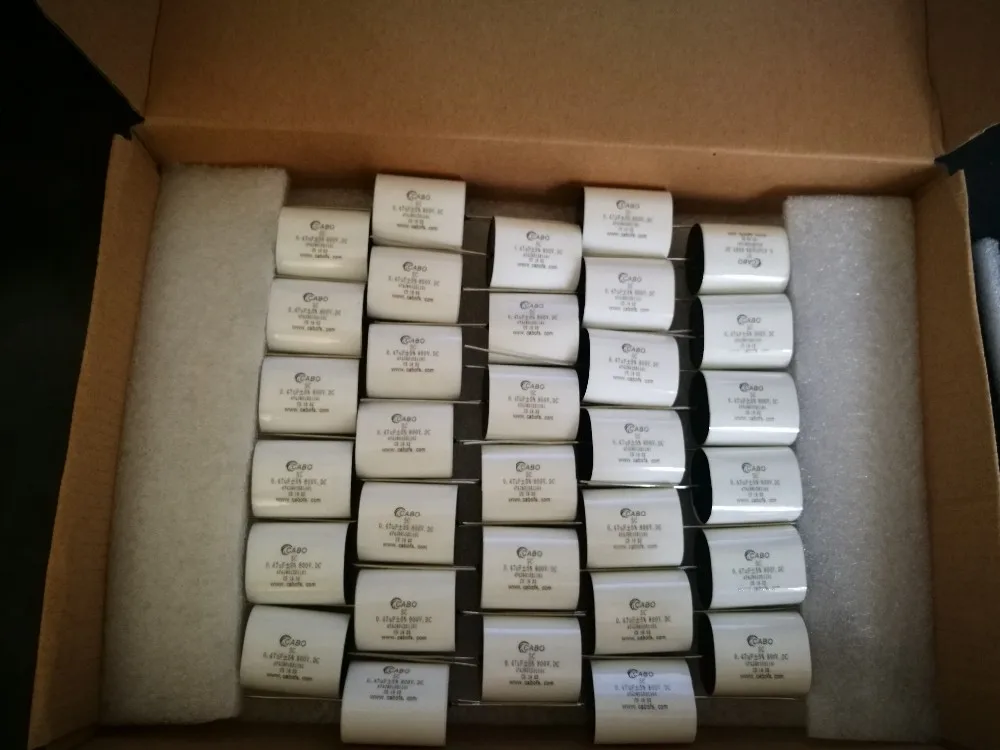

Packing & Delivery
Be a environment friendly enterprise, CABO under control of IS0 9001 and ISO 14001 quality and environment standard.
All of our packing materials are environmentally friendly.

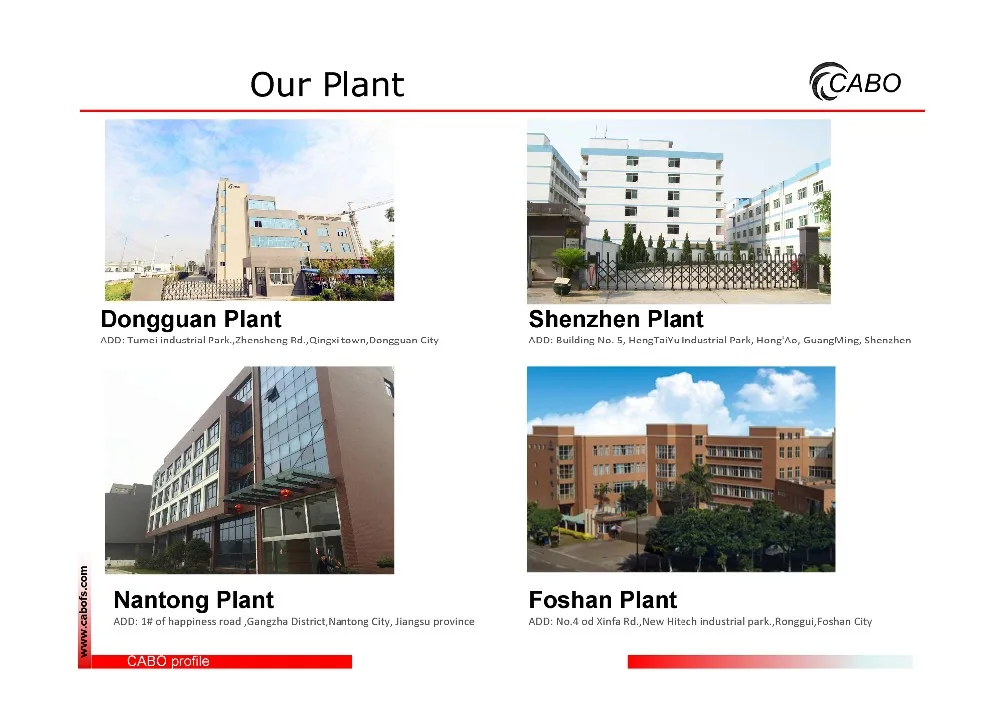

CABO is a leading manufacturer of electric & electronic components in China.It have 4 factories in China: Nantong city, Shenzhen city, Dongguang city and Foshan city,all of our factories are under control of ISO9001 quality control standard.
Competitive Price and stable Quality are the foundation for supporting our rapid development.
As the supplier of Midea ,Haier and airmete, 60% of our capacitors were sold to fortune top 500 companies.
And the percentage are keep rising.
Household/consumer capacitor R&D center started from 1988, it is one of earliest capacitor technology importer and Chinese capacitor patent holder.
