Xinyu PZ-3 electric sprayer concrete dry-mix gunite machine shotcrete machine for sale
PRODUCT CONFIGURATION
Item | PZ-3 |
Output | 3m3/h |
Max. conv. dist | 200m |
Water cement ratio | 0.4 |
Max. Aggregate. size | 10mm |
Hose inner size | 42mm(2'') |
Operating air pressure | 0.2~0.6MPa |
Air consumption | 5~6m3/min |
Motor power | 3kW(4hp) |
Voltages | 380v,440v,660v,1140v 50HZ/60HZ |
Basic chassis | type , skid ,rail wheel |

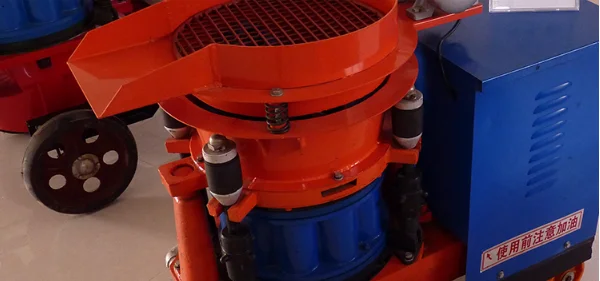

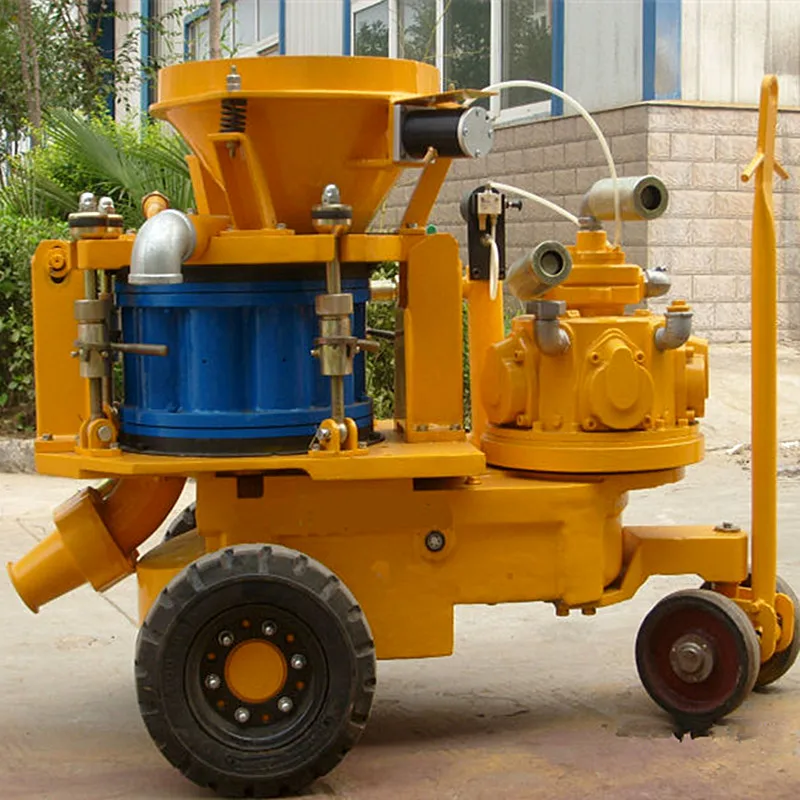

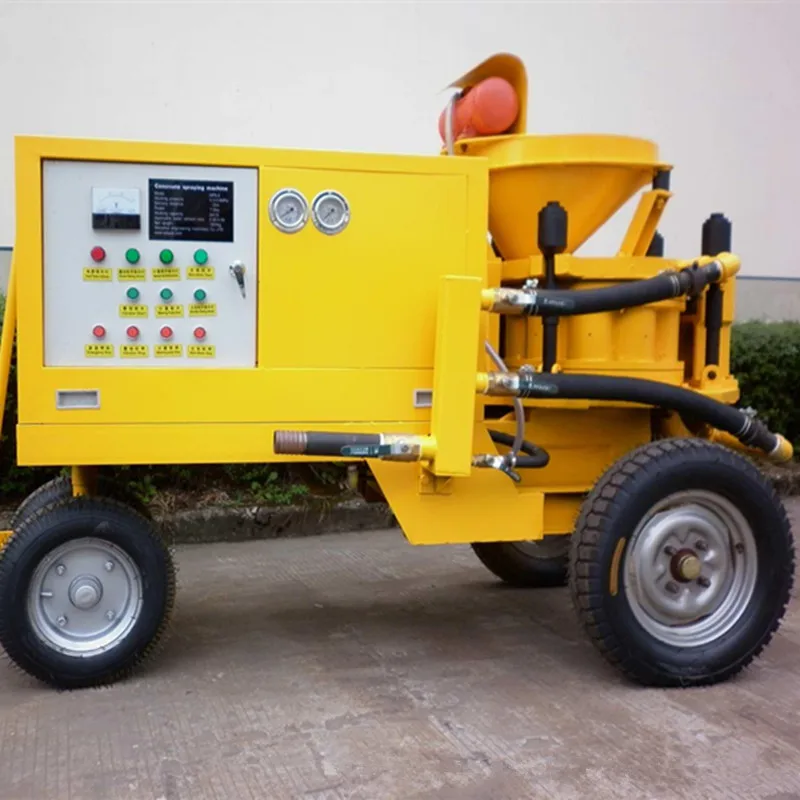

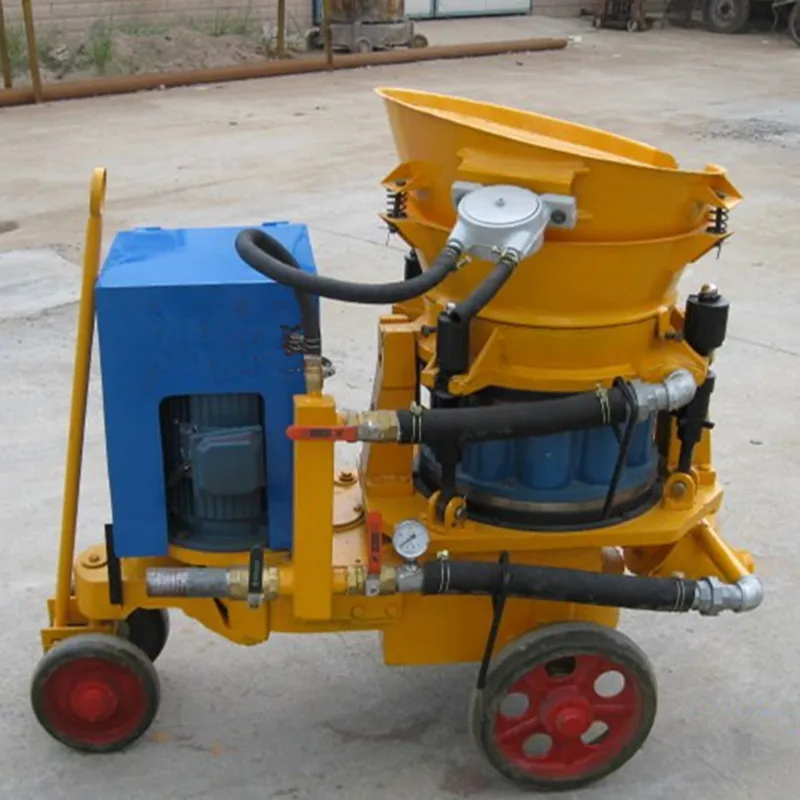

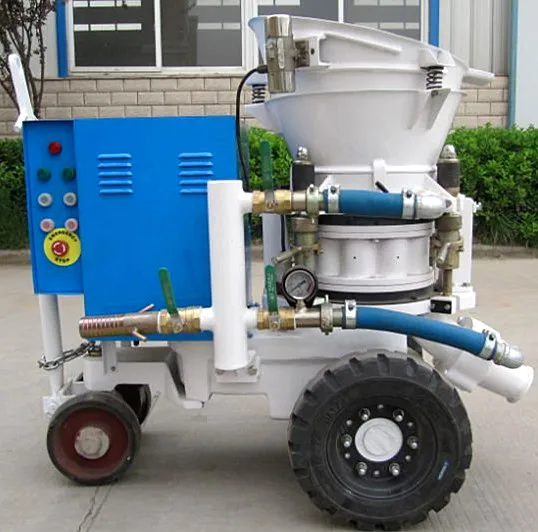

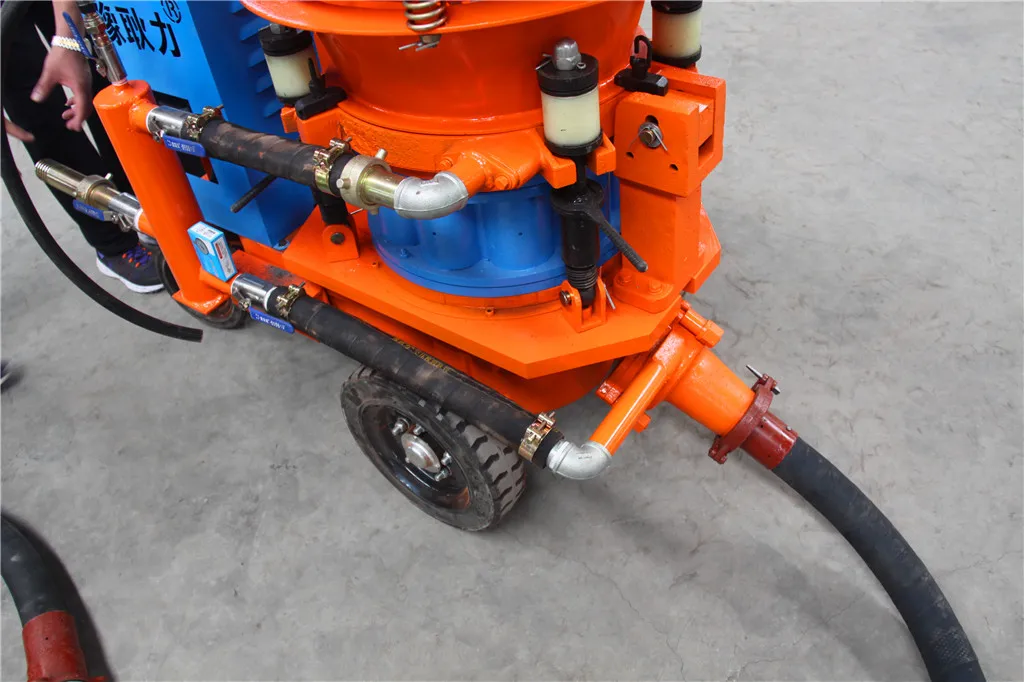

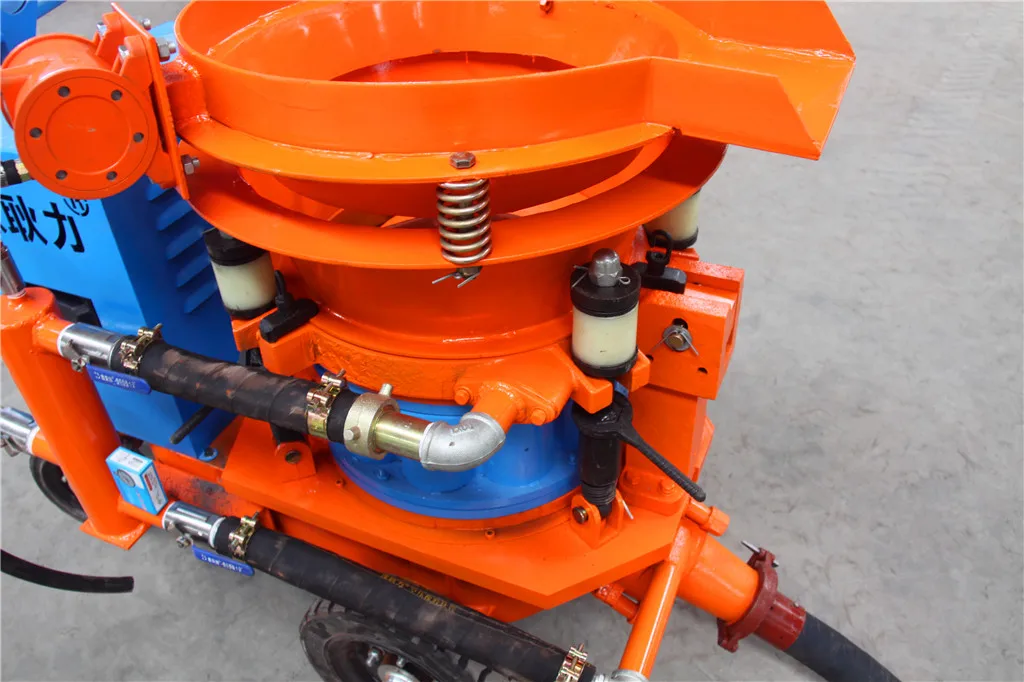

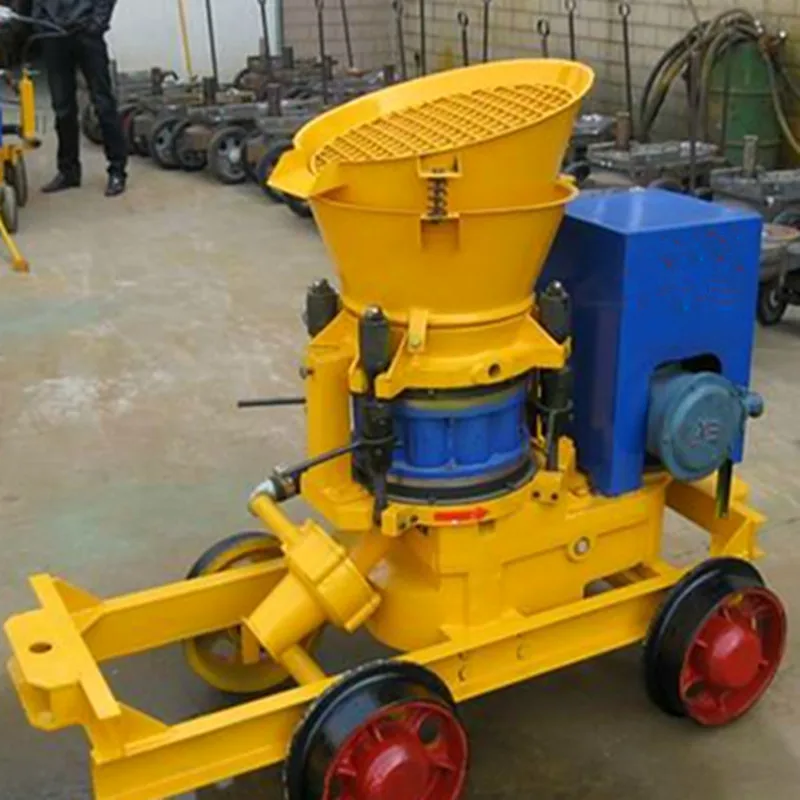

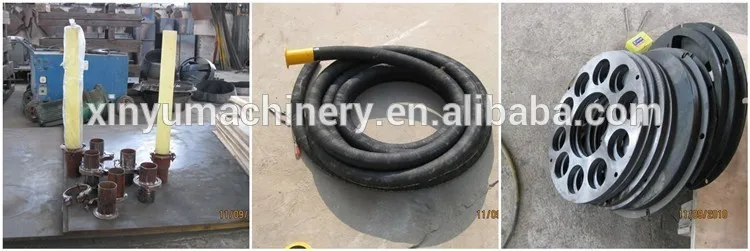

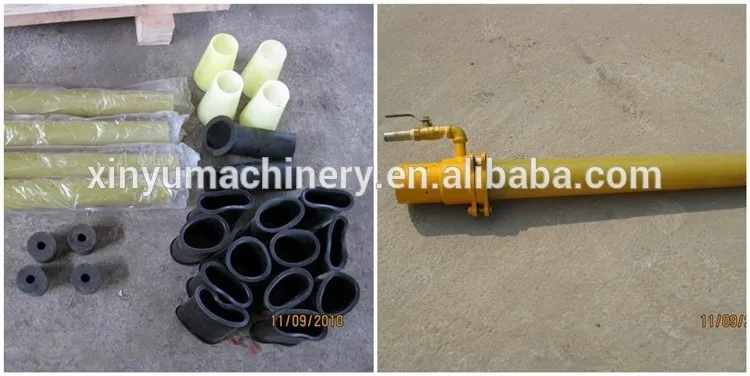

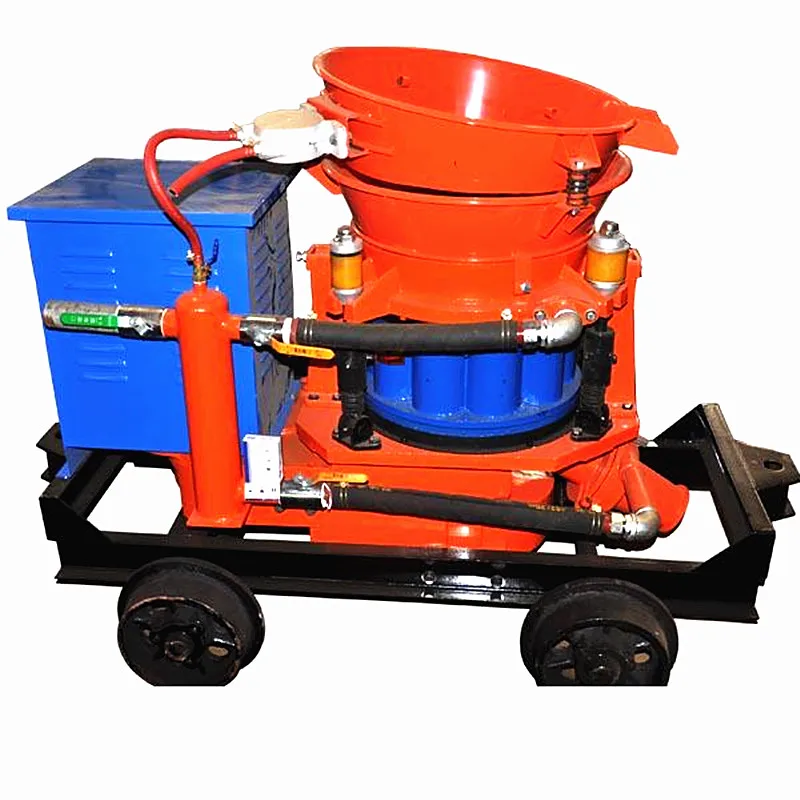

Detailed Images
✬ PZ series concrete spraying machine is a kind of efficient spraying machine, mainly used for dry mixing, wet mixing and steel fiber reinforced spraying.
✬ Adopting a rotor with a new material cavity does not stick, which completely eliminates sticking and blockage during operation, thereby reducing gaps and maintenance cycles.
✬ The four-point clamping device of the shotcrete machine can effectively avoid air and dust leakage and extend the service life of the parts.
✬ The advanced vortex trickle conveying method is adopted to make the jet flow uniform, continuous and stable, and improve the quality of shotcrete.

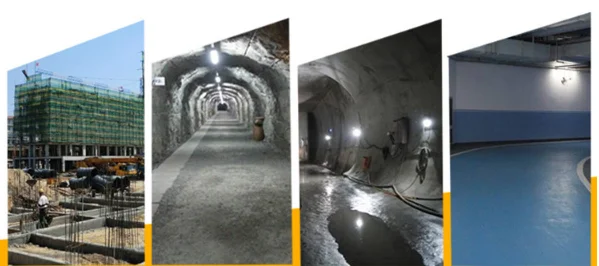

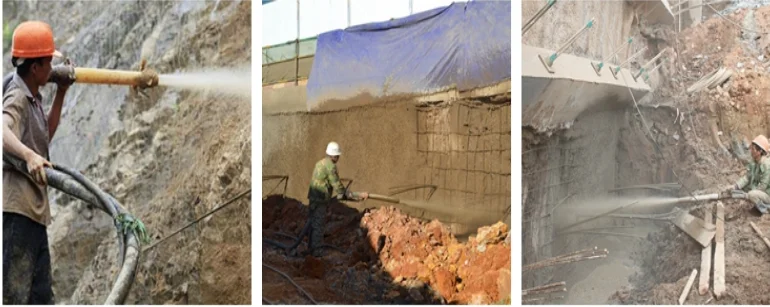

Applications
PZ series concrete spraying machine is usually used for
✔ Tunnels,hydropower projects,mines,underground projects, civil construction projects and slope stability, etc.
✔ Artificial soil seeding, used for soilless surfaces (such as rocks, sand) and soil surfaces without fertility.
✔ Spraying and maintenance of refractory materials for industrial kilns or kiln linings.
