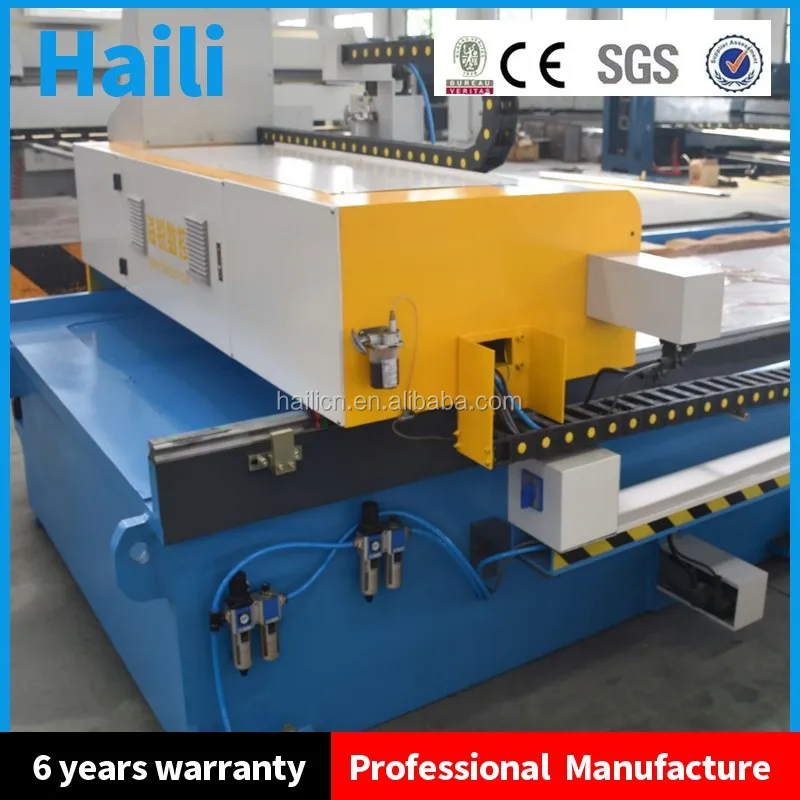

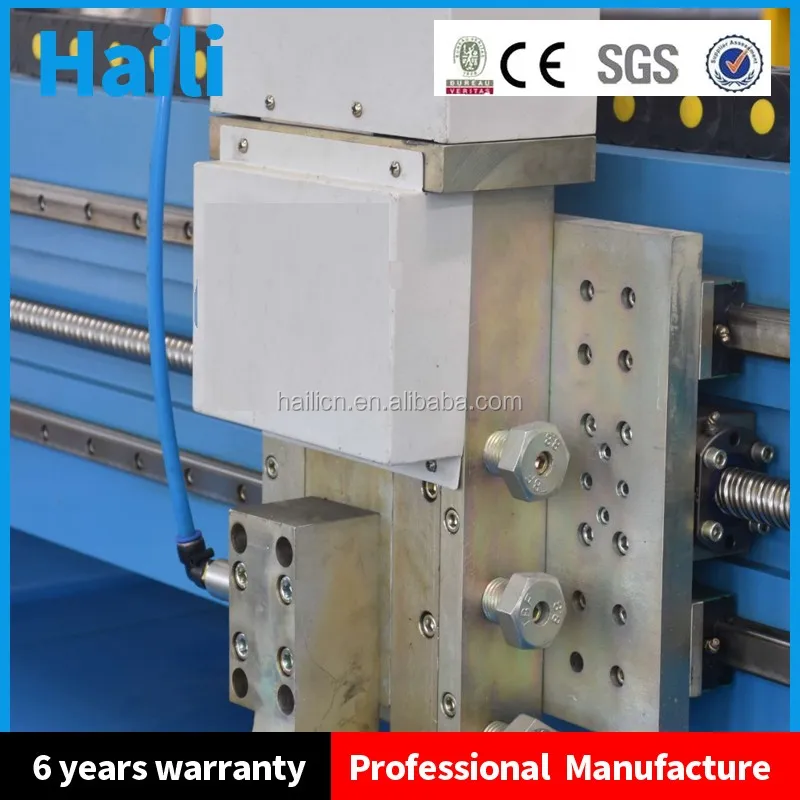

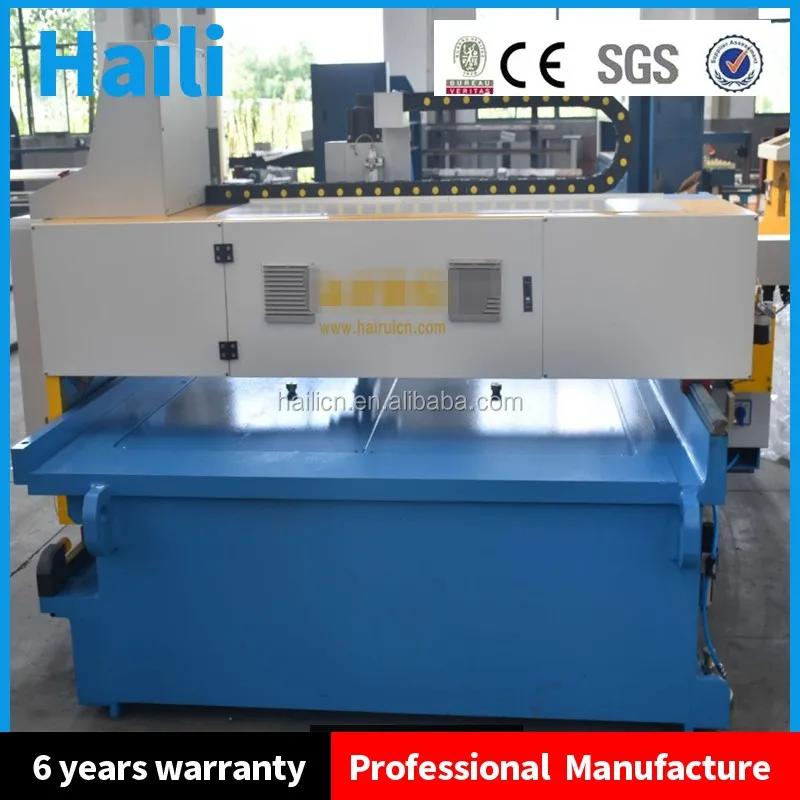

4000mm CNC grooving and cutting machine v groove machine
Products View:
Certificate View:
Product Description
THE exclusive functions: it can not only v groove the steel directly, but also bevelly!
Advantages:

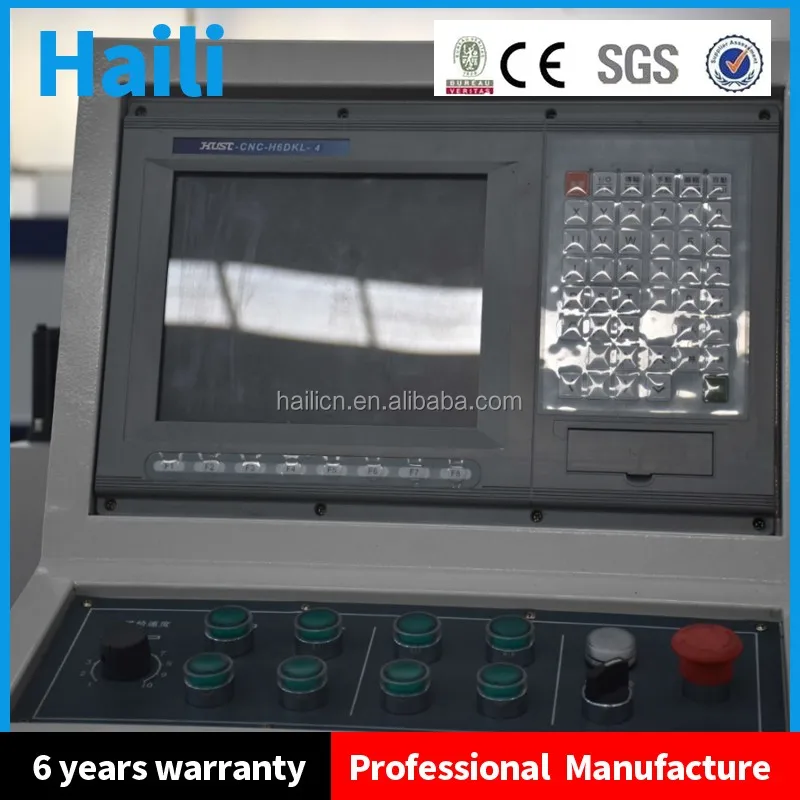

1.precision:within 0.05mm 2.PLC system,easy to operate 3.widely use,grooving all the steel 4.customize to your need 5.cnc with servo motor
6.Pneumatic drive
Required specifications
Technical parameters
3200mm
4000mm
5000mm
6000mm
1
Thickness (mm)
0.3-6
0.3-6
0.3-6
0.3-6
2
Length(mm)
4000
4000
4000
4000
3
Width (mm)
850-1500
850-1500
850-1500
850-1500
4
Grooving speed(m/min)
15-60
15-60
15-60
15-60
5
Grooving Area (mm)
2.25
2.25
2.25
2.25
6
Plate speed (m/min)
5-0.5
5-0.5
5-0.5
5-0.5
7
Y axle Minimum unit
0.01
0.01
0.01
0.01
8
Y axle Minimum positioning accuracy
0.05
0.05
0.05
0.05
9
Z axle Minimum unit
0.01
0.01
0.01
0.01
10
Z axle Minimum positioning accuracy
0.02
0.02
0.02
0.02
11
X axle Motor power(kw)
W=4
W=4
W=4
W=4
12
Y axle Motor power(kw)
W=1
W=1
W=1
W=1
13
Z axle Motor power(kw)
W=0.4
W=0.4
W=0.4
W=0.4
14
Air pressure (Mpa)
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
15
Dimension (L*W*H)
5000*2200*2100
5800*2200*2100
6800*2200*2100
7800*2200*2100
Our Services
1 We have more than ten years of experience in the production of machine tools, and we have a good team for your service
2. We have strict quality control system. Our products passed the ISO and CE authentication,require good reputation in the market .
3.We accept OEM according to your requirement.
4.We will deliver as soon as possible once place the orders.
5.You can contact us at any time.
Customers View:
FAQ
Q:How about your machine quality?
A:Anhui haili is a mature brand in CHINA,through years and years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Q:Whether the machine price can be more discount?
A:.HAILI always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
Q: How to make payment?
A: we will require 30% Deposit to start the production through T/T payment. You can make the balance payment on sight of B/L.
Q:Can I change the color?
A:Of course, Our idea is to respect the wishes of customers, to provide the most perfect service,you can choose the any colour that you like.
Q: Where is your factory?
A:We located in Ma'anShan CITY, Our factory is particularly close to Nanjing, about an hour, if you are to visit the factory .We can pick you up at the airport.welcome to visit our factory!
