Fuji panoramic lift Mall lift Glass elevator for Shopping mall

Product Overview

Description

Fuji panoramic lift Mall lift Glass elevator for Shopping mall

Mall lift Info.:

Characteristic

Japanese technology,PM synchronous gearless traction motor

Monarch main controller,VVVF drive ,low-noise high-quality

Warranty:One year warranty

Service concept:Quality first,competitive price

Certificate:ISO9001 & CE

Application:Hotel/office building/commercial plaza/fashion mall/showroom/storage/public space

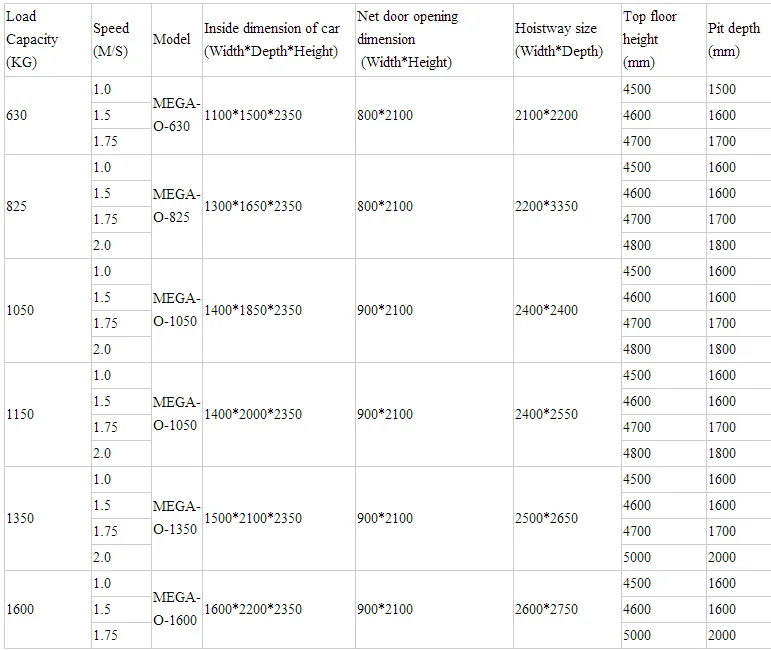

Specification

Standard design

1. Upper and lower covers: Hairline stainless steel

2. Sightseeing wall: Shatterproof laminated glass

3 .Decorative roof: White ceiling lamp and down lamp

4. Car wall: Hairline stainless steel board, glass car door is avaliable

5. Handrail: Stainless steel round tube

6. Platform: PVC floor

7. Landing door: Hairline stainless steel board, glass car door is avaliable

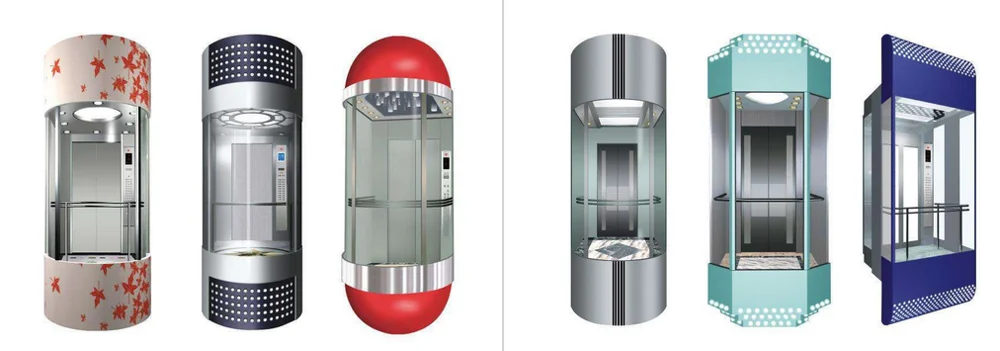

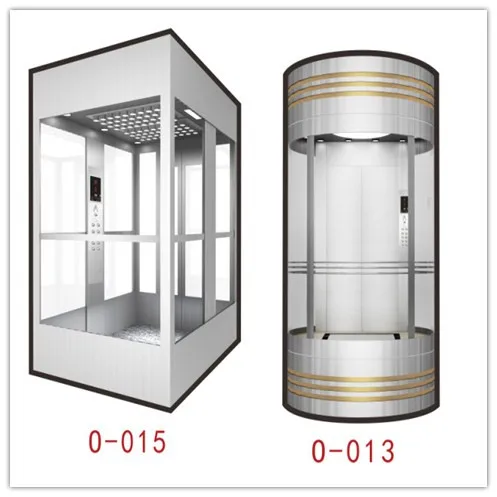

8. Glass Shape: semi-circular,round, diamond-shaped, as per your requirement

Optional car decoration

Our patent/function:

(1)Safety: we design many kinds of spare part to promise the elevator more dafety, like the traffic light function, when the light turn red in the doorsill, means that people could not get in or get out; when turn green, then pass.

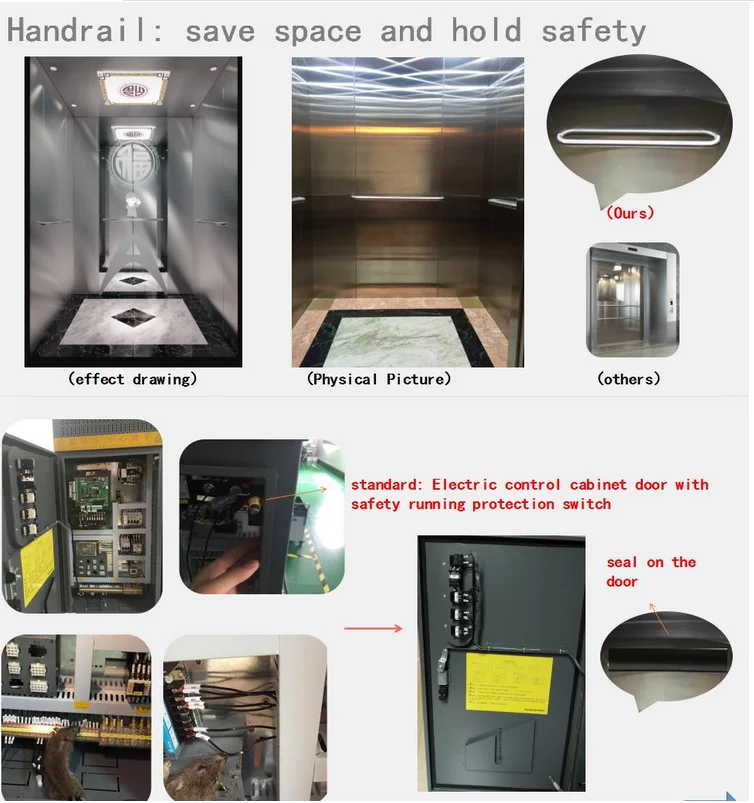

(2)Three handrails in the cabin as standard, and we promote that no afraid of falling down elevator.

(3)Electric control cabinet door with safety running protection switch, no dust, no destroy, and promise its longlife service, any interested in this function, feel free to contact me, and I trust you will like it.

Elevator Function List
Emergency Response	Emergency lighting in car: Emergency lighting device is arranged in the car and activates in case of power failure.
Car alarm bell	Under special circumstances, passengers could press the alarm button in car to notify the outside world in a timely manner.
Emergency electric operating device	The control cabinet in machine room of elevator is provided with emergency electric operating device for emergency rescue.
Emergency firefighter service	When the key switch in car is activated, the elevator will disable all call signals and exclusively respond to the internal commands of car so as to coordinate with firefighters in extinguishing operation; this feature is used with fire elevators. (Fire elevator is temporarily unavailable due to the limitations of fireproof materials and testing.)
Emergency fire protection	In the case of fire alarm, the system will, upon the receipt of fire alarm signal, deactivate all commands and call signals, drive the elevator directly back to fire protection floor, open the door for evacuation of passengers, and wait for firefighters. Upon the successful fire emergency landing at home landing, control system will send successful landing signal to fire center. (Manufacturer supplies interface, while users are expected to wire the control cabinet and fire control center.)
Fire control status indication	Prompting message is displayed in car after the activation of fire control state.
Blackout emergency evacuation device	In case of emergency stop of elevator during normal operation due to sudden power failure, this device will make rapid response, drive elevator to move to leveling position at low velocity, and open the door to evacuate passengers while giving prompt message. (Leveling accuracy)

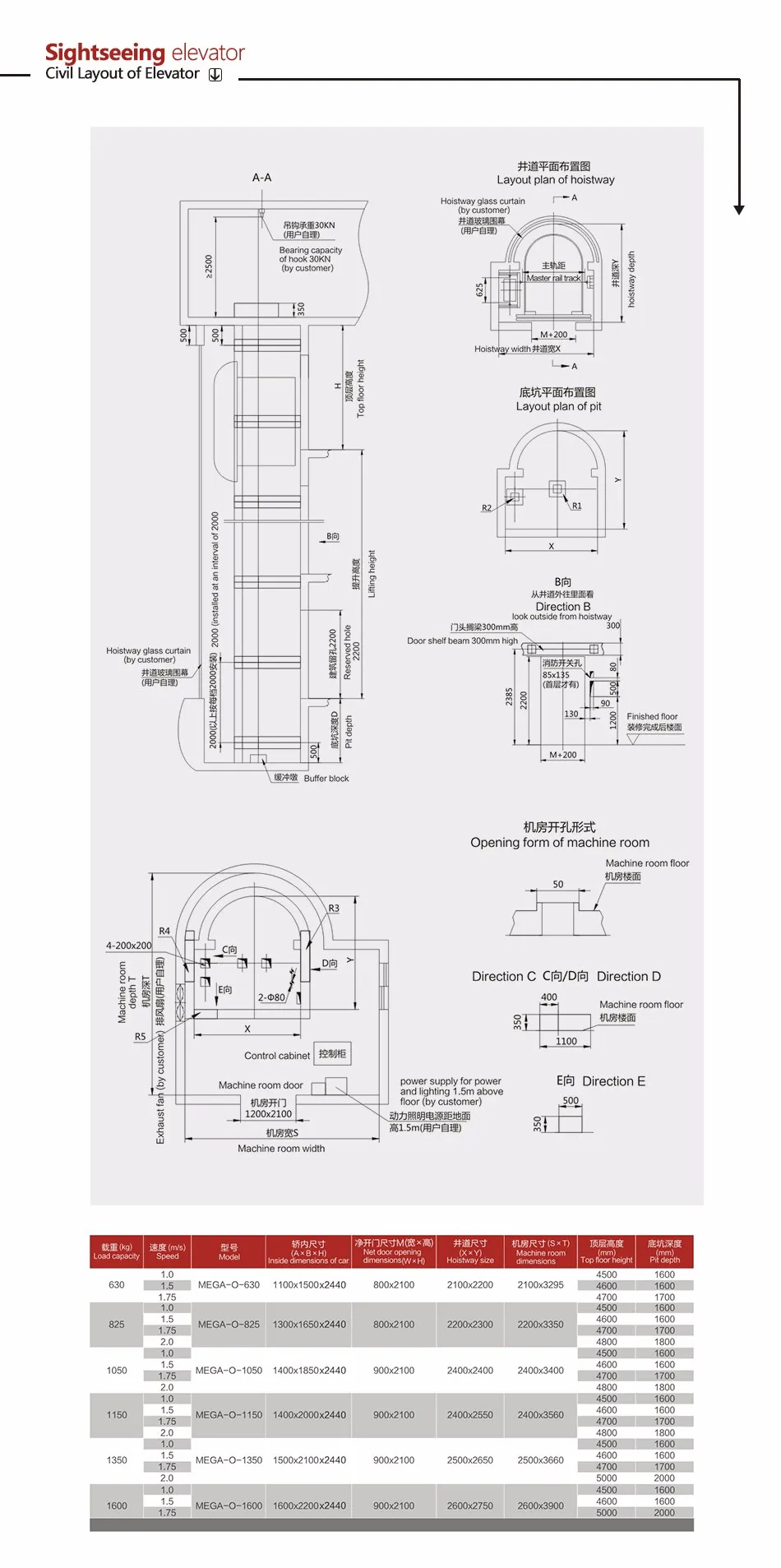

Contrustion layout:

JFUJI product coverage

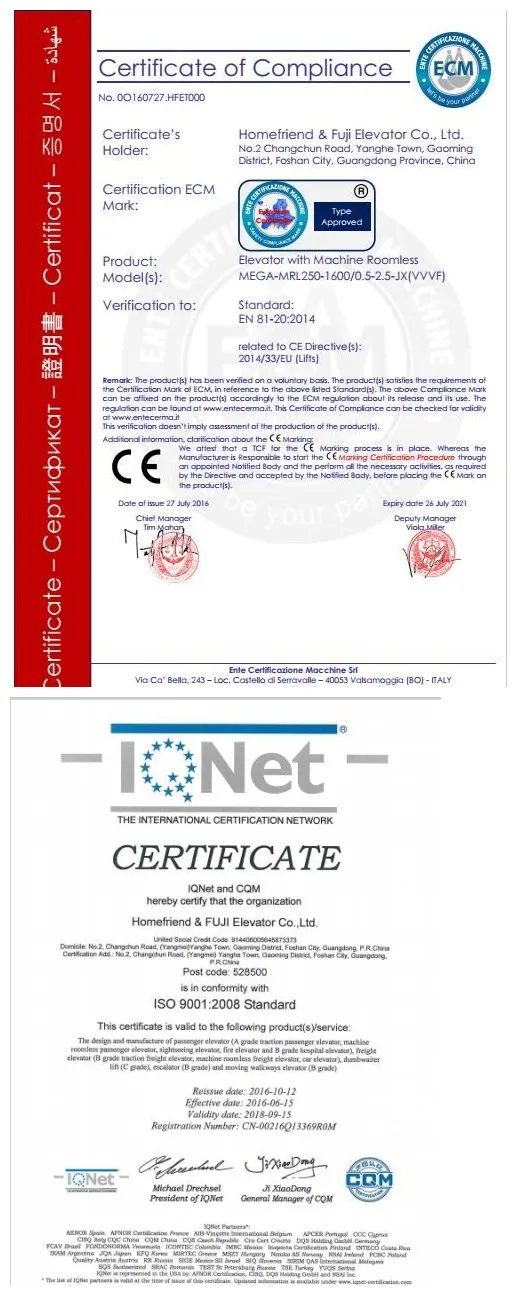

Certificate:



Our service.:

Pre-sale service:  Inquiry,quotation ,technical consultant,Site investigation.

Installation service: Sent technical engineer to guide installation oversea.

After-sales service:Provide you with 400 toll-free service line and remote elevator monitoring service to enable real face-to-face service. Hot line:400-0088932

JFUJI Brief introduction:
