GINO Fully Welded Heavy duty Hydraulic Electric Tipper Trailers
- Category: >>>
- Supplier: Jiangxi Gino Vehicle Industry Co. Ltd.Jiangxi Ltd.
Share on (60636285618):
Product Overview
Description
Product Description
| Hydraulic Tipping Trailers | ||
| Finishing: | Hot dipped galvanized | |
| Load capacity: | 3000KG | |
| Frame steel: | Draw Bar: | 150x50x4mm |
| Chassis: | 100x50x3mm | |
| Cross bar | 70x50x3mm | |
| Sheet steel:(bolted) | 2.5mm checker steel plate floor&1.5mm drop down side walls & Doors | |
Sheet steel: (fully weld) | 2.5mm checker steel plate floor &2.5mm side wall&doors | |
| Tyre: | 215/75R15(8ply,850kgs) with white powder coated 6 studs rims | |
| Axle: | 50x50mm square solid electric brake | |
| Springs: | 7 leaf heavy duty rocker roller springs | |
| Hydraulic System: | 3.5Tonne 4 stage hydraulic ram with 12V, 1.5KW Battery powered hydraulic system | |
| Coupling: | Australian style & 12mm ADR safety chain | |
| Mudguard: | 2.5mm chequer steel plate mudguard | |
| Mesh cage height: | 600mm;900mm,1000mm removable mesh cage | |
| Mesh cage : | 30x30x1.5mm tube | |
| Jockey wheel: | 2000LBS(Double Wheel) &Side swing | |
| Lights&Reflector | LED Taillights with e-mark&DOT certification | |
| Spare tyre: | Non (All trailers do not include the spare wheels) | |
| Tie down: | 20mm round tube tie down all around the trailer | |
As buyer style coupling and safety chain with D-lock: | Yes | |
size
| Hydraulic Tandem Tipping Trailer (Drop Down Side) 3 Tonne,with cage | |||||
| Model No. | Trailer box size | Loading | Tare weight | 20FT | 40FT |
| GN-HTD85C | 2440X1525X450mm | 3000KG | 940KG | 10pcs | 36pcs |
| GN-HTD95C | 2745x1525x450mm | 3000KG | 970KG | 10pcs | 40pcs |
| GN-HTD96C | 2745x1830x450mm | 3000KG | 995KG | 8pcs | 35pcs |
| GN-HTD106C | 3050x1830x450mm | 3000KG | 1025KG | 6pcs | 28pcs |
| GN-HTD126C | 3660x1830x450mm | 3000KG | 1095KG | 6pcs | 24pcs |
| Hydraulic Tipping Tandem Trailer(Fully welded) 3 Tonne | |||||
| Model No. | Trailer box size | Loading | Tare weight | 20FT | 40FT |
| GN-HT85TW | 2440X1525X450mm | 3000KG | 935KG | 10pcs | 40pcs |
| GN-HT95TW | 2745x1525x450mm | 3000KG | 965KG | 10pcs | 36pcs |
| GN-HT96TW | 2745x1830x450mm | 3000KG | 985KG | 8pcs | 34pcs |
| GN-HT106TW | 3050x1800x450mm | 3000KG | 1005KG | 6pcs | 32pcs |
| GN-HT126TW | 3660x1800x450mm | 3000KG | 1085KG | 6pcs | 25pcs |

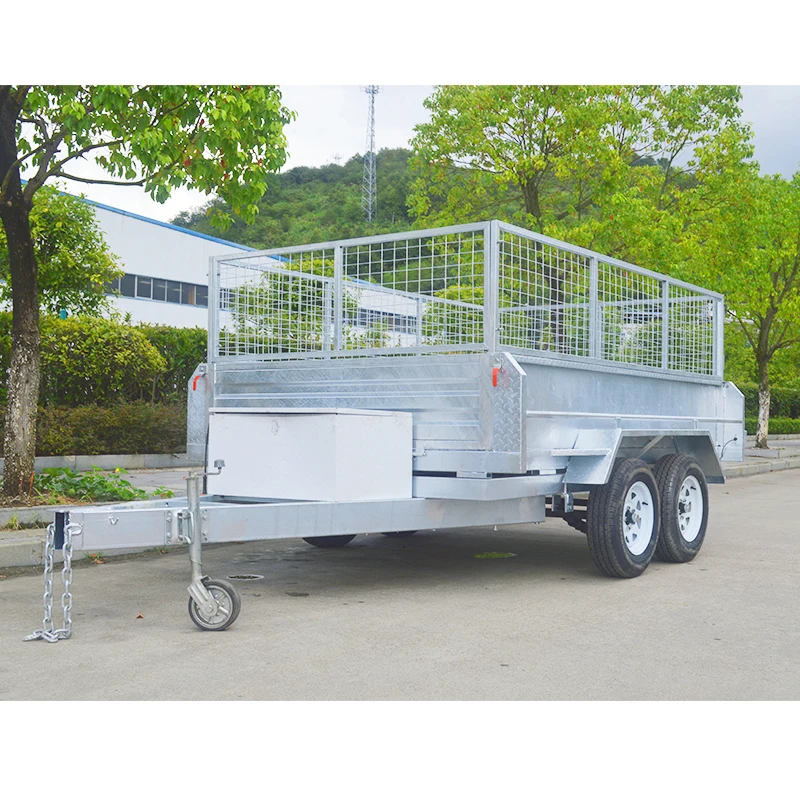

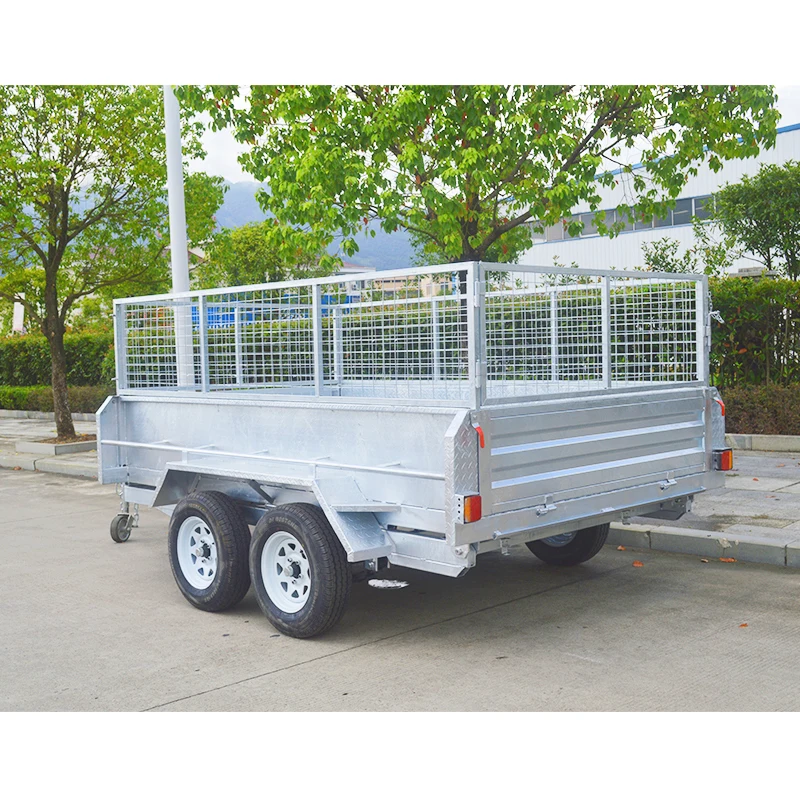

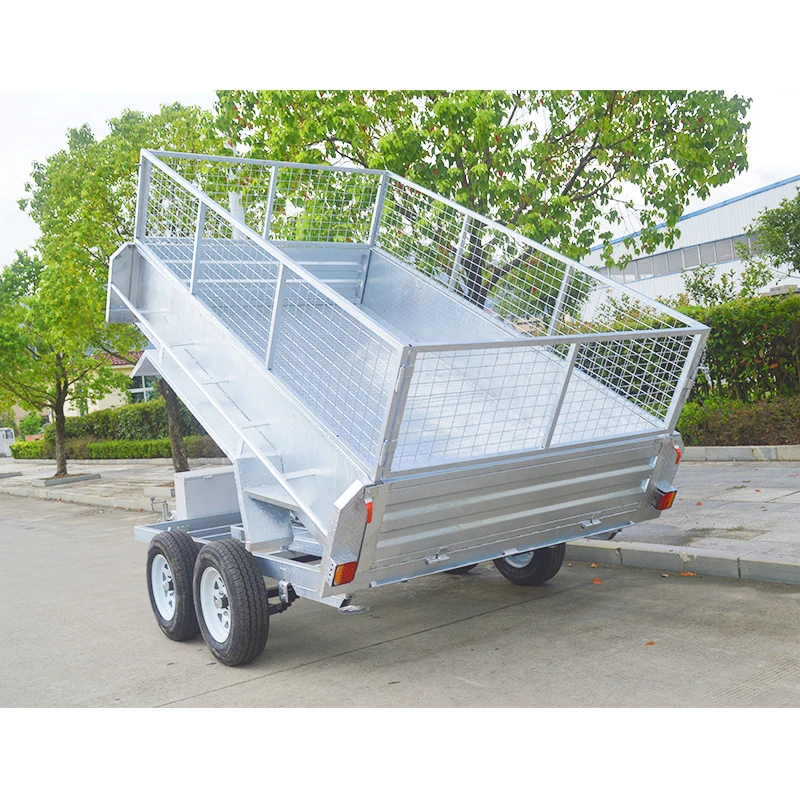

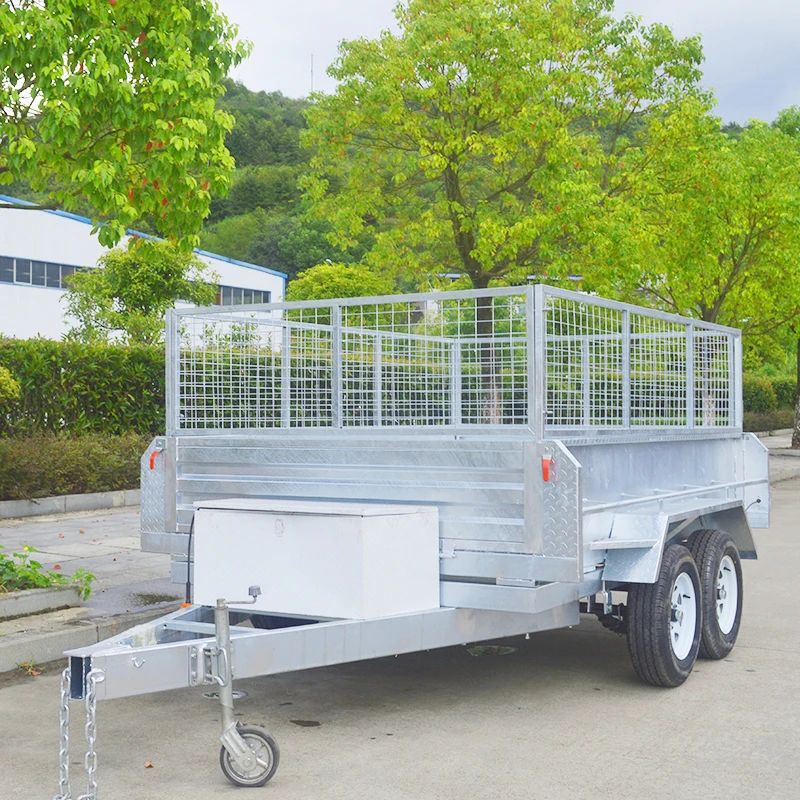

Pictures show
Packaging & Shipping
Trade Shows
Company Information
Jiangxi Gino Vehicle Industrial Co. Ltd is located in Xiushui County, Jiujiang city. Our company has been adhering
to the concept of “existence from honest, stability from reciprocal, development from win-win cooperation” since its
inception in 2005. Our company has equipped with advanced manufacturing and computerized test equipment,
with strict procedures of testing and manufacturing.
Gino is a professional manufacture of trailers and trailer parts. Include single axle box bolted trailers, single axle
weld trailers, tandem bolted trailers, tandem welded trailers, hydraulic tipping (drop down side), hydraulic tipping
welded trailers, camper trailers. Different size can be made(6*4 7*4 7*5 8*5 9*5 10*5 10*6 12*5 12*6)
We also can design and produce products as customers request. OEM is available.
Gino trailers have perfect engineer team which have made trailers over 6 years.
We sincerely welcome customers from domestic and abroad to visit us for establishing a long term and
cooperative relationship based on mutual benefit.
