Jingtai high-speed direct scraping guns adopts accurately technological manufacturing to achieve high performance and reliability. Redesigned gun body puts to use multiple sealing structure to prevent glue leakage from pollution after a long time of work. Equipped with special design of a pad below the mouth of extruded glue, it ensures that the switch for extruded glueis high sensitivity and accuracy. With the use of nozzle that is made by multiple process of treatment, superior thermal conductivity and high precision of using could be provided. Due to its engineering design, various scraping guns could be made according to customer’s requirements to ensure that it could be competent any production line.
Application Suitable for Jingtai Machines
MODEL
High-Speed Direct Scraping Gluing Gun
Operating Frequency
Max. 2600 times
Working Temperature
MAX. 200 ℃
Coating Width
60-450 mm
Temperature Sensor
PT-100 or K Shape
AIR PRESSURE
2-4 kg/cm2
Working Voltage
220V, 50-60Hz
Control Voltage
DC 24V
Main Features
1) Optimal reverse control module can significantly increase the speed of material and effectively reduce impact of glue leakage and broken glue on the quality of product. 2) Equipped with special design of a pad below the mouth of extruded glue, it ensures that the switch for extruded glueis high sensitivity and accuracy. 3) Integrated modules and scraping gun body enable fast reaction. 4) With built-in filter, it could effectively prevent blockage. 5) With unique nozzle design, a number of special treatments and accurate grinding, it guarantees highly uniform of glue spraying.
Detailed Images

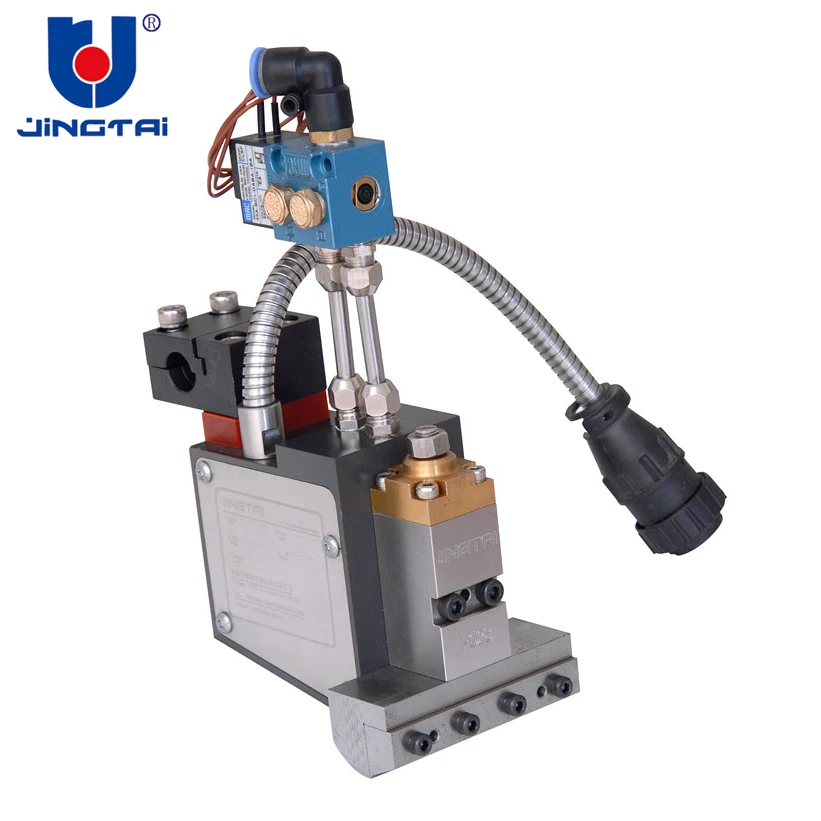

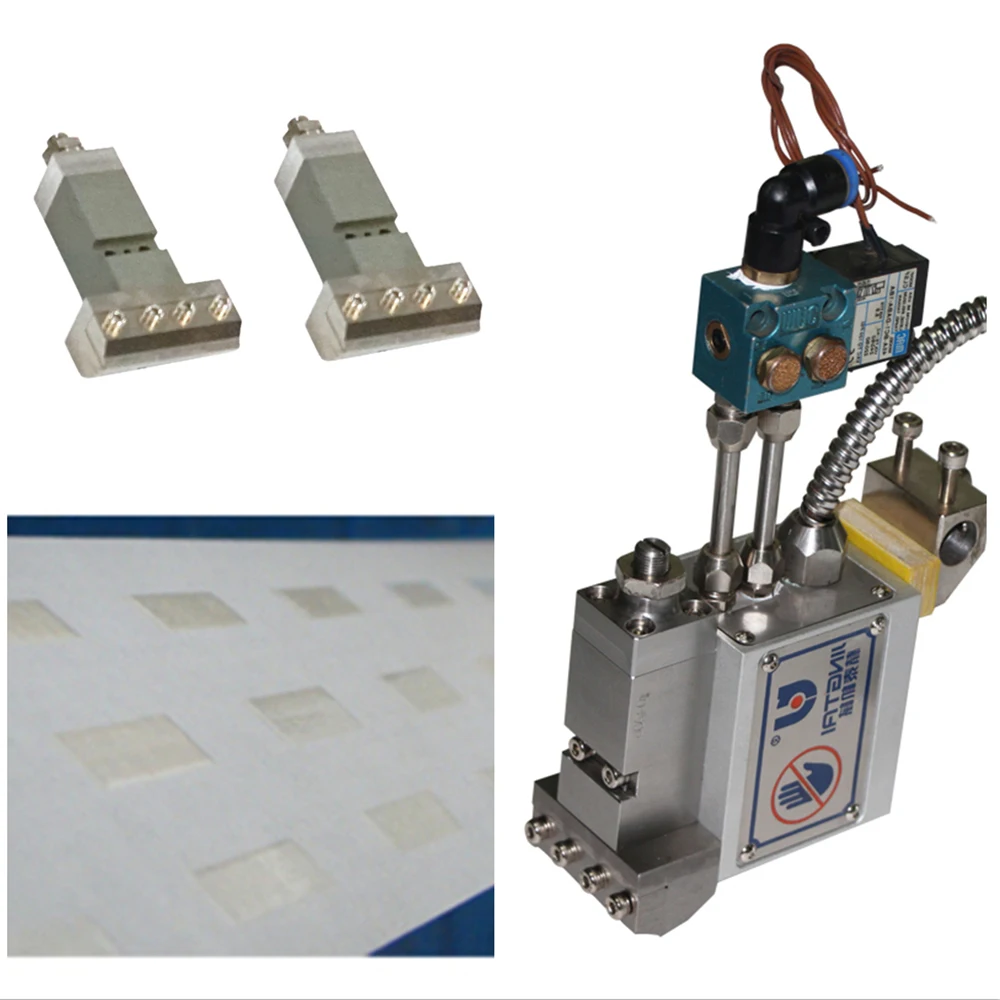

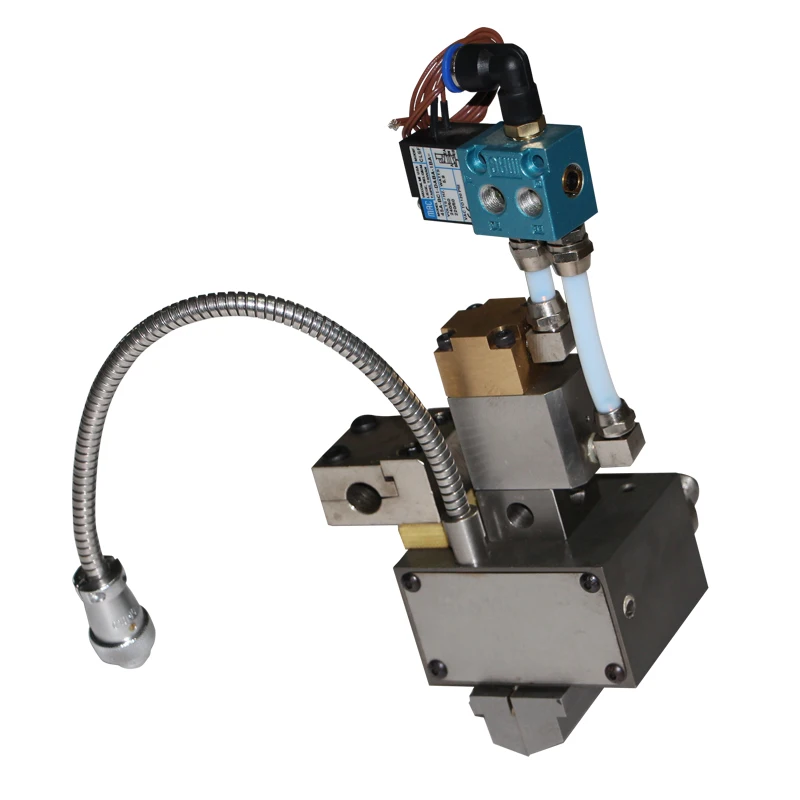

High Speed Direct Scraping Gluing Gun
Name: Hot Melt Glue Gun
Brand: Jingtai
Original: China
1. scrape width can be chosen by 10-450mm;
2. High Temperature working for the Max. Glue is 200℃;
3. Cooperate to Hot Melt Adhesive Machine;
4. Welcome to Customized
Main Accessories
Name: The electromagnetic valve Brand: Jingtai Original: China 1. 24V Control Valve;
2. High Quality;
3. Good Price.
How to work
hot melt adhesive - hot melter - hose - glue head
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
900(L) * 900(W) * 1000 (H) mm
Weight
75kg
Packaging Details
1. The packing is confirmed to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm. 2. In order to be waterproof, we usually use bubble film to wrap machine. 3. In order to avoid the machine being damaged in transit, the foam will be full filled between the machine and wooden carton.
4.pack it according to customers special request.
