Product Overview

Description

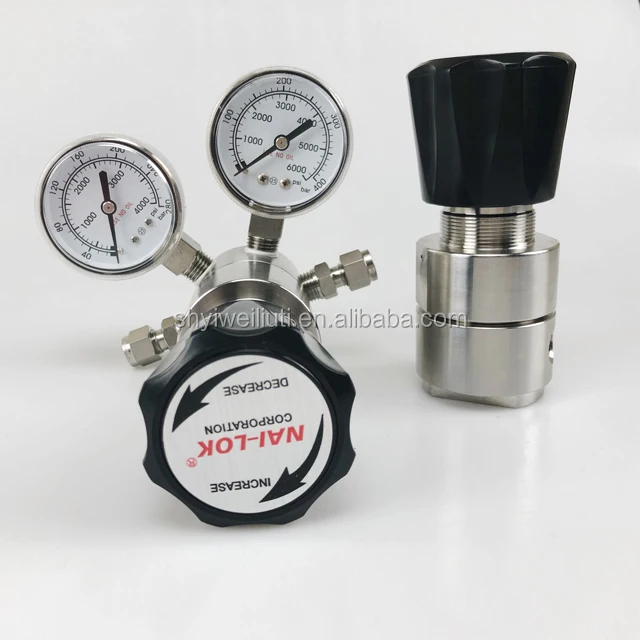

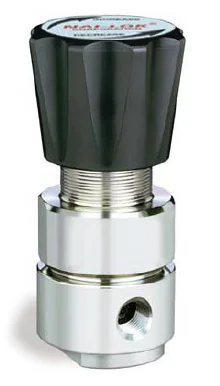

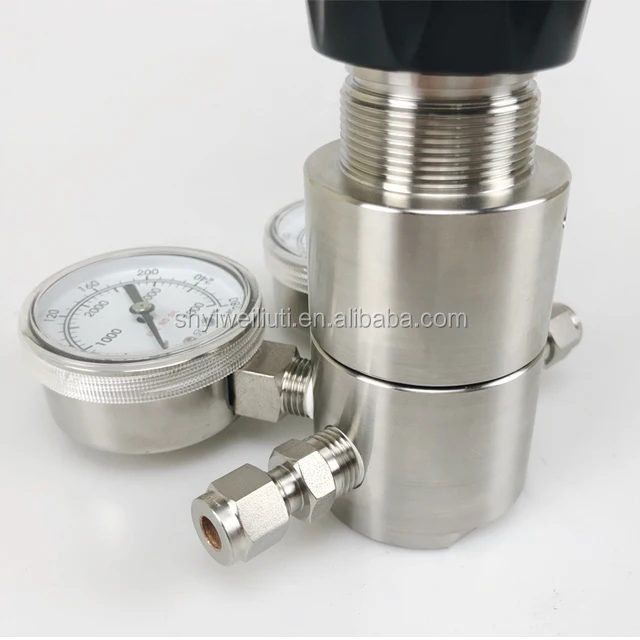

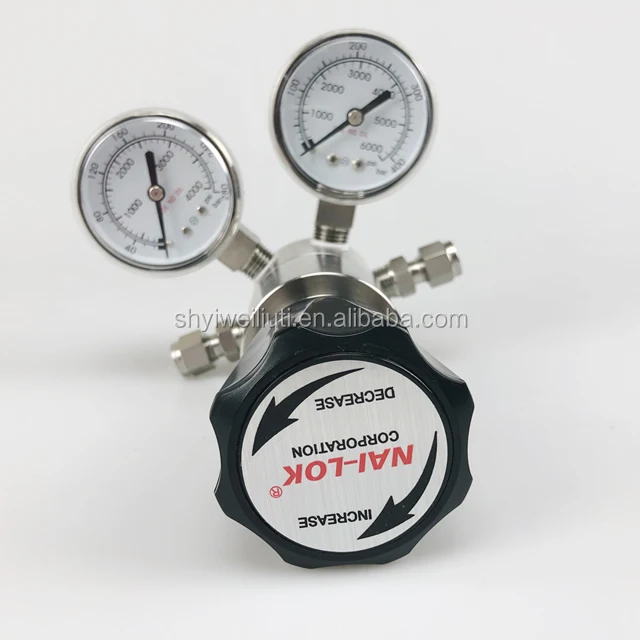

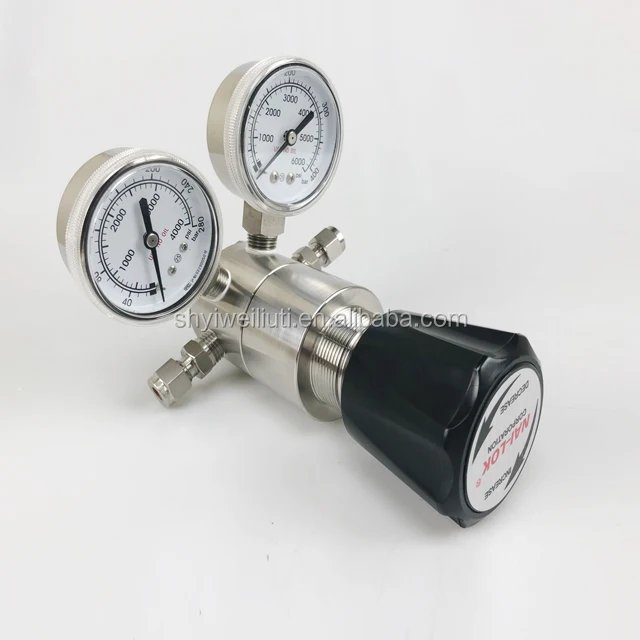

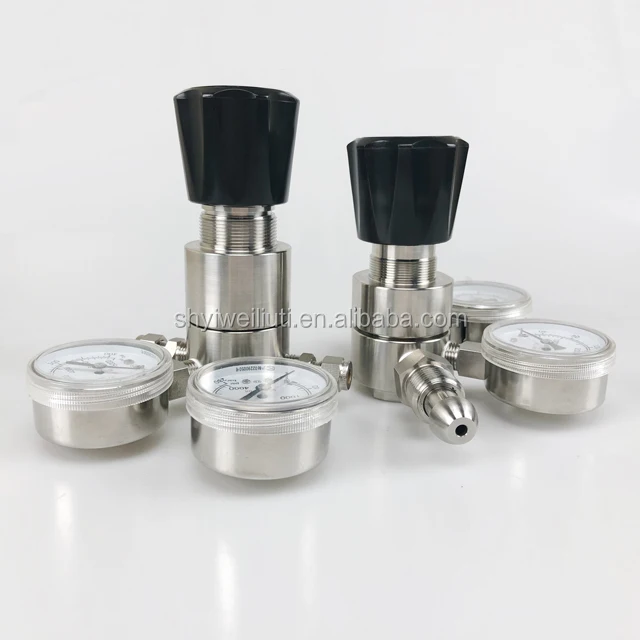

NAI-LOK SS316 Pressure Reducing Regulator



OPERATING PARAMETERS

• Maximun Inlet pressure: 3500 psig (241 bar)
• Outlet pressure ranges: 0-25,0-50,0-100,0-250,0-450 psig(0-1.7,0-3.4,0-6.9,0-17.2,0-34.5 bar)
• Design proof pressure: 150% maximun rated pressure
• Leakage:Bubble -tight
• Temperature: -40°C to 74°C
• CV:0.06
• Body:SS316 / Chrome plated brass
• Diaphragm: SS316/ Hastelloy

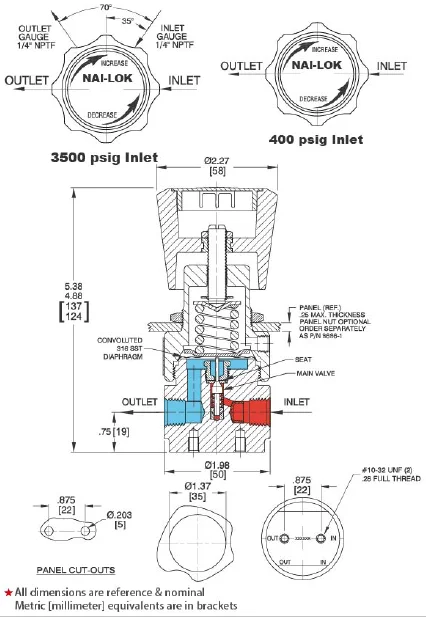

DRAWING





ORDER INFORMATION



BASIC SERIES	BODY MATERIAL	OUTLET PRESSURE RANNGES	INLET AND OUT LET PORT TYPE	INLET AND OUT LET PORT SIZE	MAXIMUM INLET PRESSURE	PORT  TYPE
NR11	1-Chrome plated brass   6-316 Stainless steel	0- 0-25 psig     0-1.7 bar 1- 0-50 psig     0-3.4 bar 2- 0-100 psig     0-6.9 bar 3- 0-150 psig     0-10.3 bar 4- 0-200 psig     0-13.8 bar (With 3500 psig/241bar inlet only)	2-NPTF	4-  1/4"	1-3500 psig    241 bar 2- 400 psig     27.6 bar	3-3 Ports 4-4 Ports



SAMPLE































;
