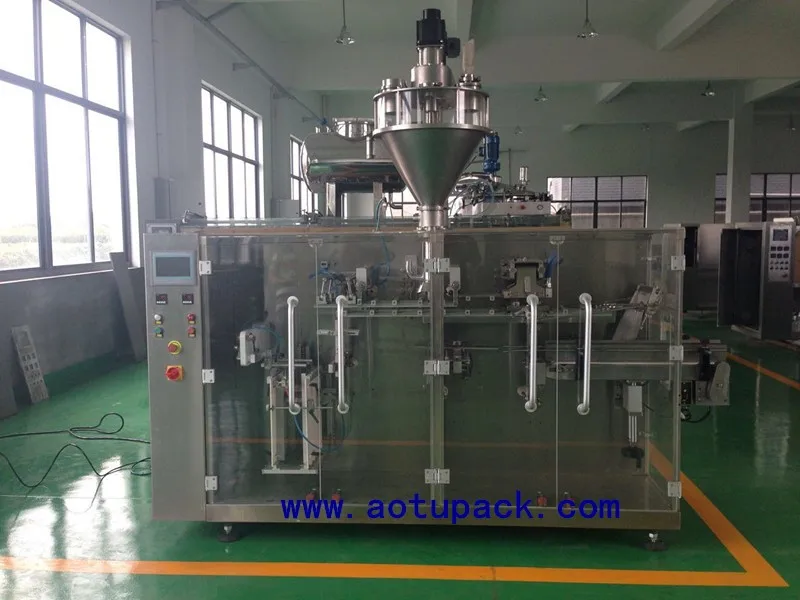

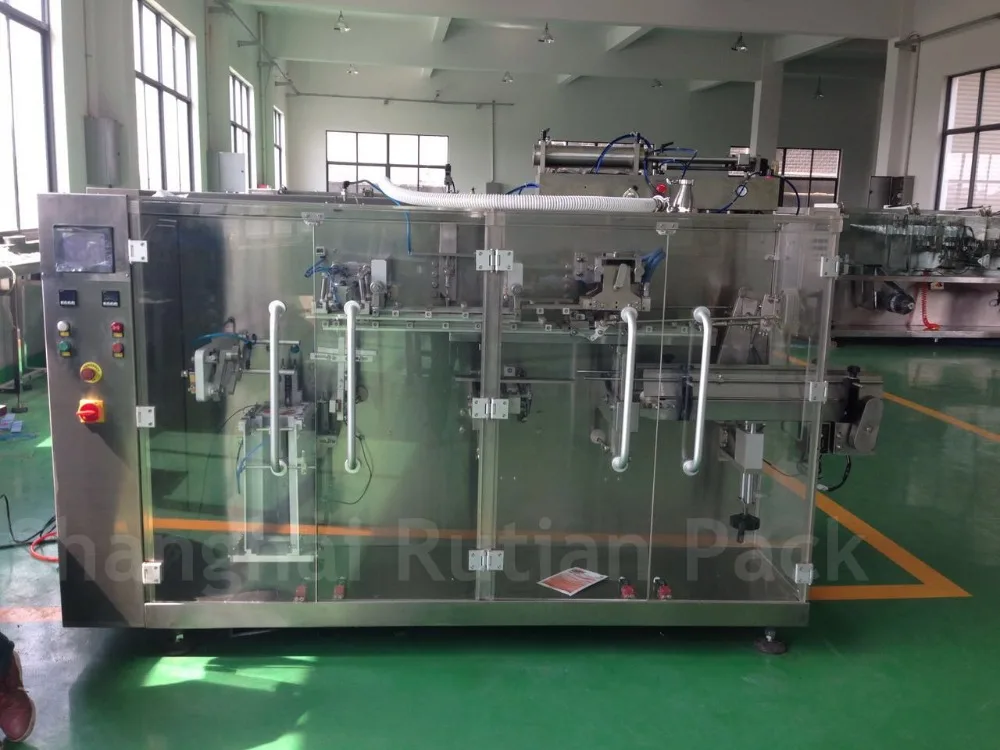

Food filling powder packing machine premade pouch packing machine

Product Overview

Description

Food ingredient powder packing equipment for premade pouch

I.Product Features:

Unique Pouch Picking Unit

1.fast pouch picking;

2. Easy specification change;

3. needn't stop machine when supply pouches;

Dual filling Divice

4. reduce filling time by half;

5. improve filling accuracy;

6. can fill 2 products simultaneously;

The Sealing Unit

7.Heat seal&cooling seal to guaranteen the seal strength,no leakage;

8.with even seal, good appearance for bag;

9.can well suit all kinds of film material;

Servo WB Structure

10.accurate positioning with stable opeation;

11.whole SUS304 Frame,with good loading;

12.Long WB moving distance;

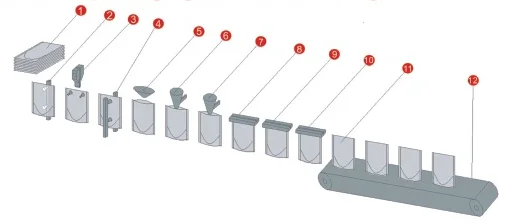

II.Work porcess:



1.Premade pouch stack;       2. Flip-out pouch-picking unit;        3. Zipper opening

4.Pouch opening;                  5.Air flushing;                                    6.First Filling;

7.Second Filling;                    8.Top seal I                                         9.Top seal II;

10. Cooling top seal              11. Finished product;                         12.Output;



II.Characteristics:

1)PLC control,English and man-machine interface, operating easily with simple maintain .

2)Advanced control system, no bag no filling and no sealing, reduce bag waste.

3)Suitbale for powder, granulers,liquid and paste;can easily change the feeding parts;

5) With even sealing effect,sanitary package for product;

6) Stable performance and low noise and no pollution during work.



III.More details & application:

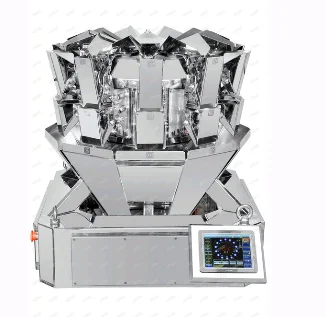

              Assistant parts for powder                                           Multi-head weigher for granulers

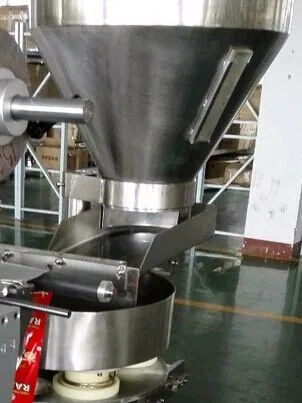

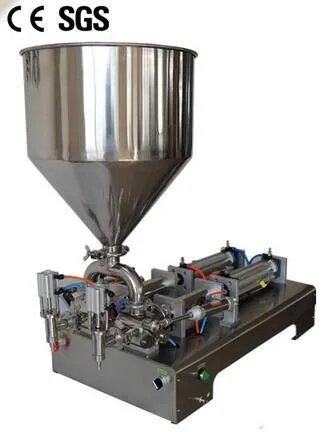

             Piston filler for liquid metering                         Volumetric Cup measuring for granular







IV.Technical Parameter:

Model	RTS-180G
Packing type	Stand up bag/flat bag (with zipper or not)
Packing speed	60 package/min.
Measuring method	Auger filler, cup measuring,
Package width	110mm-240mm
Package height	115mm-350mm
Filling amount(max)	400ml
Power supply	AC 380V 50Hz
Air pressure	0.6Mpa
Weight	1200KG
Dimensions(mm)	2400(L)×100(W)×1360(H)



V.About Us

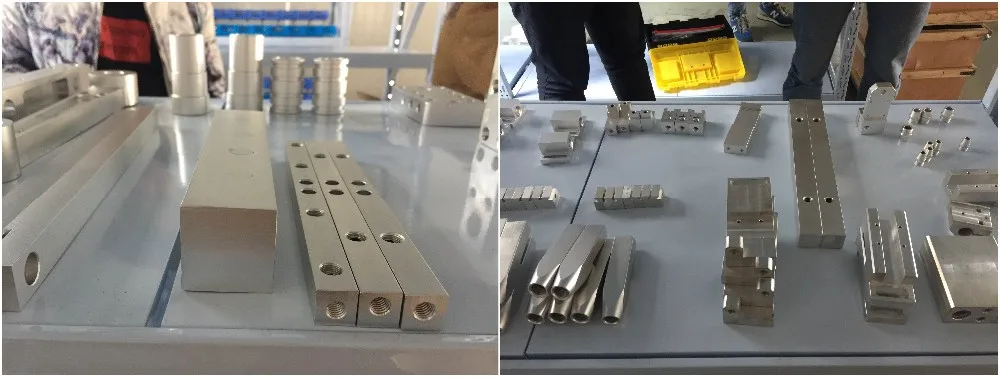

                                                                             Spare parts in workshop

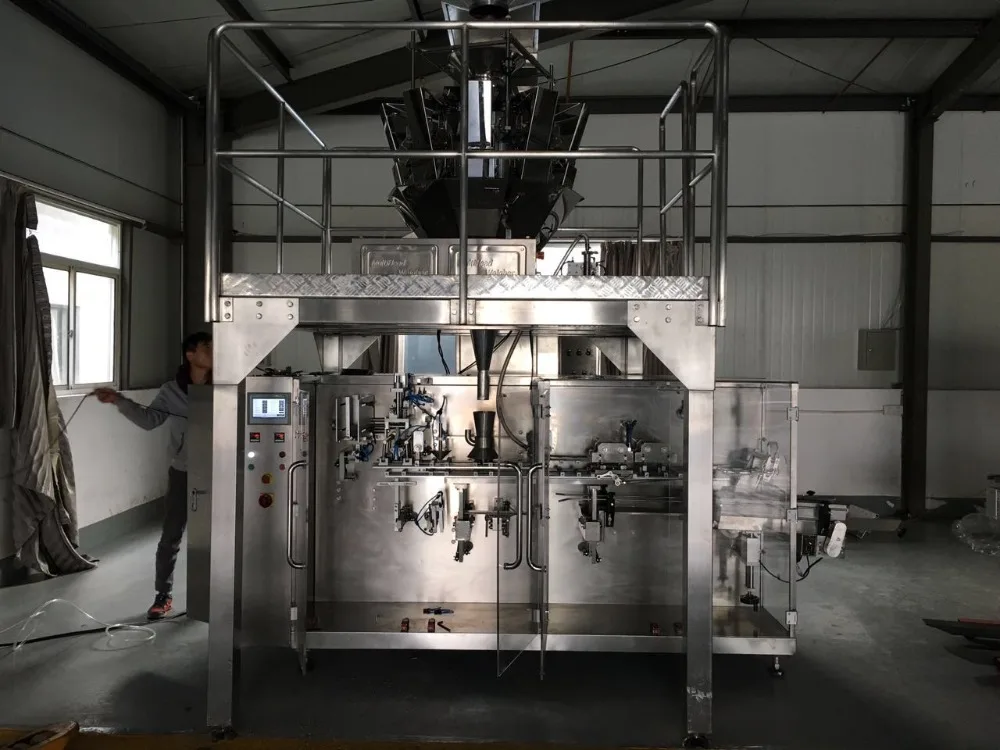

                                                           The finished machine in assembling workshop

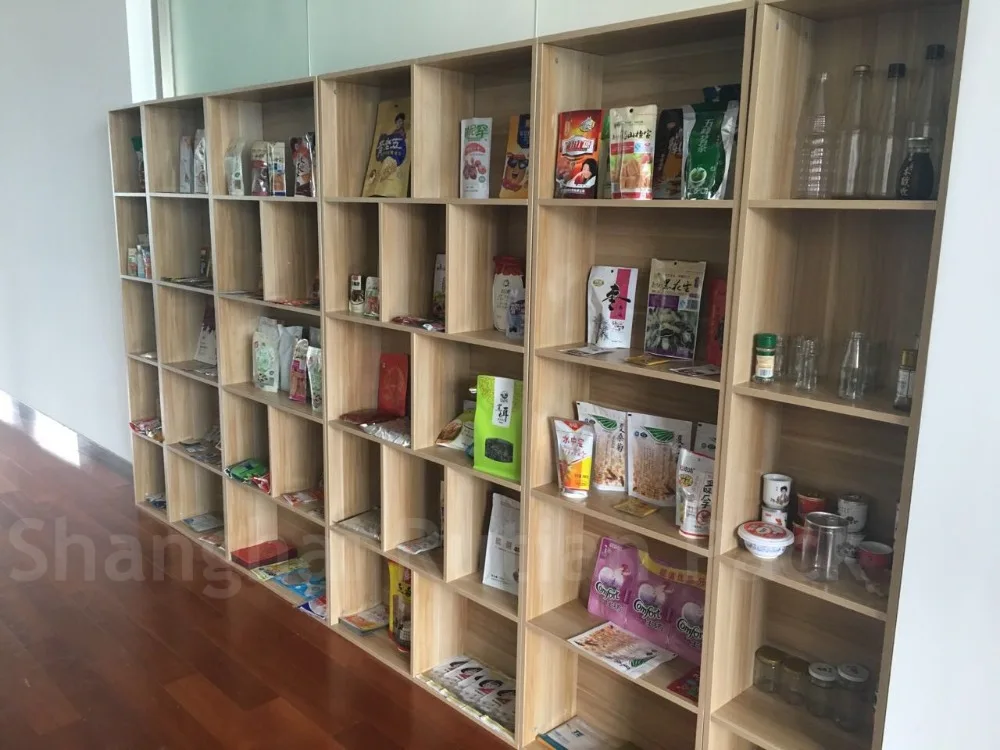

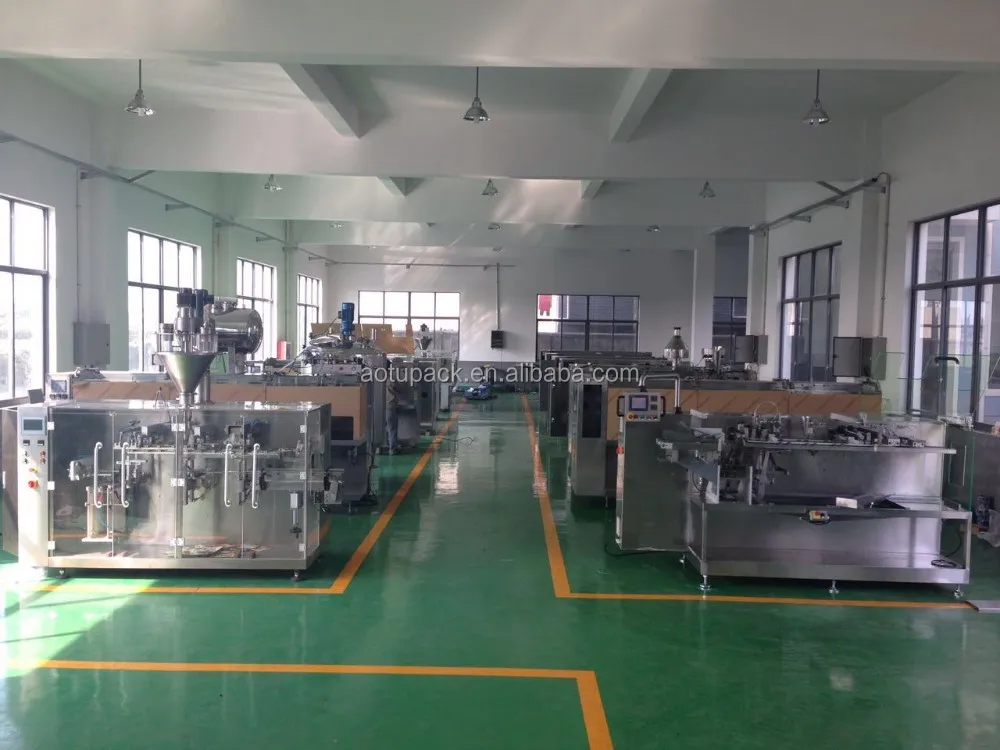

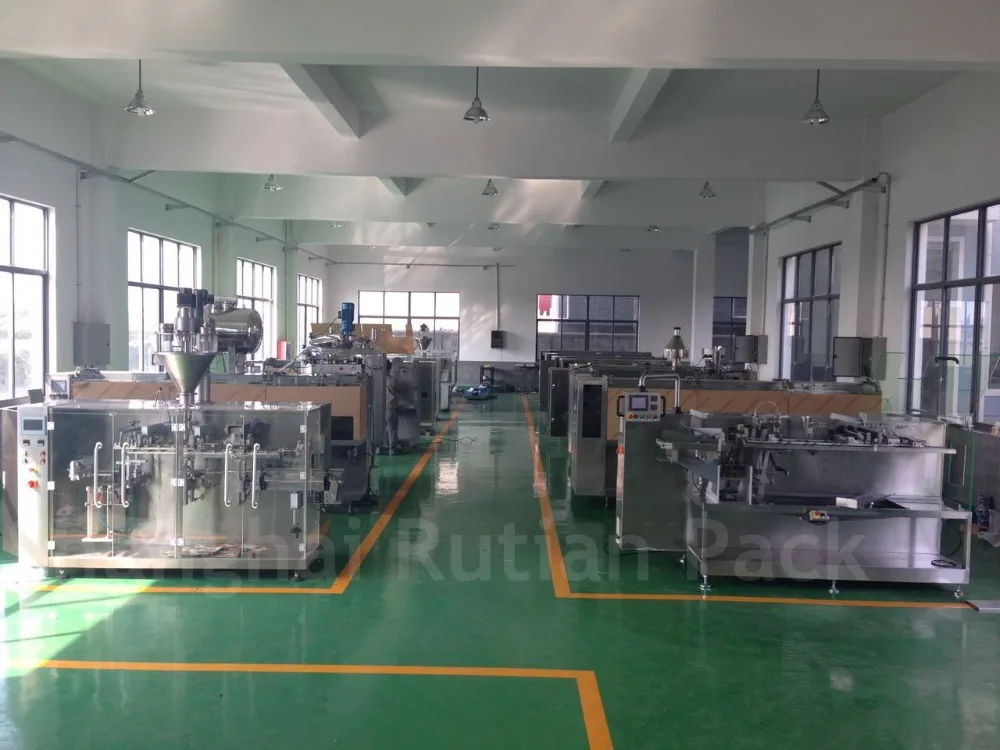

                                                                                             Display workshop





                                                                             Our plant, office&meeting room







                                                             Rutian package in China Propack



         Rutian pack in Chinese FIC Exhibition
