ZLG 1.6*0.75 salt vibrating fluid bed dryer

Product Overview

Description

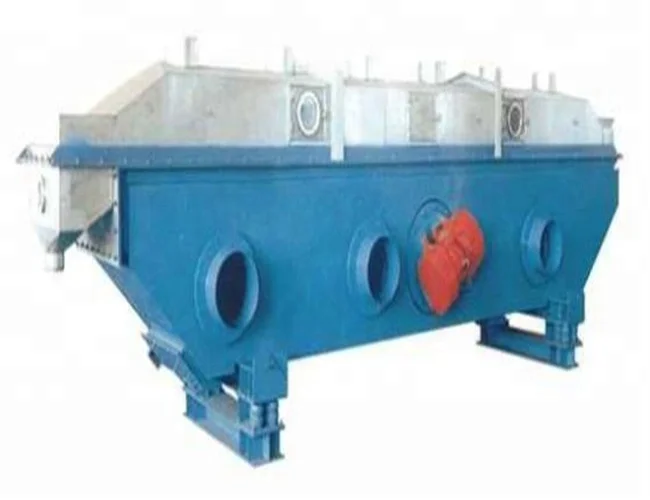

ZLG-1.6*0.75 salt vibrating fluid bed dryer

 Skype:amychen1281

Product Description:

ZLG Series Vibrating Fluidized Bed Dryer is widely applied in the industry of pharmaceutical,food,plastics,oil,slag,salt,chemical,sugar and etc.It dries and cools granules and powder.

Operating Principle:

Material goes into the hopper and moves forwards continuously along the conveyer line under the vibration.Heat flows up through fluidized bed,brings away the moisture in the material in the material.Then dried material discharges.

Feature:

The machine is powered by vibrating motor.This machine has the characteristics of stability and reliability in operation,low noise,long life and easy maintenance.

It works highly efficiently and save more than 30% energy than other dryers.The fluidized bed makes the material heated evenly,no overheating at any area.The vibration force is strong end even,and accepts stepless adjustment according to the design.The process is harmless to the material no matter what size or shape it is.

The machine is completely enclosed in order to prevent the pollution from the environment.It keeps environment clean and runs constantly.

Several machines can be connected to process big amount material with high moisture.

Nowadays, Changzhou Jiasheng Machinery Co.,Ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Model	A	B	C	D	E	F
ZLG3×0.30	3000	300	1350	900	430	1650
ZLG4.5×0.30	4500	300	1350	900	430	1650
ZLG4.5×0.45	4500	450	1550	950	430	1700
ZLG4.5×0.60	4500	600	1650.0	950	430	1700
ZLG6×0.45	6000	450	1650	950	430	1700
ZLG6×0.60	6000	600	1700	1000	500	1700
ZLG6×0.75	6000	750	1850	1000	600	1850
ZLG6×0.9	6000	900	2000	1000	600	1850
ZLG7.5×6.0	7500	600	1850	1000	600	1850
ZLG7.5×0.75	7500	750	2000	1000	600	1850
ZLG7.5×0.9	7500	900	2100	1000	600	1850
ZLG7.5×1.2	7500	1200	2500	1150	800	2050
Weight(kg)	Area of fluidized bed	Temperature of inlet air	Temperature of outlet	Capacity of vapor moisture	Motor model	Power   ( KW)
1250	0.9	70~140	40~70	20~35	ZDS31-6	0.8×2
1560	1.35	70~140	40~70	35~50	ZDS31-6	0.8×2
1670	2.025	70~140	40~70	50~70	ZDS32-6	1.1×2
1910	2.7	70~140	40~70	70~90	ZDS32-6	1.1×2
2100	2.7	70~140	40~70	80~100	ZDS41-6	1.5×2
2410	3.6	70~140	40~70	100~130	ZDS41-6	1.5×2
2340	4.5	70~140	40~70	120~140	ZDS42-6	2.2×2
3160	5.4	70~140	40~70	140~170	ZDS42-6	2.2×2
3200	4.5	70~140	40~70	130~150	ZDS42-6	2.2×2
3600	5.626	70~140	40~70	150~180	ZDS51-6	3.0×2
4140	6.75	70~140	40~70	160~210	ZDS51-6	3.0×2
5190	9	70~140	40~70	200~260	ZDS51-6	3.0×2
