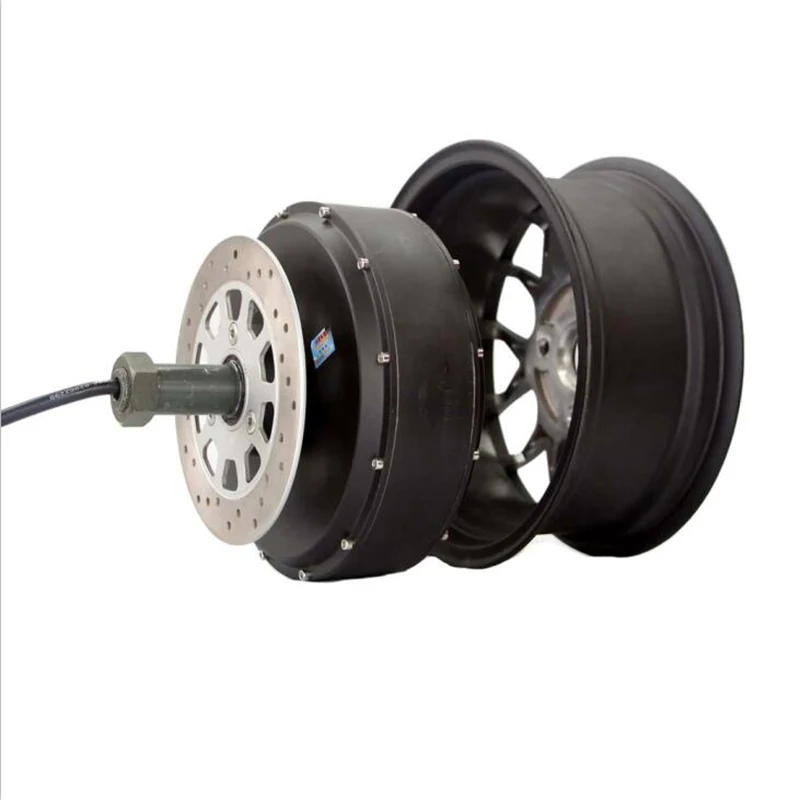

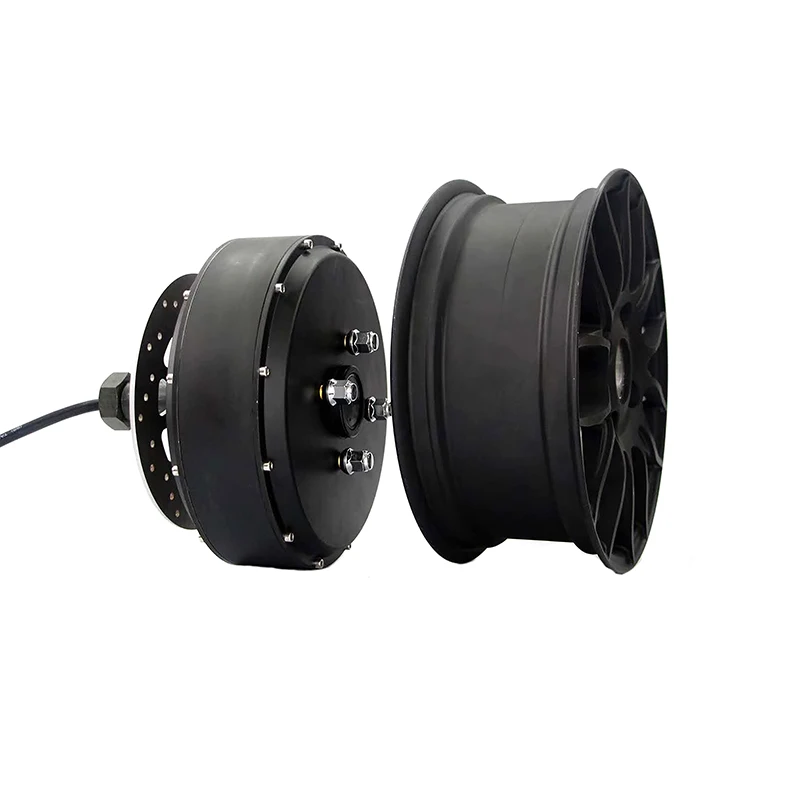

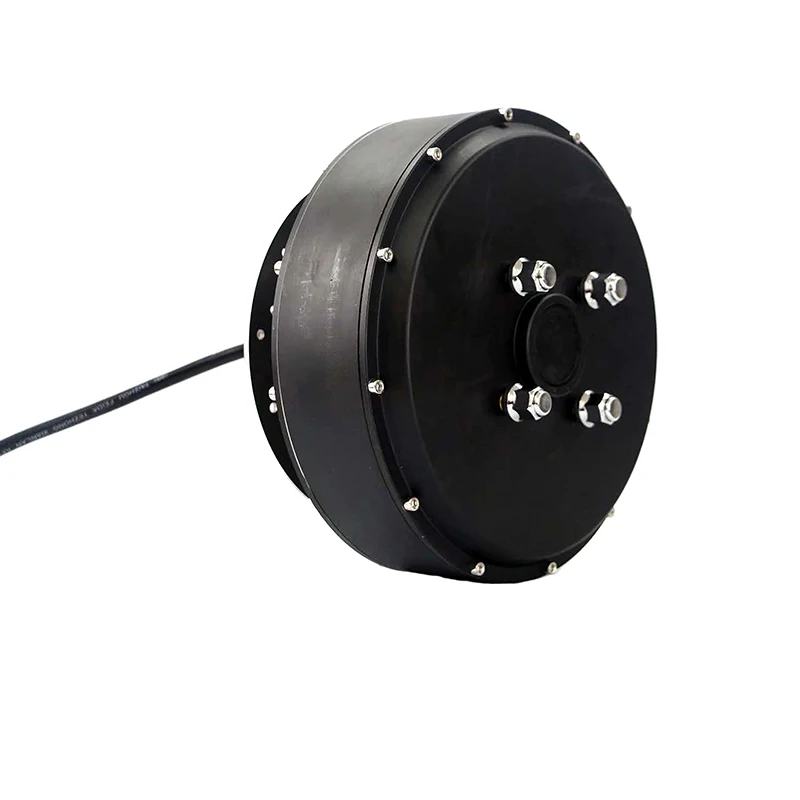

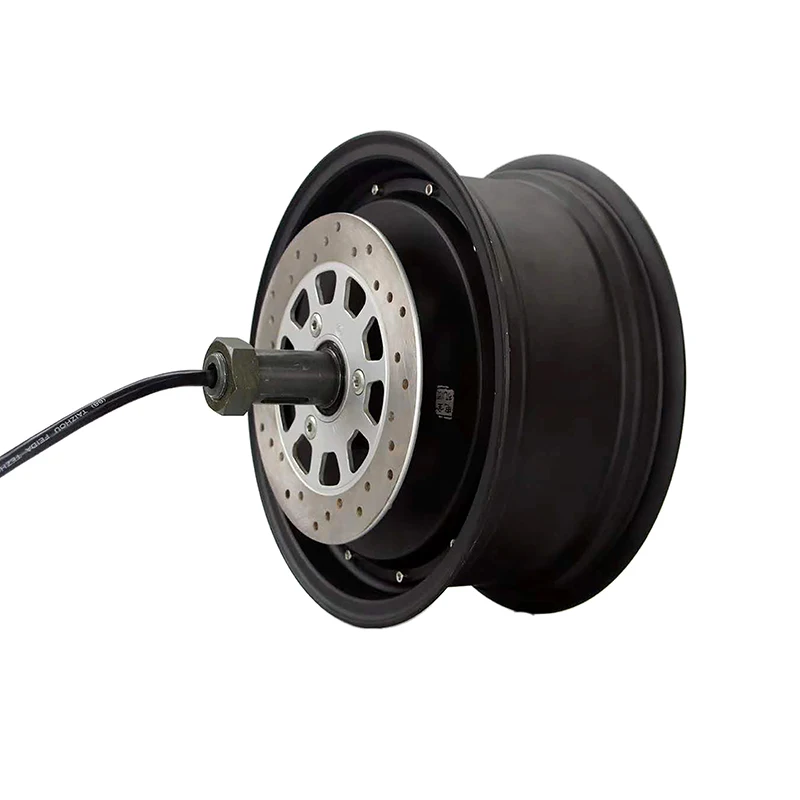

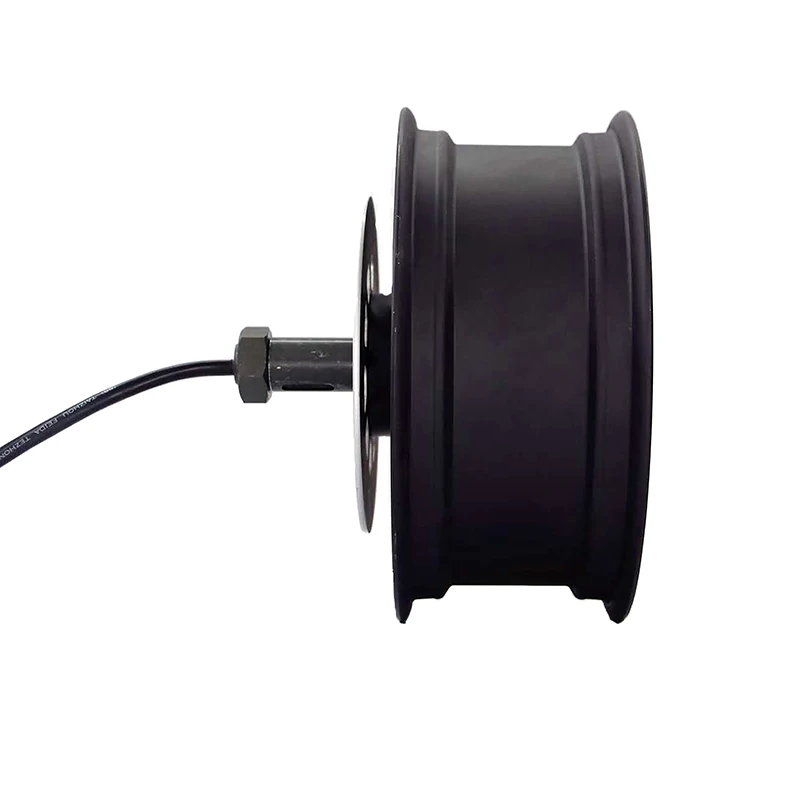

QS Motor 2017 New 1500W 28H Single Shaft Electric Car Hub Motor for Sale

Product Overview

Description

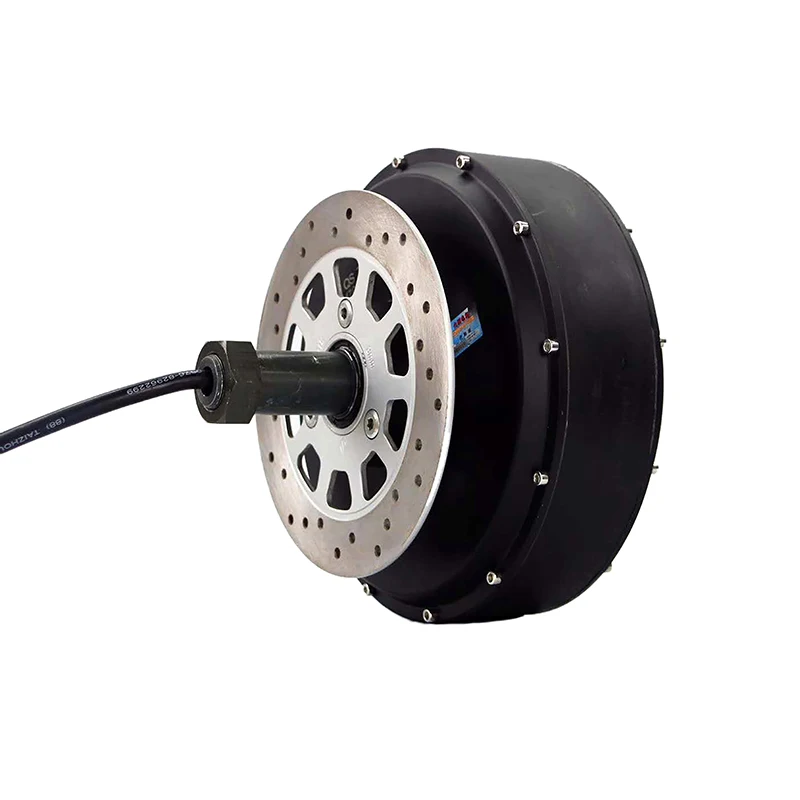

260 Single Shaft Electric Car Hub Motor(30H) 1500W V1 Type



260Model Electric Car Hub Motor is NEW developed for Electric Car or Electric Motorbike, the rated power can be made at 1500W,2000W,3000W or 5000W.



Version 1 and Version 3 can be optional





Motor Type: BLDC Hub Motor with Permanent Magnets

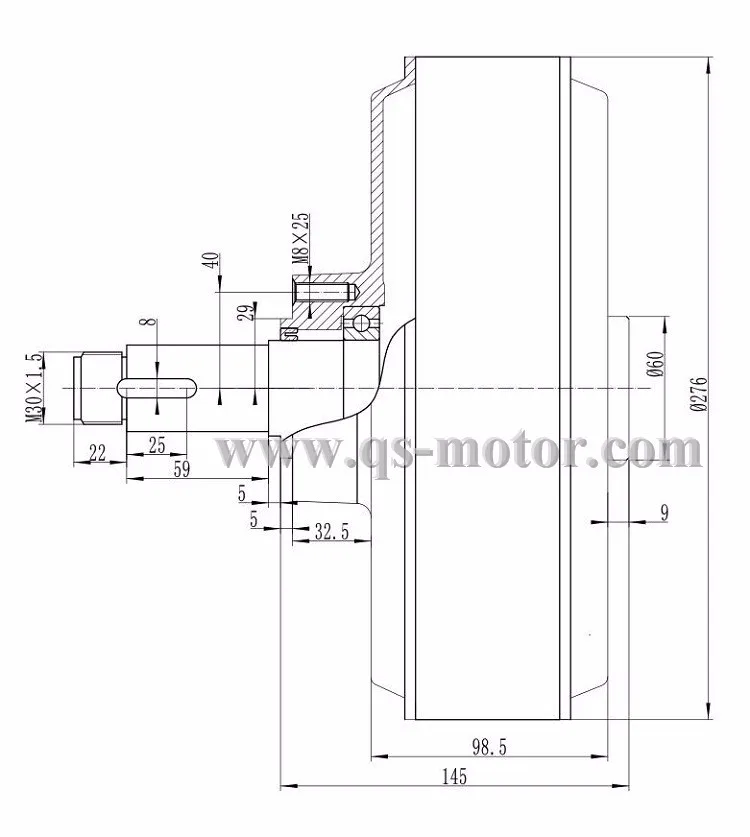

Motor design: 260 Single shaft out Hub Motor

Bolts Pattern: PCD:4 x 100MM  CB:60mm

Magnet: 30H Straight mangets

Pole Pairs: 24 Pairs

Rated Power: 1500W

Peak Power: 1950W

Rated Voltage: 48V( 48V-72V Can be optional)

Max No-load RPM: 600RPM

Max Torque: 130N.M

Max Efficiency: 88%

Max. Continuous Current: 45-50A

Brake type: Disc brake

Winding Frame material: Steel

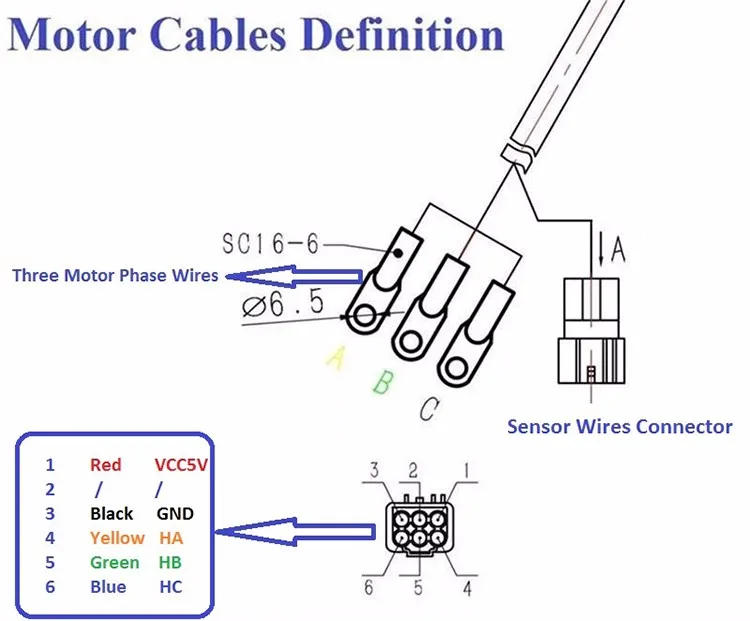

Cross Section of Phase wire: 6mm2

Hall sensor phasing angle: 120 degree

Temperature Sensor: Optional

Max. Working Temperature: 70 degree, Peak 120 degree

Waterproof Grade: IP66

N.W./ G..W. : 18kgs / 20kgs

Package Size: 44*43*41CM
