Electronic fish weighing machine with air reject system, vegetable conveyor belt weight check weigher
- Category: >>>
- Supplier: Shanghai Shigan Industrial Co. Ltd.
Share on (60636735844):
Product Overview
Description
Product Description

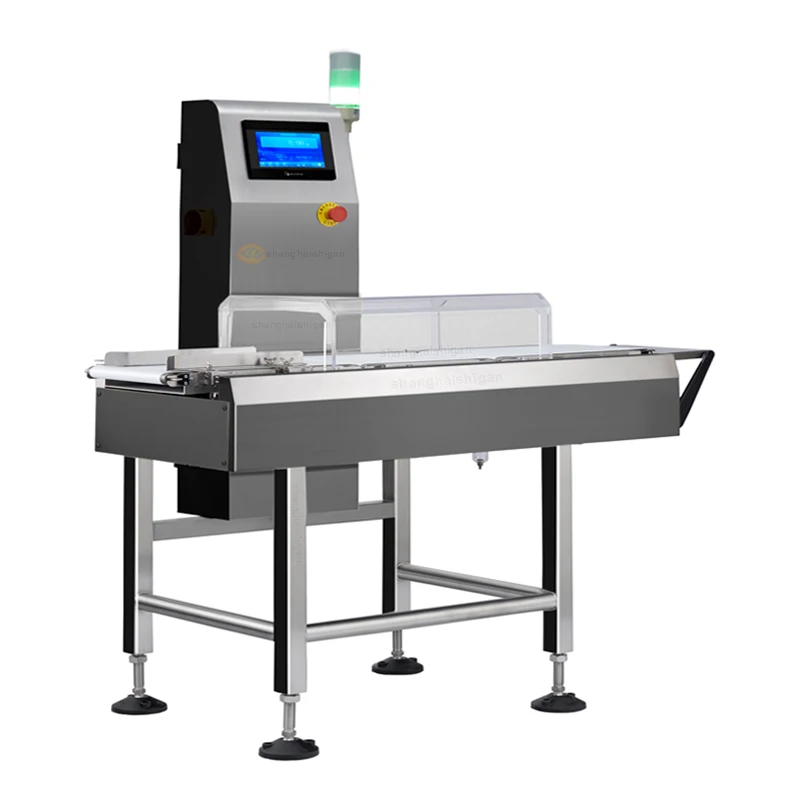

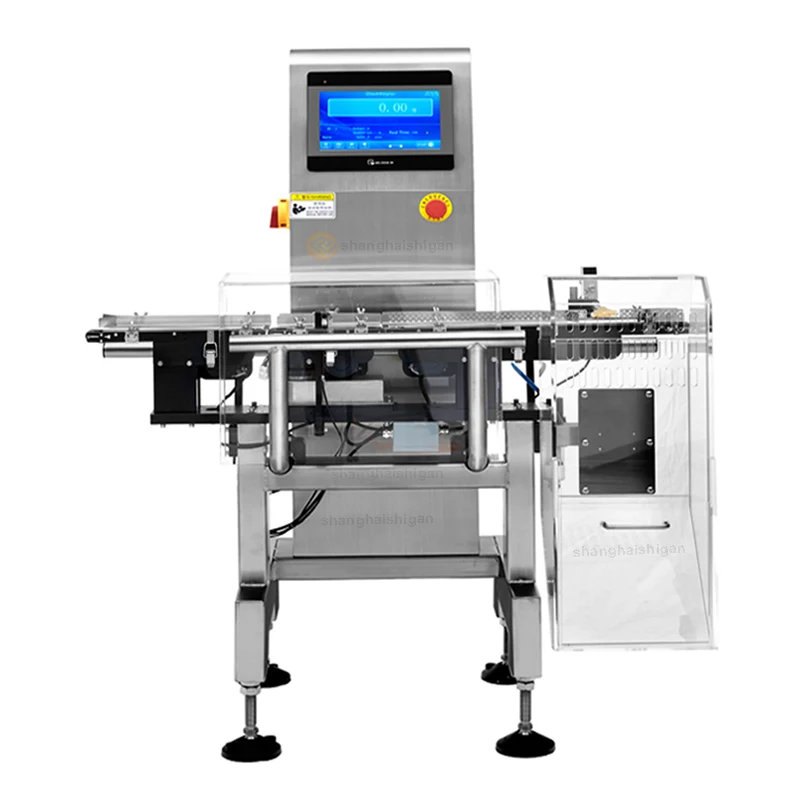

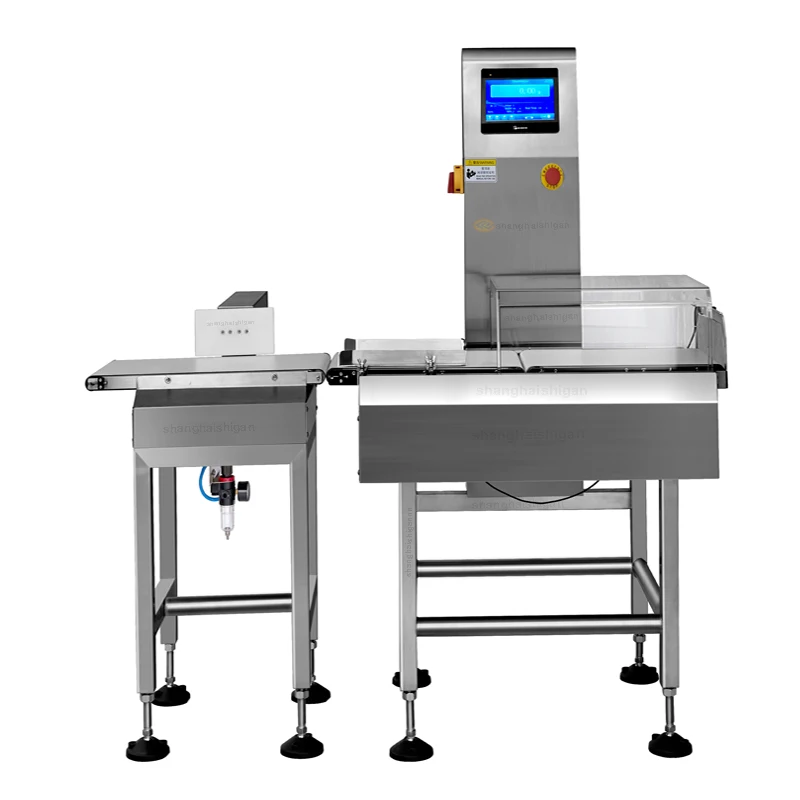

Electronic fish weighing machine with air reject system, vegetable conveyor belt weight check weigher

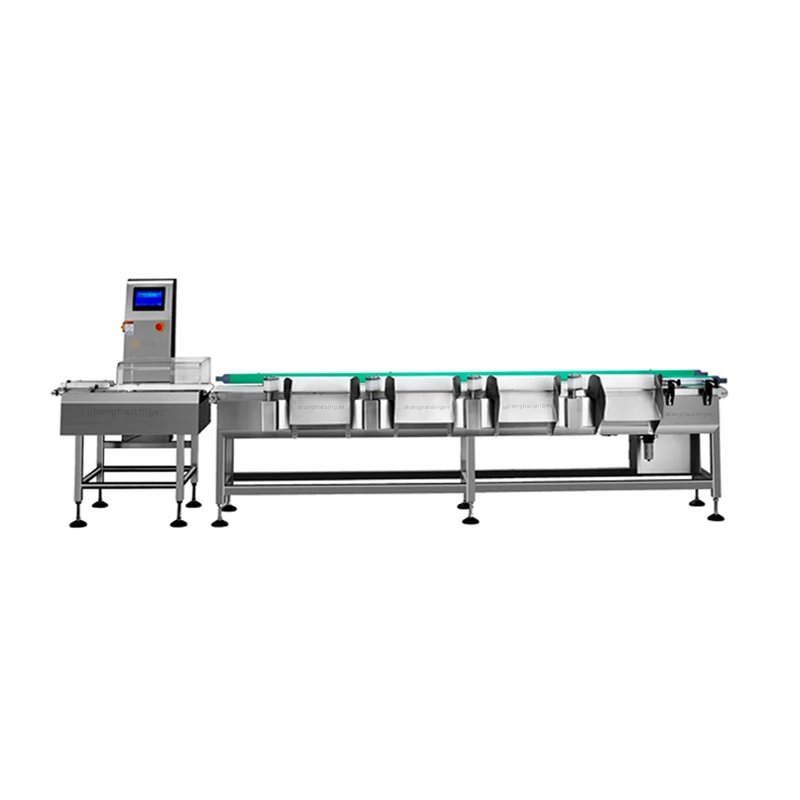

Dynamic conveyor belt check weigher, this equipment detects the weight of the products on the production line by high-speed dynamic weight reading method, which can accurately detect the unqualified products in the continuous production line, and perform the upper and lower line discrimination or automatic weight classification accordingly. Selected control, especially suitable for missing parts inspection in packaged products. The packaged products are checked by the automatic check weight machine , and the qualified ones are returned to the original conveyor belt, and the unqualified ones are rejected (or alarmed and stopped), and the products are classified and counted according to the settings, and the feedback signal is automatically provided to adjust and correct the feeding equipment. , Text display fault alarm information, a variety of graphical statistics display and other functions.Our product specifications and sizes are rich, various styles, welcome to contact us for quotation information
Product Application
The weight measuring machine is suitable for testing the weight of a small single item whether is qualified or not.Automatically check if packing the finished weight range of qualified, and by sorting weed out unqualified products.
For example,
Specification Parameter | ||||||
Type | SG-100 | |||||
Weighing Scope | 2-300g | |||||
Restrictions of Product | L: 100 W: 100 H: 2-150g | |||||
Sharpness of Separation | 0.01g | |||||
Seale Mark | ±0.05 g(vision product) | |||||
Belt Speed | 0-80 m/min | |||||
Highest Speed | 300 | |||||
Belt Width | 100 | |||||
Deadweight of Machine | 60kg | |||||
Power Supply | AC 110/220 V ± 10% 50HZ | |||||
Power | About 100w | |||||
Main Material | SUS304 stainless steel | |||||
Main Features
1) man-machine interaction of touch screen.
2)English-Chinese operation interface.
3) function of weight compensation.
4) Analyzing qualified rate of products with bar chart and graph.
5) secondary operation rights management, supporting self-set password.
6)Preset storage of 100 production formulas.
7)Several elimination methods of faulty products, supporting faulty stop function.
8)USD interface.
9)RS232 interface/spurt the code machine communication interface.
10)Sound and light alarm lamp.
Drawing
☀ We have our own designers and engineers ☀ We accept custom ☀ Quality and credit is our trump card |

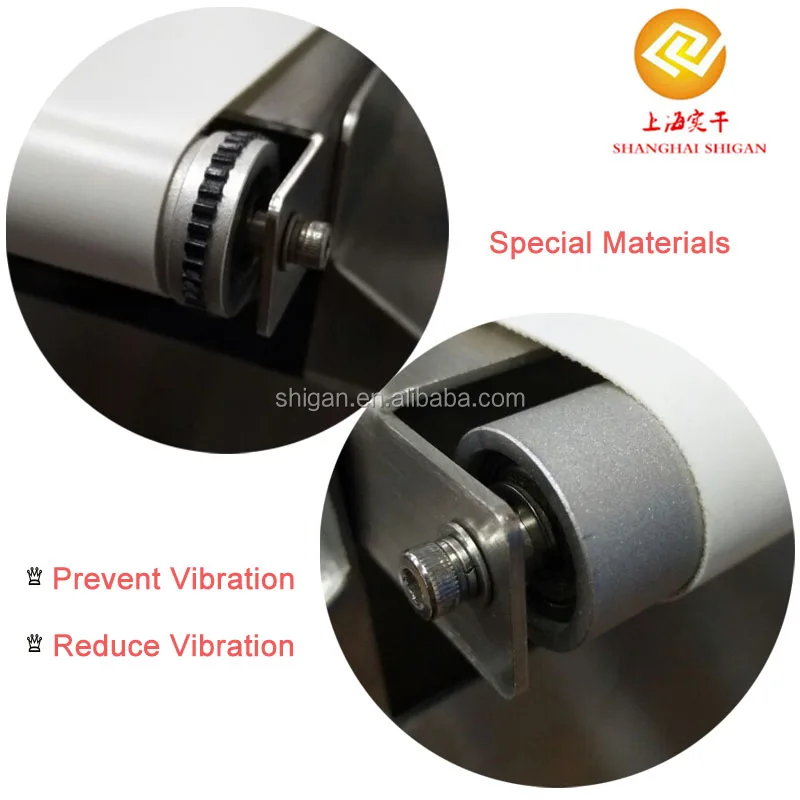

Product Details

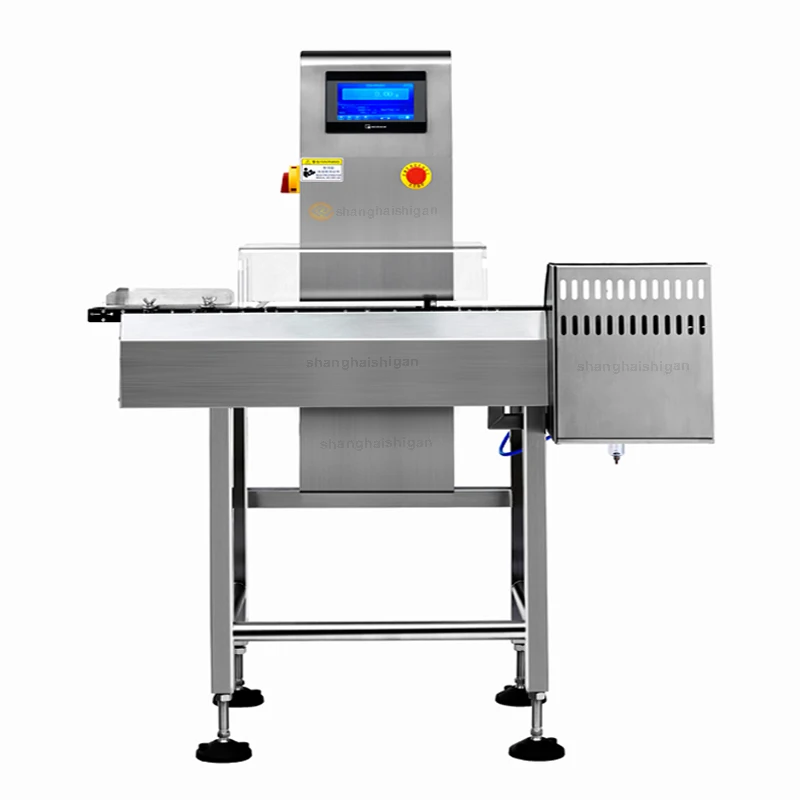

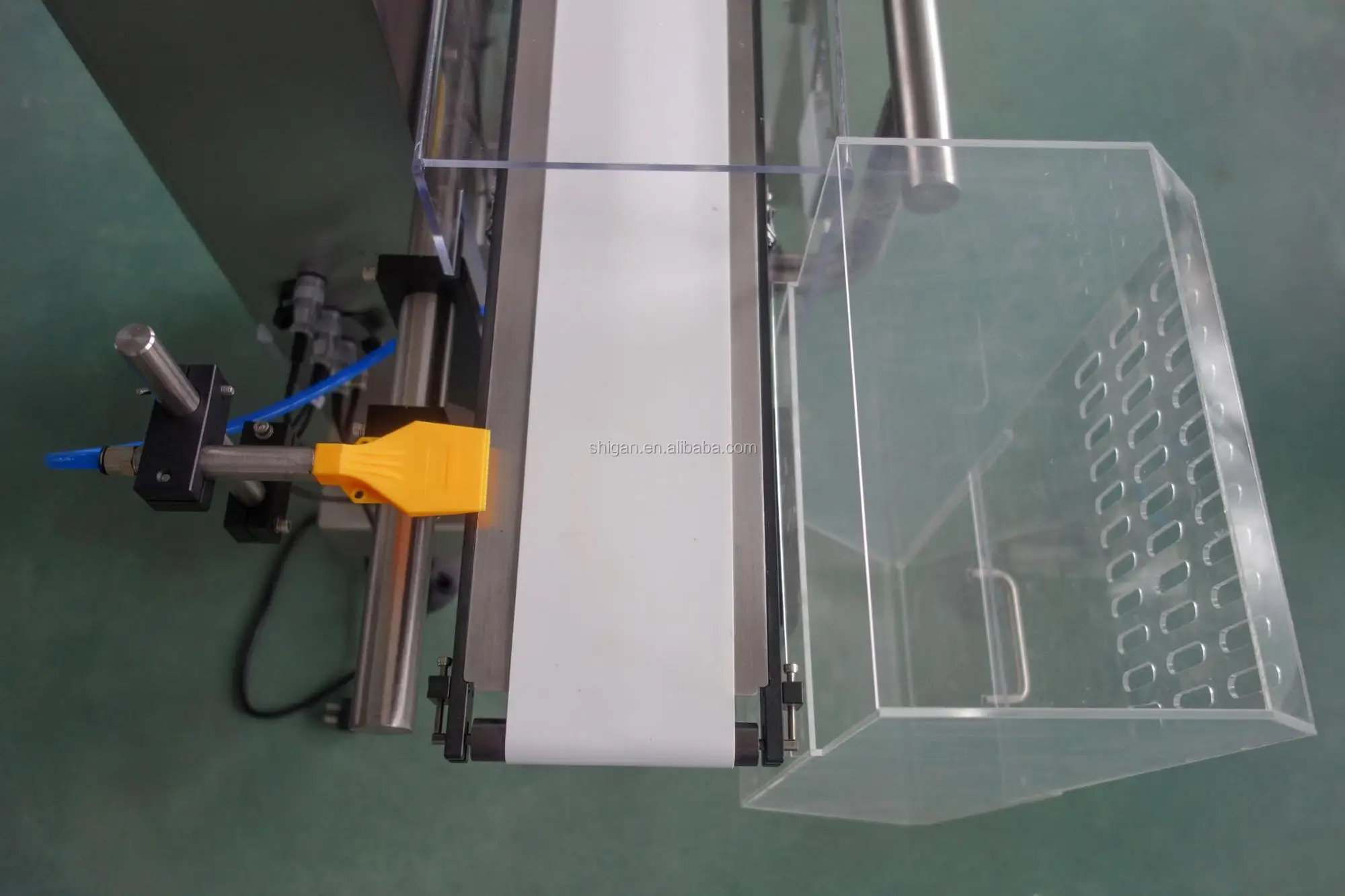

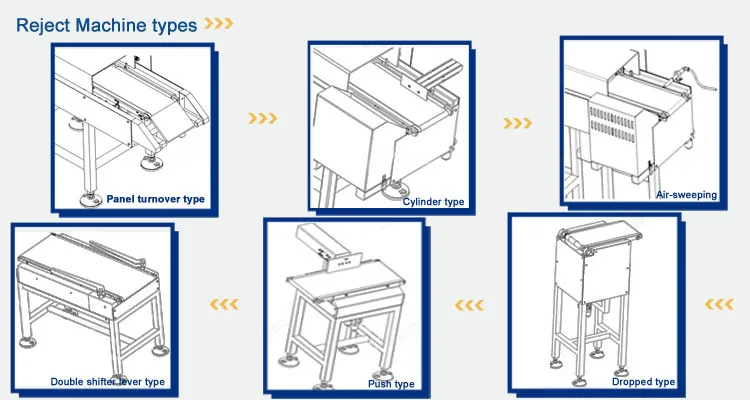

Panel turnover type Stretching baffle to separate faulty items; it is fit for content with thickness of less than 10 mm, such as tablet, electuary and like. Air-sweeping type Using strong airflow blow to separate faulty items; it is fit for high-speed packed content like lightweight items. Dropped type Dropping carrier plate to separate faulty items with great ares; others eliminate items that is thin, difficult to slide and easy to damage. | ||

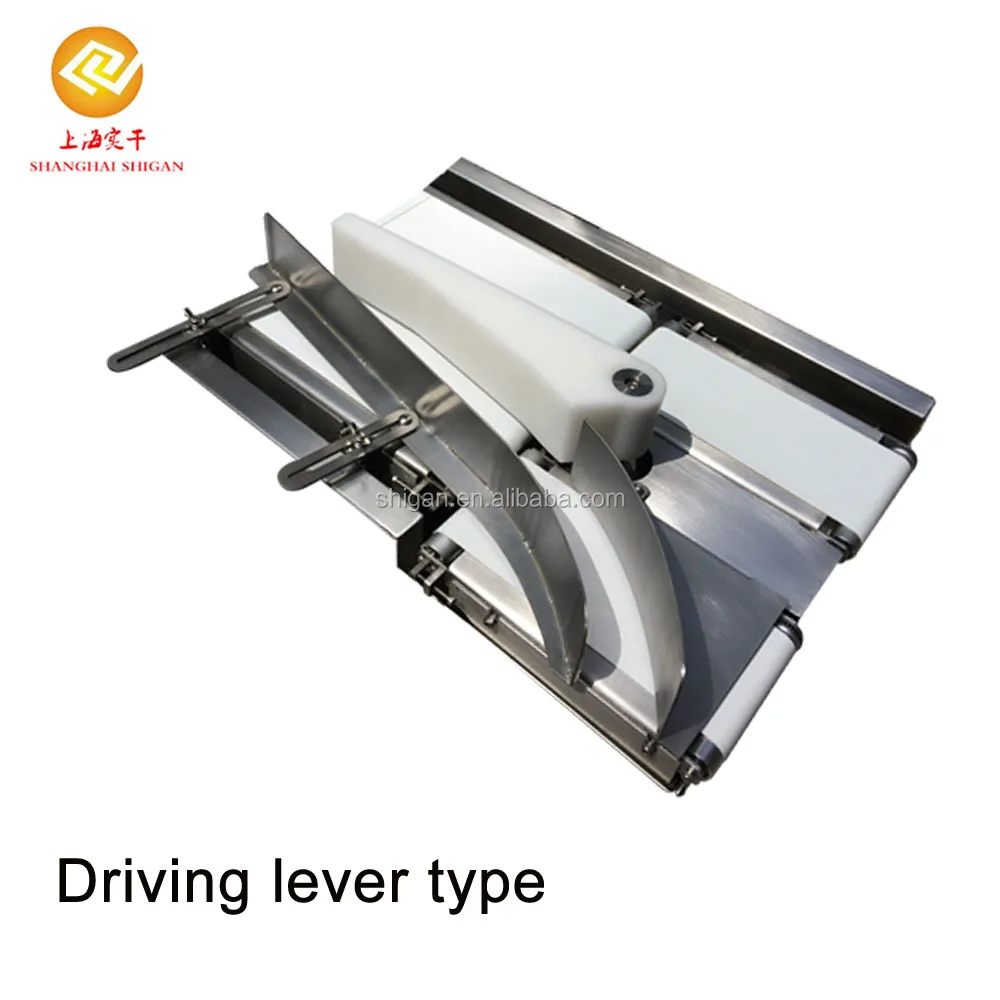

☀Product is improved and upgraded continuously. ☀Support non-standard customized, please consult Push type Cylinder pushing board moves fast to separate faulty items; it is common elimination method applicable to box-packed items with thicker packing; it is usually standard. Driving lever type Driving lever to separate faulty items, which equivalent to push type and it is common elimination method and the configuration make volume of eliminating part lengthened. | ||
Related Products
Our customers

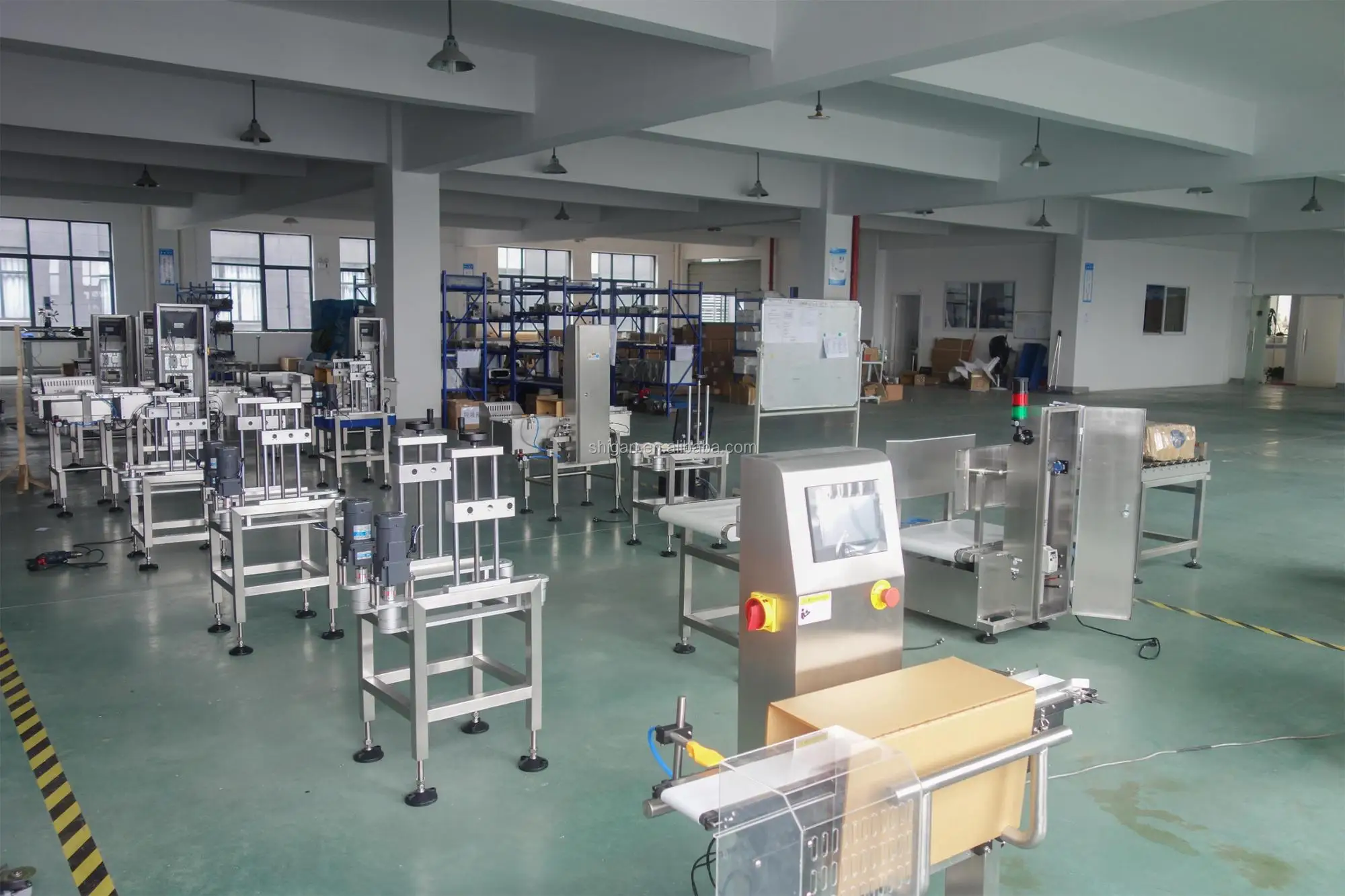

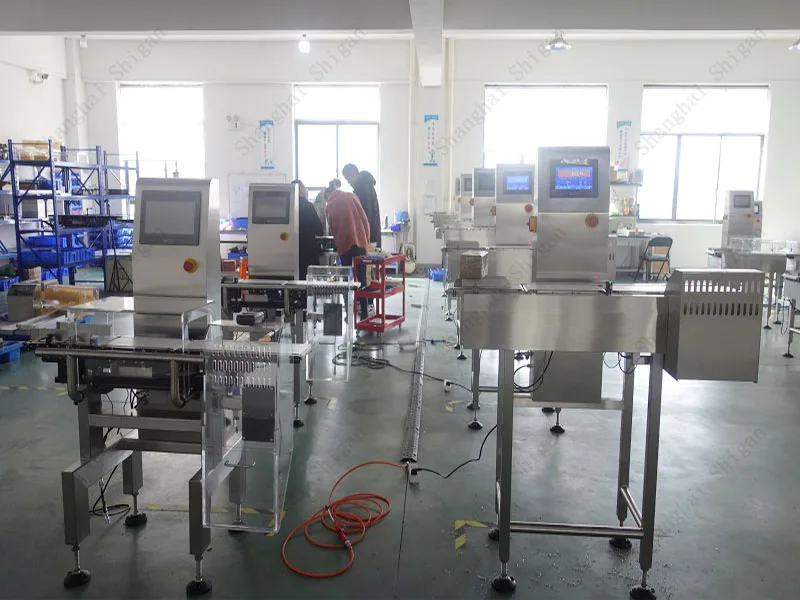

Our company
Our Service
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customized , according to your product's features and your workshop environment, or your production line.
After-sales Service Provided
Engineers availbale to provide after-sales service overseas in order to help customers solve technical problems.
Packing & Delivery
Packaging | ||
Size | 1040 (L) * 1040 (W) * 606 (D) | |
Weight | 0.06 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
FAQ
1.Are you manufacturer or trader? Where are your factory located?
We are manufacturer and we are located in Shanghai,China.
2.What's your main product and what is your main foreign market?And do you have your own design team?
Our main products are check weight machines,floor scales and truck scales and our main foreign market are Asia, North America, Europe, Africa.And we have our own design team for products design.
3.what are the advantages of your machines?And how can i believe the quality of your product?
Highest precision (a margin of error) of our products can achieve±0.05g and the highest speed can achieve 300pcs/min.Our electronic parts of equipment all adopt international famous brand.For example,the switch is Germanic Schneider, Conveyor Belt is Swiss HABASIT,The relay is Japanese OMRON.Once tested as qualifed .our machine would be sent out.So The quality of our product is stable and reliable.
4.What are your company requests of payment terms?
TT,L/C,Western Union,Money Gram,Paypal,International Credit Card.
5.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.
6.Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.
7.How long is your warranty?
12 months free warranty, life-long maintenance.
8.What kinds of overseas service can you offer?
Our technical staff can go abroad to provide you with technical guidance.
We accept kinds of customized and logo of all of our products for customers .
