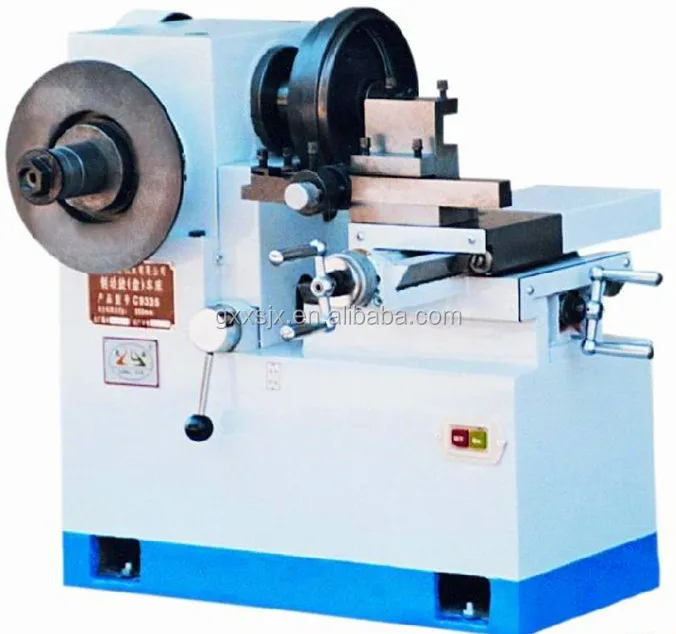

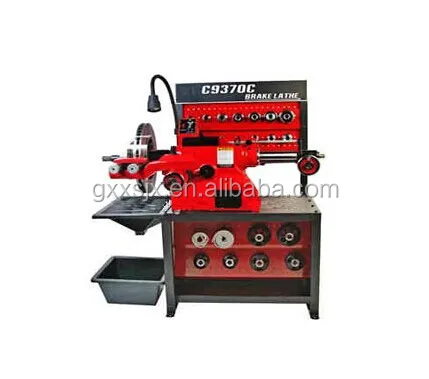

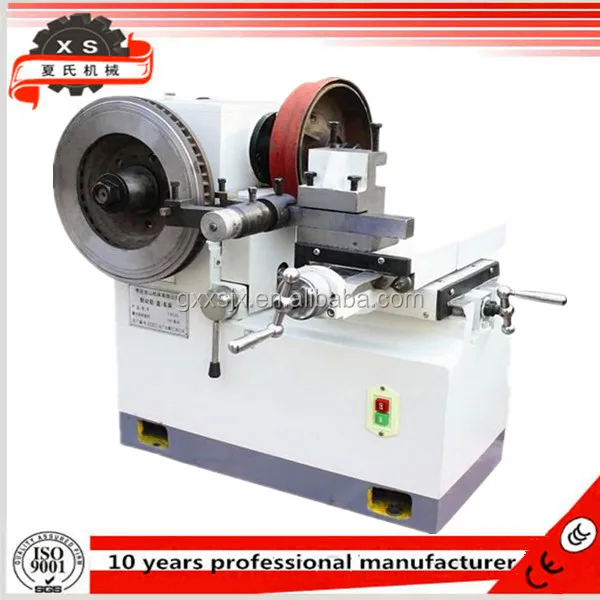

C9370C disc brake lathe machine

Product Overview

Description

C9370C disc brake lathe machine



To introduce

1.Quickly, accurately and efficiently to cutting rotor;
2.Fast and slow setting allow cutting rotor;
3.Quick, accurately and efficiently to cutting drum;
4.Finitely adjustably setting allow cutting drum;
5.Three kinds of speed to choice for spindle speed;
6.Fully equipped adapter package.
7.A convenient design allows to quickly change from rotor to drum;
8.Position of stop make the lathe stop automatic after the cutting;



Main Specifications

Model	C9370C
Spindle Travel	251mm
Spindle Speed	70,88,118 rpm
Spindle Feed Speed	Min 0.05mm/rev
	Max 0.5mm/rev
Cross Feed Speed	Min 0.05mm/rev
	Max 0.25mm/rev
Handwheel Graduations	0.05mm
Rotor Diameter	180-457mm
Rotor Thickness	102mm
rum Diameter	152-711mm
Drum Depth	251mm
Motor	1PH 110V/220V 50/60HZ , 3PH 380V 50/60HZ
Gross Weight	400kg
Dimension	1100x1070x1140mm

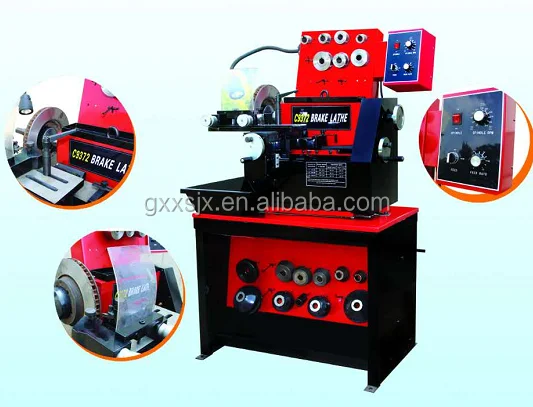

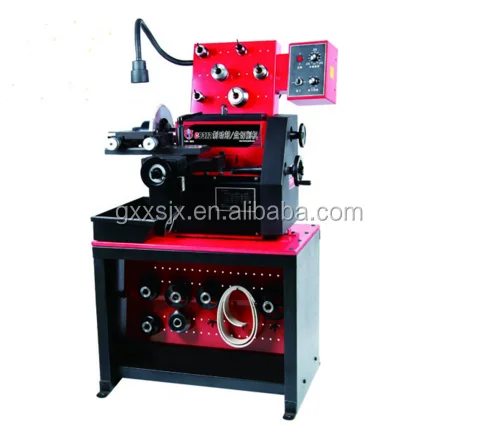

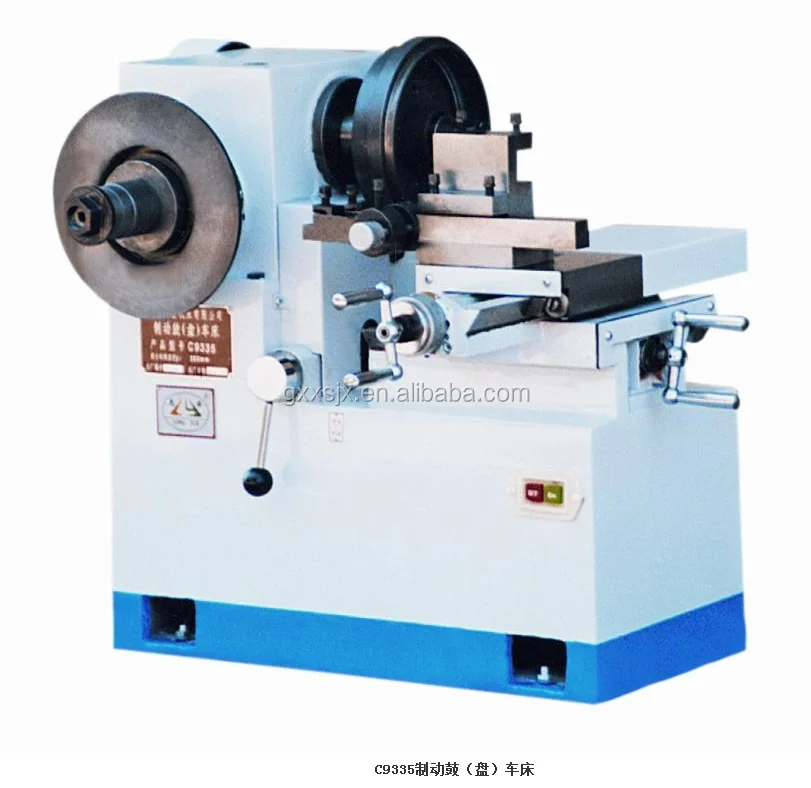

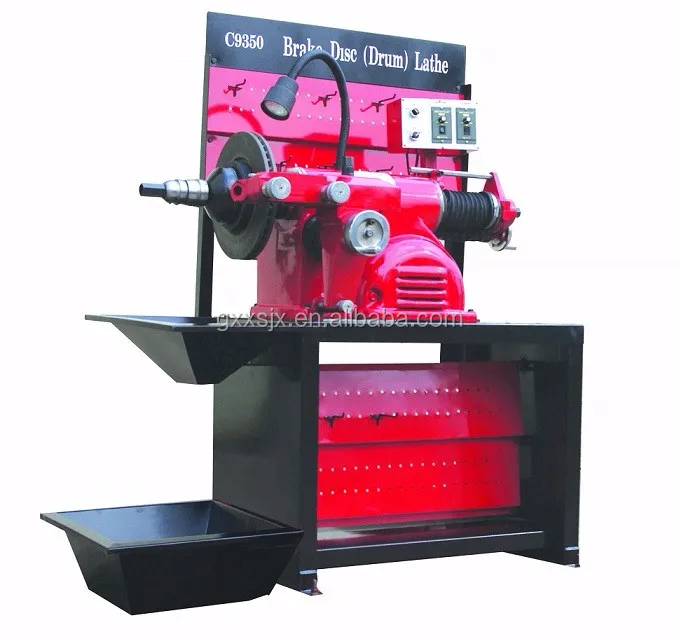

Other model Brake Disc Drum Lathe Machines

Packing&Delivery&Terms of Payment

 We use wooden package to protect the equipment in container.

Why Choose Us?

•  We have our own factory and strong production capacity.
•  we insist on good quality and have strict quality standards
•  The hiring of experienced staff to guarantee high quality.
•  Our product can be made as per your requirement .
•  24 hour online communication for you.
•  We have more than 6 years of export experience.

FAQ

Q: What information should I let you know, if I want to get a product offer?

A: 1. the size of your work piece

    2. the CNC system you preferred if you need CNC type

    3. the work piece drawing if you have



Q: How to control the quality of production processes?

A: We have a professional quality inspectors to check on the quality of the finished product.



Q: Is it possible to visit your factory?

A: It is very convenient to visit us and all clients from around the world are highly welcomed.



Q: What’s the MOQ?

A: The MOQ is 1 set.



Q: What’s the quality assurance and service ?

A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
