1400 degree Silicon Carbide Heating Element for Electric Furnace
- Category: >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (60636783571):
Product Overview
Description
1400 degree Silicon Carbide Heating Element for Electric Furnace
Product Description
Rod type silicon carbide electric heater heating element are a kind of non-mental high temperature electric heating element.It is made of selected high-purity green silicon carbide as raw material which is made into blank and silicon crystal under high temperature of 2400ºC.it is widely used in various electric heating element of glass, chemical, electronic material and so on.
The Silicon carbide heat element uses production process of cold ends,so our SiC heater has excellent specific rate of heat zone resistance , to avoide over temperature of cold-ends to damage the furnace body.

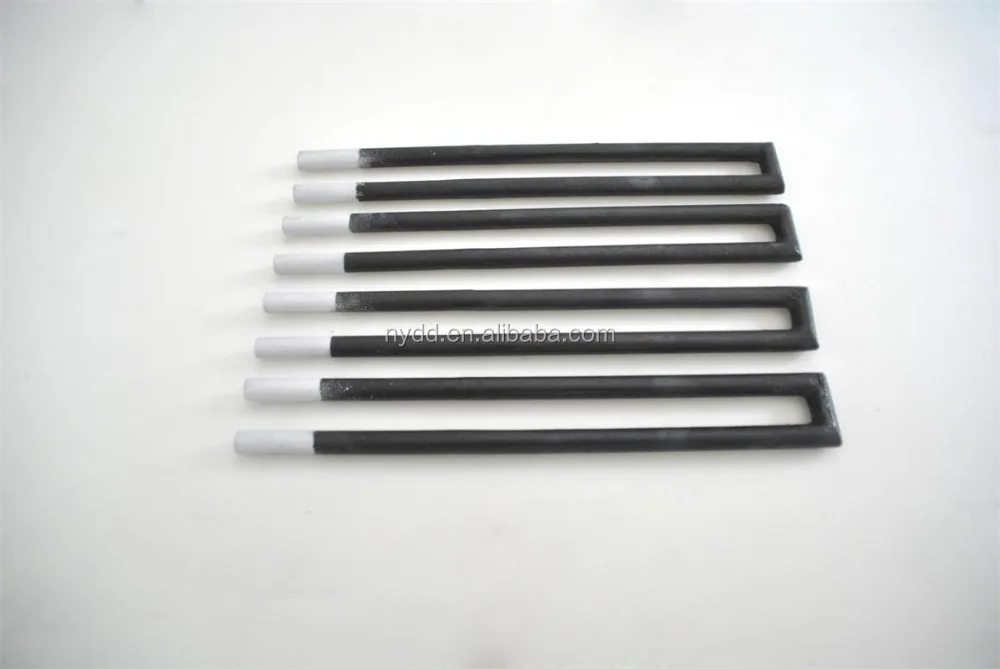

SiC details picture:
 |

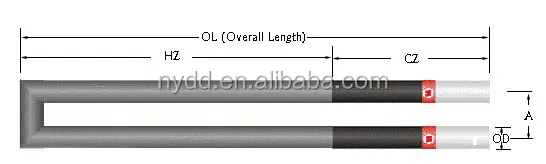

SiC size chart:
| OD (Diameter) | HZ (Hot Zone) | CZ (Cold Zone) | TL (Total Length) | Resistance |
| 8mm | 100-300mm | 60-200mm | 240-700mm | 2.1-8.6 ohms |
| 12mm | 100-400mm | 100-350mm | 300-1100mm | 0.8-5.8 ohms |
| 14mm | 100-500mm | 150-350mm | 400-1200mm | 0.7-5.6 ohms |
| 16mm | 200-600mm | 200-350mm | 600-1300mm | 0.7-4.4 ohms |
| 18mm | 200-800mm | 200-400mm | 600-1600mm | 0.7-5.8 ohms |
| 20mm | 200-800mm | 250-600mm | 700-2000mm | 0.6-6.0 ohms |
| 25mm | 200-1200mm | 250-700mm | 700-2600mm | 0.4-5.0 ohms |
| 30mm | 300-2000mm | 250-800mm | 800-3600mm | 0.4-4.0 ohms |
| 35mm | 400-2000mm | 250-800mm | 900-3600mm | 0.5-3.6 ohms |
| 40mm | 500-2700mm | 250-800mm | 1000-4300mm | 0.5-3.4 ohms |
| 45mm | 500-3000mm | 250-750mm | 1000-4500mm | 0.3-3.0 ohms |
| 50mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-2.5 ohms |
| 54mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-3.0 ohms |
Silicon Carbide Heating Element parts:
| Stainless steel Clips | Aluminum Straps |
 |  |
Packaging & Shipping
How to make an order
Company Information
Nanyang Dadi Electric Equipment Co., Ltd is a professional Heat treatment furnace manufacture which with more than 11 years experiences.
Mainly products:
Muffle furnace | Atmosphere furnace | Tube furnace |
Dental sintering furnace | Vacuum furnace | Crucible furnace |
Bottom loading furnace | Car bottom furnace | Etc. |
Contact us
SAME GOOD PRICE,BUY ONE GOOD QUALITY !!!
Send your inquiry in the bleow, click"send"now!
FAQ
1. Q: Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
