Product Description

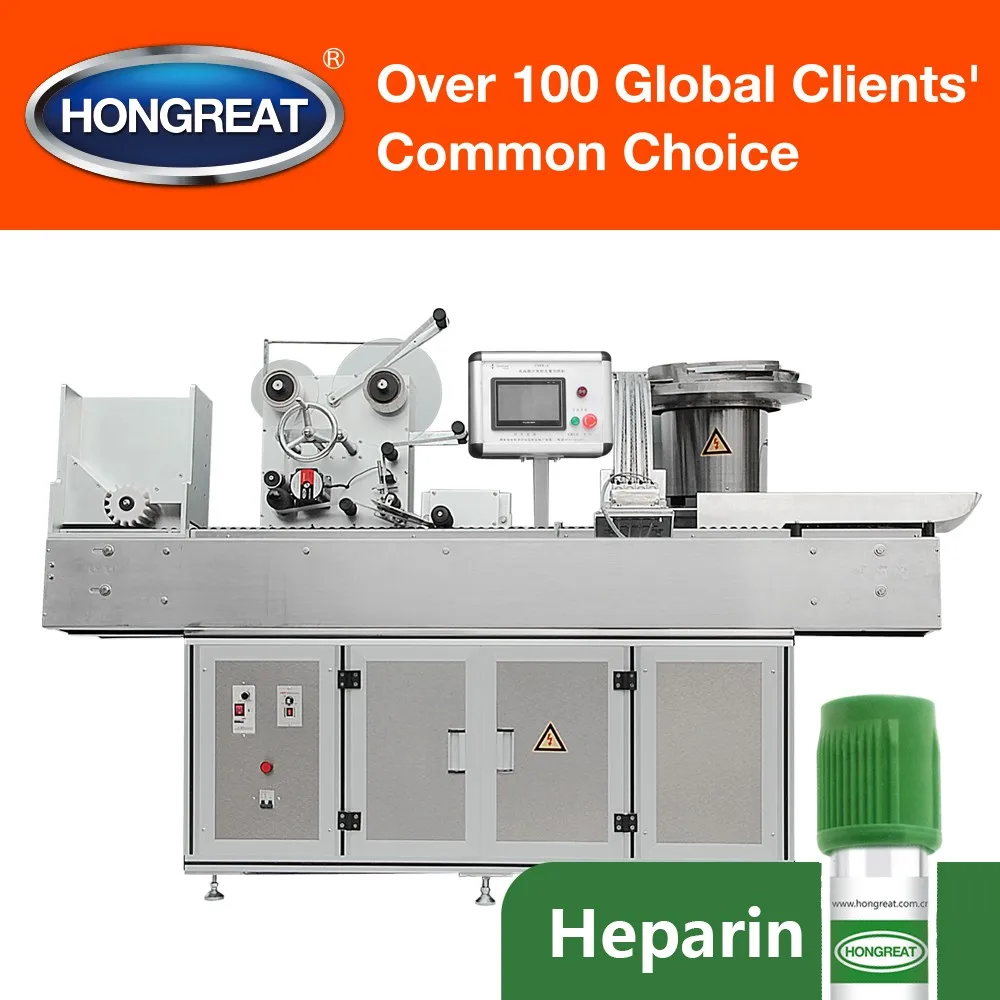

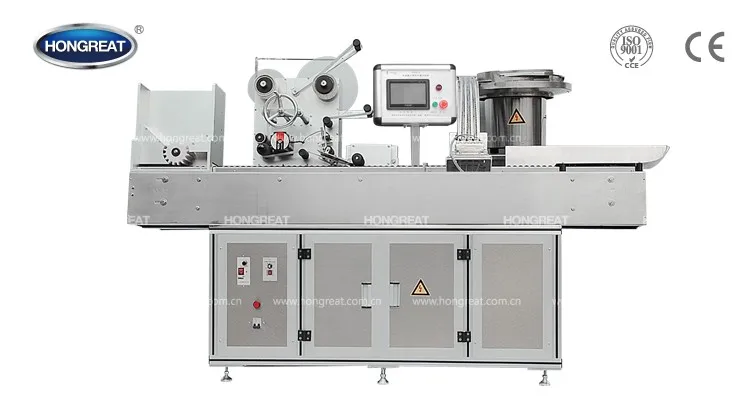

Non-vacuum Heparin Vacutainer Tube Production Line


• Application: Non-vacuum blood collection tube labeling, EDTA dosing-spraying, drying, cap adding (4 in 1).

• Applied with PLC control for tube dropping, step-motor for label transporting, photoelectric detection for labeling & tube checking.

• Other chemical spraying system optional.

Production capacity
3,000 - 4,000 pcs/h
Tube size
Ø13-Ø16mm, L:75-100mm
Dosage precision
EDTA 30-50ul/pcs, ±10％
Labeling precision
Length direction ±1 mm
Control way
PLC Control
Operating mode
Touch panel
Overall dimension
2000*800*1650mm
Power
1.5KW/AC380V
Case material
Aluminium alloy frame
Weight
450KG
Label spec
Available for transparent and opaque label. Label Width: 50~95mm.
