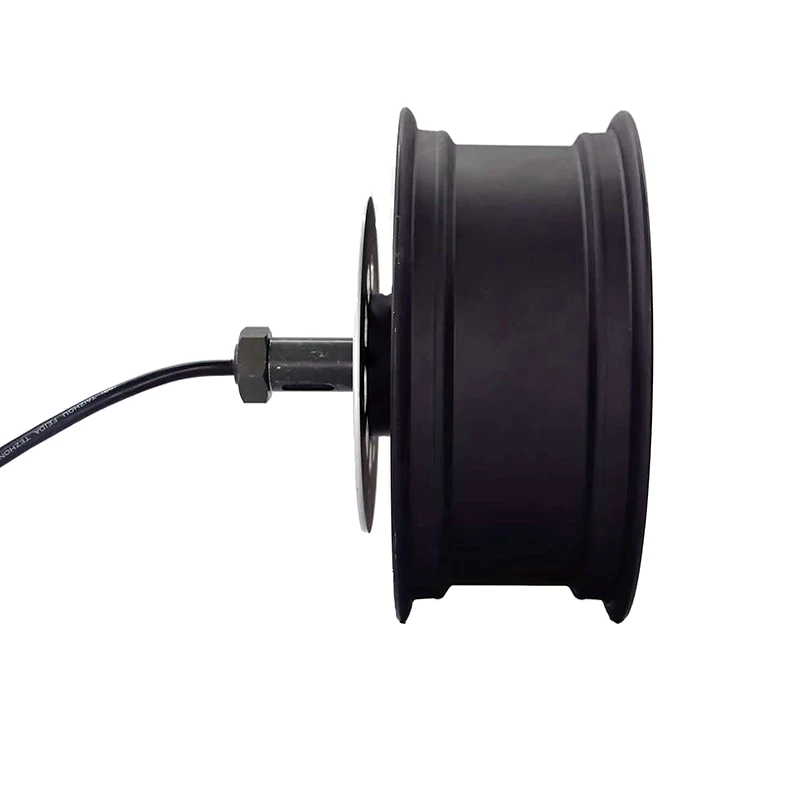

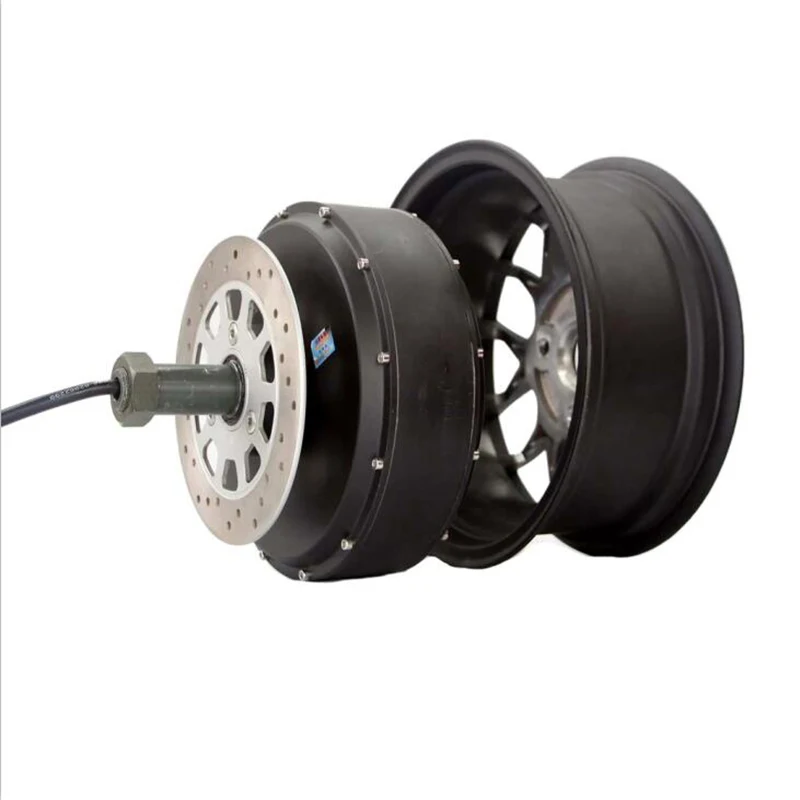

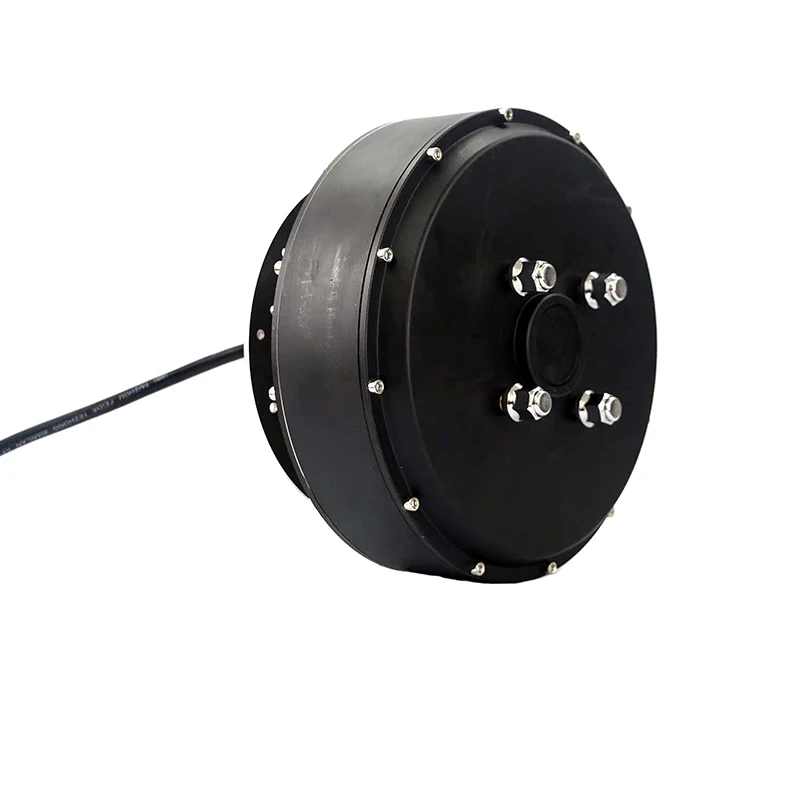

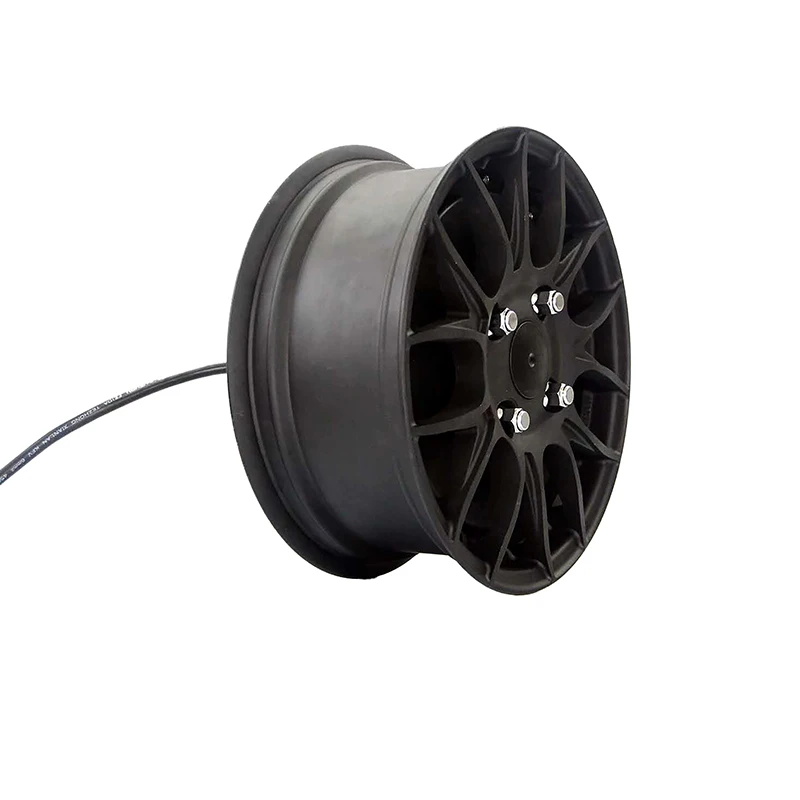

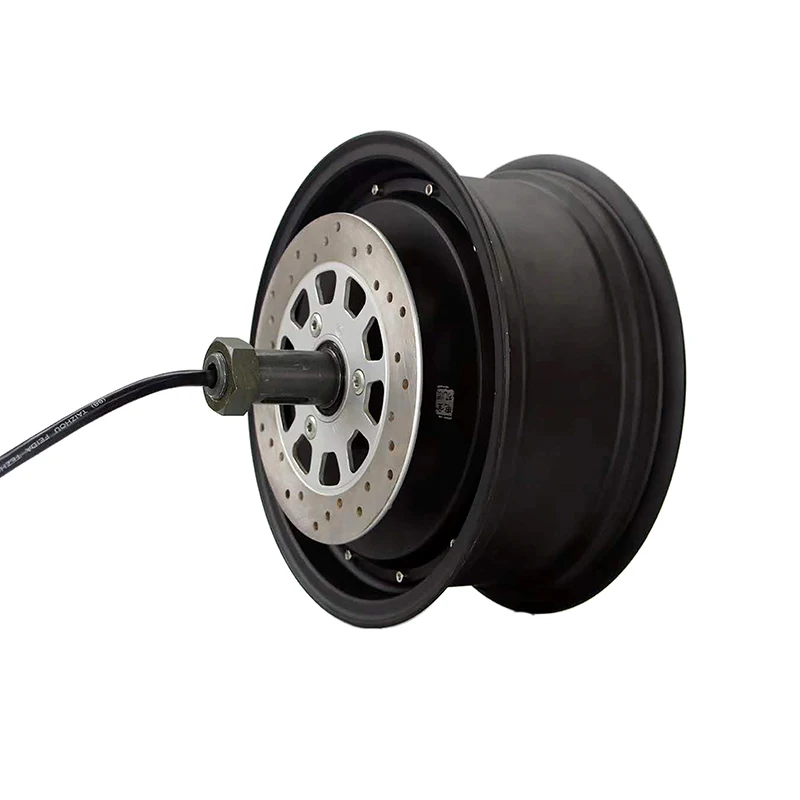

260 Model 5KW Electric Car Hub Motor (45H) V4 QS Motor

Product Overview

Description









260 Single Shaft Electric Car Hub Motor(45H) 5000W V3 Type



260Model Electric Car Hub Motor is NEW developed for Electric Car or Electric Motorbike, the rated power can be made at 1500W,2000W,3000W or 5000W.



Version 1 and Version 3 can be optional



1. Motor Type: BLDC Hub Motor with Permanent Magnets

2. Motor design: 260 motor Single shaft out

3. Bolts Pattern: PCD:4 x 100MM  CB:60mm

4. Magnet: 45H Curved Magnets with SH(340Degree) Level

5. Pole Pairs: 16 Pairs

6. Rated Power: 5000W

7. Peak Power: 10000W

8. Rated Voltage: 48V,60V,72V

9. Different Winding&Speed

10. Max Torque: 250N.M

11. Max Efficiency: 90%

12. Brake type: Disc brake

13. Cross Section of Phase wire: 16mm2

14. Hall sensor phasing angle: 120 degree

15. Temperature Sensor: KTY83-122

16. Max. Working Temperature: 70 degree, Peak 120 degree

17. Waterproof Grade: IP66

18. N.W./ G..W. : 18kgs / 20kgs

19. Package Size: 44*43*41CM
