Fiber Laser Control Board For Laser Marking/Engraving with Ezcad (Official Version)

Product Overview

Description



Fiber Laser Control Board

Laser controller is the central processing part of laser marking machine, it converts the software instructions, marking content into galvanometer, laser source and auxiliary equipment understandable language, execute marking. Data inputs also collected and calculated by the laser controller then instruct the laser machine to act accordingly, this allows laser to interact with other machines, parts in industry automatic flow line.

The laser controller board and related EZCAD software is China most famous product in this field. We sell original copy, the LMCV4-FIBER is compatible with mainstream fiber laser source and galvanometer scanner, hardware capable to support various, mark-on-fly and maximal 2 extra axis support.

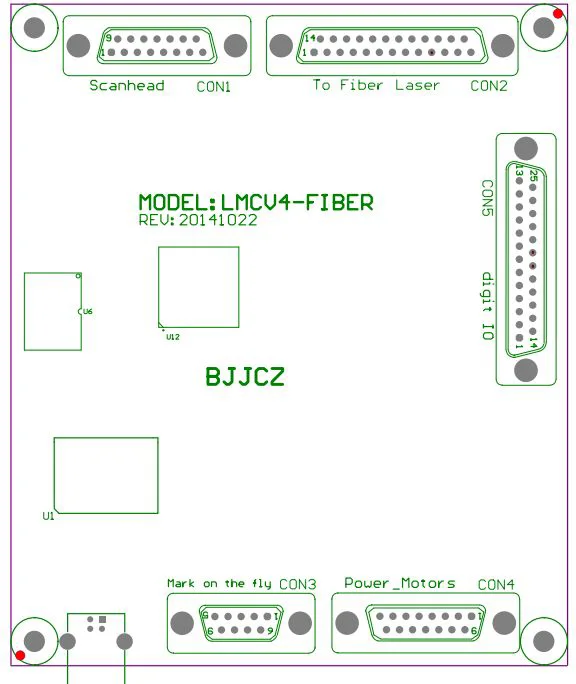

CON1:scanhead control socket, DB15
CON2:laser control socket, DB25
CON3:on-the-fly marking interface to encoder, DB9
CON4:power supply and i/o, DB15
CON5:general i/os, DB25







Main Features



• Standard DB25 connector, compatible with IPG, Raycus, Maxphotonics, Super and other main stream fiber laser source.

• Galvo control signal is digital, compatible with main stream digital galvanometer scanner

• on-the-fly marking feature. A encoder can be used to surveillance the pipeline speed real-timely.

• Multiple boards on 1 computer: One computer can control up to 8 control board to mark different pattern simultaneously.

• Support third, fourth axis, e.g. rotary head

• Remark function: this function is used to remark what ever is in the memory of the board, especially convenient for high speed marking of a same pattern.

• USD 2.0 interface to connect with PC
