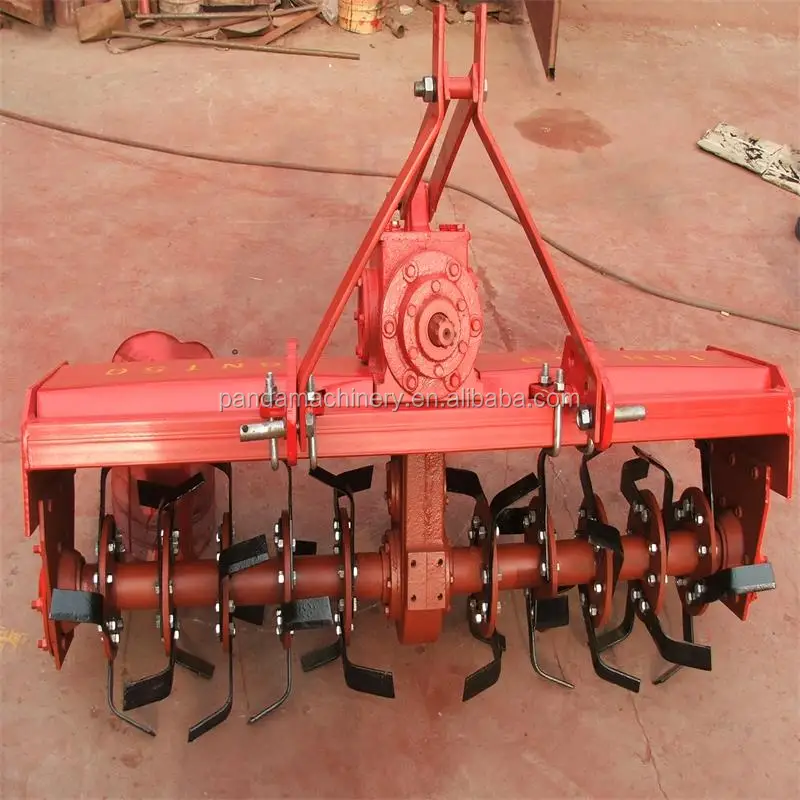

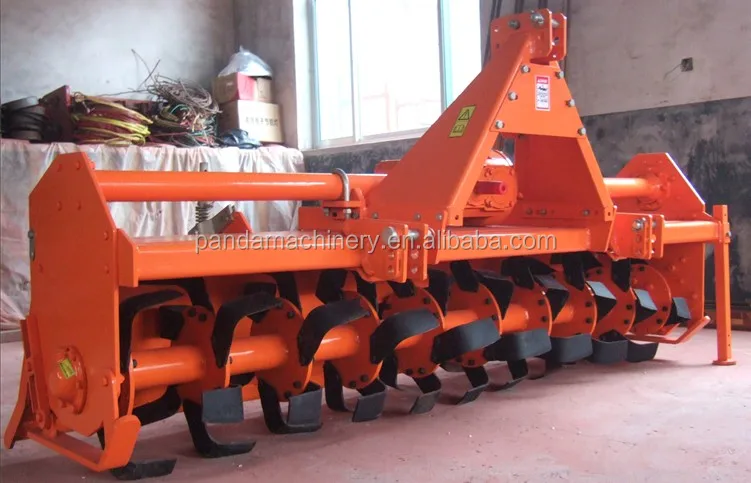

Farm Cultivator 3 Point Tractor PTO Rotary till for tractor
- Category: >>>
- Supplier: Dezhou Panda Machinery Co. Ltd.
Share on (60636890139):
Product Overview
Description
1GQN Series of Rotary Tiller
The Rotavator adopts middle gear transmission system,which mounted with the tractor of 12-120hp.Tractor’s wheels tracks are completely covered after tillage as the working width is much wider.The quality is reliable and the performance is well.So it can be used on dry and paddy field.It can reduce the time,labor and cost,etc.
Remark:
The rotavator blades is top 65Mn Spring Steel.
Main Tech Data:
Modle | 1GQN-100 | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 | 1GQN-200 | 1GQN-220 | 1GQN-250 | 1GQN-300 | ||
| 1GN-100 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 | 1GN-180 | 1GN-200 | 1GN-220 | 1GN-250 | 1GN-300 | ||
Matched power | 12-15 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 80~120 | ||
Working width | 100 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | ||
Working depth | Dry land | 12-16 | 12-18 | |||||||||
| paddy field | 14-16 | 14~20 | |||||||||
NO. of blades | 22 | 26 | 30 | 34 | 38 | 50 | 54 | 58 | 62 | 76 | ||
Type of blade | IT225 | IT245 | ||||||||||
Total weight | 200 | 220 | 230 | 240 | 260 | 415 | 430 | 445 | 460 | 520 | ||
| 192 | 210 | 220 | 230 | 248 | 405 | 420 | 435 | 450 | 450 | ||
Dimension | L | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | |
W | 1050 | 1350 | 1500 | 1600 | 1700 | 1900 | 2100 | 2300 | 2600 | 3100 | ||
H | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | ||
Linkage | Standard three-point mounted | |||||||||||
