Wholesale Ground Earth Screw Post Anchor For Solar Racking System

Product Overview

Description

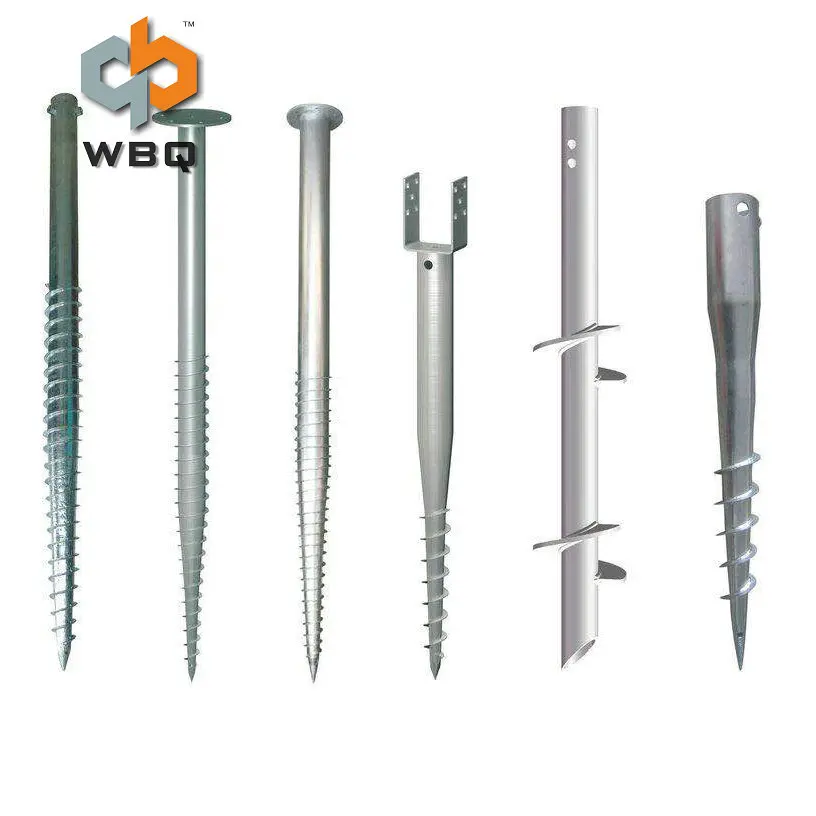

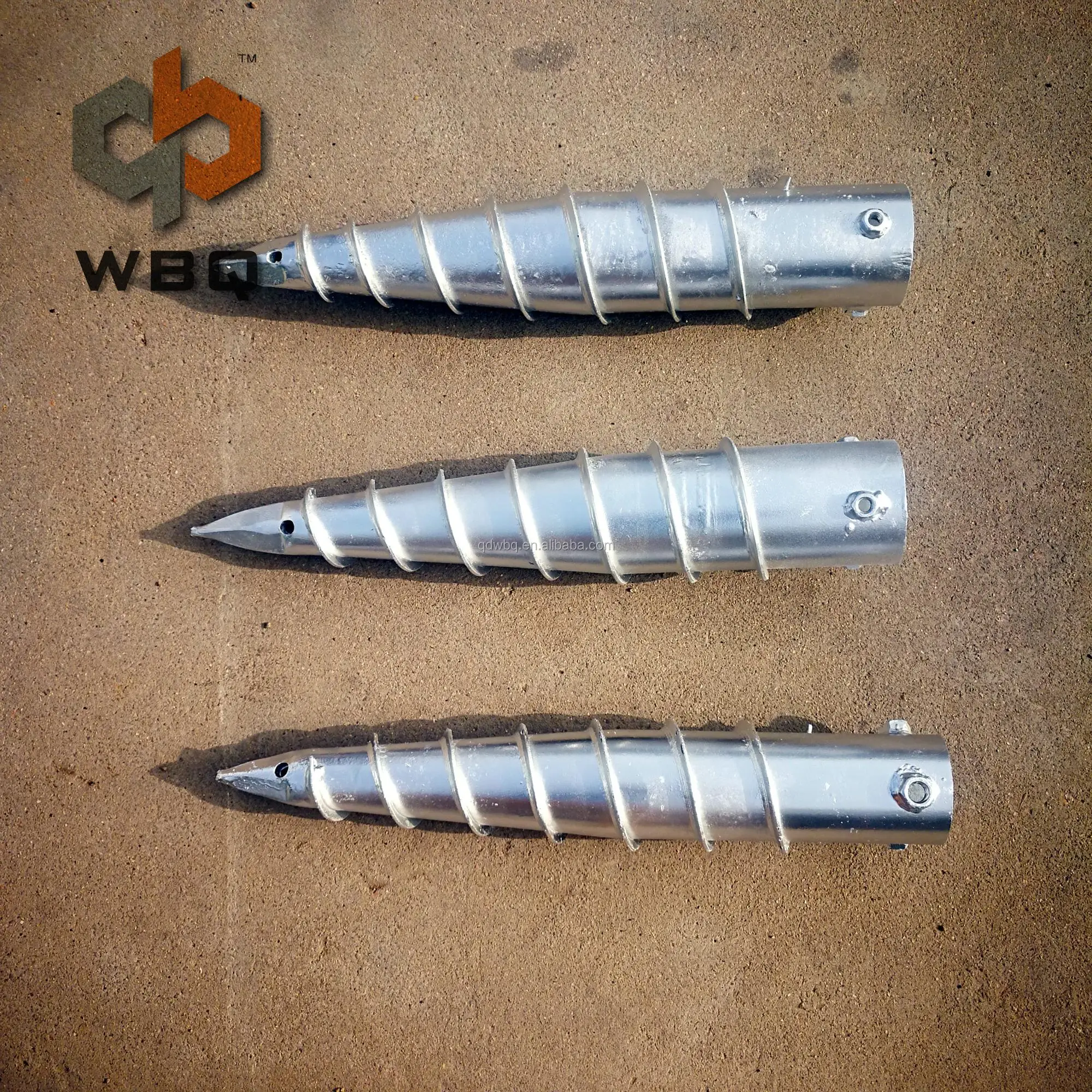

Ground Earth Screw Post Anchor For Solar Rack System

Details of WBQ Ground Screw	WBQ N114×800/1200L/1600L/1800L/2000L
Material	Steel, ISO 630 Fe360A
Surface	Galvanized to DIN EN ISO 1461
Length	800/1200/1600/1800/2000 mm
Outer ø	114mm
Pipe Thickness	3-4mm
Nut dimension	3*M16



Applications of ground screws:



Timber Construction	Solar Power Systems
City and Parks	Fencing Systems
Road and Traffice Sign	Sheds and Container House
Flag Poles and Marks	Garden and Leisure
Boards and Banners	Event Structures



 About the WBQ Ground Screws:

1)Compatibility with all type of structures.

 Our technical department will adapt the head of our ground screw piles to whatever the need of the  customer is.

2)Foundation solution concrete free

 There´s not necessary the use of concrete.

3) Surround areas remains unspoiled

The special configuration of our product allows the insertion without perfoming land preparation works, which allows a significant cost reduction.

4)Easy removel,simple and easy to relocate.

One of the main advantages of our ground screw piles is the possibility of removing them, reducing the environmental impact and minimazing the removing costs.

5)Prime Quality

Our ground screw piles are manufactured with first quality materials (hot dip galvanized complying with the ISO 1461:1999). All our suppliers (certified under ISO 9001:2000) carry out strict quality controls in order to get the best quality performance as required by our internal procedures.

6)OEM AND ODM AVAILABEL , FREE SAMPLE.
