Product Overview

Description



Product Description




K38 hollow shaft encoder





1) Advantages





1, Certification: CE& ISO9001 & SGS.


2, Feature: microminiature, logical compact configuration and easy to install.


3, Application: subminiature motor, small instrument, etc., for automation control





2) K38- Series Encoder Specification































































































BrandHENGXIANG
External dimensionsExternal diameter: 38mm
Thickness: 28mm
Shaft diameter: 5mm/6mm/8mm/6.35mm
Resolution 50;60;100;200;250;256;300;360;400;500;512;600;700;720;800;900;1000;1024;1200;2000;2048;2500;50008192;10000;16384
Output phasePhase A,B,Z ,A-,B-,Z-
Supply voltageDC5V & DC8-30V
OutlettypeCable out from side
Cable out from back
Output modeCollector open circuit output(NPN &PNP)
Voltage output
Push-pull output
Line drive (26LS31)
Line drive (RT7272)
Line drive (Compatible RS422)
Environmental temperature Operating temperature: -20~+80° (Non icing)
Storage temperature: -25~+85° (Non icing)
Environmental humanity Operating and storage: 35~85%RH (non-condensing)
Protection gradeIP50 & IP65
Cable length1000mm
Shell Aluminium
PackageCarton box
Net weight About  140g (with package)
Certification CE

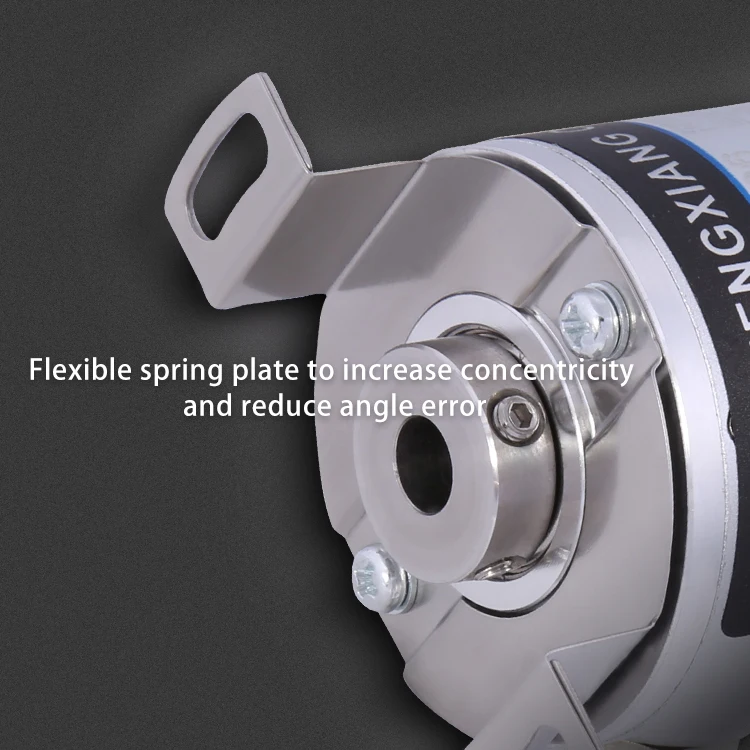

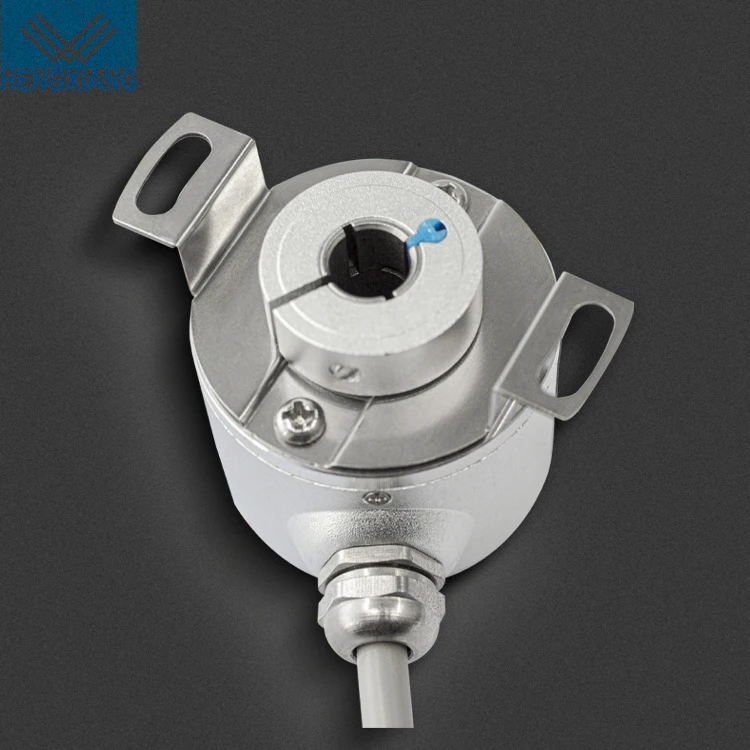

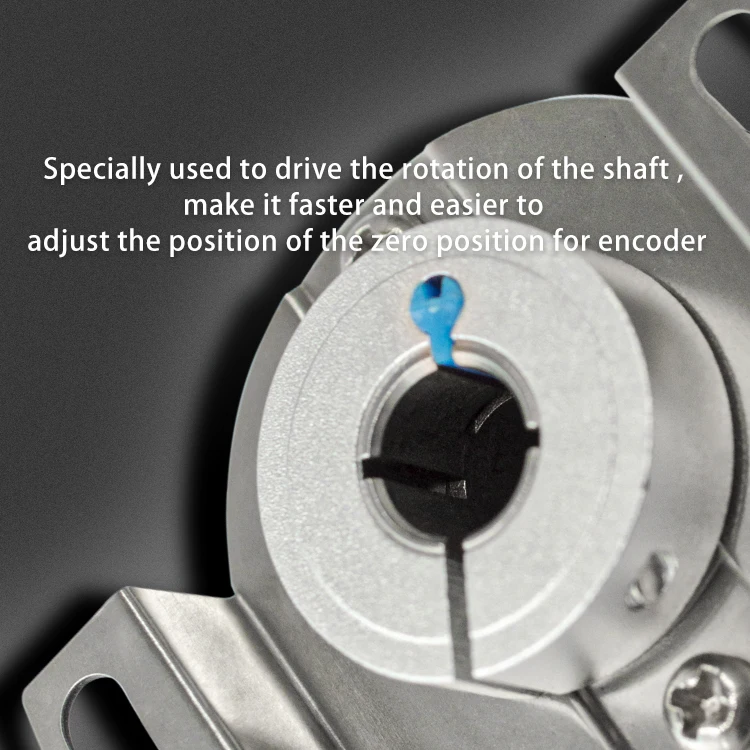

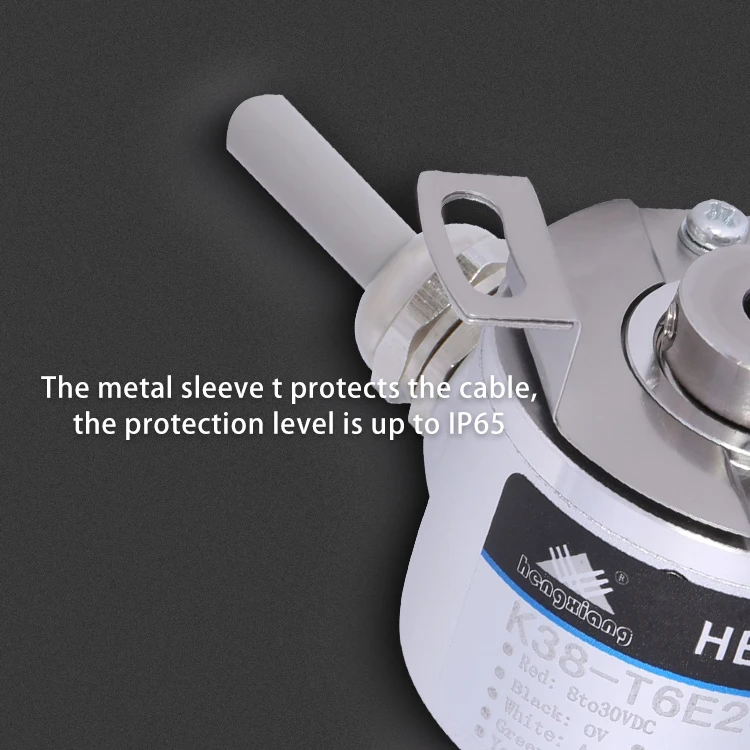

3) Pictures















4)Machine Dimension








8mm rotary encoder,8mm hole rotary encoder embroidery encoder,embroidery encoder










Company Information


8mm rotary encoder,8mm hole rotary encoder embroidery encoder,embroidery encoder

OUR FACTORY


Shanghai Hengxiang Optical Electronics Co.,Ltd , located on Shanghai , a international city of China , set up in 2001 , is a professional manufacturing high-tech corporation , main operation include research,development and manufacture of rotary encoder , with optical,mechanical and electronical design . Now we have finished primary pipelining of encoder manufacture , and have capability of supplying 20,000 encoders per year .


Brand of encoder , "HengXiang" , has been got certificate of ISO9001:2000 quality control verification and CE verification , while we have got 5 patents of invention and 5 patents of utility model , and got certificate of Shanghai new high-tech production translation item .


HENGXIANG
Main Market


America,Most of Europe countries,Southest of Aisa.





Our target : meeting client's requirement,creating social value,serving attentively and bringing benefits for both sides .







Certifications



8mm rotary encoder,8mm hole rotary encoder embroidery encoder,embroidery encoder


CERTIFICATE


Strength proof


All encoder products passed the inspection standards included CE,ISO9001-2008 with 100% quality Assurance.







Packaging & Shipping




8mm rotary encoder,8mm hole rotary encoder embroidery encoder,embroidery encoder




 Shipping


INTERNATIONAL AIR MAIL


 Payment


 Fast Delivery


Different amount of time will be required for different





FAQ


FAQ.jpg1) How to select an encoder


Before ordering encoders, you could clearly know which type of encoder you may need.


There are incremental encoder and absoltue encoder, after this, our sale-service department would better work for you.





2) What specifications are requeted before order an encoder?


Encoder type----------------solid shaft or hollow shaft encoder


External Diameter----------Min 12mm, MAX 100mm


Shaft Diameter---------------Min shaft 2.5mm, Max shaft 45mm


Phase & Resolution---------Min 20ppr, MAX 48000ppr


Circuit Output Mode-------you could choose NPN,PNP,Voltage, Push-pull,Line driver, etc


Power Supply Voltage------DC5V-30V





3) How to choose a right encoder by yourself ?


Exact Specification Describtion


Check The Installation Dimensions


Contact Supplier to get more details





4) How many pieces to start ?


1PCS only





5) Why choose "Hengxiang" Brand Encoder





All encoders are designed and developed by our own engineer team since year2008,


and most of the electronic component of encoders are imported from overseas market.


Never let our quality down,because quality is our culture.





6) How long is your lead time?





Short lead time----3 days for samples,7-10days for mass production





7) what is your guarantee policy?


1year warranty  and  life-long technical support








8) Your Company Official Website?





You For More information,please freely visit our official website://www.shhxgd.com





9) Where to download encoder datasheet or catalogue?





You could visit our website at //www.shhxgd.com or contact online sale service to get the latest catalogue files.
