whole sale ultrasound Ultrasonic nozzle coating machine

Ultrasonic atomizer explain:

Ultrasonic spray (spray) is the use of ultrasonic energy liquid water or break up, forming a few microns to 100 microns of the size of small particles, used for liquid air humidification, granulating, mixing, promote chemical reaction, spraying, powder metal spraying system, etc.
High-power ultrasonic atomizing humidifying technology is the power source of high-power ultrasonic longitudinal transducer, combined with ultrasonic transducer, ultrasonic transformers(booster), launch(spray head), special driving power supply. Head for high frequency vibration transducer drive launch of applying ultrasonic wave force, water or other liquid dispersion of liquid will flow into fine particles, spray into the air, so as to achieve the aim of the spray (spray).
Unlike conventional spray nozzles that rely on high velocity pressure to shear a fluid into small drops, the ultrasonic atomizer uses vibrational energy to generate a low velocity mist. Volumes can vary from microliters to liters, and atomizes continuously or intermittently.

•\tFrom microliters to liters – continuous or intermittent
•\tDispenses material with virtually no overspray
•\tPressureless atomization – low velocity mist
•\tLow cost atomizing probe replacement
•\tMinimal atmospheric contamination
•\tVirtually uncloggable
TYPICAL APPLICATIONS
•\tCoating non-woven fabric, paper, etc.
•\tLaboratory spray drying
•\tInjecting moisture into a gas stream
•\tApplying minute amount of oil, fragrance or
•\tflavor onto a product
•\tInjecting small volume of reagents into a reactor

MicroMist Ultrasonic Nozzle Benefits:
•\tLiquids are delivered through an external tube to the nozzle’s atomizing surface
•\tA low-pressure air stream through the nozzle’s central orifice entrains the spray and produces very tight, precise spray pattern
•\tSpray widths as low as 0.015″ (0.4 mm) are possible
•\tSoft, low-velocity atomized spray can be targeted with unmatched precision
•\tMinimal overspray (minimal waste)
•\tUltra-low flow rates over a wide range (from 0.3 – 20 ml/S)
Ultrasonic atomizer characteristics：
Can work continuously 24 hours a day
The efficiency of the atomizer is high, single transducer's atomization amount is big. One unit of atomizer quantity can be more than 50L/h,
no any special requirements for the liquid type. Even the liquid which contain impurities or wastewater also can be atomized.
no pressure, no noise, no moving parts, no abrasion and blockage problem. Low energy consume, small size
it can working under high temperature up to 500℃,so that can using in metal powder
Can be any combination, to meet any requirements of the spray quantity,suitable for industry using
Using the high performance of titanium alloy and stainless steel manufacturing

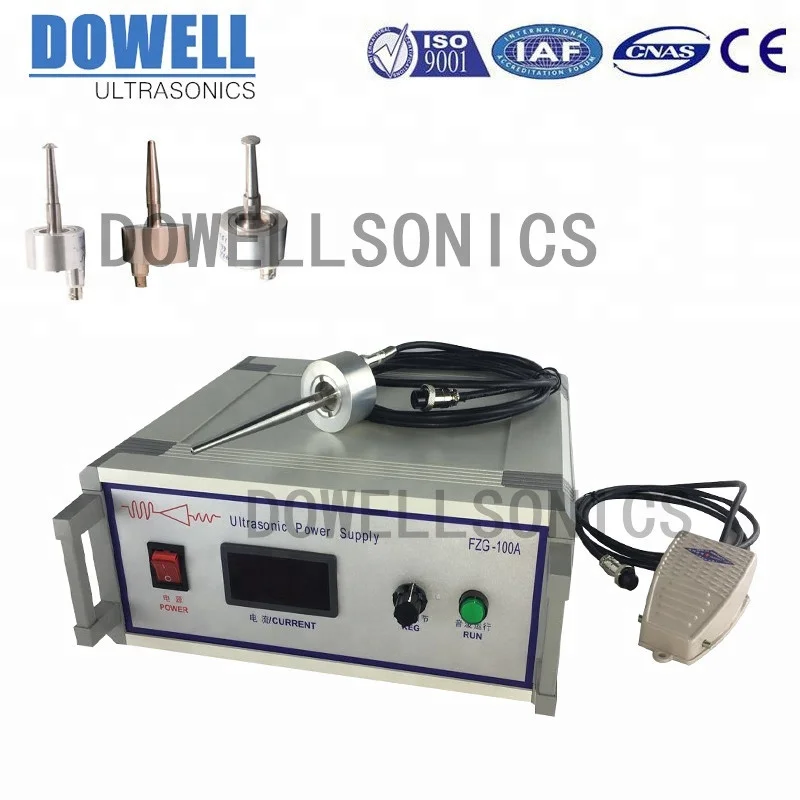

Main configuration:
1*pcs spray head with Aluminum alloy housing
1*pcs generator (drive power supply)

This product can be customized according to the customers' actual situation and requirements, range:
Electric power: 30-500 watts
The transducer,tool head frequency: 15 KHZ - 55 KHZ
The input voltage: 110 v to 240 v;50 hz - 60 hz
Power adjust method: continuous or step type, the adjusting range is 60% 100%, can be installed power switch
Out Shell: aluminum alloy shell, it also can install the cooling fan and cooling holes on the out shell of high power machine

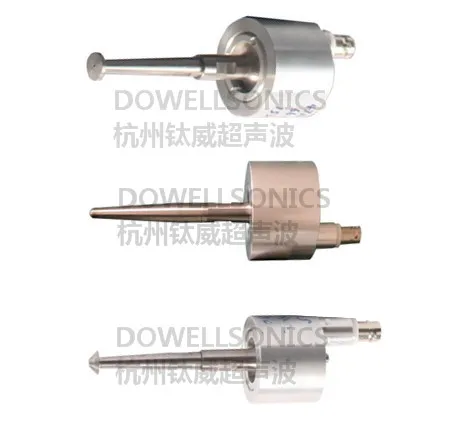

Launch(spray head): according to the need of deal with all kinds of liquid, corrosive conditions ,the spray head can be divided into:trumpet shape type, straight tubular type,
Material of spray head :stainless steel ;out shell: aluminum alloy,
Cable length: 2M or customized
Foot switch: available,
PLC control: available
Atomizing medium: ordinary water, all kinds of liquid substances, chemical liquid, all kinds of oil mucus, molten metal or impurity content is not more than 3% of the water
The diameter of the spray particles: 25um-100μm

Applicable industry: dedusting, textile, printing and dyeing, tobacco, flowers, telecommunications, paper, electronics, mushroom cultivation, fruit storage, atomized humidifying, chemical mixture, production, spray drying granulation, coating, fabric coating, metal powder and other industries.

Company introduce

HANGZHOU DOWELL ULTRASONIC TECHNOLOGY CO.,LTD
Dowellsonic is the industry profession in the design, development, manufacture, and marketing of plastics joining welding machine, precision cutting machine, ultrasonic sonochemistry processing, and ultrasonic non standard equipment. We are committed to providing solutions to the needs of our customers, and providing the latest in technology, we mainly provide ultrasonic equipment with factory price and willing to solve the customers' problems.
We welcome customers from all over the world for inquiring and purchasing.

Factory view:

Our exhibitions:

Our team:

A corner of warehouse:

Our customer application:

We provide customer services:

★ Customer & Supplier Alliances
★ Technology & New Product Development
★ Marketing & Sales
★ Manufacturing
★ Product Quality
★ Services & Support

1. Do you have it in stock?

We only have common products in stock but not for the nonstandard products.Because all the products need make based on customers’ different requirements
2. Could you advise to us the design based on our special requirements or based on our object samples?
Of course, we can do. Please tell us your idea or your application.
If you have sample object,send it to us or send detail pictures.
3.How long do you make the order product?
Common products for 7days,big qty and none standard products for 20days
4. Do you have operating manual?
Of course, we will put it with the goods together.
5. How about the quality?
We have export to many other customers from all over the world,the feed back is good,quality is the first of our company
6. Could you do OEM?
Yes, of course.We can produce according customers’ requirement,just send us your requirements and design of drawing and sample
7. Could we as your agent?
Of course.We are looking for sole agent in Country who have the willing to cooperate with us for long business term.
8.Payment:100%T/T in advance for small order.30%T/T in advance as deposit,70%T/T paid before shipment
9.Delivery?
1-2 units we could send by EXPRESS(DHL,UPS,FEDEX,TNT,EMS),heavy weight more than 50kg,we suggest to use sea freight LCL or by air
10.Warranty:
2 years Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price
We can produce according customers’requirements,OEM is available,pls send me inquiry for quotations.
