Code/RFID Card/Indoor Monitor Unlock and Mobile APP Remote Access Multi Apartment Video Door Phone Intercom System for Building

Product Overview

Description

Code/RFID Card/Indoor Monitor Unlock and Mobile APP Remote Access Multi Apartment Video Door Phone Intercom System for Building



1) The indoor monitor can set to connect with WIFI so that the visitor's call can be received by both the indoor monitor locally and smartphone app remotely. There is smartphone app for both Android and IOS.



2) 2) This system comes with a management center client software that can be installed on PC, which works as a guard station. It can receive visitor's call, unlock the door for visitor, call flat indoor monitors, etc.



3) The complete system consists of outdoor station for the building gate, station for apartment(optional), indoor monitor for each apartment and ethernet switch for linking between the outdoor sation and indoor monitor. The data transmission wire is CAT5 cable.

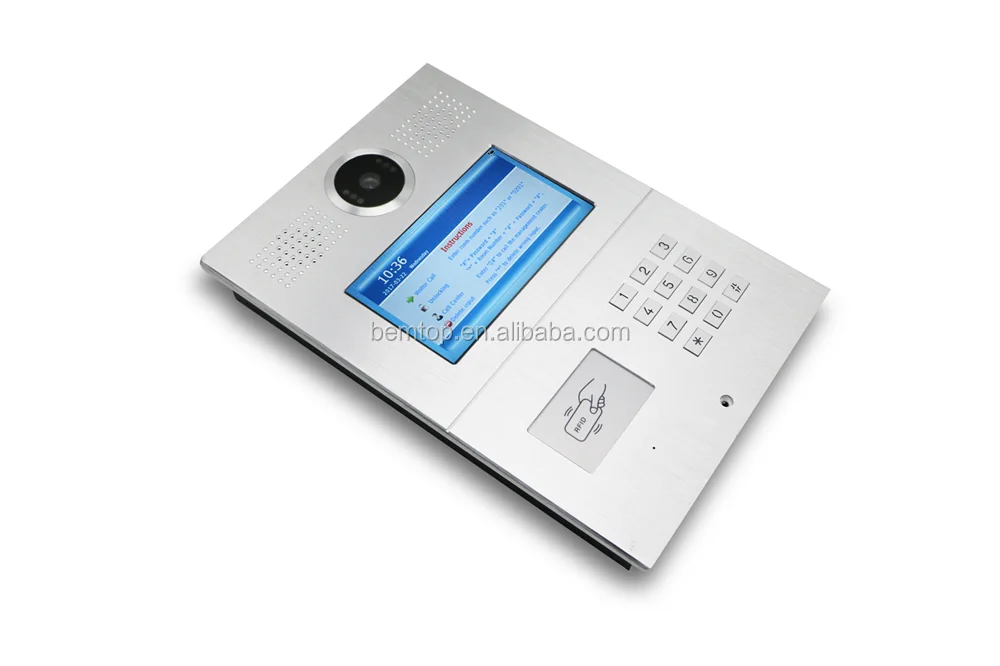

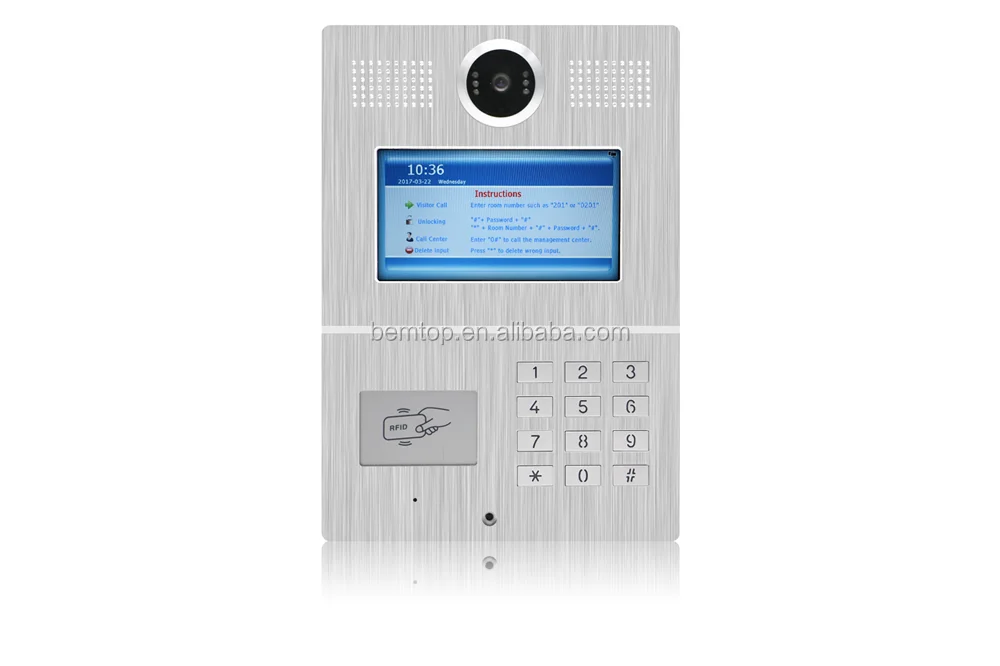

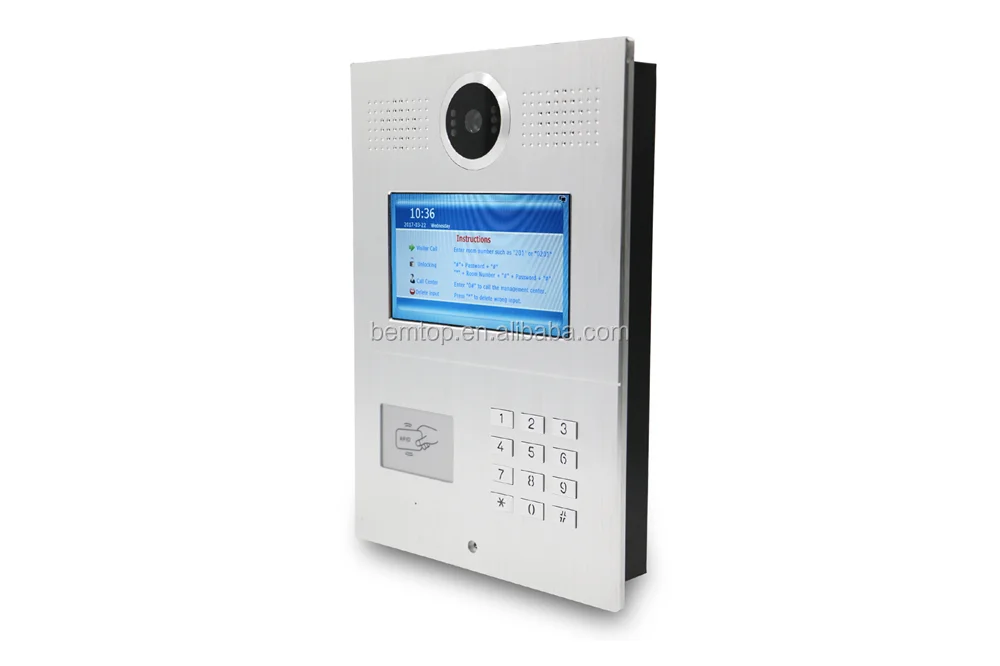

Outdoor Station Model 87201

• 7inch color TFT LCD display

• 110 degree wide angle lens

• 1.0mega camera pixel

• Rust-proof and vandal-proof panel

• IR LED offset lighting can obtain better night vision

• Unique waterproof IP65, dustproof, anti-thunderstorm design

• Call indoor monitor,video intercom

• RFID card managent(Add/Delete)

• Silver casing color

• Special design rubber for waterproof

• Waterproof buttons

 • Dimension: 330mmx230mmx48mm

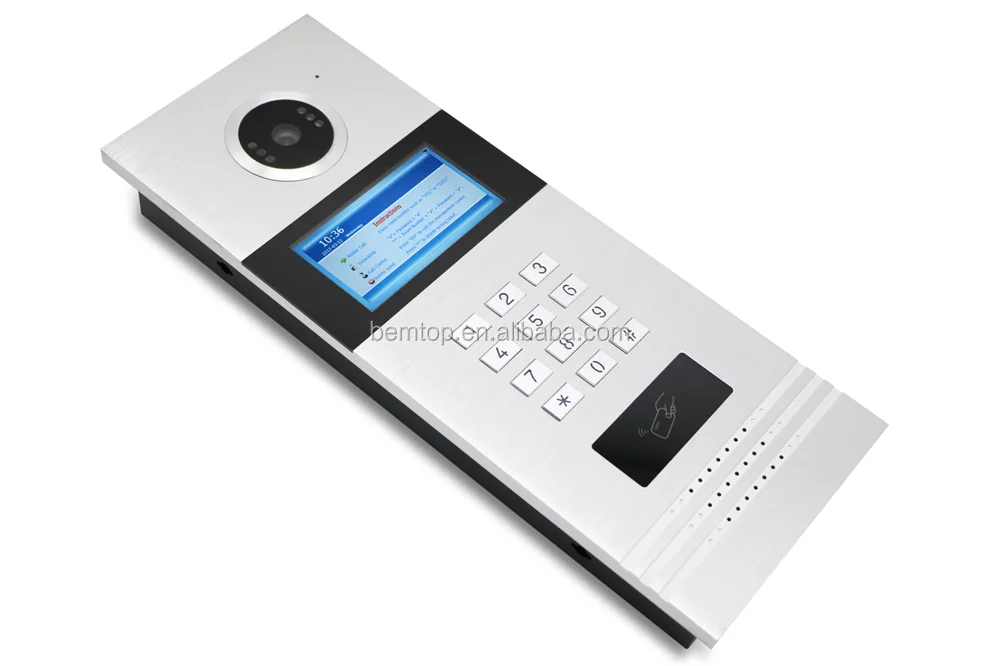

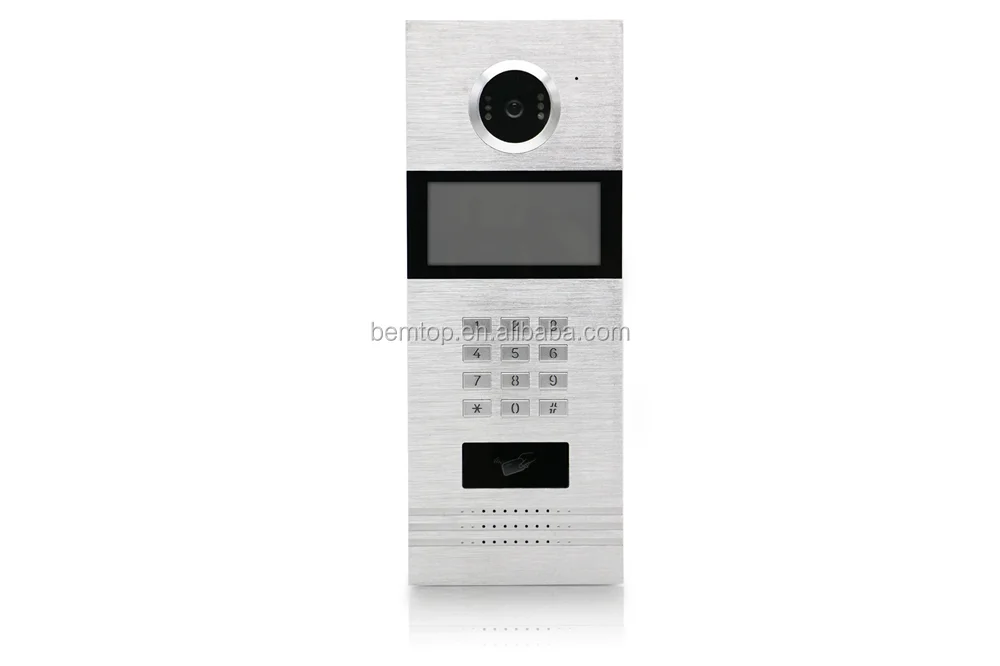

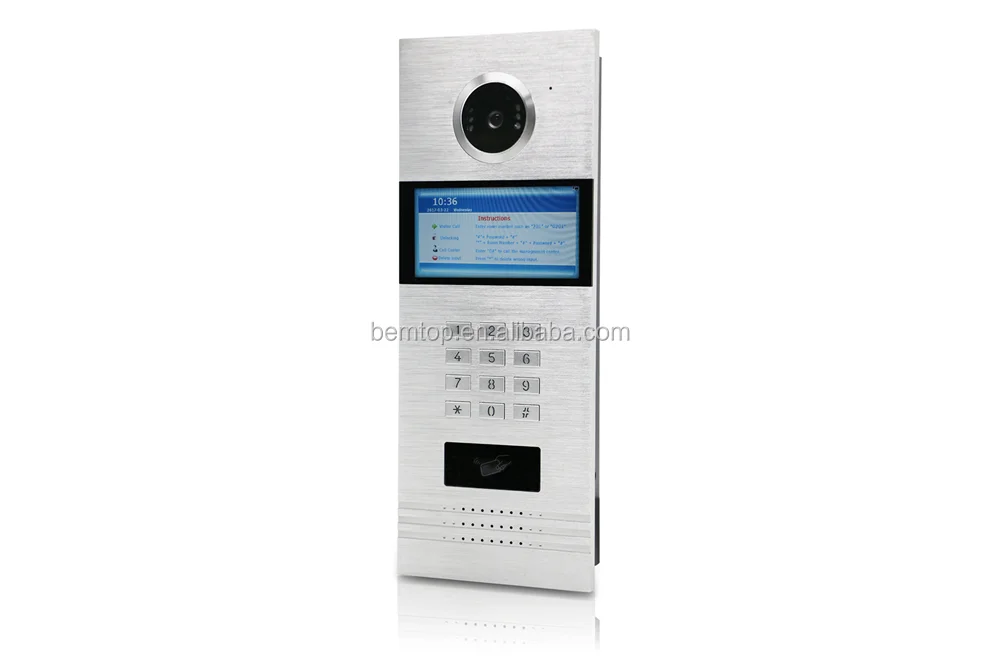

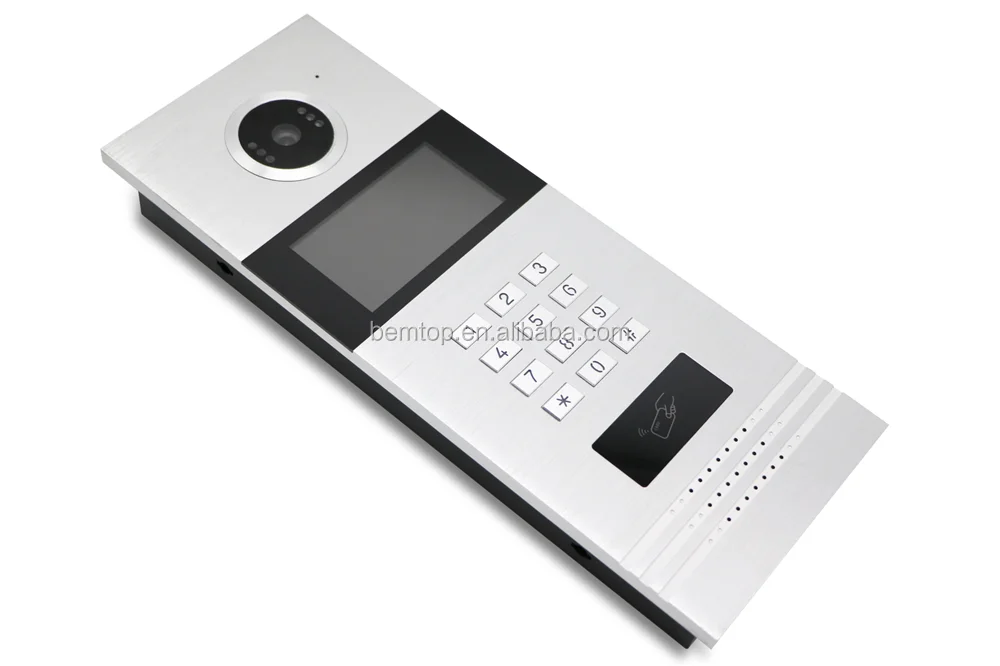

Outdoor Station Model 87202

• 4.3inch color TFT LCD display

• 110 degree wide angle lens

• 1.0mega camera pixel

• Rust-proof and vandal-proof panel

• IR LED offset lighting can obtain better night vision

• Unique waterproof IP65, dustproof, anti-thunderstorm design

• Call indoor monitor, video intercom

• RFID card managent(Add/Delete)

• Silver casing color

• Special design rubber for waterproof

• Waterproof buttons

• Dimension: 365mmx140mmx50mm

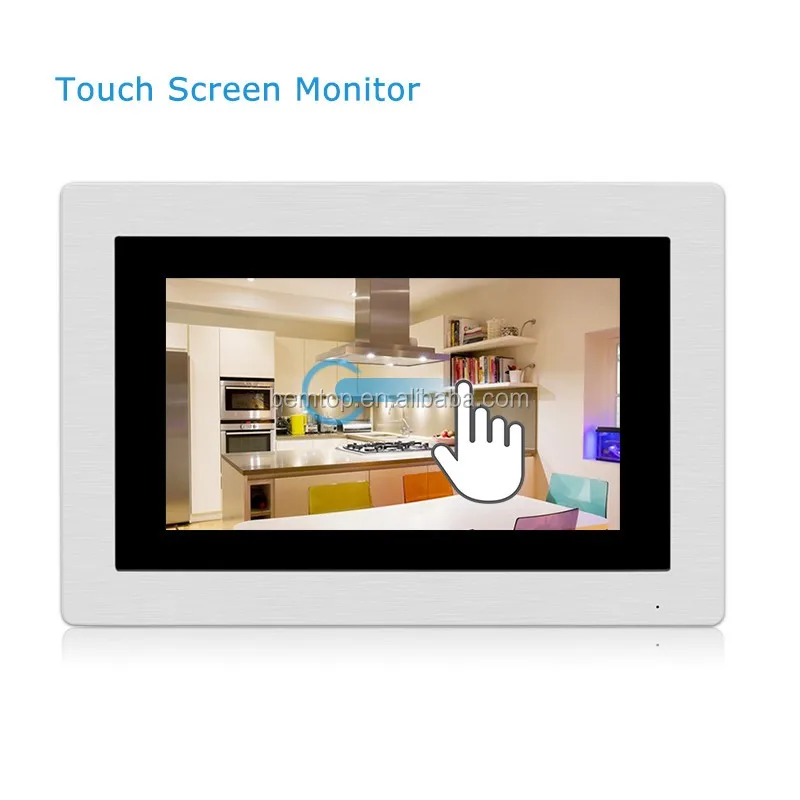

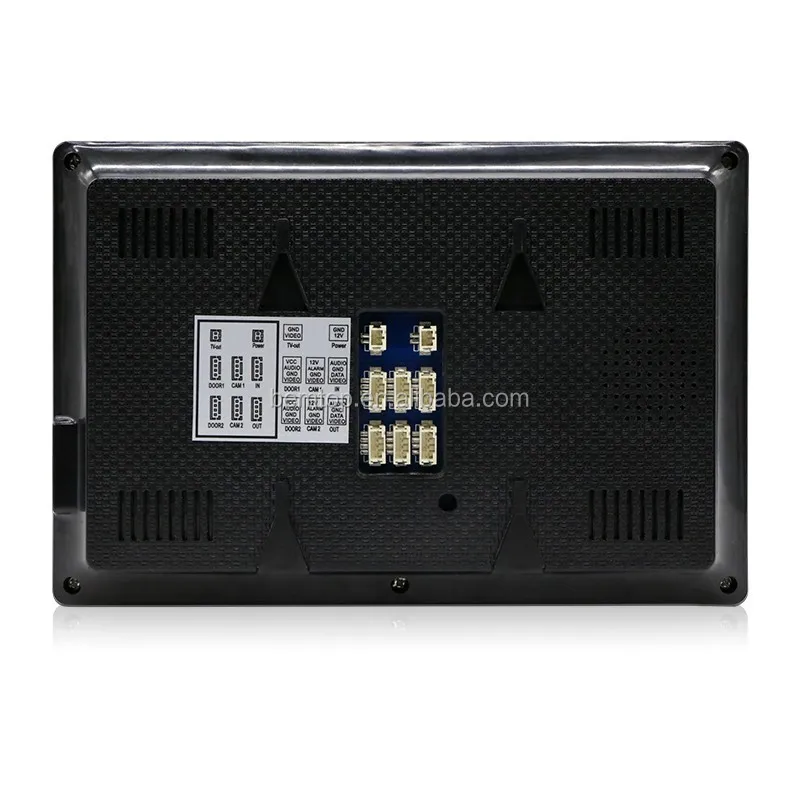

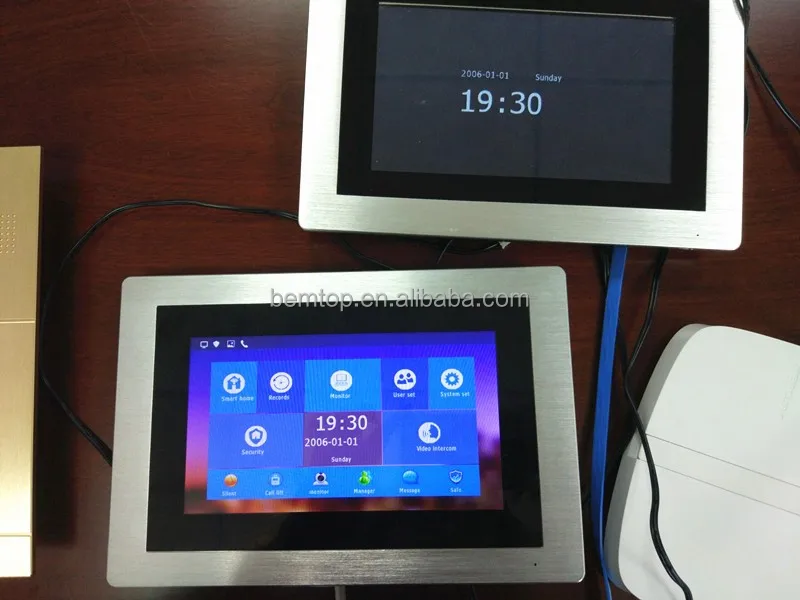

Indoor Monitor Model 87709

* Screen: 7inch TFT capacitive touch screen silver metal panel

* Pixel: 800*480, metal front panel.

* intercom: Flat to flat, flat to outdoor station, flat to PC managament center client software

* Digital system, use CAT5 Network cable

* Support IOS & Andriod smart phone

* Visitor's call will be transfered to smartphone app if there is no answer on the monitor within 30S, Or visitor can also leave a 40S video message which will be stored in memory of monitor

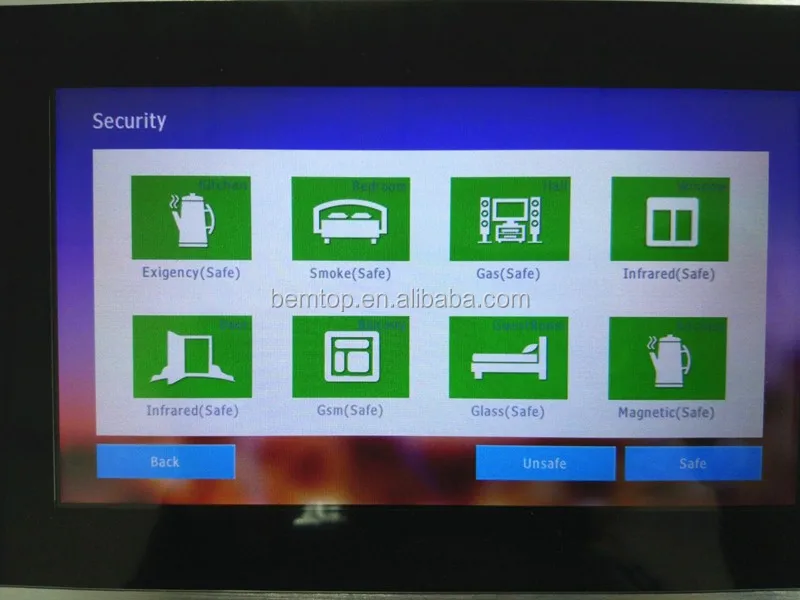

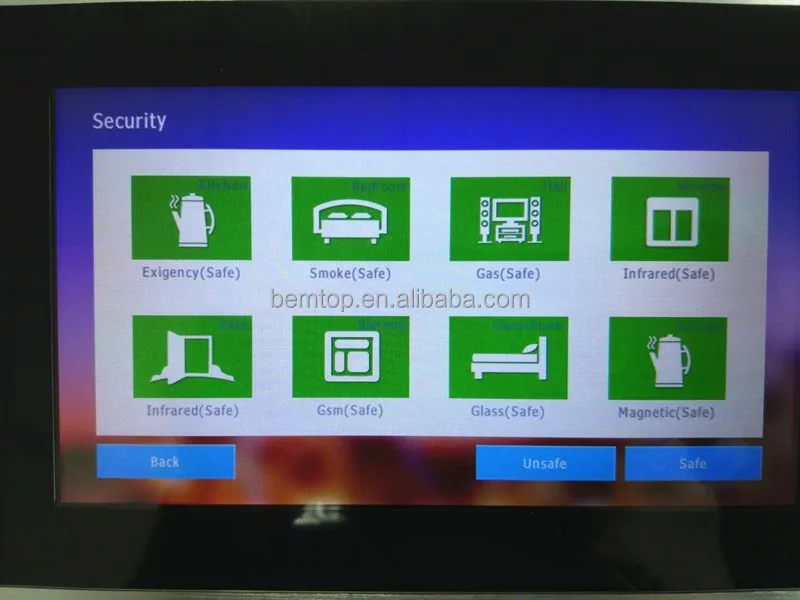

* 8 security zones (support connect magnetic door sensor, smoke detector..ect)

* Max support 3 smart phone accounts( each account support multiple smartphones)

* Support 32G TF card storage, saving videos and photos

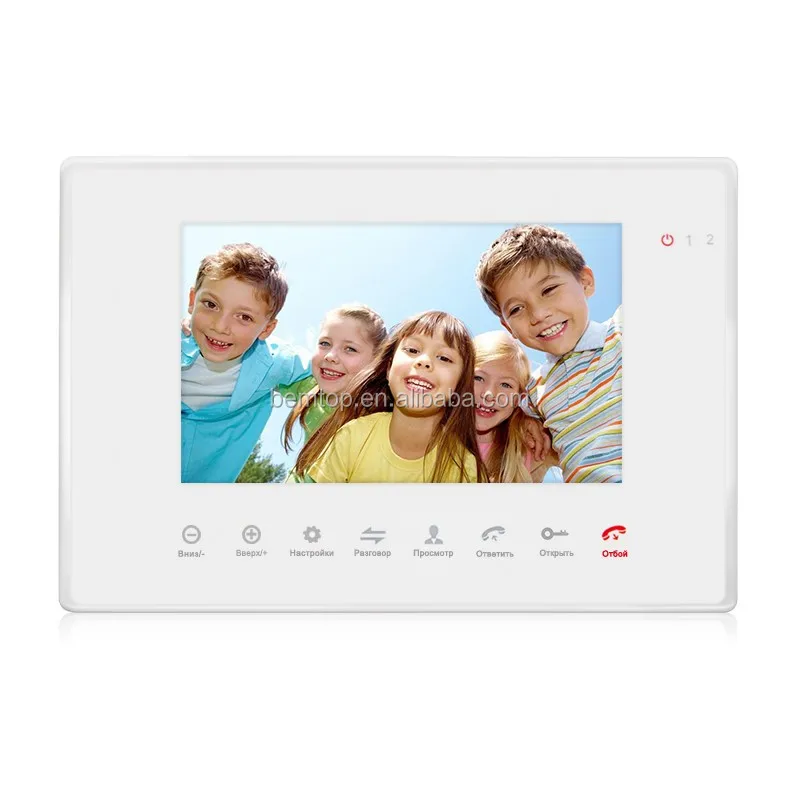

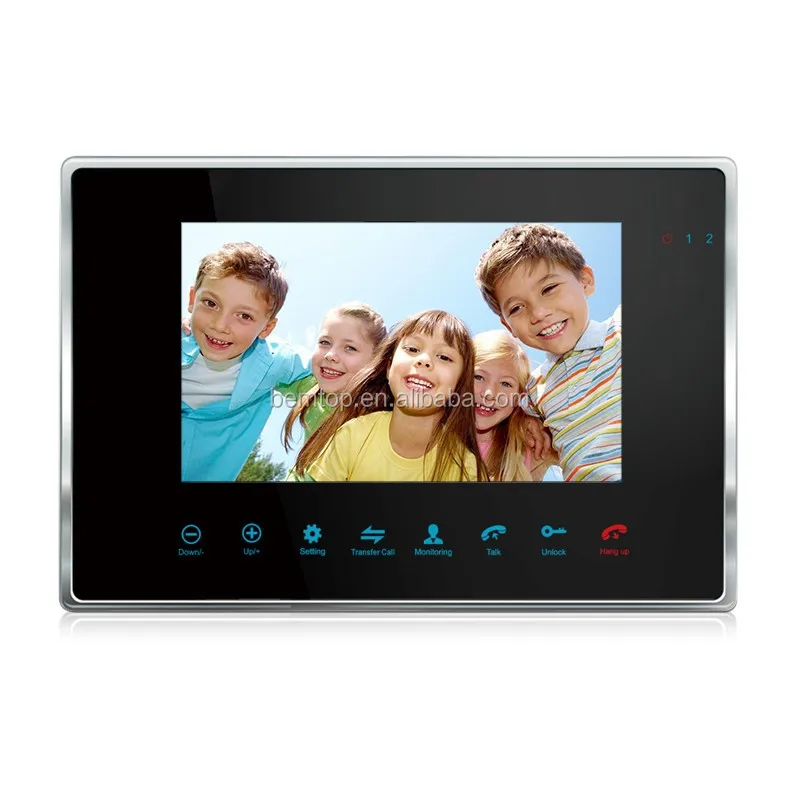

Indoor Monitor Model 87714

* Screen: 7inch TFT lcd screen with mutiple touch buttons

* Pixel: 800*480

* intercom: Flat to flat, flat to outdoor station, flat to PC managament center client software

* Digital system, use CAT5 Network cable

* Support IOS & Andriod smart phone

* Visitor's call will transfer to smartphone app if there is no answer on the monitor within 30S,

Or visitor can also leave a 40S video message which will be stored in memory of monitor

* 8 security zone (support connect magnetic door sensor, smoke detector..ect)

* Max support 3 smart phone accounts( each account support multiple smartphones)

* Support 32G TF card storage, saving videos and photos

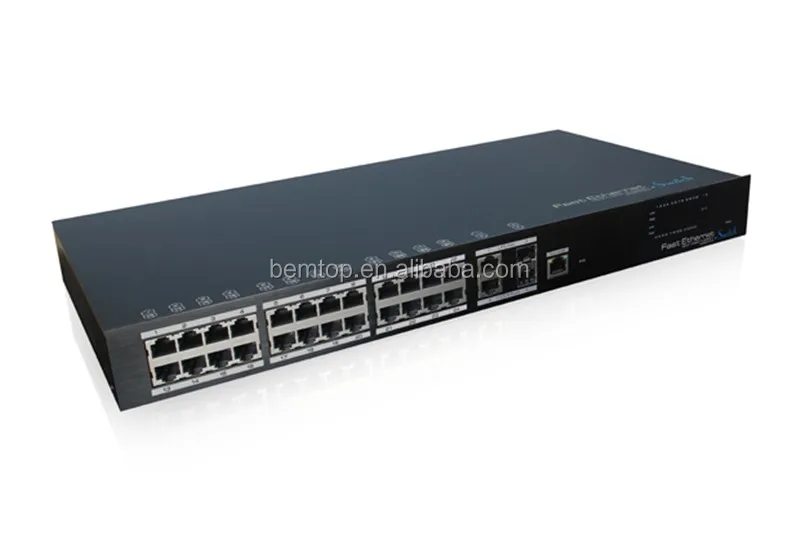

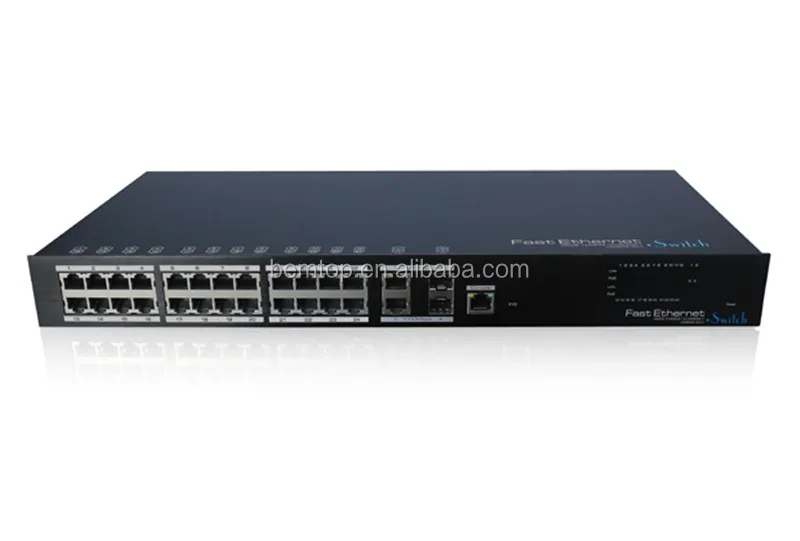

24 Port Ethernet Switch Model 7224-L2

* provides 24 10/100Mbps downlink Ethernet ports and supports IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX standard; AC 100-240V, power supply inside 12V 2.5A (30W)

* prodivdes 4 uplink ports, two 1000Mbps optical port and two 1000Mbps Ethernet ports; Uplink Ethernet port can connect with NVR and other high brandwidth device conveniently

* Uplink optical port reserve SFP port for users to select different performance SFP optical fiber module, conveniently solve the problem of lobng distance tansmission

* Transmission distance of uplink Ethernet port up to 150m

* Support high-speed data forwarding, perfectly designed for large flow of video data forwarding in security surveillance

* Support IEEE802.X full duplex flow control; support Auto MDI/MDIX function

*  Excellent circuit isolation protection, lightning protection up to 2 KV

* Quick installation, easy operation and convenient for wall/ desk/ rack installation

* Size: 442mmx255mmx44.5mm

* Net weight: 3.54kg
