Новый товар, Светодиодная лента, источник питания из Китая
- Category: Switching Power Supply >>>
- Supplier: Shenzhen Juxuan Lighting Co. Ltd.
Share on (60637055068):
Product Overview
Description
New Item Led Strip Light Power Supply From China
Technology
| Model | JX-5V | JX-12V | JX-24 |
| Dc output Voltage | DC5V | DC12V | DC24V |
| Voltage output tolerance | 1% | 1% | 1% |
| Output current | 40A-70A | 5A-33.3A | 8.3A-16.6A |
| Wave and noise | 150m Vp-p | 150m Vp-p | 150Vp-p |
| DC Outpot power | 200w-350w | 60w-400w | 200w-400w |
| Frequency | 47--63HZ | ||
| Efficienty | 85% | ||
| Input votage | AC180-240V | ||
| Working Temperature | -20℃- +70℃ | ||
| Weght | 0.8kgs/pcs for 400W | ||
| Safety standards | Desgin refer to UL1012, EN60950-1.EN61347-1. EN-61347-2 approved | ||

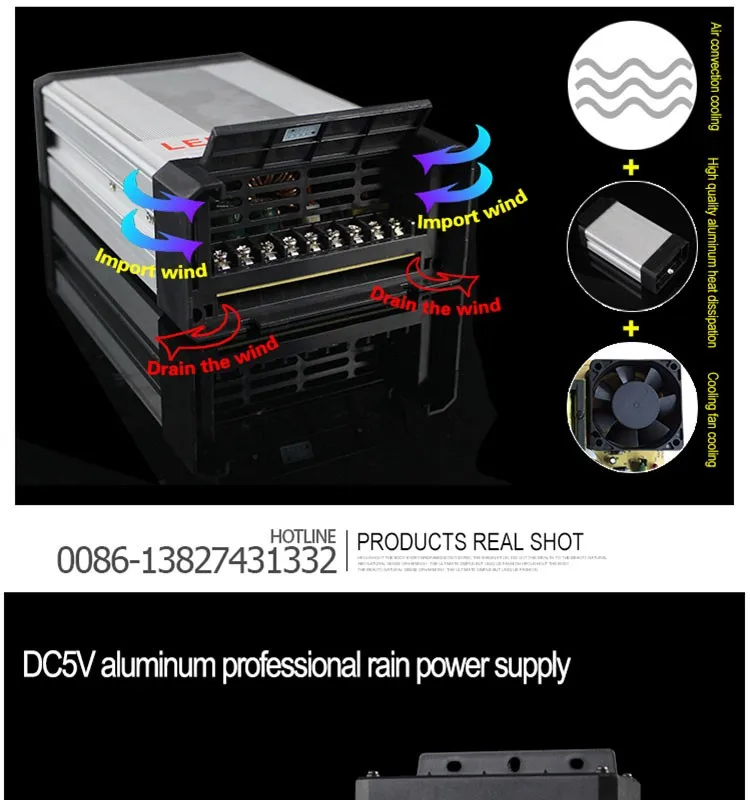

| Cooling way | Fan cooling . | ||

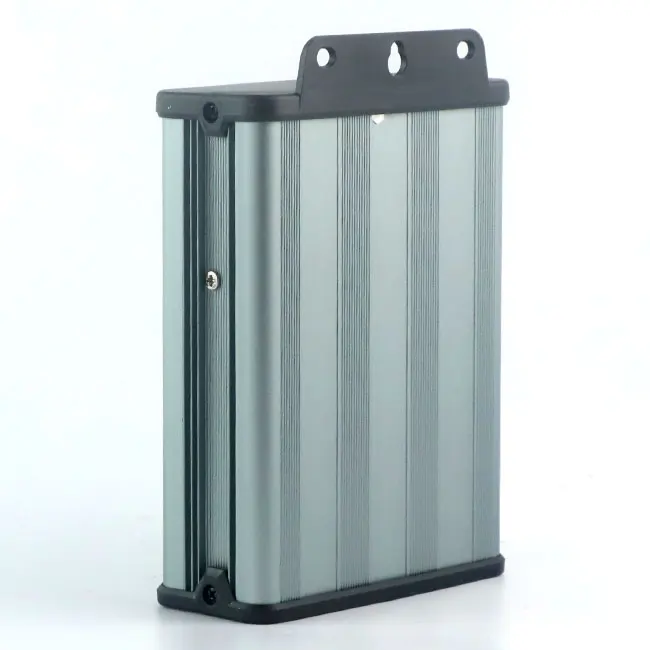

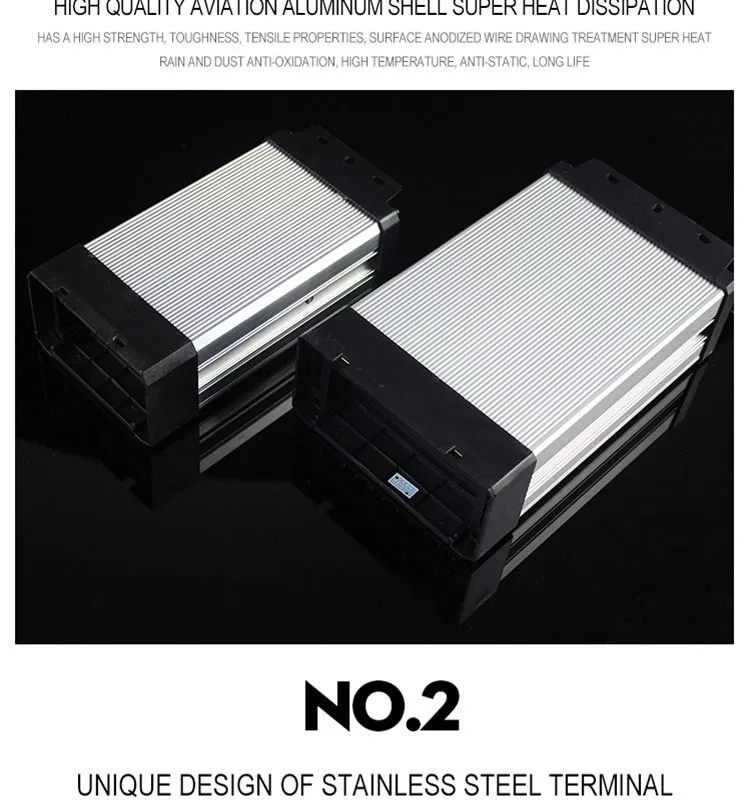

| Material | Aluminum case | ||
| IP Rate | Rainproof IP45 | ||
| Warranty | 3Years | ||
| Overload protection | 105%-150% type :pulsing hicup shutdown reset:autorecovery | ||
| Usage | LED moudles ,led strip light .led wall washer light ,led facade light ,led pixel light ,outdoor facade building .indoor light and so on . | ||
