TC5510H 16DI 8DO 3.5 Inch TFT 400KHz CNC Stepper Motor Controller 1 Axis Digital

TC5510H 16DI 8DO 3.5 Inch TFT 400KHz CNC Stepper Motor Controller 1 Axis Digital

Price:RUB 7,581.80 - RUB 22,745.40

Quantity:

Welcome

Thanks for your visiting, for product details, competitive price or more items, welcome to contact Surina directly. :)

Packing list:

1PCS	CNC motion controller
1PCS	USB Cable
1 Pack	Screws and Nuts
Other	Specification
Other	English Software(Web site to download)

Functions:

Axis	1 Axis
Display	3.5 inch color LCD, pixel 320*240
Interpolation period	2ms
Single axis linear interpolation output pulse	400KHz
Circular interpolation output pulse	300KHz
4 axis linear interpolation output pulse	350KHZ
Analog Spindle Output	1 channel 0-10v analog spindle(VFD/ Servo Drive)
System	1μm 10μm 100μm

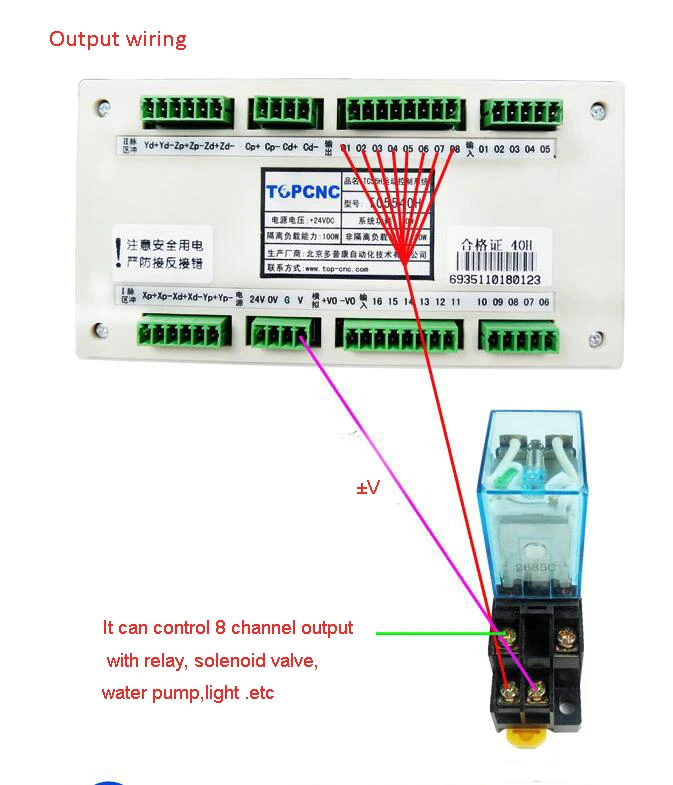

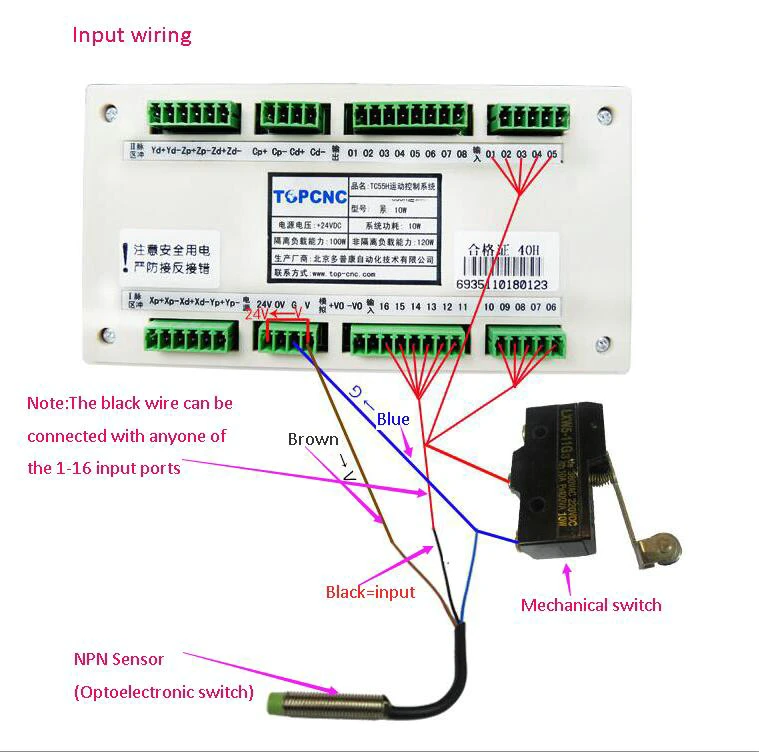

	16 point input/8 point output

Specifications:

System	Pulse max=400KHZ 4 feeding axis 16 input port and 8 output port supporting importing files from USB stick
	G code
Min data unit	0.001 mm
Max data size	± 99999.999mm
Max Speed	9000mm/min (pulse is 0.001mm)
Max Program Line	1000
Max Program	99
Axis	1-4 (X,Y, Z,C) X,Y,Z,C axis can conduct linear interpolation, X,Y can do circular interpolation
External Manual Operation	motor clockwise and counter clockwise spinning, start, pause, alert and stop
	USB Importing program and boot picture Isolated I/O port RAM 128M Isolated I/O port G code and M code One panel MPG English panel display & manual
Warranty	One year

Application fields:

Slid platform, milling machine, drilling machine, textile, weld, machine hand, robot, etc

Technical Support:

(1) Products from the factory to provide one year free after sales warranty, life time free technical support.

(2) free English manual and Software can be available.

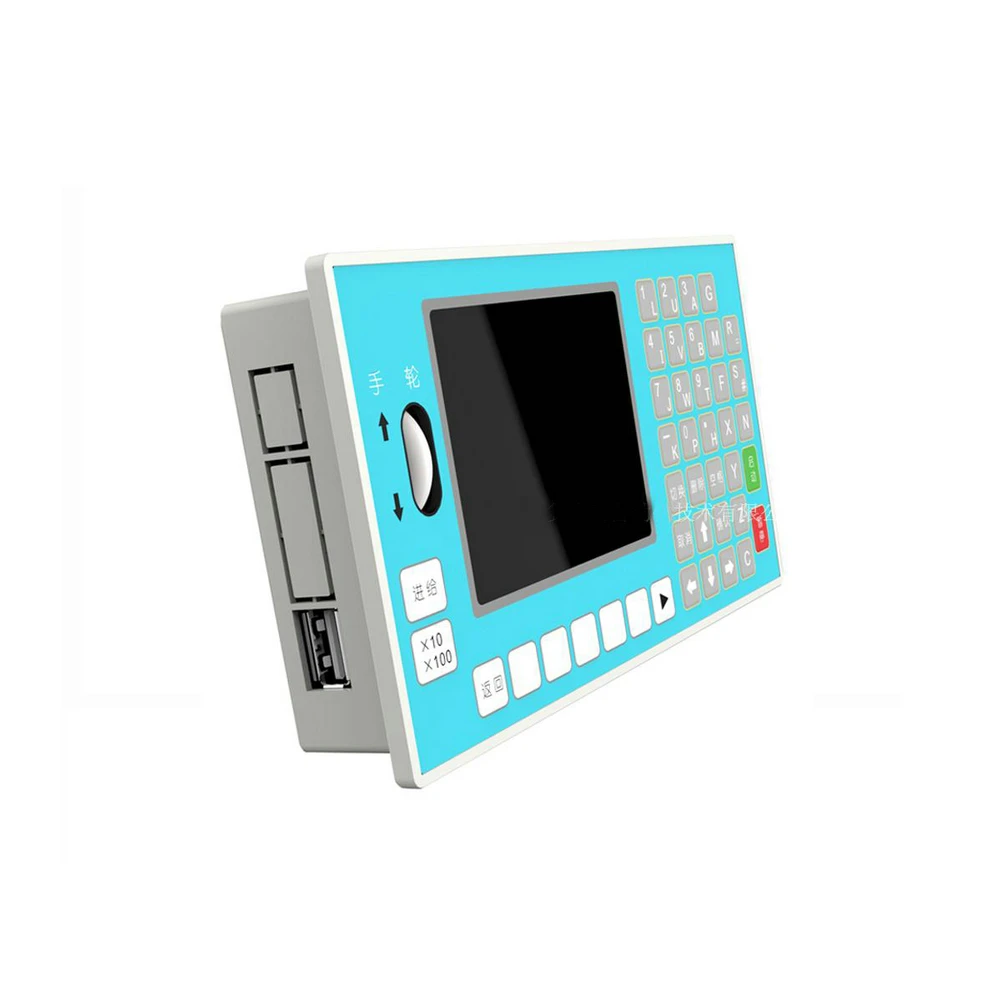

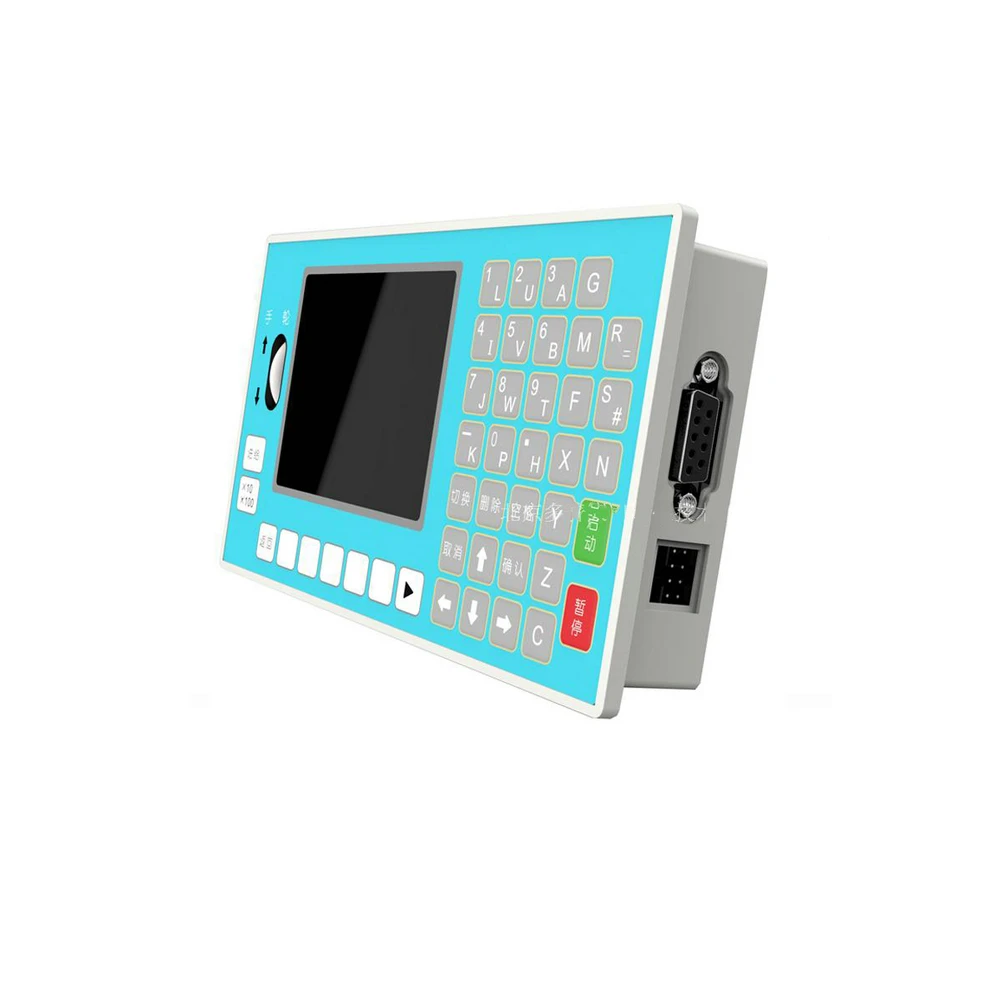

Product photos:

TC5510H (1).jpg TC5510H (2).jpg TC5510H (3).jpg TC5510H (4).jpg TC5510H (5).jpg TC5510H (6).jpg
