Kaishan Brand KT12 High Pressure Down The Hole Surface Blasting Drilling Rig Mini Drill Customized 115 152 CN;ZHE 15000 265
- Category: >>>
- Supplier: Shaanxi Kaishan Mechanical & Electrical Equipment Co. Ltd.
Share on (60637330163):
Product Overview
Description
Product Description

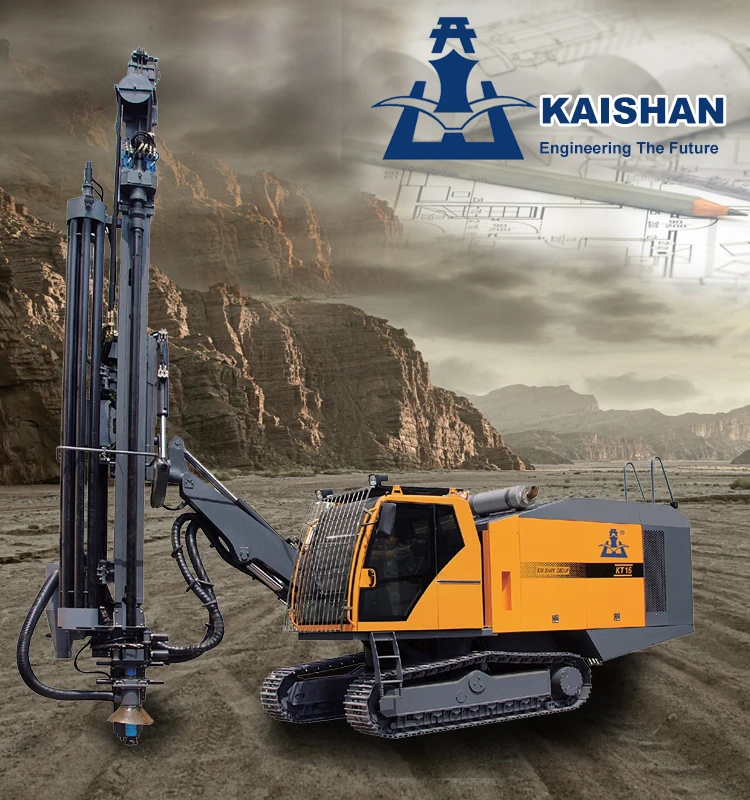

Kaishan KT12 integrated surface DTH drilling rig is a new drilling device which is carefully designed for large open-pit mine based on our development and production of DTH drilling rigs for many years.
The drilling rig is hydraulically driven to complete walking, propelling, rotation and angle adjustment with strong power.
The drilling rig is equipped with high pressure screw compressor head and high pressure pneumatic hammer to generate high drilling efficiency; it is also equipped with hydraulic dry type dust collector to collect dust, so as to reduce pollution to the environment.
The drilling rig features good integrity, high level of automation, high drilling performance, environmental protection and energy saving, easy operation, flexibility and safe driving, etc.
The drilling rig is hydraulically driven to complete walking, propelling, rotation and angle adjustment with strong power.
The drilling rig is equipped with high pressure screw compressor head and high pressure pneumatic hammer to generate high drilling efficiency; it is also equipped with hydraulic dry type dust collector to collect dust, so as to reduce pollution to the environment.
The drilling rig features good integrity, high level of automation, high drilling performance, environmental protection and energy saving, easy operation, flexibility and safe driving, etc.
Technical Parameters of KT12 Integrated Surface DTH Drilling Rig | ||
Rock rigidity | f=6-20 | |
Drilling diametermm | 115-152 | |
Economic drilling depth(Auto Post Depth)m | 28 | |
Travel speed Km/h | 0-3 | |
Climbing capacity° | 25° | |
Ground clearancemm | 420 | |
Total Power Kw | 265 | |
Diesel | QSL8.9-C360-30 | |
Capacity of screw compressor m3/min | 19 | |
Max. Working pressure of screw compressor bar | 19.5 | |
Working pressure of screw compressor bar | 19.5 | |
Dimensions (long×width×high)mm | 9100×2450×3200 | |
Weight Kg | 15000 | |
Rotation speed r/min | 0-100 | |
Rotary torque N*m | 3200 | |
Max. feed force N | 65000 | |
Guide tilt | 125° | |
Guide swing | Right97°Right33° | |
Boom swing | Right42° left15° | |
Frame balance angle | Up10° down10° | |
Feed length at a timemm | 5000 | |
Compensation lengthmm | 1800 | |
Hammer | 55A | |
Drill rod(φDiameter×Drill rod length )mm | φ89×5000/φ102×5000 | |
Dust catching method | Dry-type (hydraulically driven whirlwind layer flow type) /Wet (optional) | |
Rod loading method | Auto rod-loading | |
Automatic anti-sticking method | Electro-hydraulic control to prevent sticking | |
Lubrication method of drill rod | Automatic splash lubrication | |
Drill rod thread protection | Equipped with float joint to protect the drill rod thread | |
Drilling display | Real-time display of drilling angle and depth | |
Recommend Products
Company Profile
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2007. There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Compressor,Drilling Rig,Drill Bit,Spare Parts
4. why should you buy from us not from other suppliers?
1.The biggest air compressor manufacture in China
1.More than 50 years air compressor& drilling rig manufacture.
2.Full experience of mine and industrial projects.
3.Professional and strong after - sales team.
4.Design as customer's requirement.
5.OEM
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
