Product Overview
Description

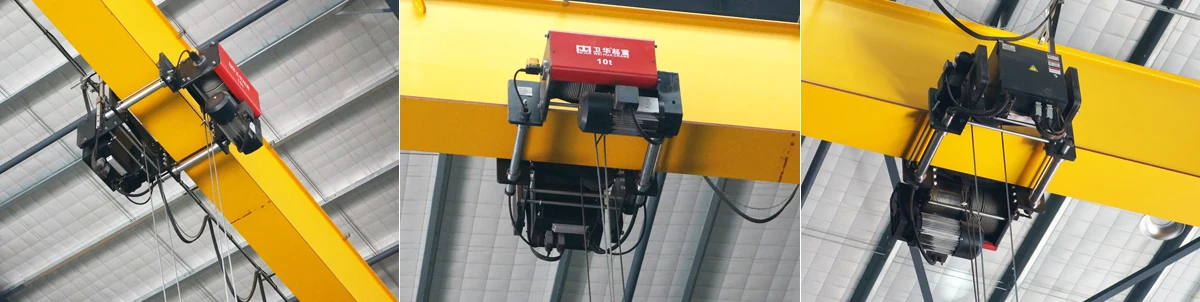

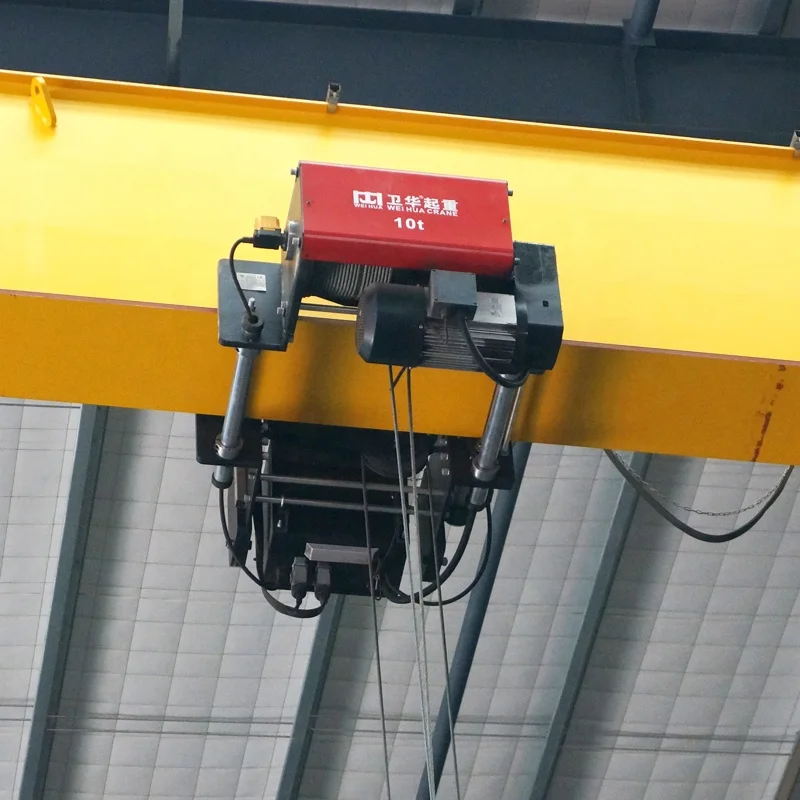

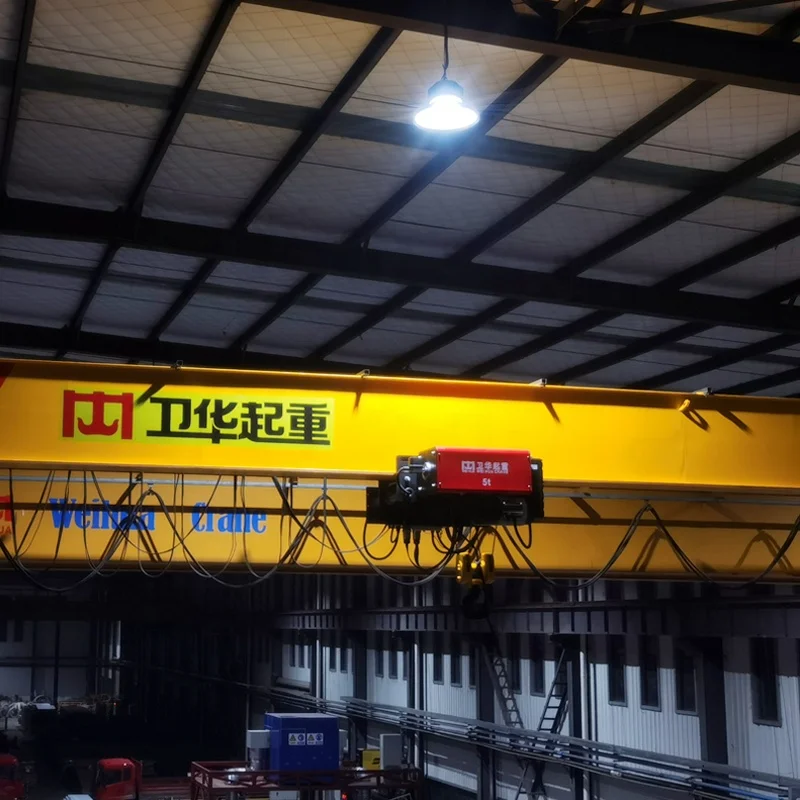

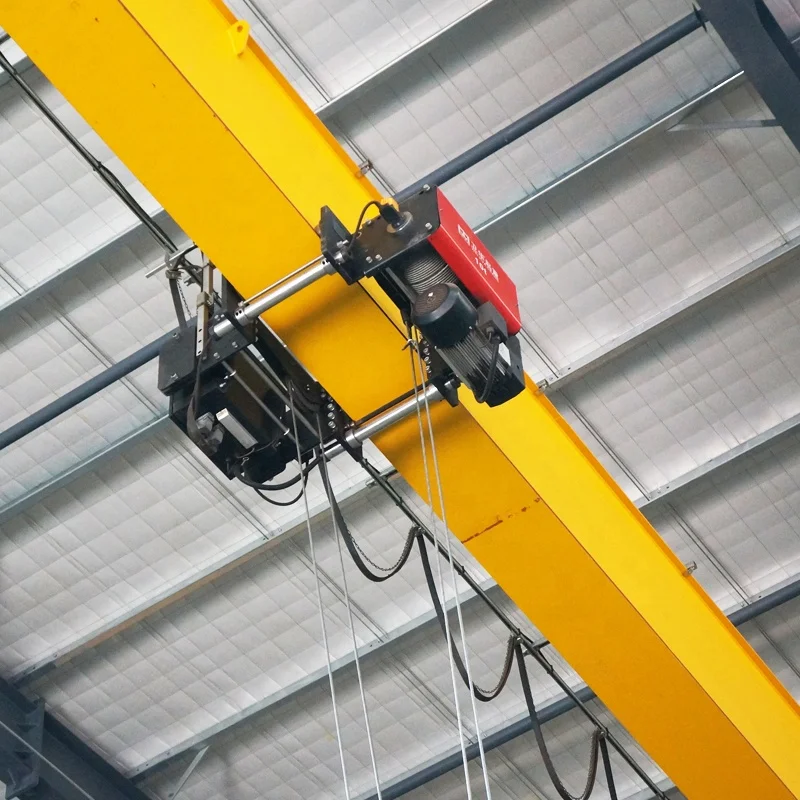

WEIHUA light duty 5ton European Type Mobile Trolley Wire Rope Electric Hoist
Product Description

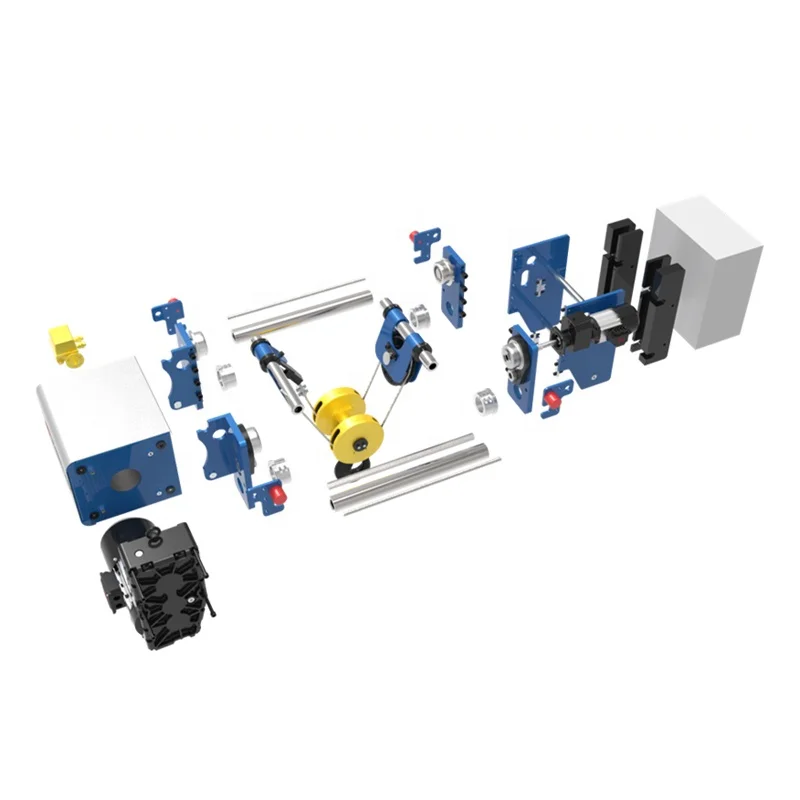

WHL Type 5ton euro type mobile electric hoist is a new generation series which is fabricated according to GB and FEM standards.
There are four structural designs available for users to choose: Low Headroom type, Standard Headroom type, Hoist Trolley type and Fixed type.
Characteristics of WHL 5ton euro type mobile electric hoist:
1, Modular design concept;
2, Autonomous and controllable design concept of core technology;
3, Low headroom and compact design concept;
4, light duty design concept;
5, Beautiful and high-performance appearance;
6, Maintenance-free design concept;
7, Energy saving and environmental protection design concept;
8, Strong, sturdy and safe design concept;
9, Intelligent and remote operation and maintenance design concept.
Notes: If you want to ask any questions about this product directly with us, pls click here !
Specification
Parameters of Low Headroom Type:
| Lifting capacity (t) | Work Duty | Lifting Speed (m/min) | Lifting Height (m) | Number of Falls | Traveling Speed (m/min) | Adapted Rail Width (mm) | Hook Upper Limit (mm) | Power Supply |
| 3 | M5 | 5/0.8 | ≤24 | 4/1 | 2-20 | 200-350 | 550 | 3 phase 380V 50Hz or design |
| 5 | M5 | 5/0.8 | ≤24 | 4/1 | 2-20 | 200-450 | 650 | |
| 10 | M5 | 5/0.8 | ≤24 | 4/1 | 2-20 | 200-550 | 650 | |
Parameters of Hoist Trolley Type:
| Lifting Capacity(t) | Work Duty | Lifting Speed (m/min) | Lifting Height(m) | Number of Falls | Traveling Speed (m/min) | Height of Trolley (mm) | Hook Upper Limit (mm) | Power Supply | |
| 5 | M5 | 5/0.8 | ≤24 | 4/1 | 2-20 | 500 | 330 | 3 phase 380V 50Hz or design | |
| 10 | M5 | 5/0.8 | ≤24 | 4/1 | 2-20 | 605 | 520 | ||
| 16 | M5 | 3.3/0.53 5/0.8 | ≤24 | 6/1 4/1 | 2-20 | 700 | 860 | ||
| 20 | M5 | 4/0.67 5/0.8 | ≤24 | 4/1 | 2-20 | 670 | 800 | ||
| 32 | M5 | 3.3/0.5 5/0.8 | ≤16 | 6/1 8/2 | 2-20 | 750 | 975 | ||
| 40 | M5 | 5/0.8 | ≤24 | 8/2 | 2-20 | 720 | 1075 | ||
| 50 | M5 | 3.3/0.5 | ≤20 | 12/2 | 2-20 | 770 | 1100 | ||
| 80 | M5 | 2.5/0.4 | ≤20 | 16/2 | 2-20 | 785 | 1150 | ||
Notes: If you want to ask any questions about this product directly with us, pls click here !
Company Information
Packaging & Shipping
Customer Visit
FAQ
1, What information should I provide to get the price?
Specific parameters such as lifting capacity, lifting height, span, cantilever length, power supply voltage, control method, etc. And if you can give us your design drawing, that will be very helpful to get an quotation.
2, Which kind crane can you provide?
Weihua is a leading manufacturer with experienced designers, engineers and a 600- people R&D team to design and manufacture industry crane with your customized parameters, not include truck crane and tower crane.
3, What services can you provide?
We have a complete pre-sales&after-sales service system, and our engineers and installation team are available overseas to guide insite installation and comissioning.
4, Which brand are the crane parts and components?
We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have the world's leading machining, forging and welding machinery and processes.
5, Do you sell crane accesorries?
Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, busbar and so on.
Notes: If you want to ask any questions about this product directly with us, pls click here!
