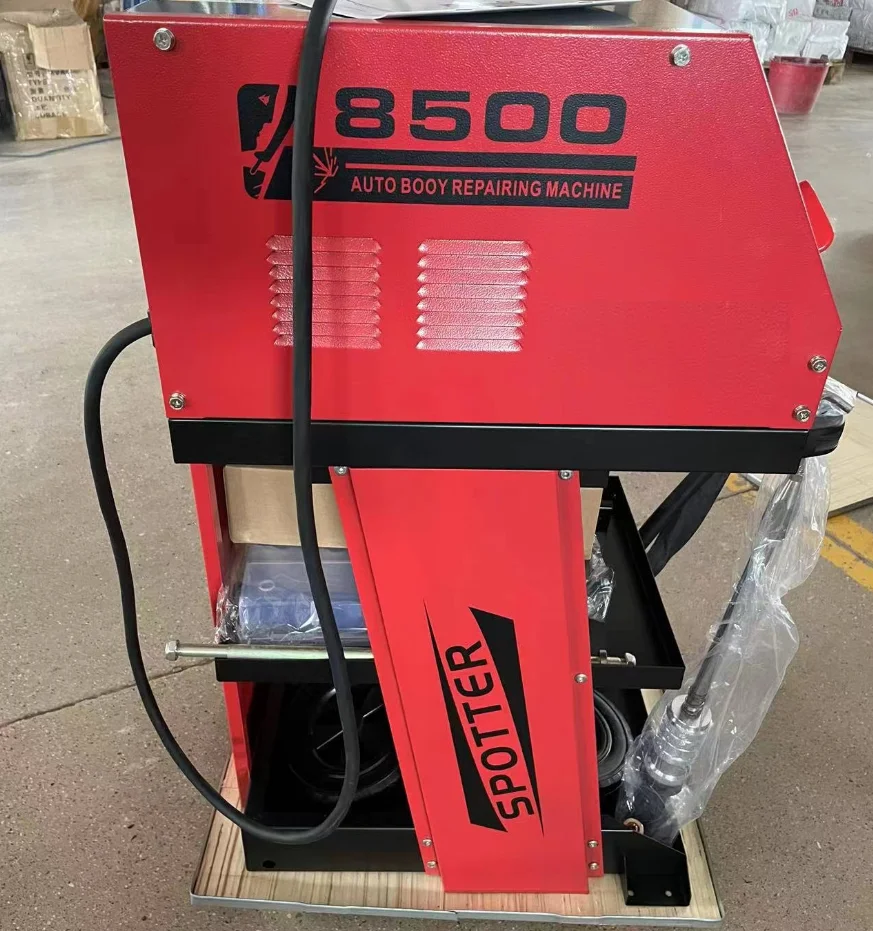

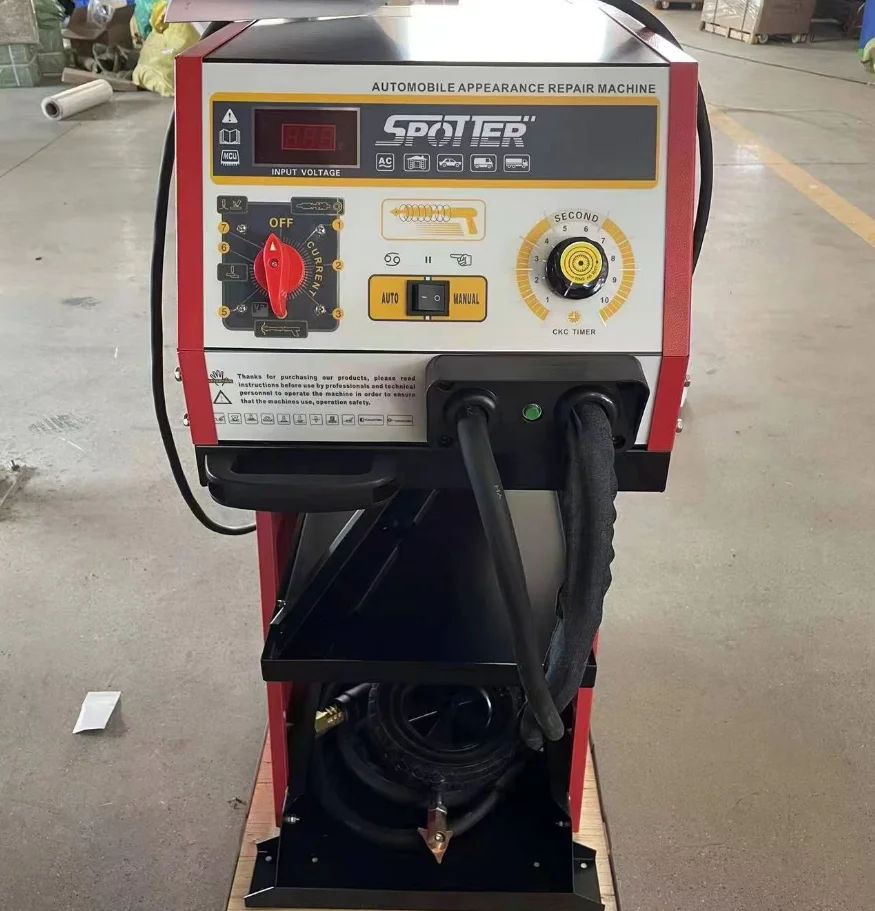

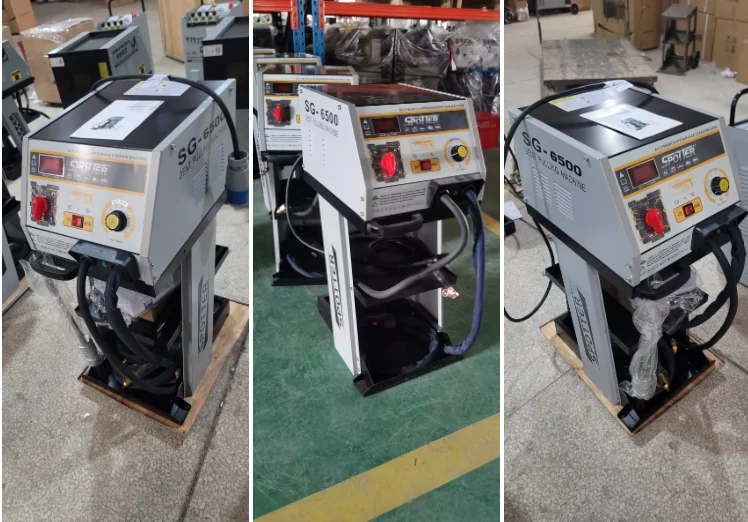

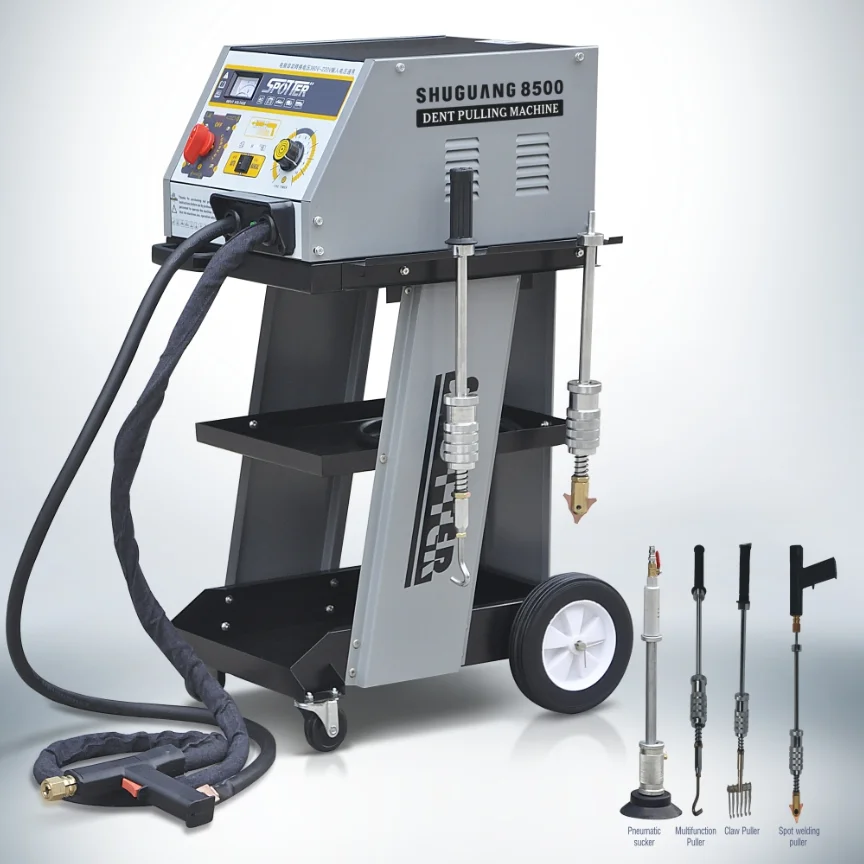

Auto paintless dent repair, spot welder machine with dent puller

Product Overview

Description

 Auto paintless dent repair, spot welder machine with dent puller





Technical Parameters



TYPE	SG-6900	SG-7900	SG-8900
INPUT VOLTAGE	2PH380V	2PH380V	2PH380V
FREQUENCY	50Hz	50Hz	50Hz
RATED POWER	4KVA	4.5KVA	5KVA
FLOATING VOLTAGE	10V	12V	12.5V
WELDING CURRENT	200-6900A	200-7900A	200-8500A
MAX OUTPUT POWER	18KVA	19KVA	20KVA
DUTY CYCLE	15%	15%	15%
RATED GRADE
AUTOMATIC WORKING TIME	0.1--1S	0.1--1S	0.1--1S
DIMENSIONS(LxWxH)	420x500x1200mm	420x500x1200mm	420x500x1200mm
WEIGHT	40KG	43KG	45KG

 Auto paintless dent repair, spot welder machine with dent puller

Functions And Features



The spot welder features: easy maneuverability, simple operation and high output power. The welder can be used for a wide variety of applications, such as dent pulling, carbon heating and shrinking, single-sided spot welding, stud bolt welding, sheet plate cutting and sheet metal welding. Using this versatile welder in body repair work, panels will need to be replaced less frequently and repair jobs will be completed in a shorter space of time.

Microprocessor control system optimizes the welding parameters. User friendly design, all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality

1.  Automatic mains voltage monitoring

2.The welding gun testing function evaluates the usage status of the welder more comprehensively

3.  Overheating protection

4.  High precision time and power adjustment system

5.  Complete with triangle washers for dent pulling

6.  Various welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening, wavy wire welding, stud welding, OT washer welding, triangle washer welding etc

7.  Digital display

8.  Large pulling hammer and waveform wire welding

9. With several welding currents to choose from

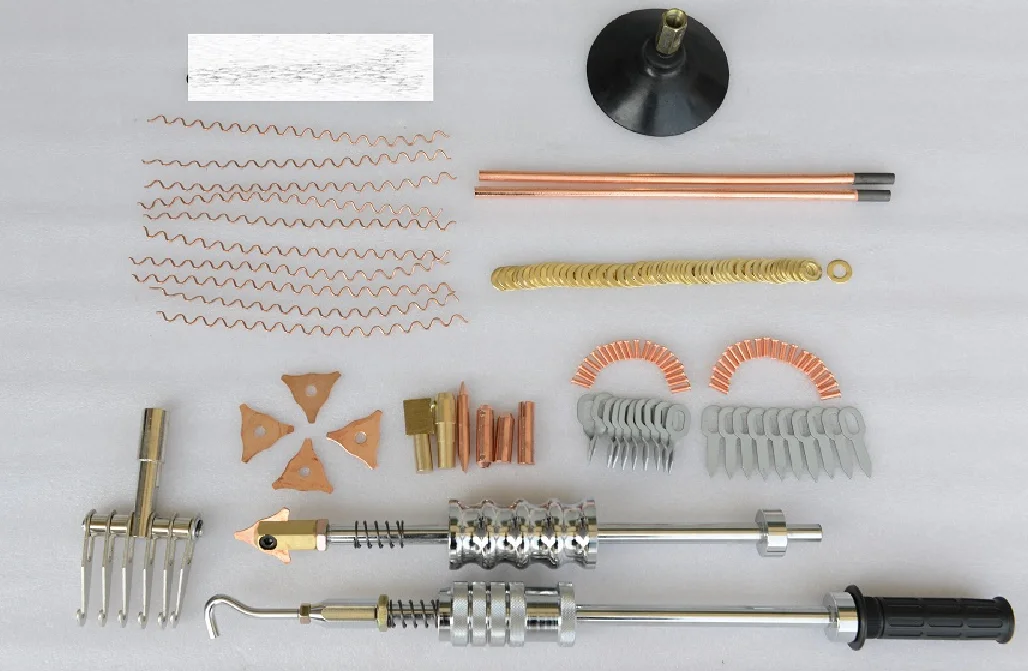

Standard  Accessories



MULTIFUNCTION  PULLER	1	PC		1-SIDE WELDING HEAD	1	PC
MULTI-CLAW PULLER	1	PC		ROUND WASHER	10	PC
EARTH CLAMP	1	PC		TRIANGLE WASHER	5	PC
TRIANGLE WASHER PULLER	1	PC		CARBON ROD HEAD	1	PC
CARBON ROD	2	PC		HOST	1	PC
CASTOR	4	PC		INSTRUCTIONS	1	PC
WAVEFORM SOLDER WIRE	5	PC		WARRANTY CARD	1	PC
WASHER WELDING HEAD	1	PC
