HK 6B Multi Function Continuous Type Automatic Welding Carriage
- Category: >>>
- Supplier: Nanning Chuanjun Welding Hardware Co. Ltd.
Share on (60637681565):
Product Overview
Description
Automatic welding carriagebetty

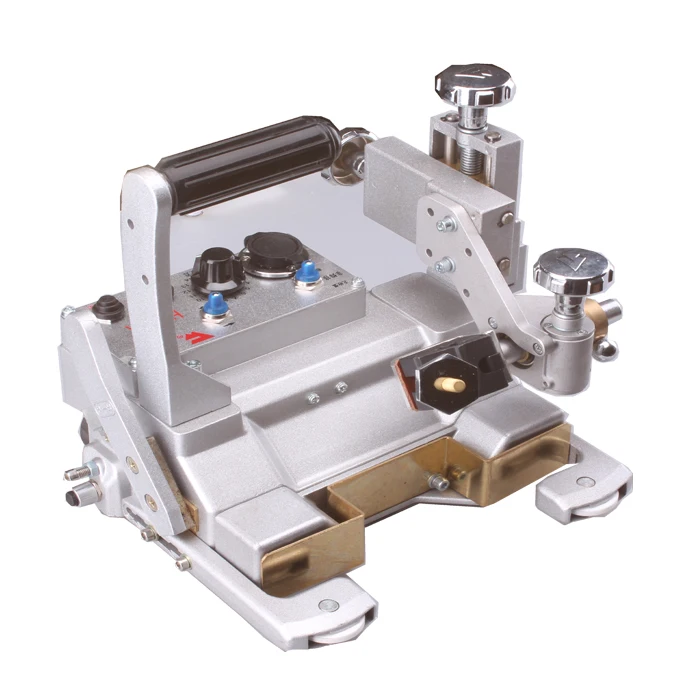

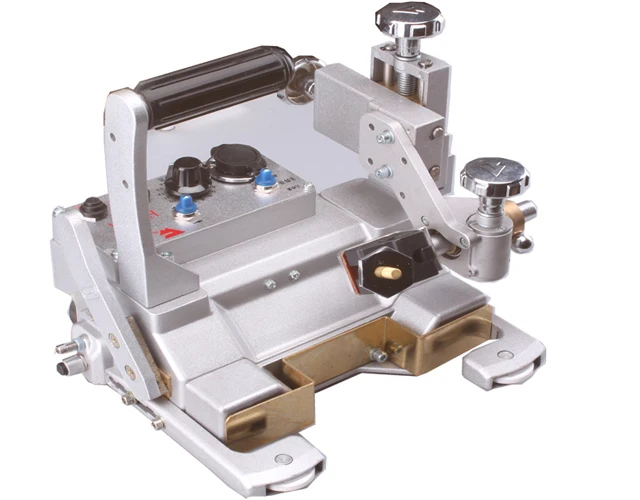

HK-6B multi-function continuous type automatic welding carriage
Product Description

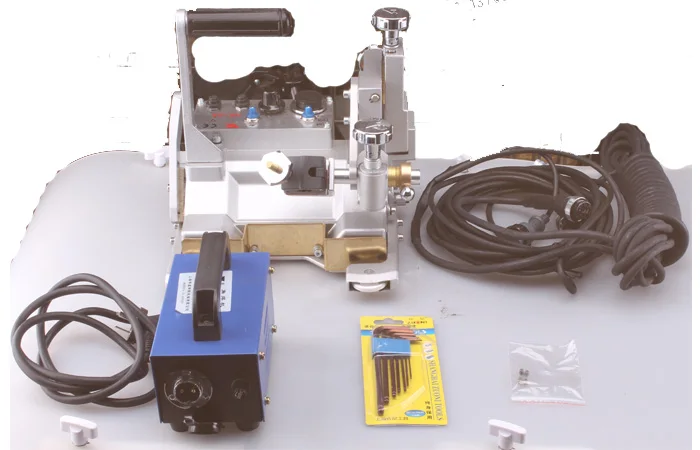

The HK-6B is made up of the body of the barrow,X-Y gliding block,directive wheel,inductive switch in the torch,magnetron hand grip,and control casing and so on.

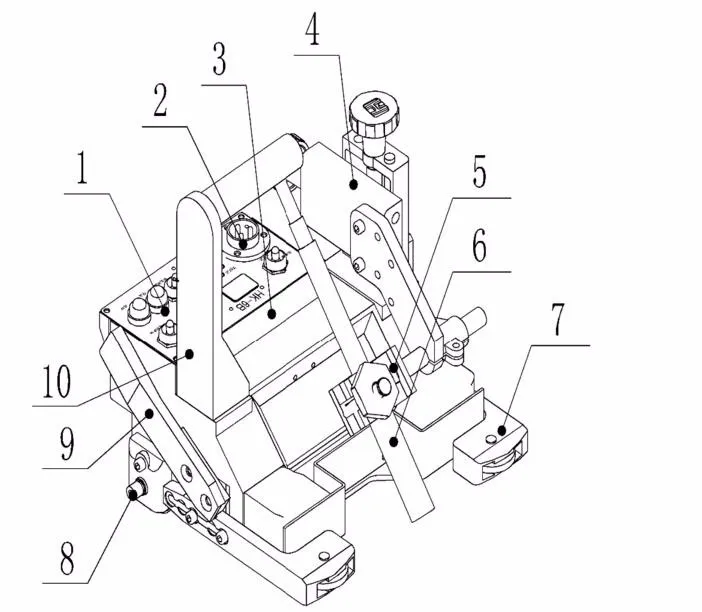

Detail Description
1. Driving part: the device for driving the barrow is composed of four rubber rims,angle gears, catena and rag wheels

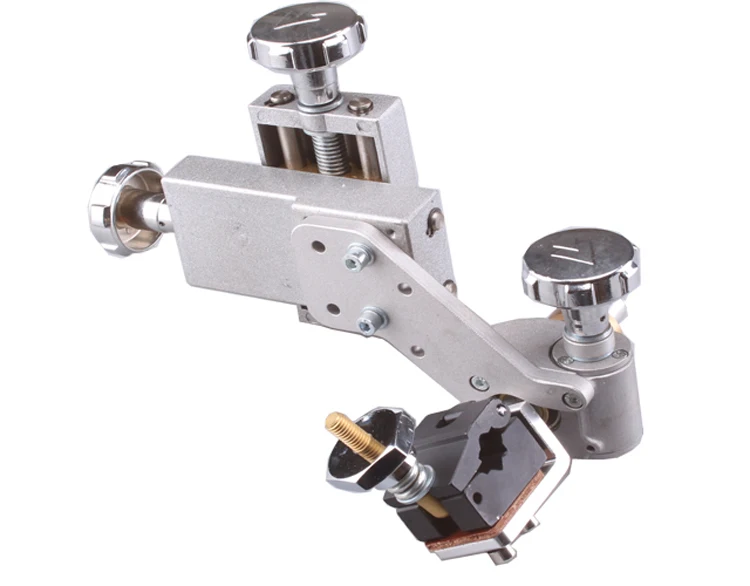

2. X-Y gliding block: the device for adjusting the position of the torch, and fine turning for up ,down, left and right.
3.Welding torch clip: the device for fixing the torch.
4.Directive wheel: the device that is rolling on the surface of the base mental as a guide to the correct welding position.
5.Magnetron hand grip: the device for the convenience of fixing and shifting the barrow .
6.Control casing: adjust all the actions of the barrow, there are details in the control panel illustration section.
7.Magnet: The permanent-magnet can prevent the barrow from getting away from the sealing wire.
8.Inductive stop switch: the barrow automatically stops when welding the end of the work piece.
Specifications
1 Weight | 6.9 kg | |
2 Dimension | 260mm×260mm×264mm | |
3 Shifting | Four-wheel drive(Rubber rim) | |
4 Traction | 16kg | |
5 Speed of travel | 100~1000 (mm/min) | |
6 Rang for adjusting torch | 1) Up and down | 45mm |
2) Font and back | 45mm | |
3) work angle | 44°~55° | |
4) processing angle | ±10° | |
7 Setting of runoff time | O~7S | |
8 welding torch | bend or straight | |
9 welding torch locking device | applied to bend or straight torch | |
10 No welding length | the front:127 mm the end :127 mm | |
11 locate function | both end side is equipped with located witches | |
Welding parameter
welding wire diameter welding parameter | Φ1.2mm | Φ1.4mm | Φ1.6mm | |
current(A) | Down hand welding | 120-300 | 150-380 | 180-430 |
flush fillet welding | 120-280 | 150-320 | 180-380 | |
horizontal welding | 120-280 | 150-300 | 180-330 | |
voltage(U) |
| |||
distance between nozzle and workpiece(H) |
| |||
welding extension length(L) | The length is about 10 times welding wire diameter. It is L=10d | |||
