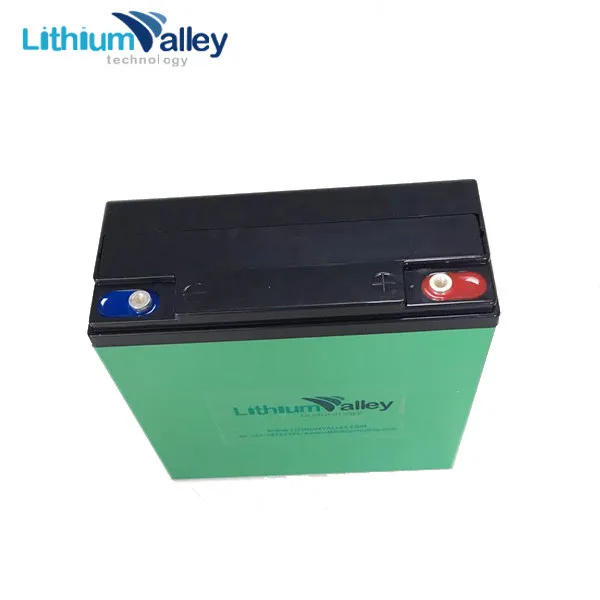

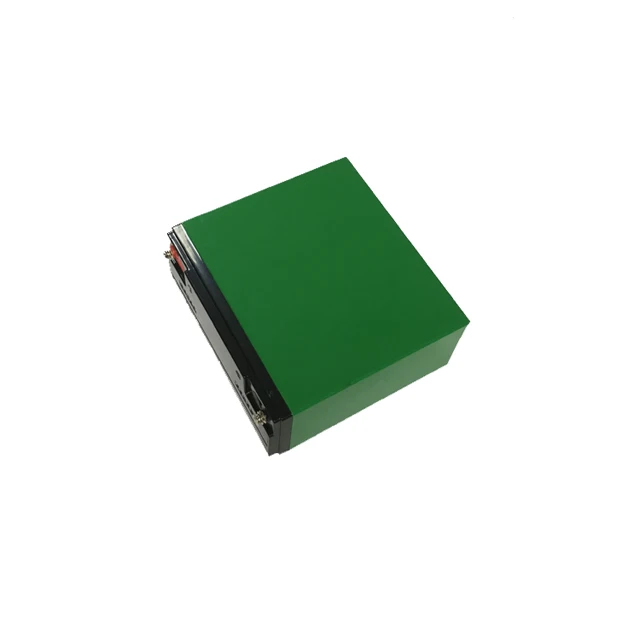

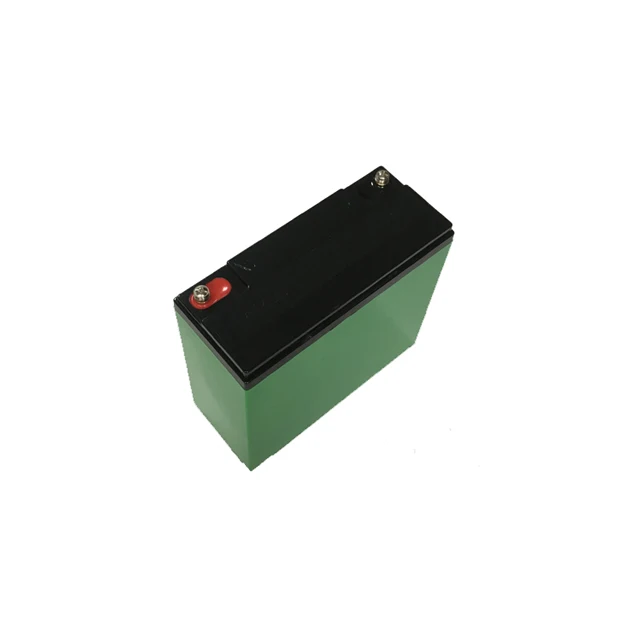

Lithium ion Customized rechargeable 12V 20AH lifepo4 battery packs For Back up Energy Storage
- Category: >>>
- Supplier: Shenzhen Lithium Valley Technology Co. Ltd.
Share on (60637715648):
Product Overview
Description
Products Description
Lithium ion Customized rechargeable 12V 20AH lifepo4 battery packs For Back up Energy Storage | ||||||||
Item | Specification | Note | ||||||
Battery Pack | Nominal Voltage: | 12V | Any voltage can be customized | |||||
Nominal Capacity: | 20Ah | Any capacity can be customized | ||||||
Discharge Cut-Off: | 10V | |||||||
Charge Cut-Off: | 14.6V | |||||||
Charge Current: | 10A | Free customization service | ||||||
Cont. Discharge: | 20A | Free customization service | ||||||
Peak Discharge: | 40A | Free customization service | ||||||
Impedance: | ≤20mΩ | |||||||
Charge Temperature: | 0℃ - 45℃ | |||||||
Discharge Temperature: | -20℃ - 60℃ | |||||||
Charge Method: | CC/CV | |||||||
Life Cycle: | 2000+ | 80% DOD, Max. 95% DOD | ||||||
BMS: | With BMS | |||||||
Dimension: | L*W*H: 181*77*175mm | Any dimension can be customized | ||||||
Weight: | 3.5KG | |||||||
Battery Cell Used | Prismatic LiFePO4 Cell | 3.2V 20Ah/10Ah/5Ah | 4S1P/ 4S2P/ 4S4P | |||||
BMS | Single cell overcharge protection voltage | 3.9±0.05V | ||||||
Single overcharge release voltage | 3.6±0.05V | |||||||
Charge Protection | Rated charging current | ≤10A | ||||||
Over discharge protection | Single cell over-discharge protection voltage | 2.20±0.1V | ||||||
Single-substrate release voltage | 2.7±0.1V | |||||||
Rated discharge current | ≤20A | |||||||
Discharge protection current | 100±10A (10mS) | |||||||
Short circuit protection | Short circuit protection | 200-600 µs | ||||||
Communication Function | Support | Confirm with supplier | ||||||
Balance | Active cell balancing | Confirm with supplier | ||||||
LED Indicator | / | / | ||||||
Battery Case | ABS plastic case | / | ||||||
IP Grade | IP65 | |||||||

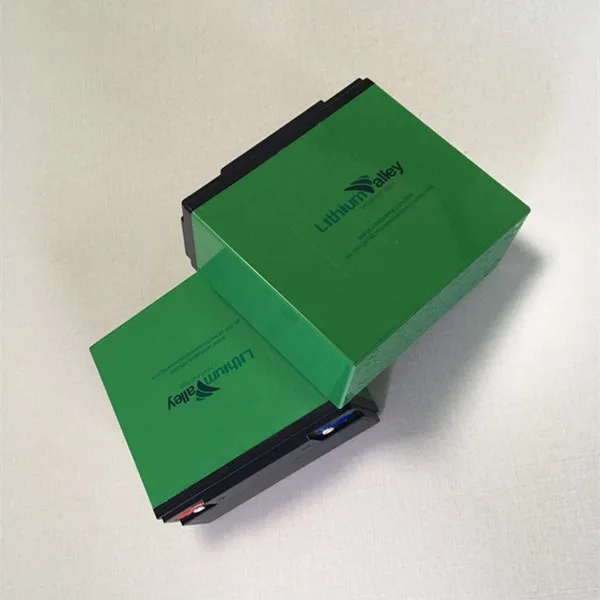

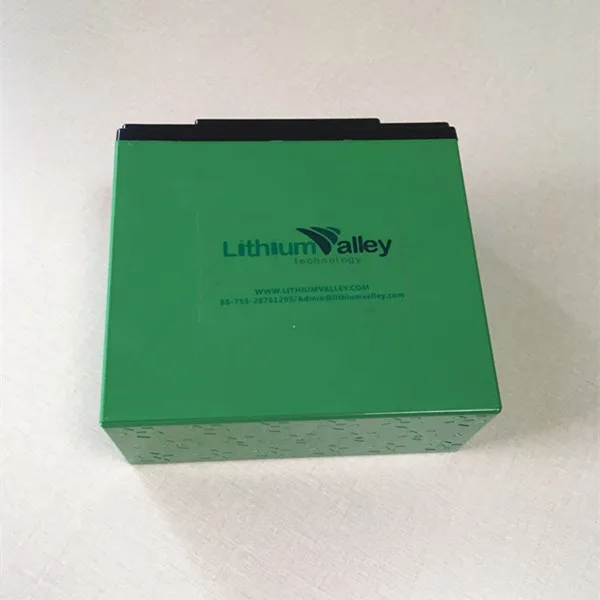

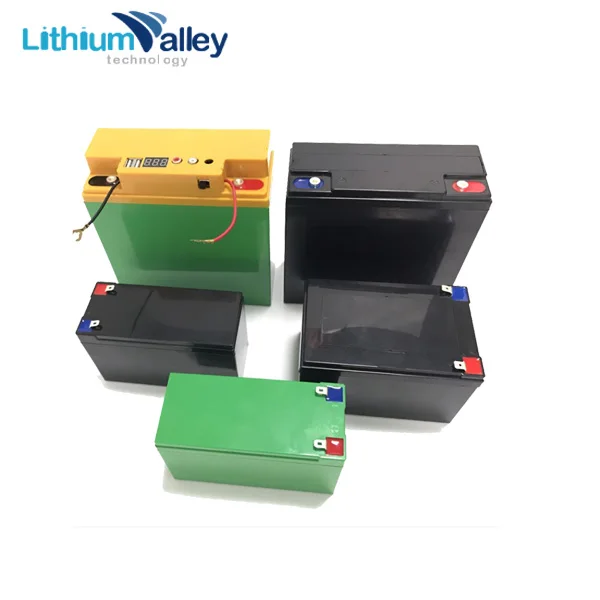

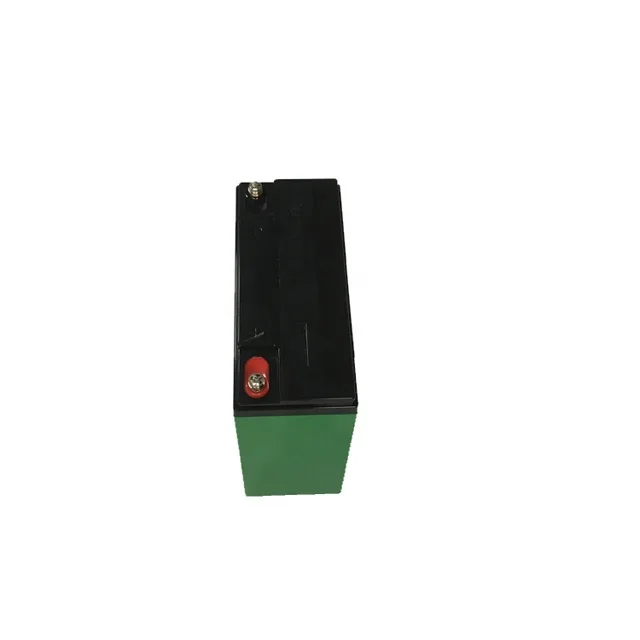

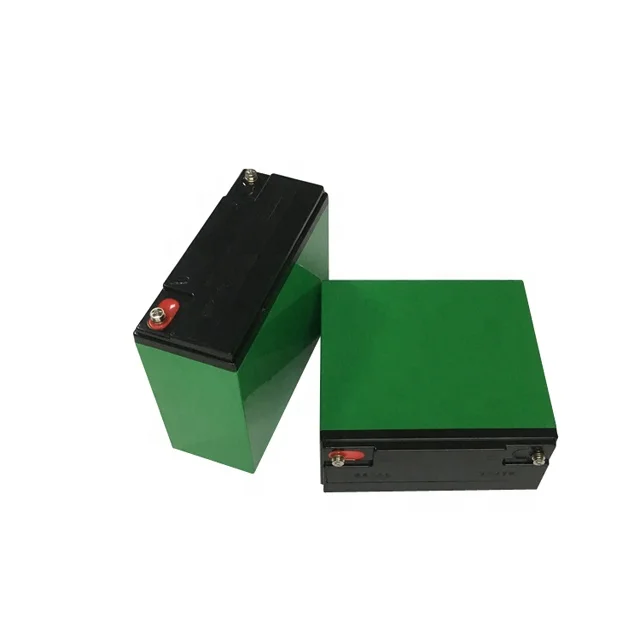

Details Images
Certifications
Related Products
About LiFePO4 Battery
Safety:
LiFePO4 is the safest lithium-ion battery cathode material, not burining and explosion.
Long Cycle Life:
Can be charged and discharged more than 2000 times.
Environmental Protection:
LiFePO4 does not contain any harmful heavy metal elements, pollution-free both in production and actual use.
Packing and Shpping
Shipping:
Delivery support,we can use your own cooperate forwarder or if you do not have cooperate forwarder,we can use our cooperate forwarder.
We are responsible for shipping goods to delivery port on time
We are responsible for shipping goods to delivery port on time
Packing:
Battery with ABS case: Carton box + battery + user manual
Battery with metal case: Wooden box + battery + user manal
Over 1CBM use pallet.
About Us
Lithiuim Valley

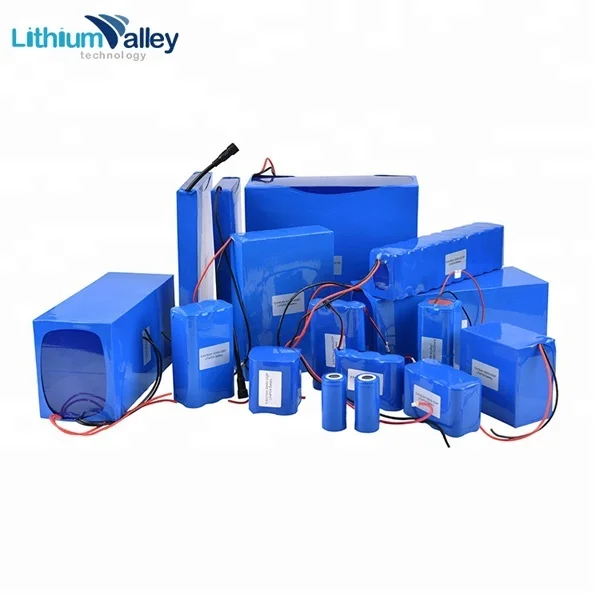

Shenzhen Lithium Valley Technology Co.,Ltd. is a professional manufacturer specializing in development of lithium-ion rechargeable batteries and power systems.
Our company focusing on lithium ion(Li-ion), ferric phosphate Lithium(LiFePO4), lithium titanate(Li-Titanate) battery applications and provide global technical support.

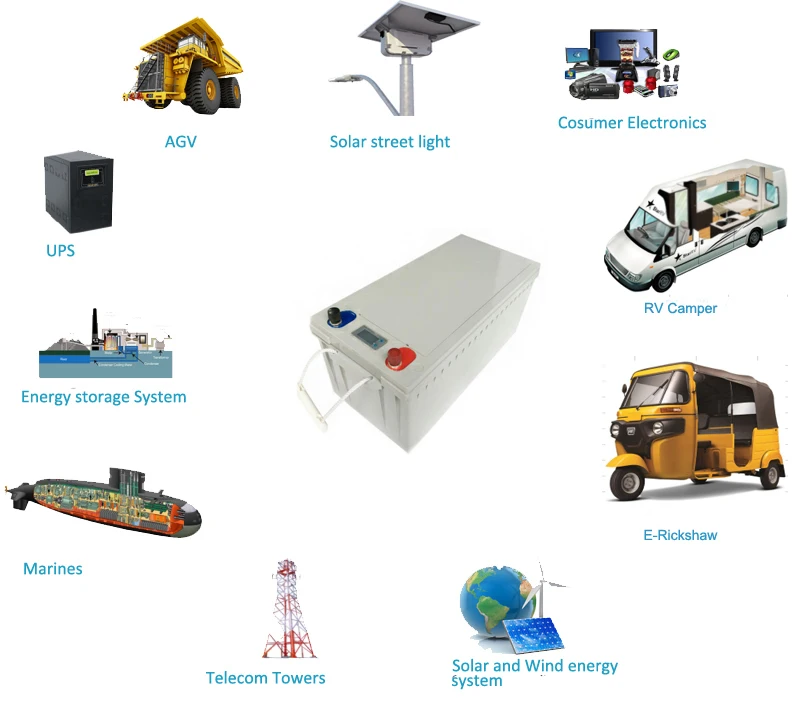

Our products are widely used in solar energy storage system, UPS, communication base energy storage station, low-speed electric vehicles (like electric tricycles, electric motorcycles, electric bicycles), golf carts, yachts, fishing boats, outdoor camping power supply, camping car/ car auxiliary power supply.
With years of design and development experience, and a good quality control system, our company will provide customers with the best energy storage solutions.
Our company focusing on lithium ion(Li-ion), ferric phosphate Lithium(LiFePO4), lithium titanate(Li-Titanate) battery applications and provide global technical support.
Our products are widely used in solar energy storage system, UPS, communication base energy storage station, low-speed electric vehicles (like electric tricycles, electric motorcycles, electric bicycles), golf carts, yachts, fishing boats, outdoor camping power supply, camping car/ car auxiliary power supply.
With years of design and development experience, and a good quality control system, our company will provide customers with the best energy storage solutions.
Our services:
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

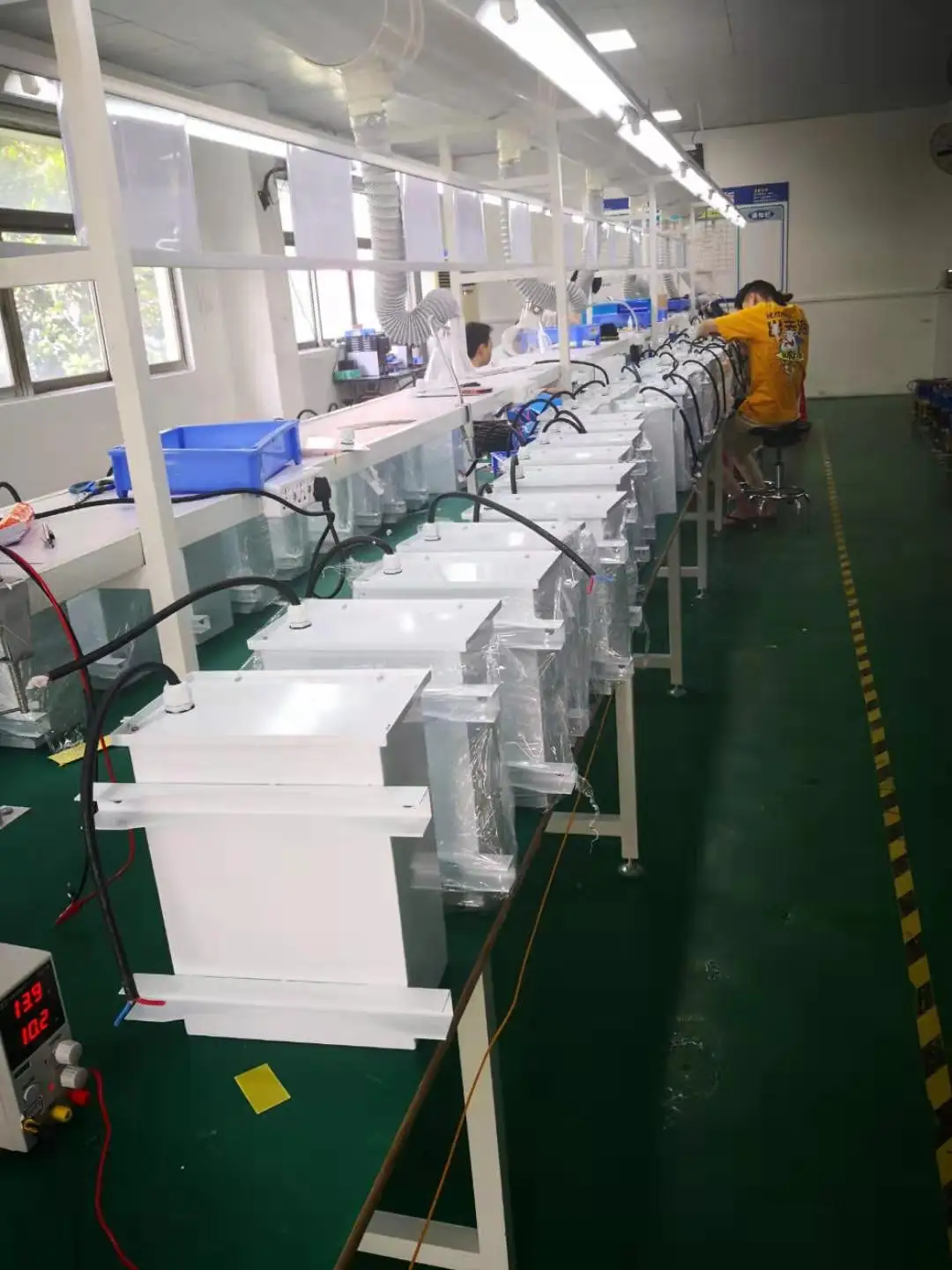

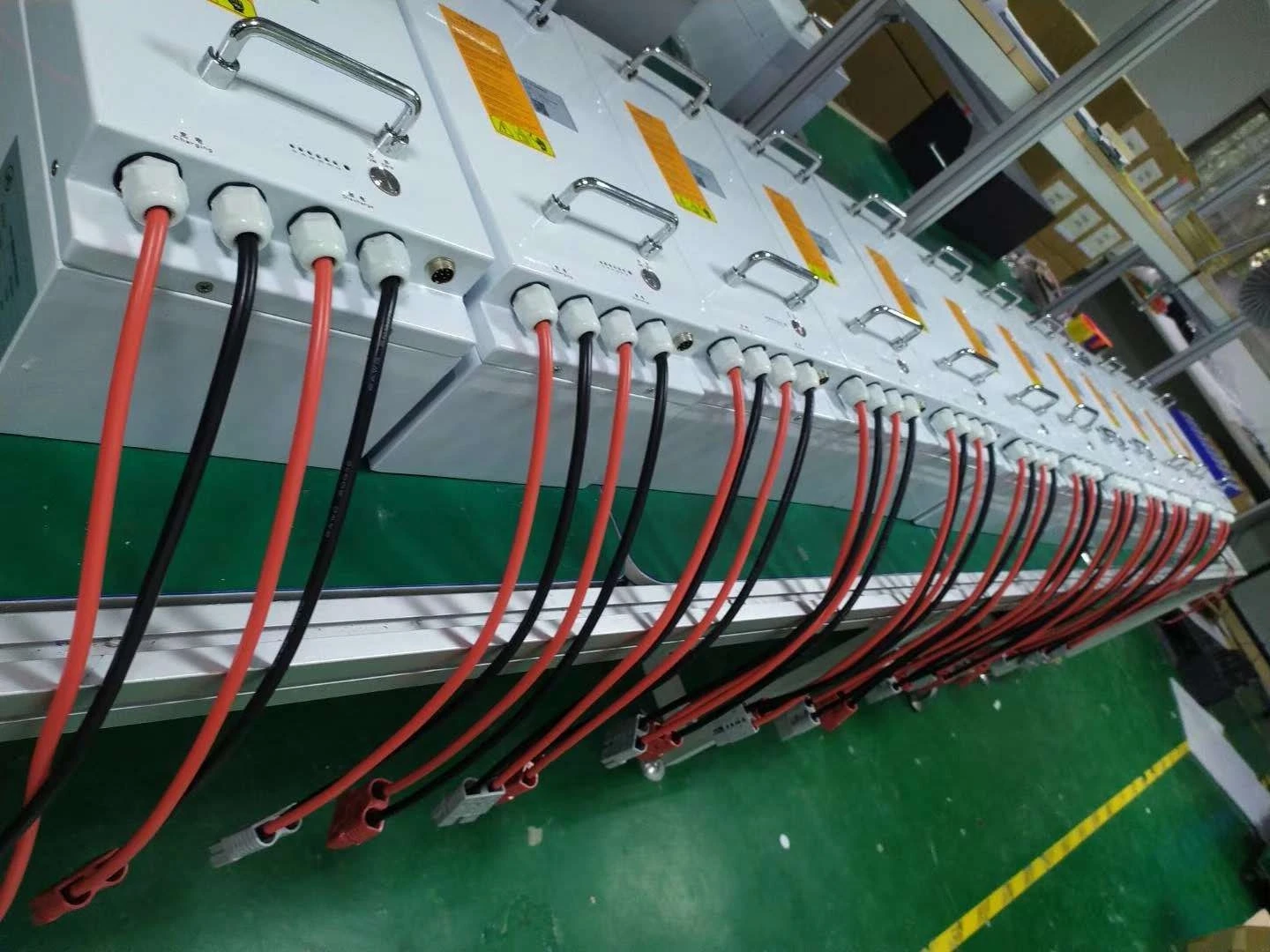

Detection:
We have advanced equipment. "Quality is our culture".
We focus on provide the highest quality products to our customers
We focus on provide the highest quality products to our customers
Our Team:
We trust our technology, our price, quality and after service will let us to be your good business partner and give you
an edge to over your competitors.
We are trusted, as we are professionals!
an edge to over your competitors.
We are trusted, as we are professionals!

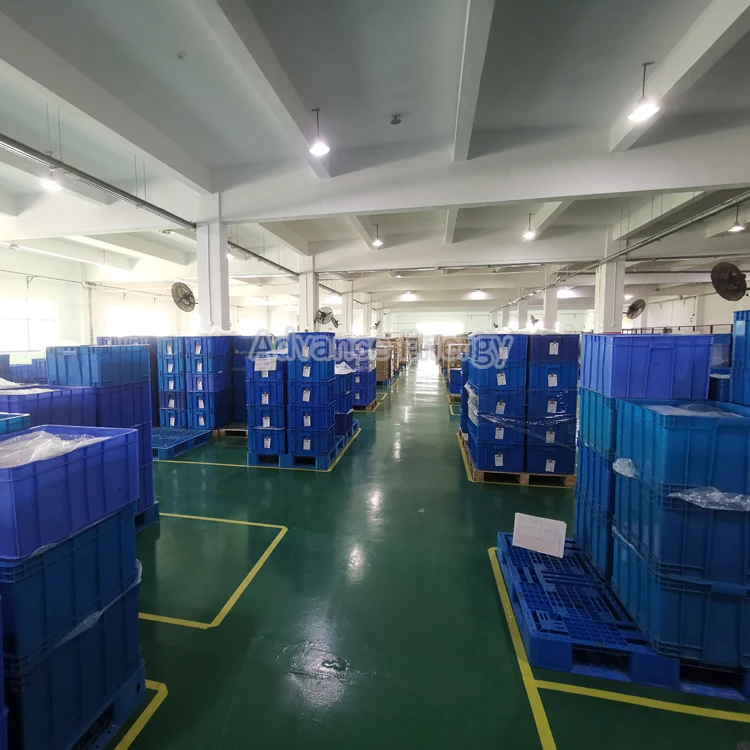

Factory Address:
No.5, Lane 8, Tangxiapu Village, Zhangluo Community, Zhangmutou Town, Dongguan, China.
Headquarters Address:
Room 2018, Huilong Business Center, Minzhi Street, Longhua District, Shenzhen, China. Post code: 518109
FAQ
Q1. Can Shenzhen Lithium Valley Technology Co.,Ltd. ship battery out of China?
R1: Yes, we can ship to any country out of China, you can tell us your address to check.
Q2. How does Shenzhen Lithium Valley Technology Co.,Ltd. ship the LiFePo4 battery packs?
R2: For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for Lithium Valley sales person to check the best option for you.
Q3. Can we put different LiFePO4 battery pack in parallel or series by ourself?
R3: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself.
It may cause danger and hurt the cycle life of battery.
Q4. Can we put different LiFePO4 battery pack in series by ourself?
R4: You can buy big voltage directly from us. We suggest do not out them in series by yourself, it will hurt the cycle life of the
pack.
Q5. Does your battery pack include BMS? Can we use it for car?
R5: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for
standard car directly, that will need more complex design BMS for the pack.
Q6. What is your warranty?
R6: We offer 2 years warranty for all our battery pack. we ensure at least 2000 cycle life for the LiFePO4 battery pack, which
means, after 2000@80% DOD, there will still around 60% capacityt left. You can use it for at least 5 years for normal 1 time
charge and discharge everyday.
R1: Yes, we can ship to any country out of China, you can tell us your address to check.
Q2. How does Shenzhen Lithium Valley Technology Co.,Ltd. ship the LiFePo4 battery packs?
R2: For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for Lithium Valley sales person to check the best option for you.
Q3. Can we put different LiFePO4 battery pack in parallel or series by ourself?
R3: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself.
It may cause danger and hurt the cycle life of battery.
Q4. Can we put different LiFePO4 battery pack in series by ourself?
R4: You can buy big voltage directly from us. We suggest do not out them in series by yourself, it will hurt the cycle life of the
pack.
Q5. Does your battery pack include BMS? Can we use it for car?
R5: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for
standard car directly, that will need more complex design BMS for the pack.
Q6. What is your warranty?
R6: We offer 2 years warranty for all our battery pack. we ensure at least 2000 cycle life for the LiFePO4 battery pack, which
means, after 2000@80% DOD, there will still around 60% capacityt left. You can use it for at least 5 years for normal 1 time
charge and discharge everyday.
